| MEASURE | |
| Rated lifting capacity | 2000kg |
| Full length without fork | 2350mm |
| Full length with fork | 3420mm |
| Full width | 1200mm |
| Height of non-lifting gantry | 2100mm |
| Height of roof protection frame | 1990mm |
| Maximum height during operation | 3750mm |
| Wheelbase (of a vehicle) | 1610mm |
| Min. ground clearance | 100mm |

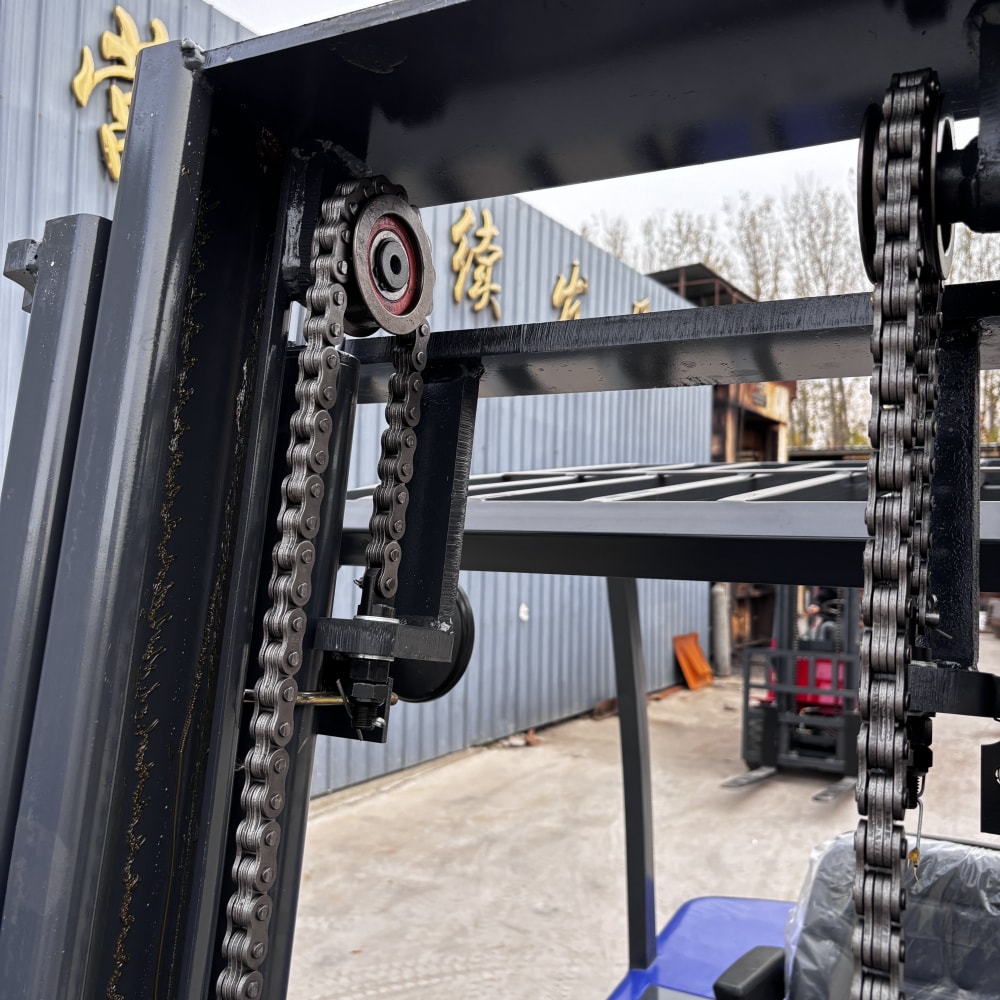

| portal frame | 120mmC |
| ENERGY | |
| Boost motor power | Ac 4.0kw |
| Driving motor power | Ac 4.0kw |

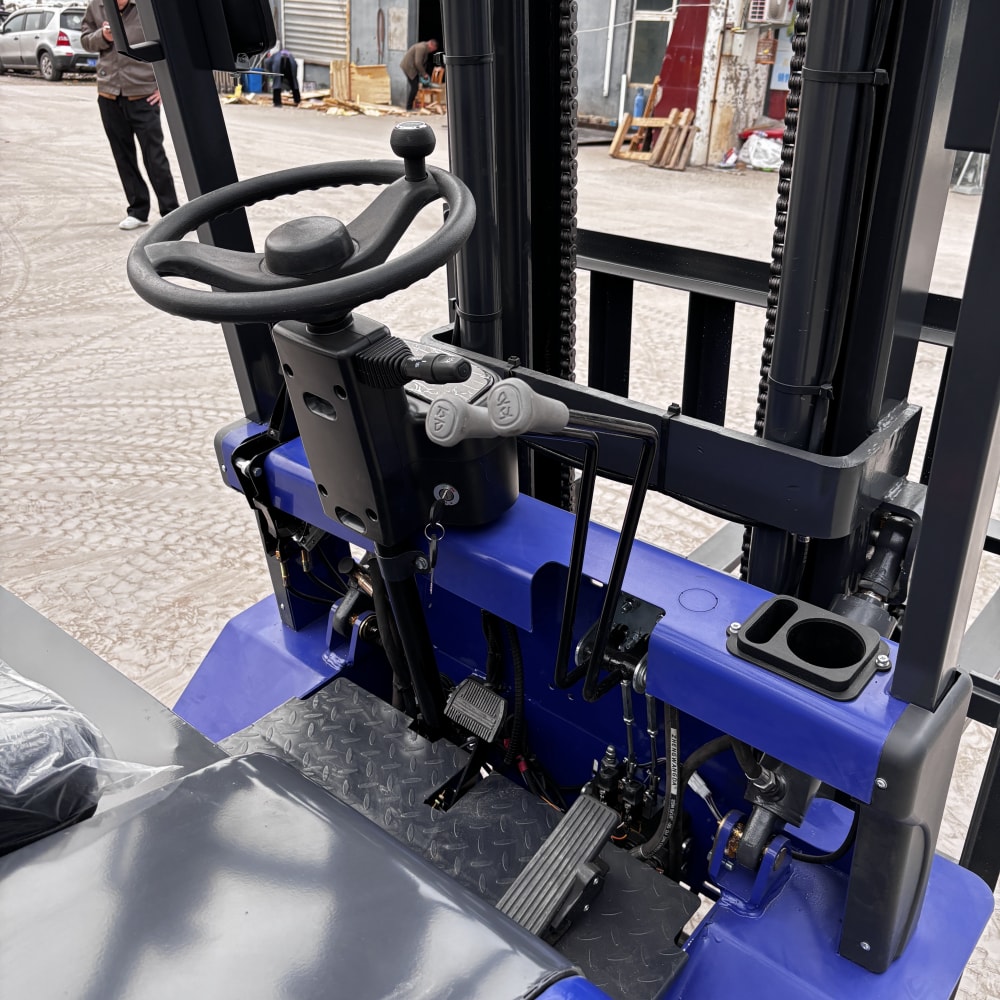

| Steering line type | Hydraulic booster |
| Charger input voltage | 220V |
| Charging time | 7-9h |
| Battery capacity | 100ah |
| rated voltage | 72V |
| Battery brand | CHILWEE |
| Number of batteries | six |
| HOMEWORK | |
| Maximum lifting height under no load | 3000mm |
| Free lifting height | 3000mm |
| Angle of inclination of portal frame (front/back) | 5°/13° |
| Total machine mass under no load | 2600kg |
| No-load maximum hoisting speed (adjustable) | 130mm/s |
| Full load maximum lifting speed (adjustable) | 150mm/s |
| minimum turning radius | 1550mm |
| No-load maximum running speed (adjustable) | 14km/h |
| Full load maximum running speed (adjustable) | 12km/h |
| Full load maximum climbing degree | 15% |
| No-load maximum climbing degree | 20% |
| Load center distance | 650-10 |
| Rear wheel specification | 500-8 |
| OTHER PARAMETERS | |
| driving axle | 220-76 cast steel heavy-duty drive axle |
| Transition bridge | 920-160 cast steel suspension integrated heavy-duty steering bridge |

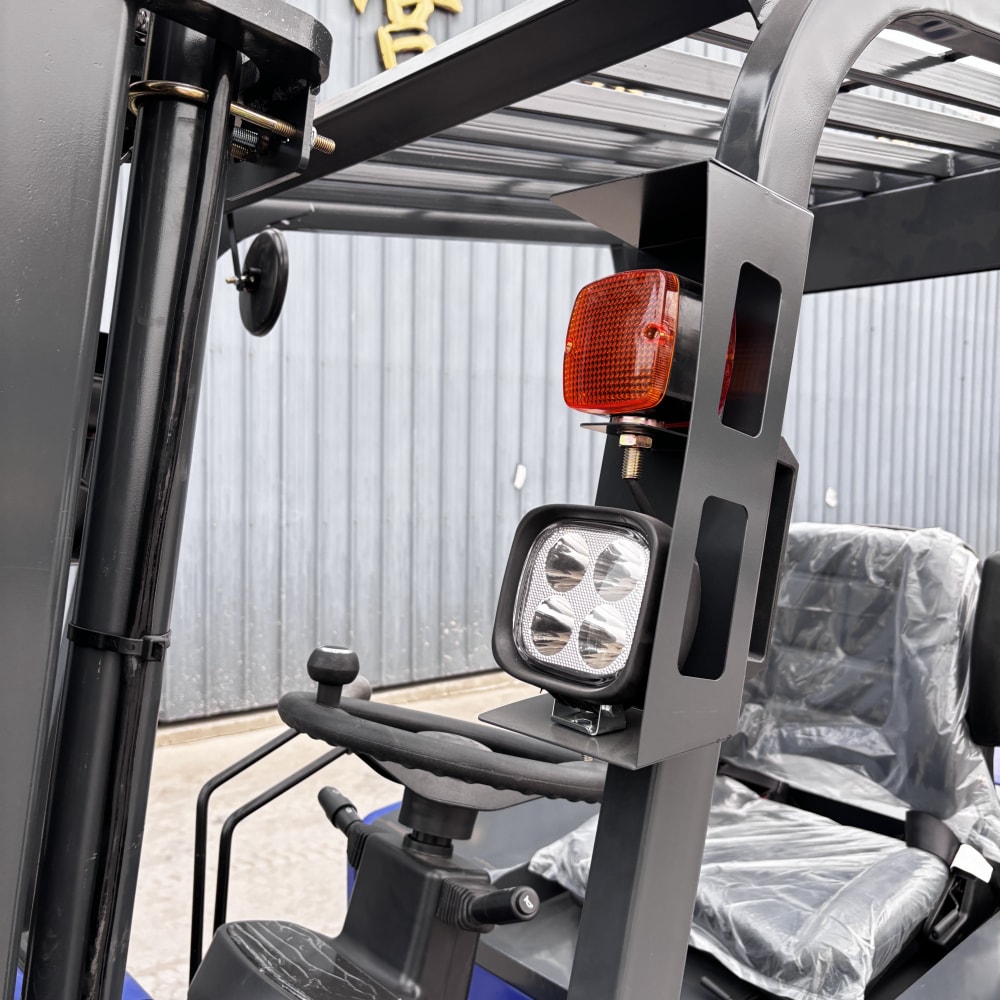

| illuminating system | LED |

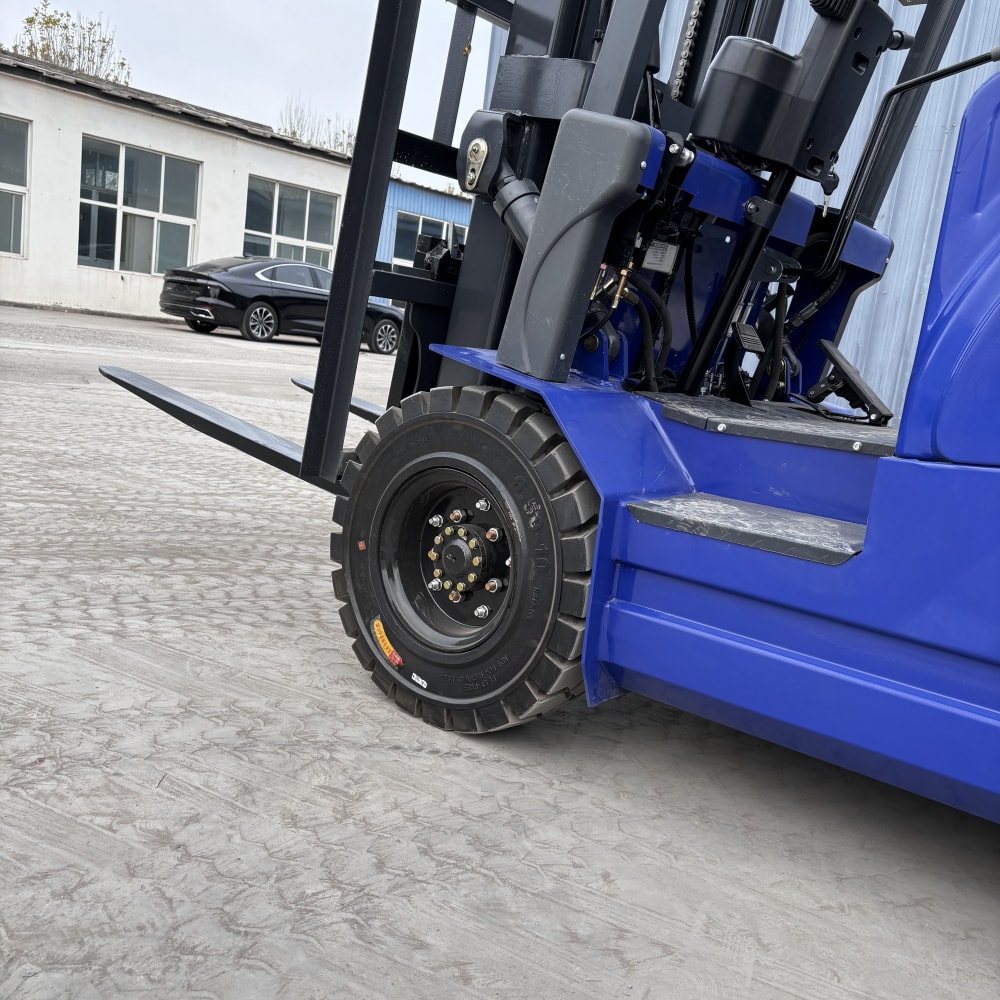

| Four-wheel walking | solid tyre |
| body color | Customized matching |

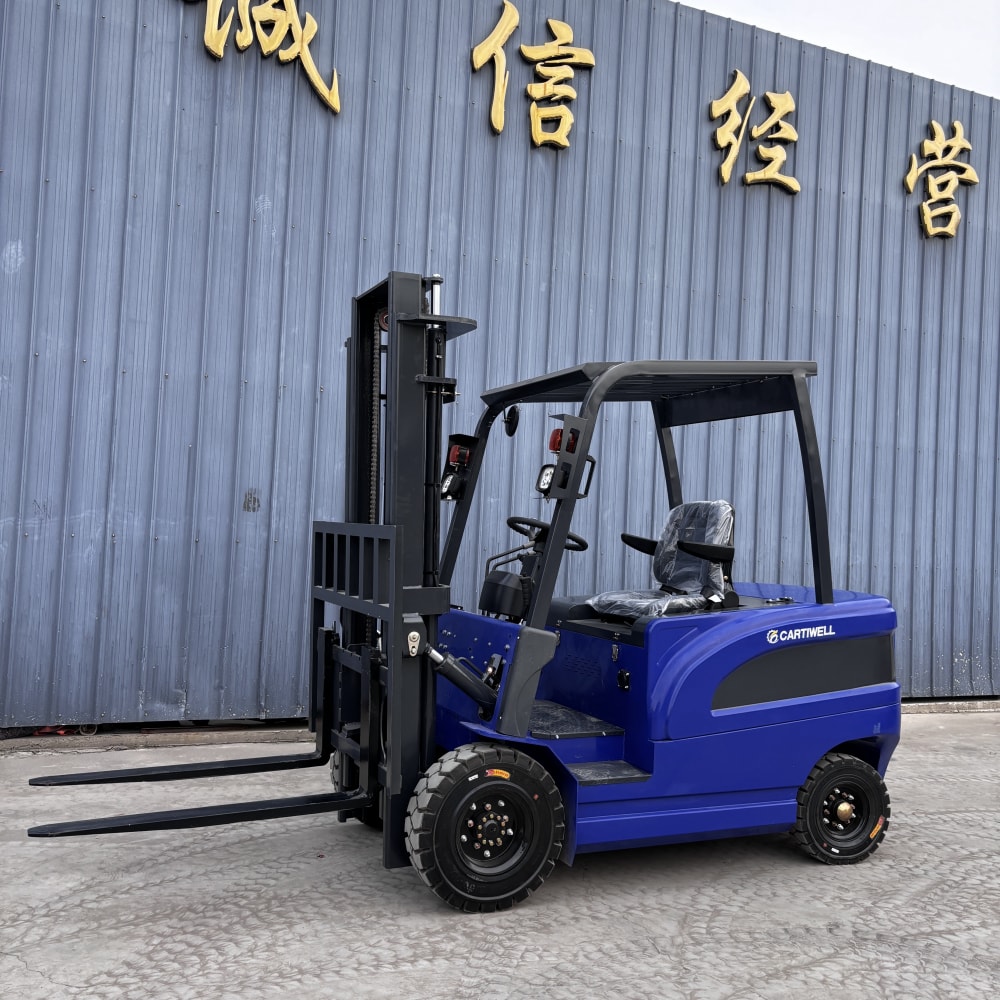

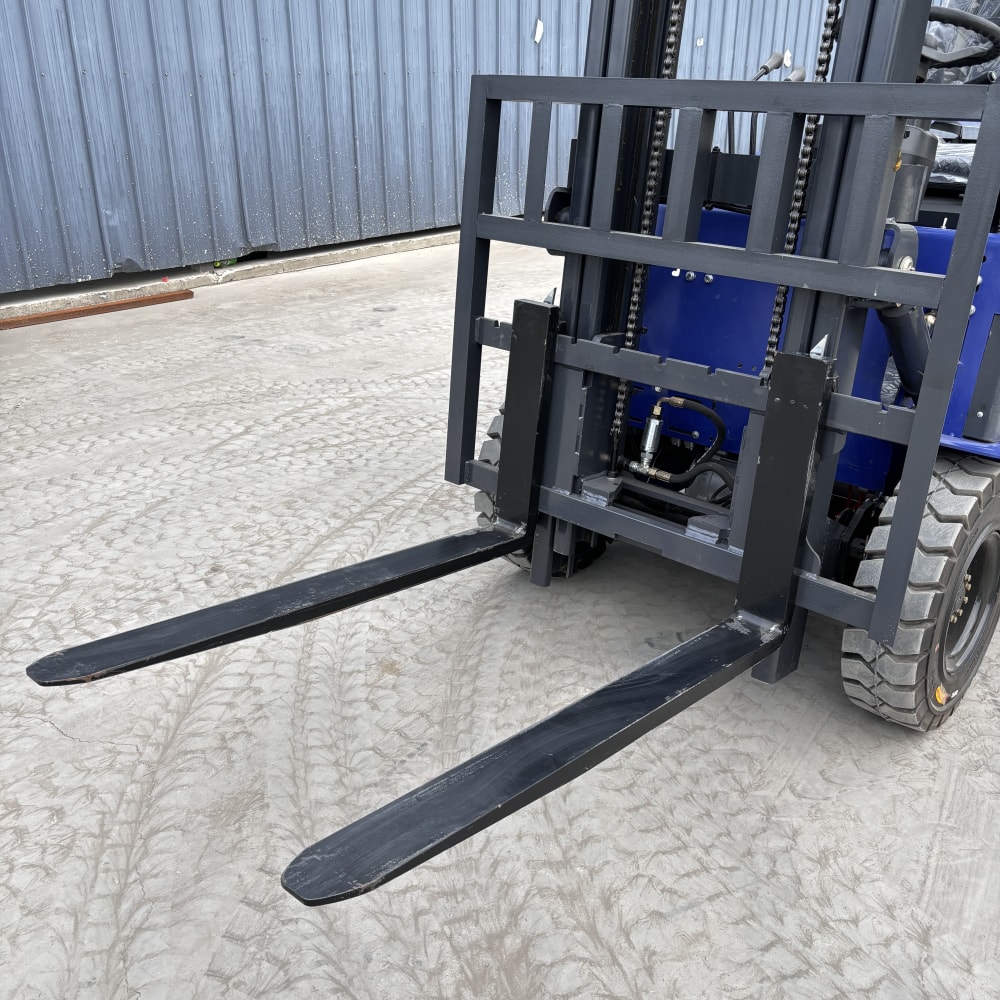

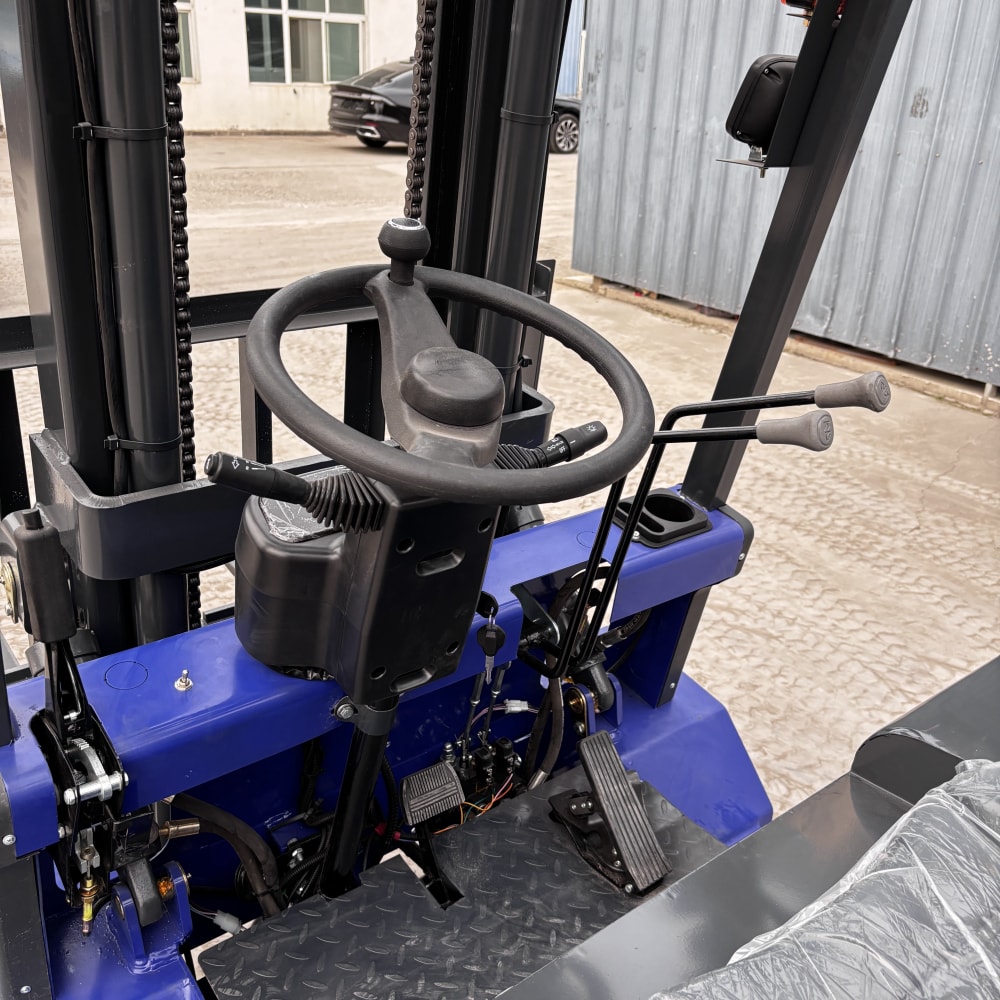

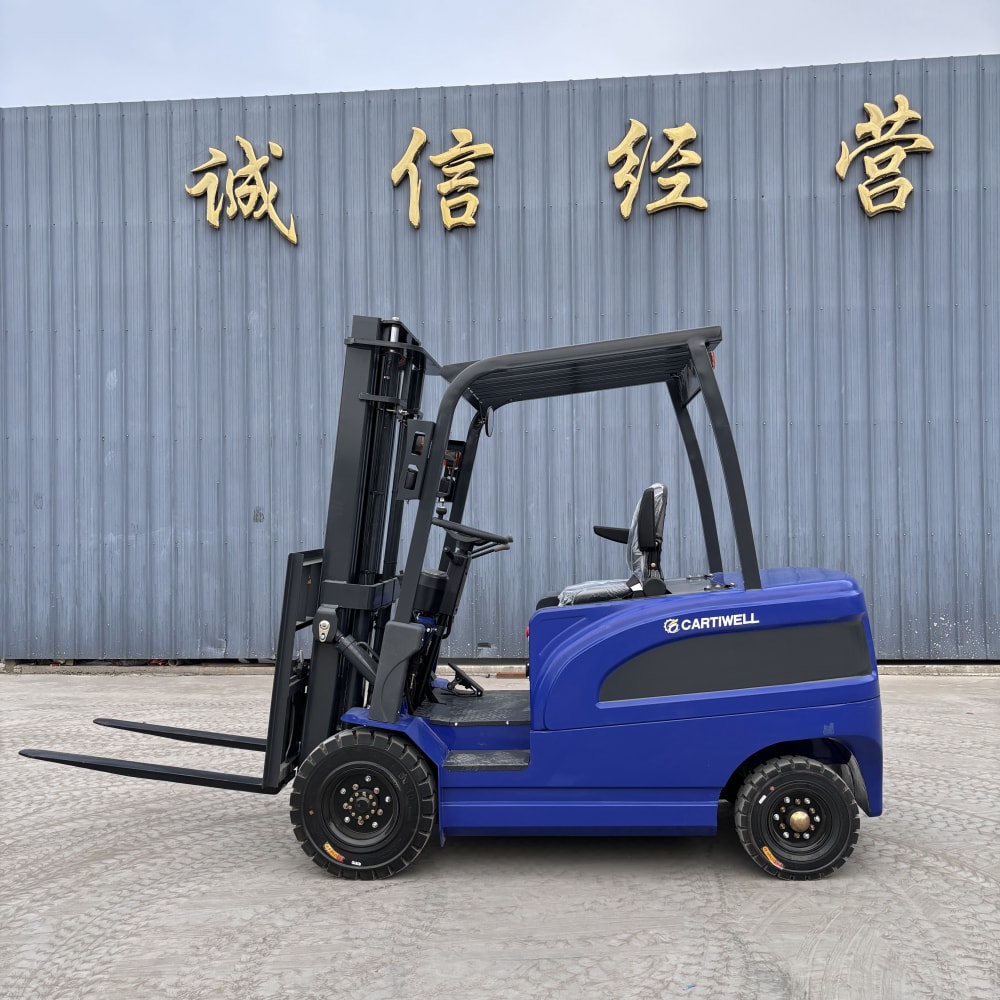

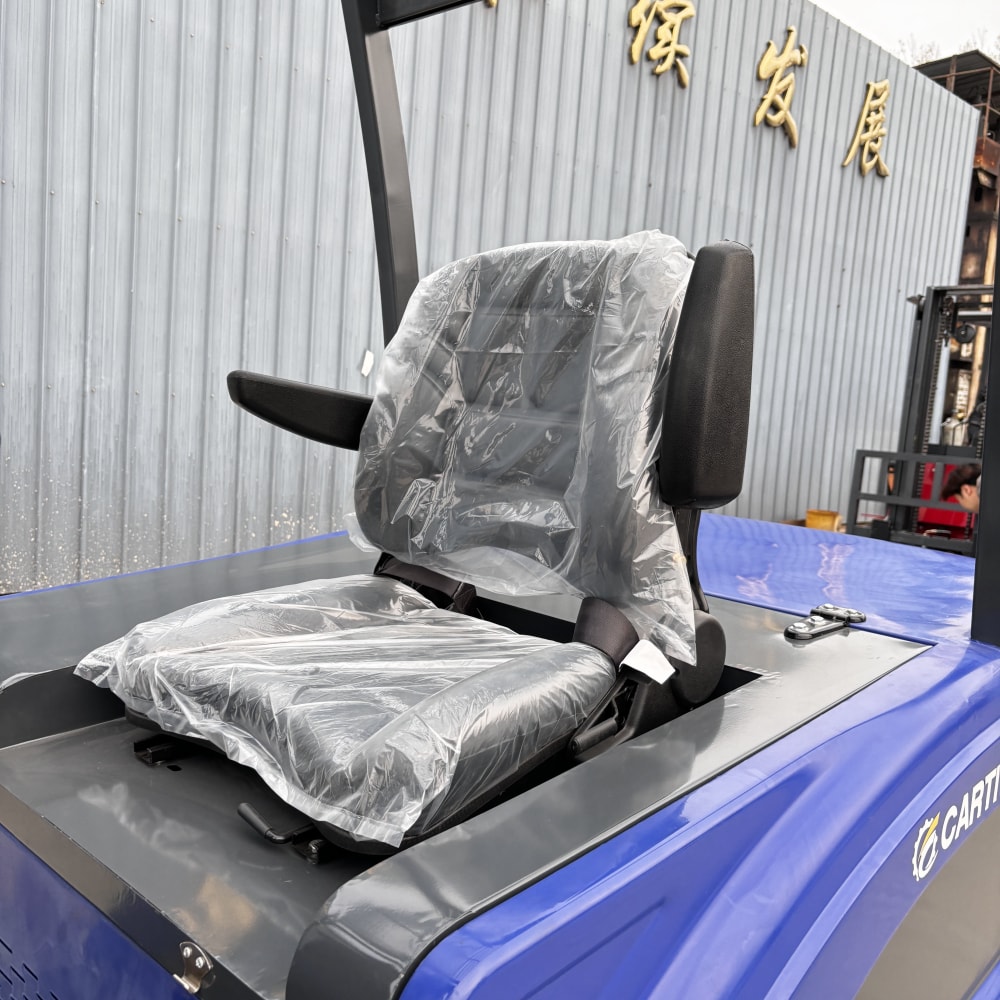

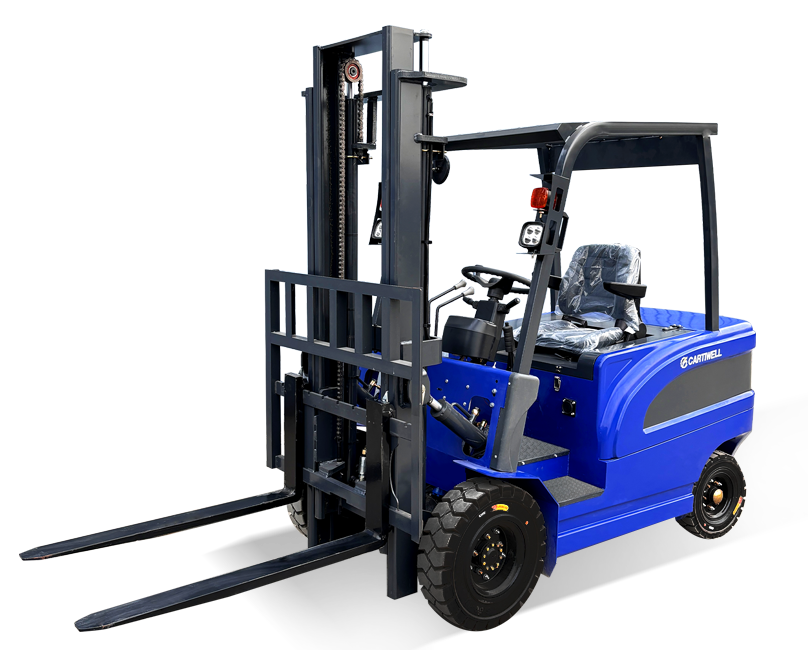

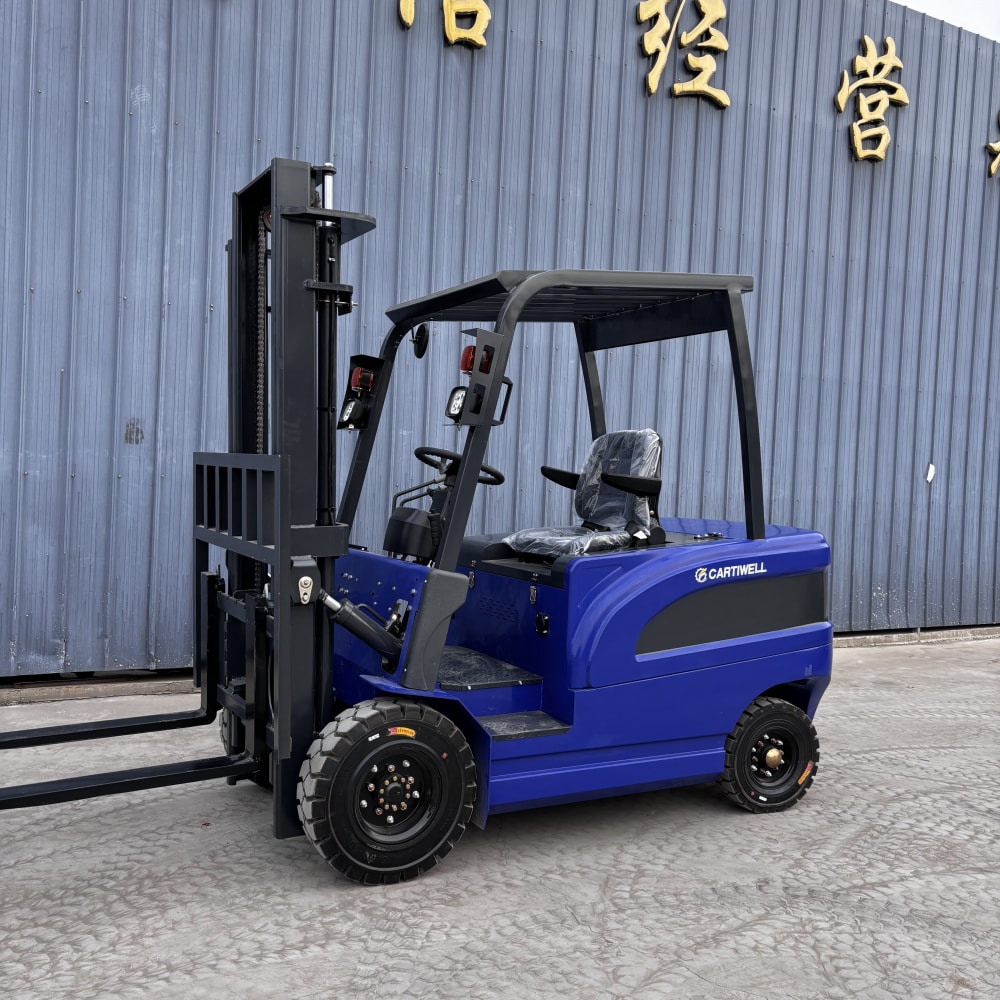

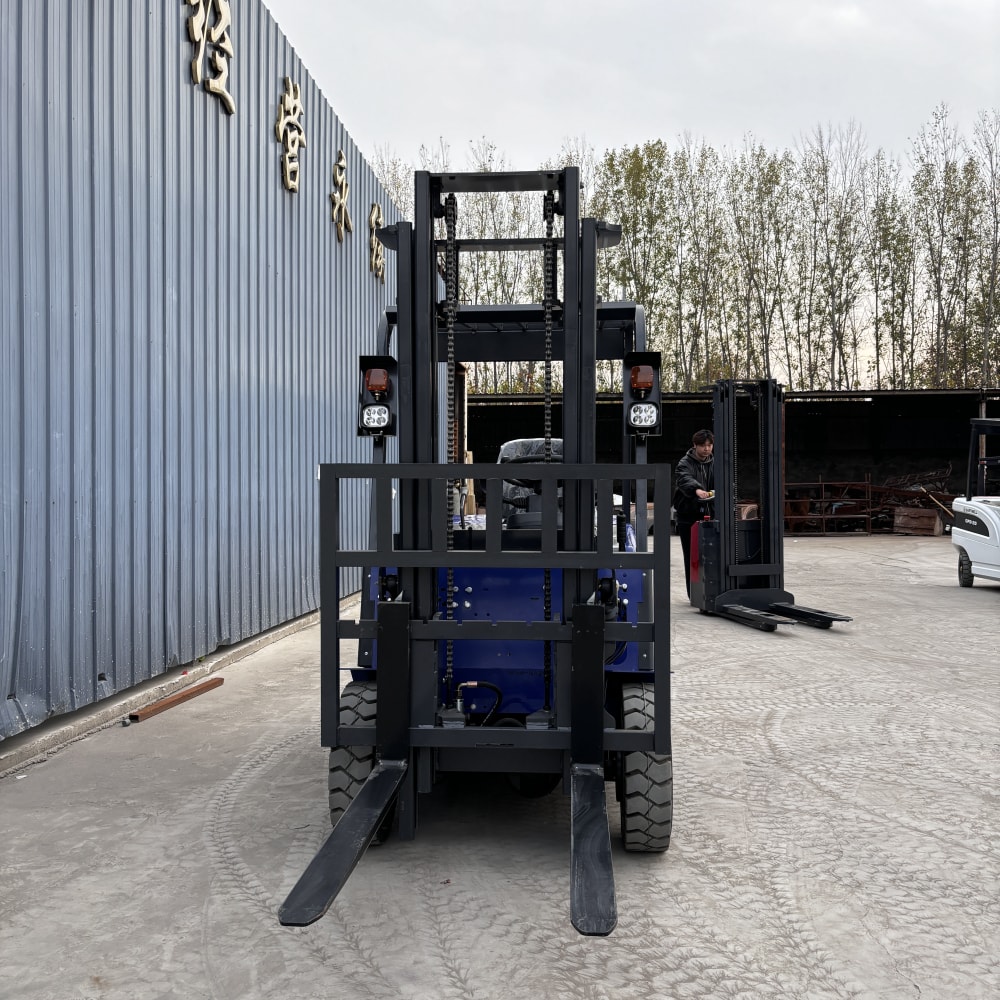

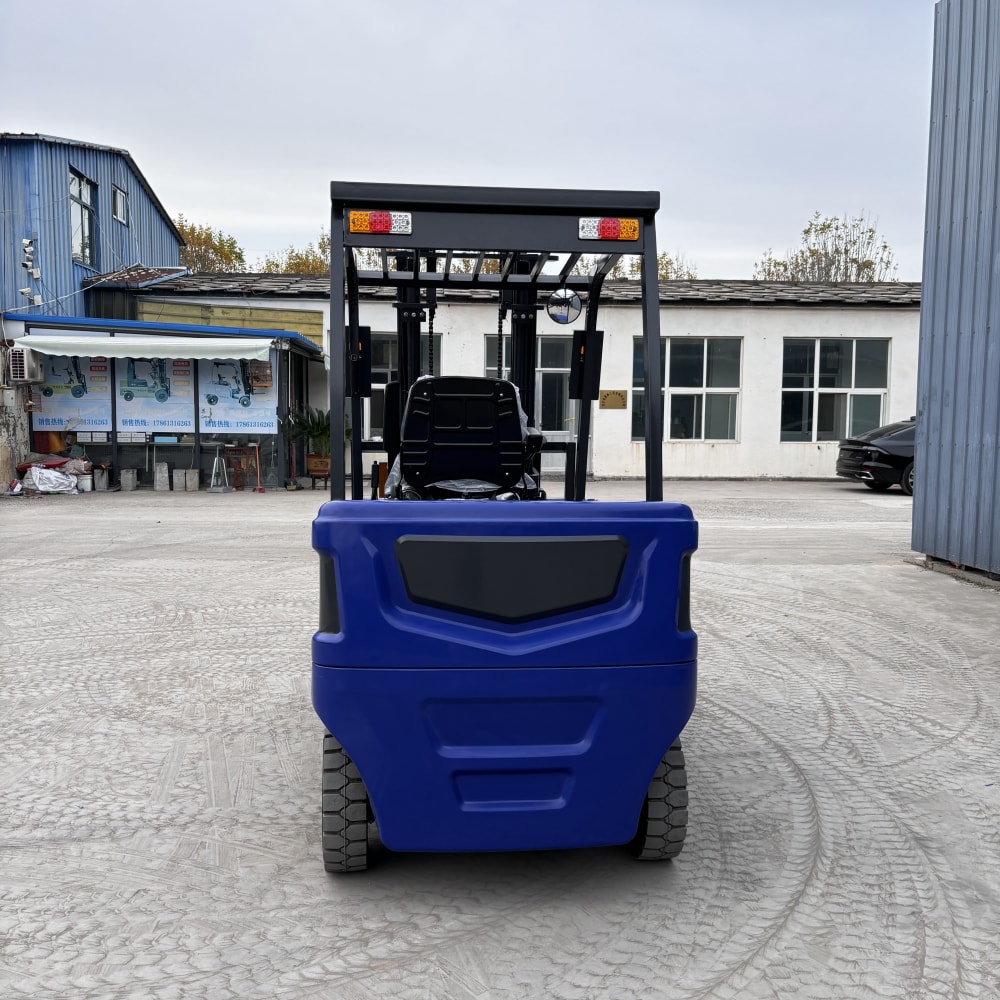

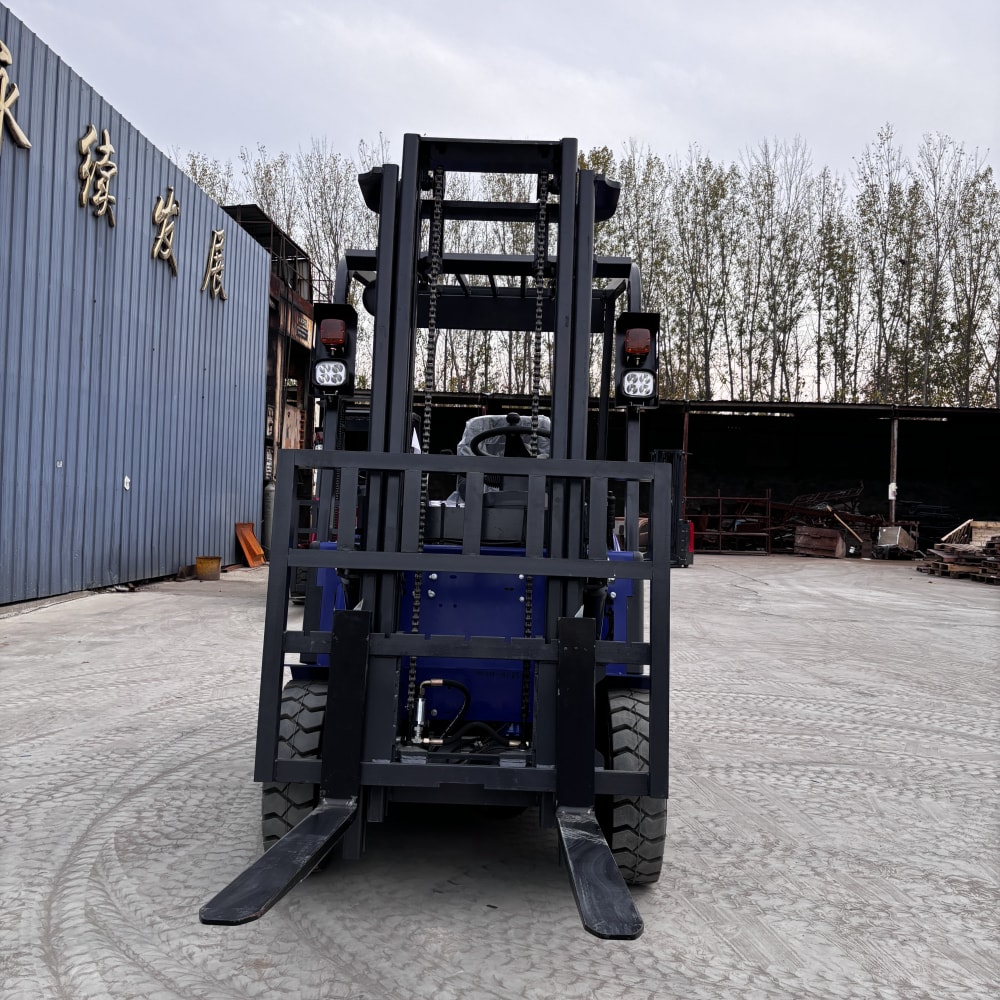

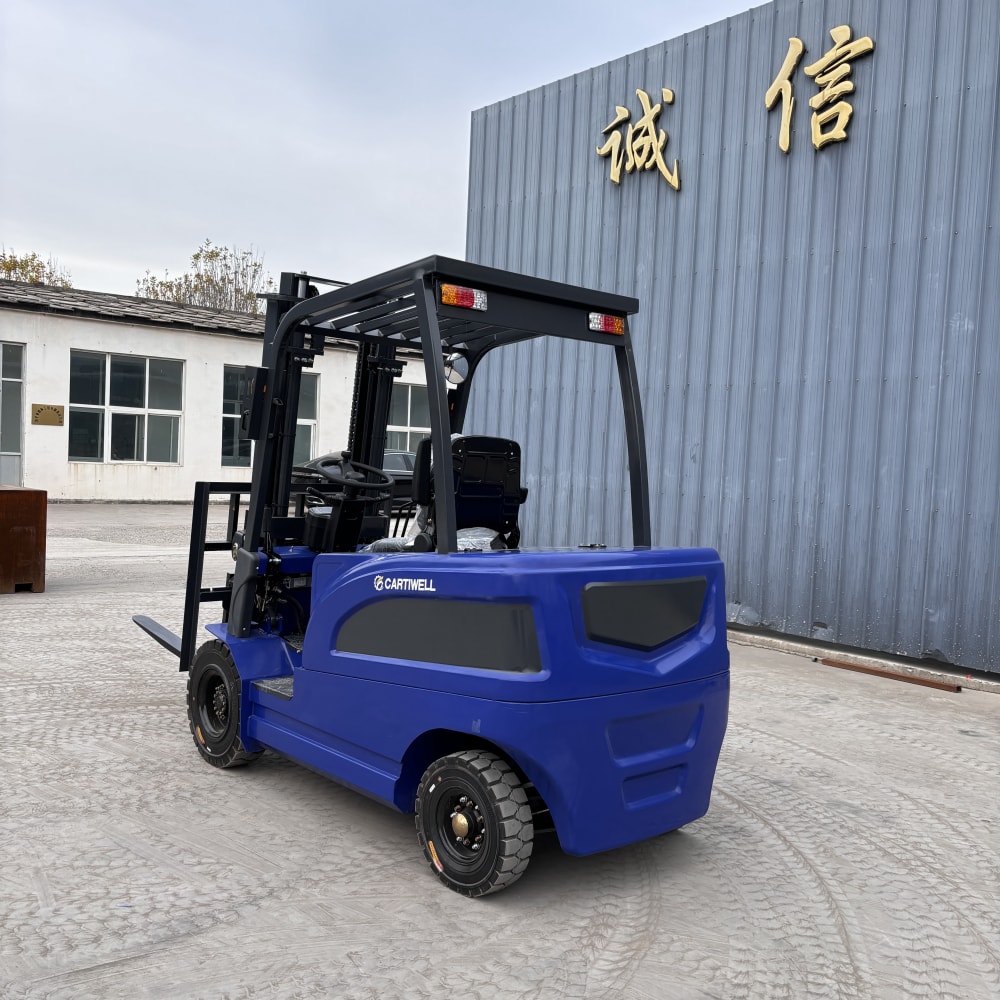

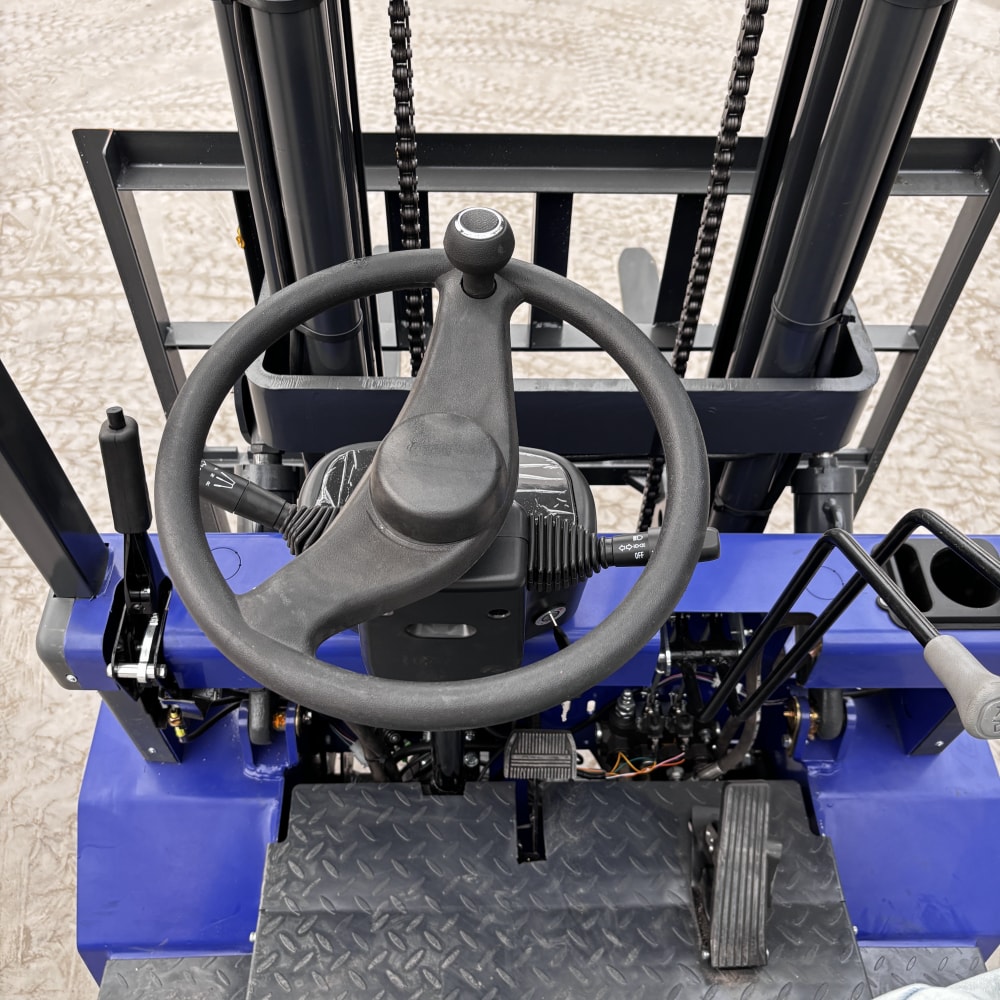

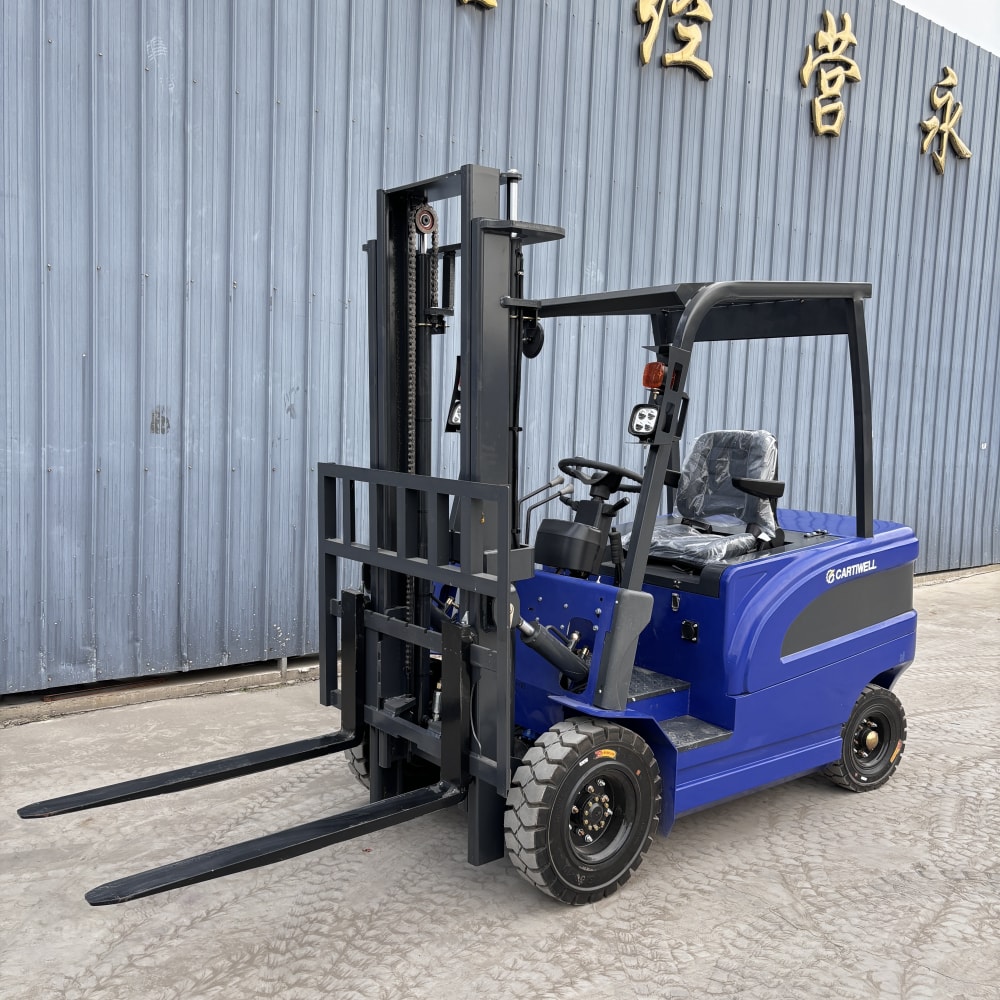

CPD-20 electric fork is a practical material handling equipment. Electric power is the power source, which is environment-friendly and energy-saving, and has low operating cost. The overall design is compact, the operation is flexible, and it can work freely in a narrow space. Forks are durable and have excellent bearing capacity, which can easily handle all kinds of goods. The cab has a wide view, which provides a good view for the operator and ensures the safety of operation. Equipped with simple control device, easy to use. The tire has strong grip and stable driving. CPD-20 electric fork can accomplish tasks efficiently, whether loading and unloading goods in warehouse or transferring goods in factory, and it is a good helper for enterprises to improve logistics efficiency.
