| BASIC SIZE | |
| Rated lifting capacity | 3000kg |
| Full length without fork | 2550mm |
| Full length with fork | 3520mm |
| Full width | 1250mm |
| Height of non – lifting gantry | 2130mm |
| Height of roof protection frame | 2070mm |
| Maximum height during operation | 3780mm |
| Wheelbase (of a vehicle) | 1720mm |
| Min. ground clearance | 120mm |
| portal frame | 150mmH |
| ENERGY | |
| Boost motor power | Ac 7.5kw |
| Driving motor power | Ac 7.5kw |

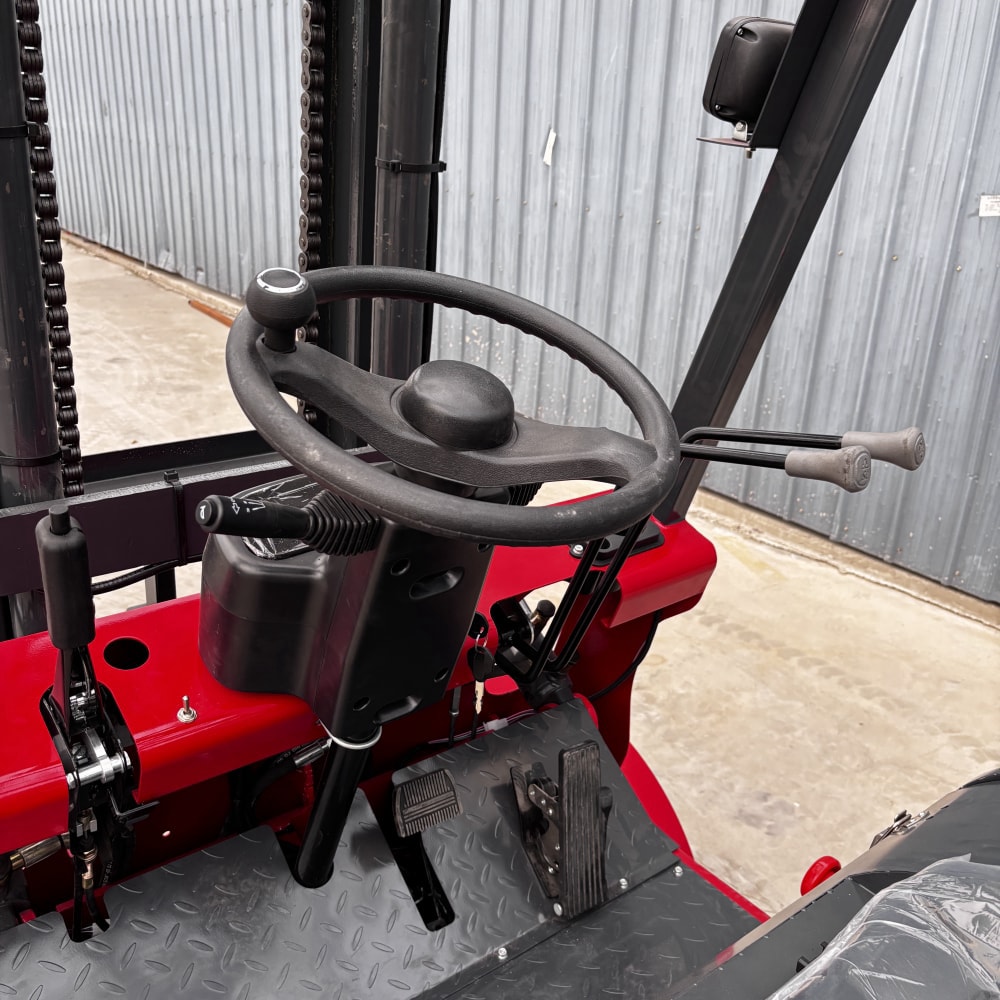

| Steering line type | Hydraulic booster |
| Charger input voltage | 220V |
| Charging time | 9 – 11h |
| Battery capacity | 200ah |
| rated voltage | 72V |
| Battery brand | CHILWEE |
| Number of batteries | 12 |
| HOMEWORK | |
| Maximum lifting height under no load | 3000mm |
| Free lifting height | 3000mm |

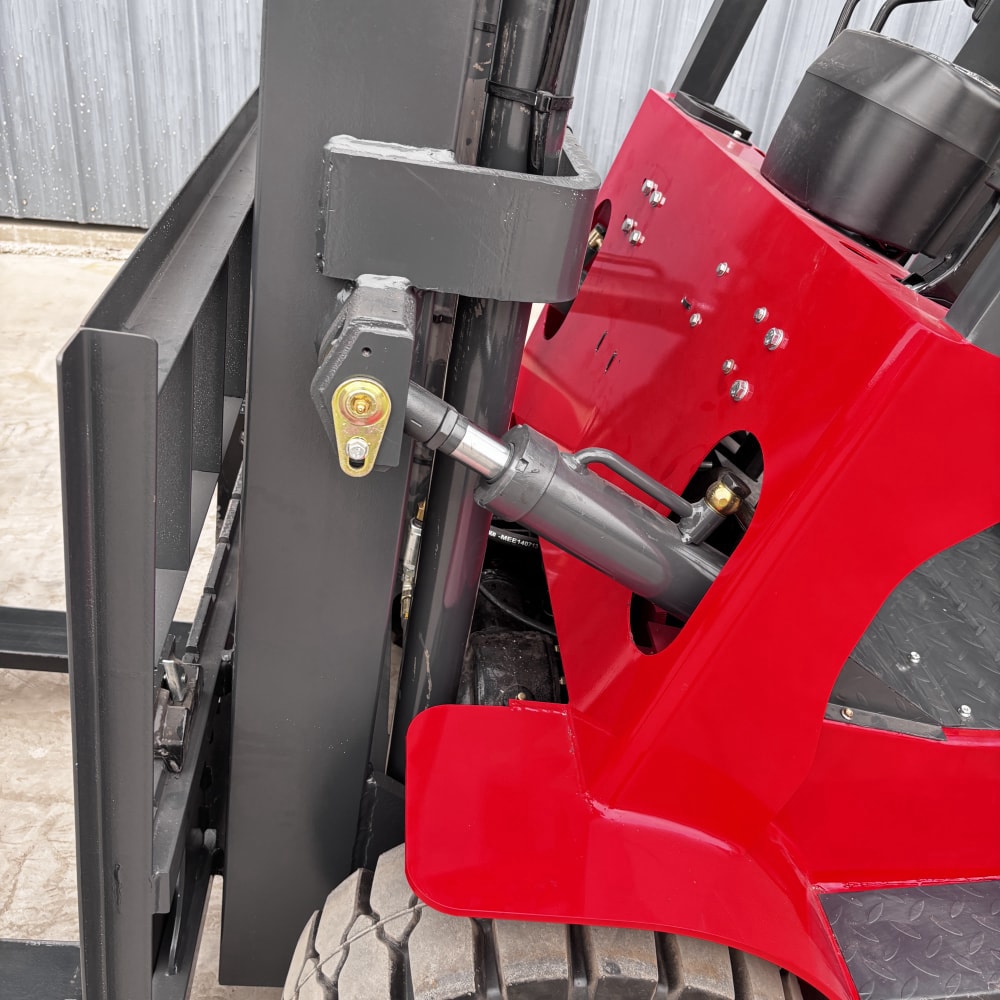

| Angle of inclination of portal frame (front/back) | 5°/13° |
| Total machine mass under no load | 4100kg |
| No – load maximum hoisting speed (adjustable) | 160mm/s |
| Full load maximum lifting speed (adjustable) | 180mm/s |
| No – load maximum running speed (adjustable) | 14km/h |
| Full load maximum running speed (adjustable) | 12km/h |
| Full load maximum climbing degree | 15% |
| No – load maximum climbing degree | 20% |
| Load center distance | 500 |
| Rear wheel specification | 18*7 – 8 |
| OTHER PARAMETERS | |
| driving axle | 220 – 76 cast steel heavy – duty drive axle |
| Transition bridge | 920 – 160 cast steel suspension integrated heavy – duty steering bridge |

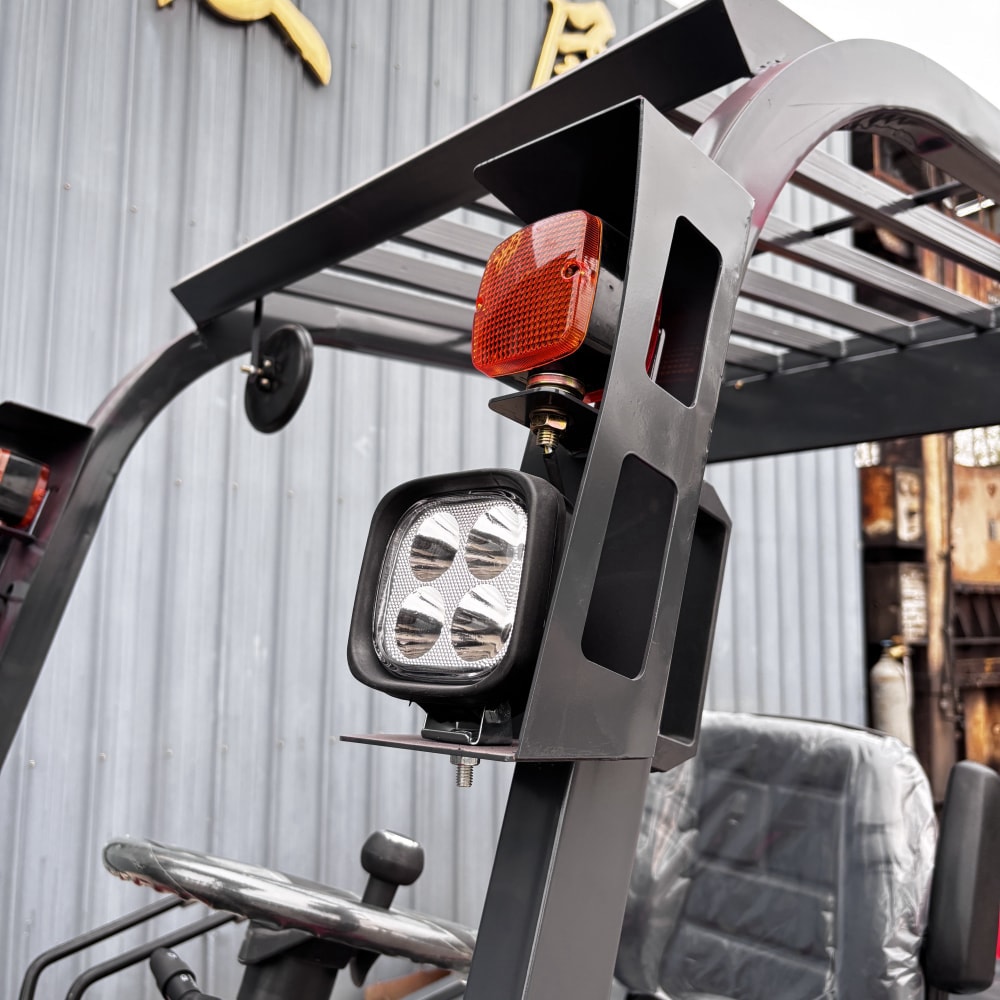

| illuminating system | LED |

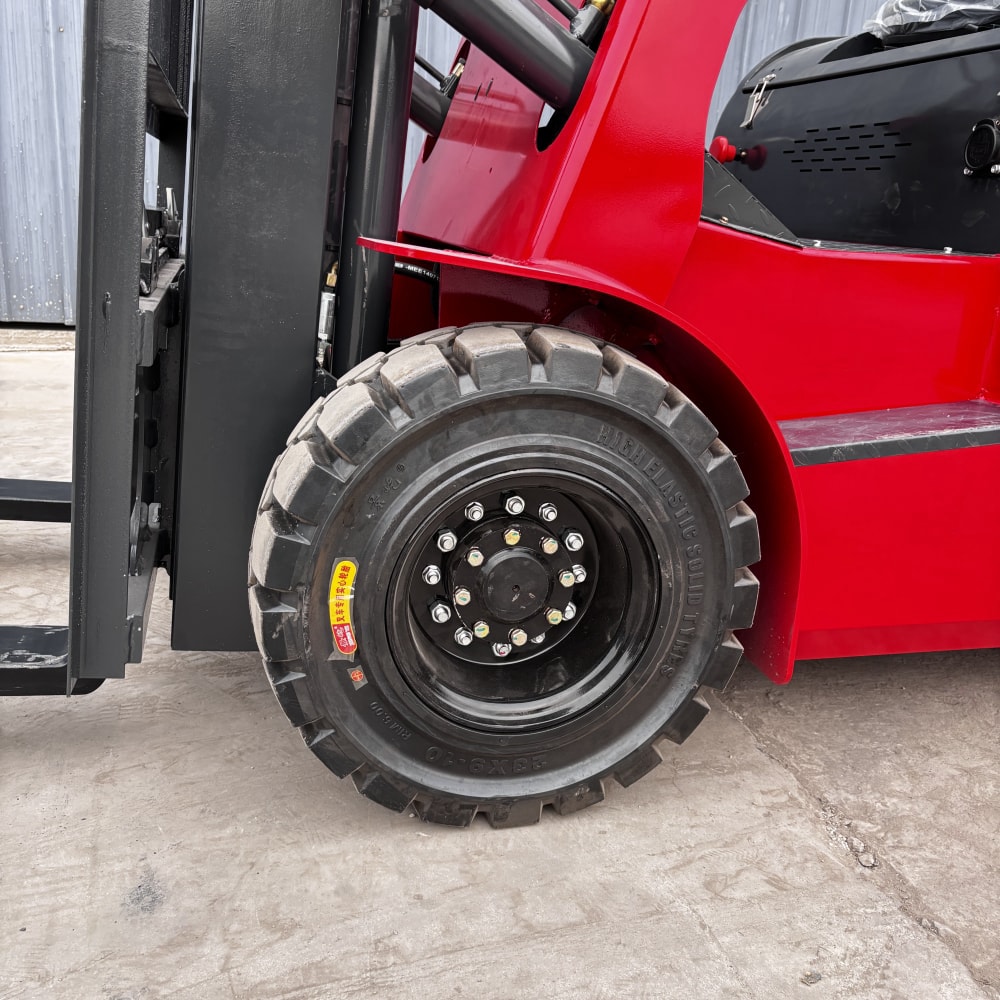

| Four – wheel walking | Solid tyre |
| body color | Customized matching |

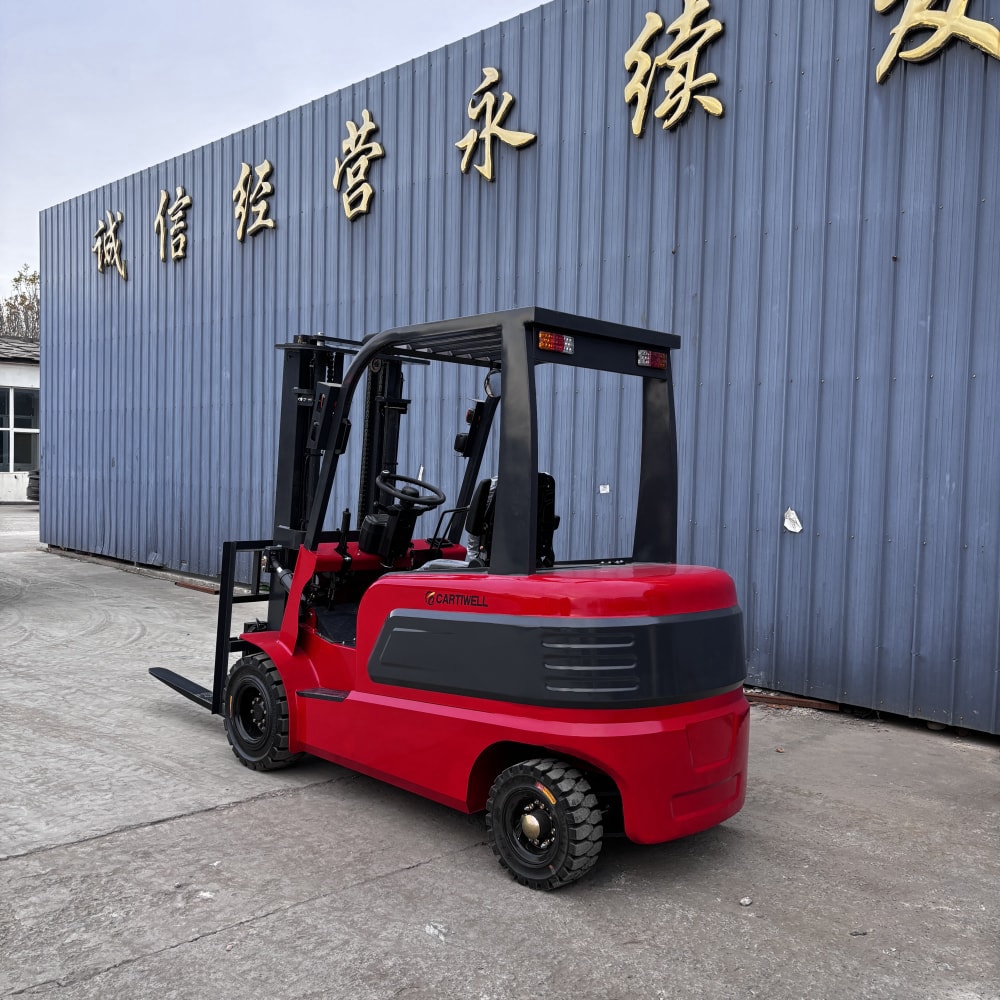

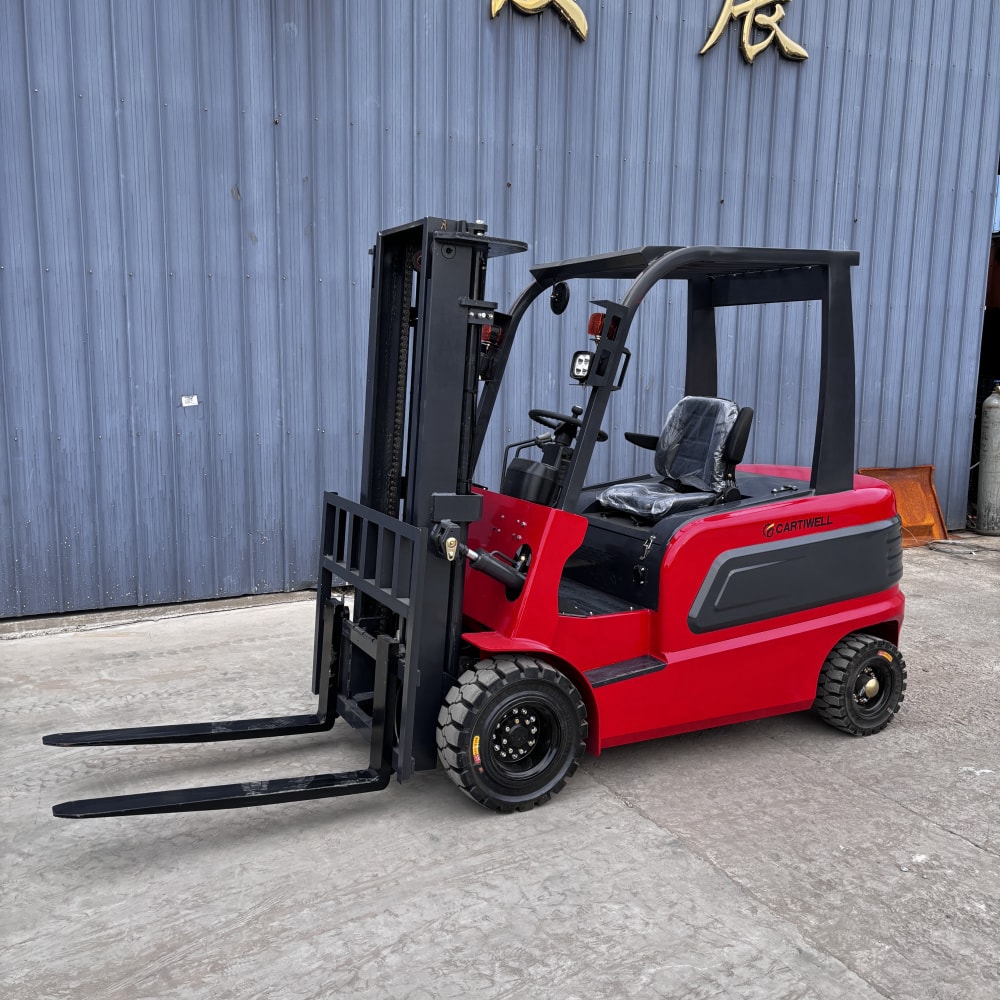

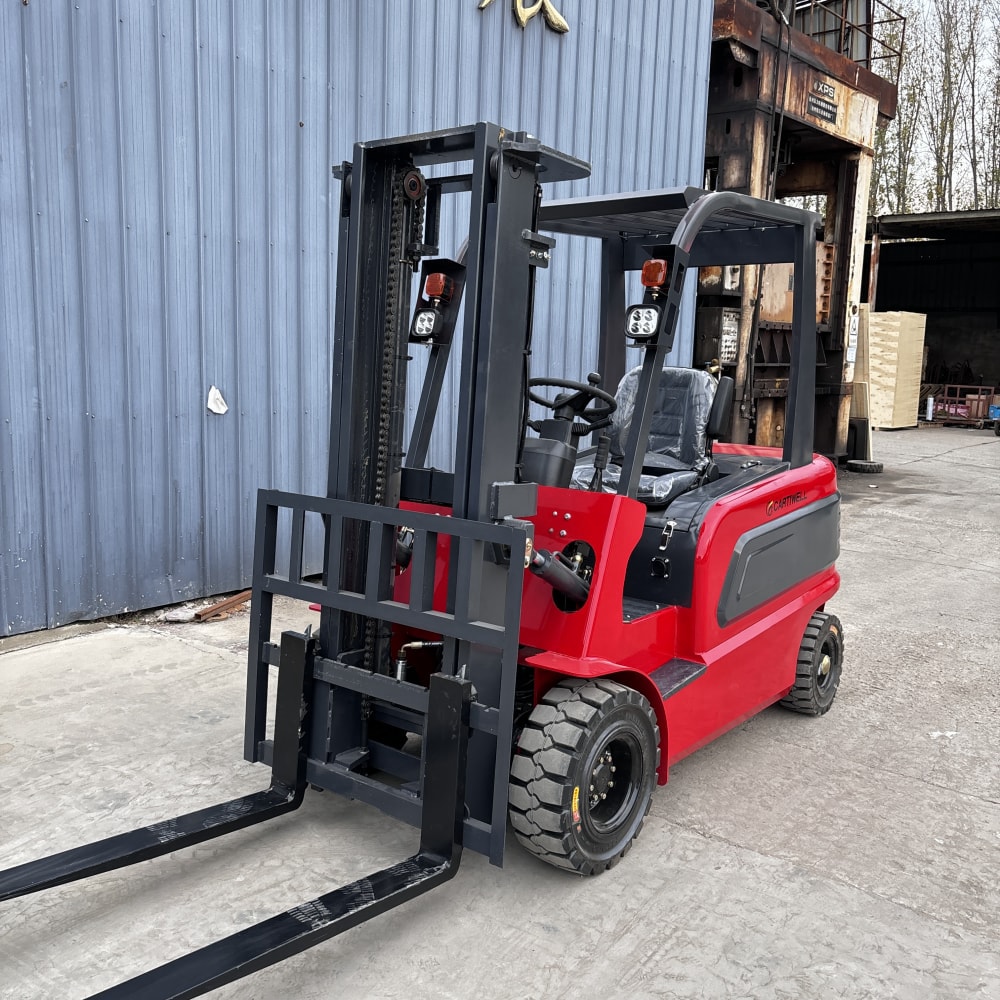

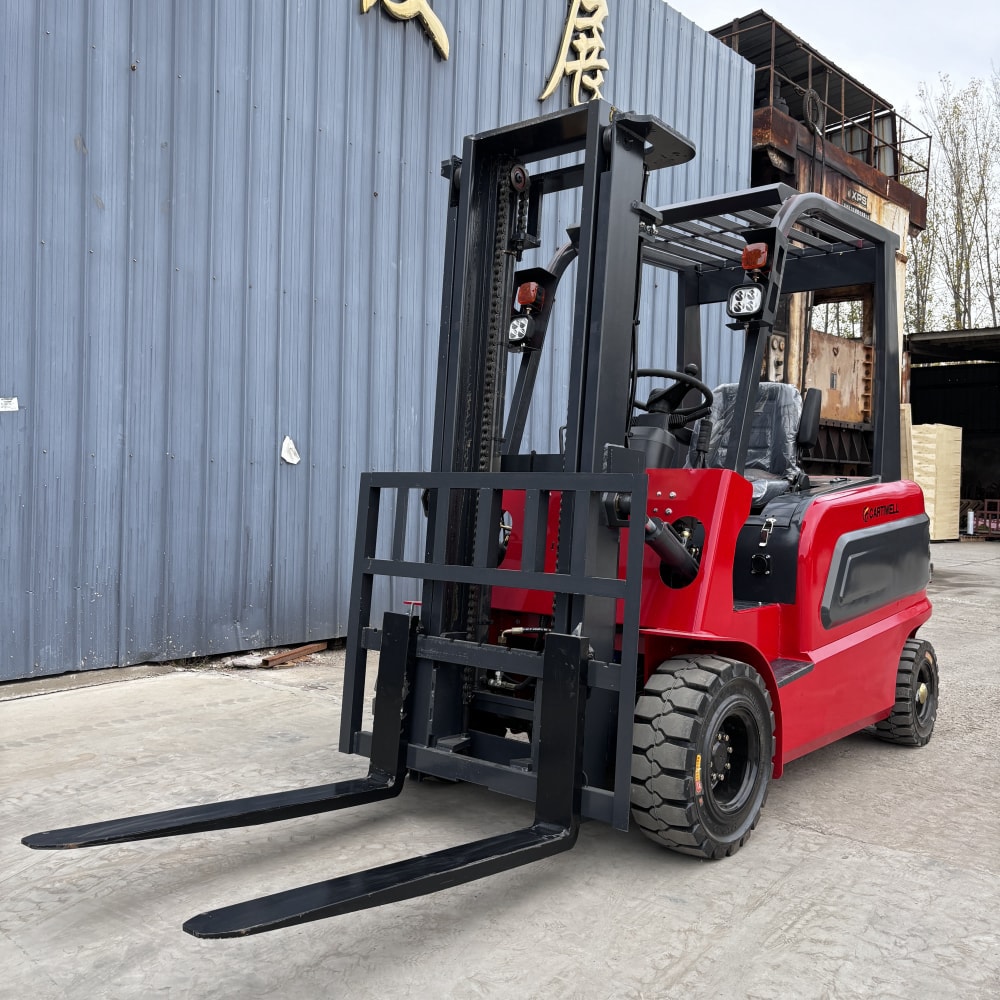

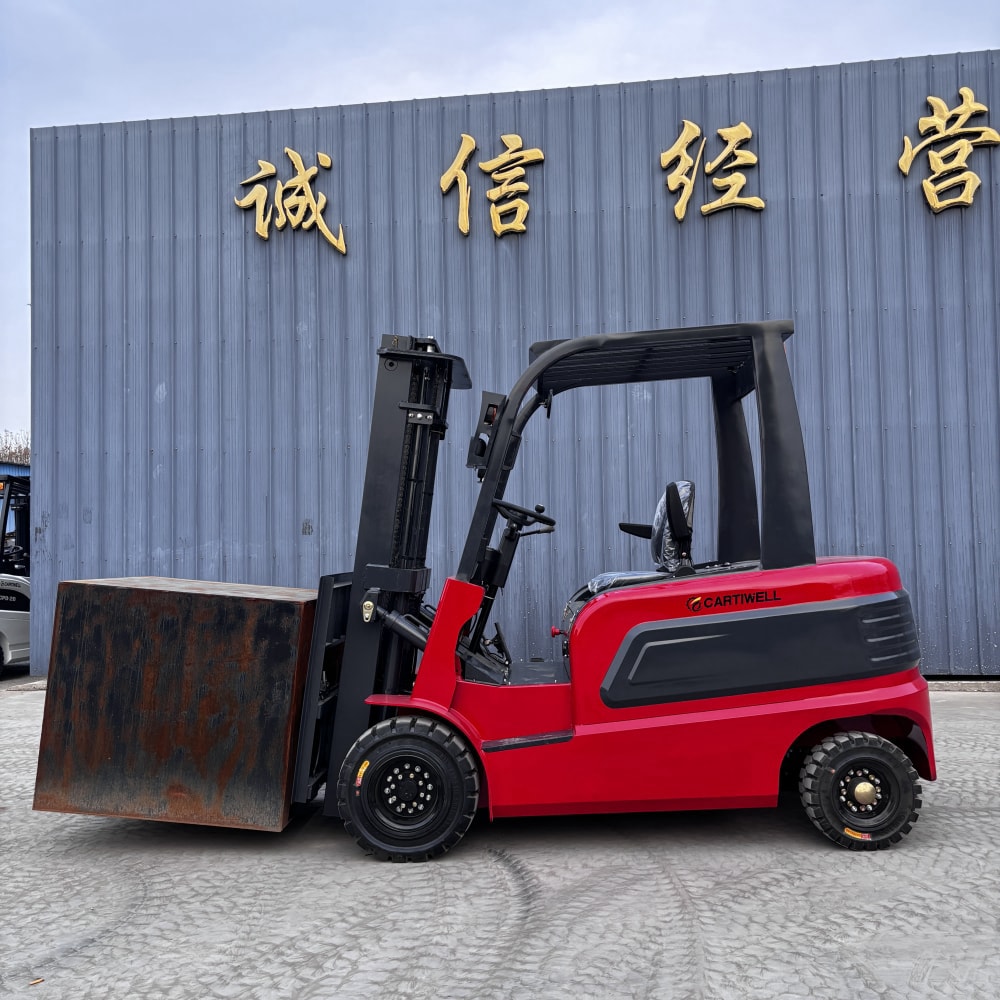

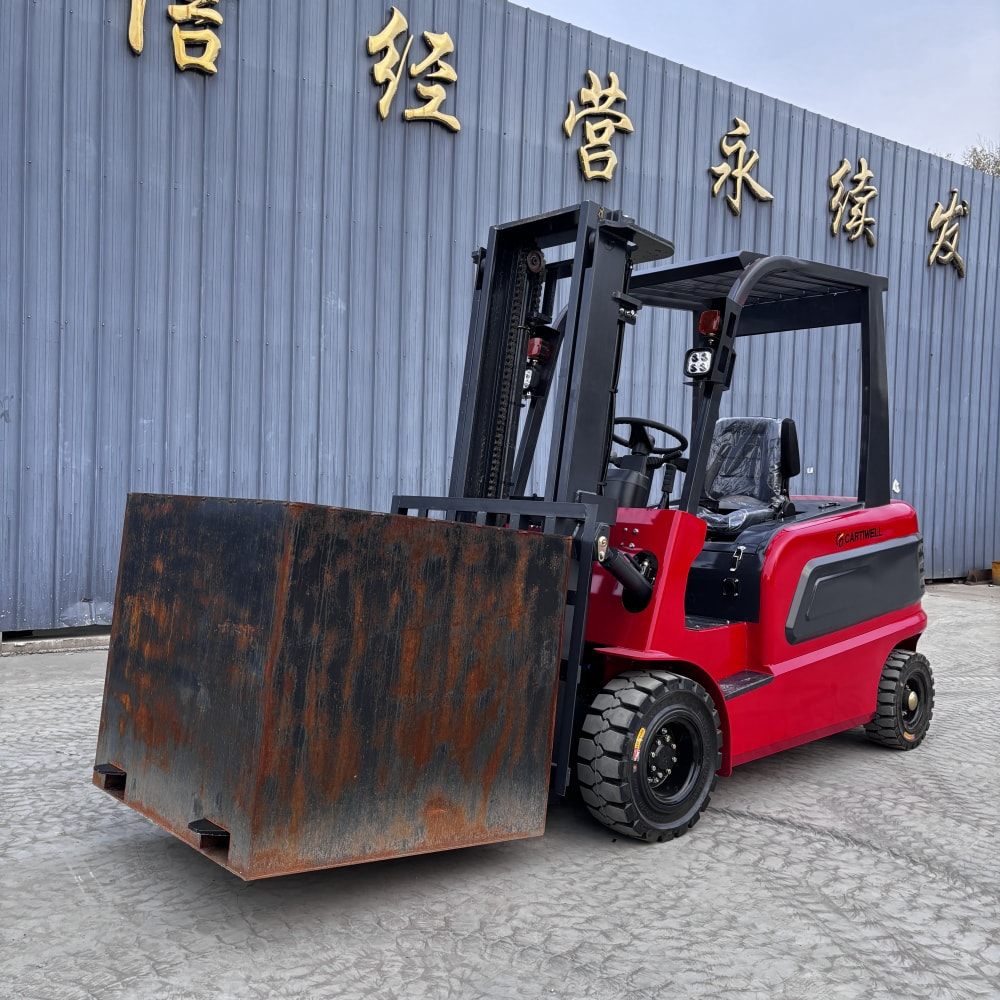

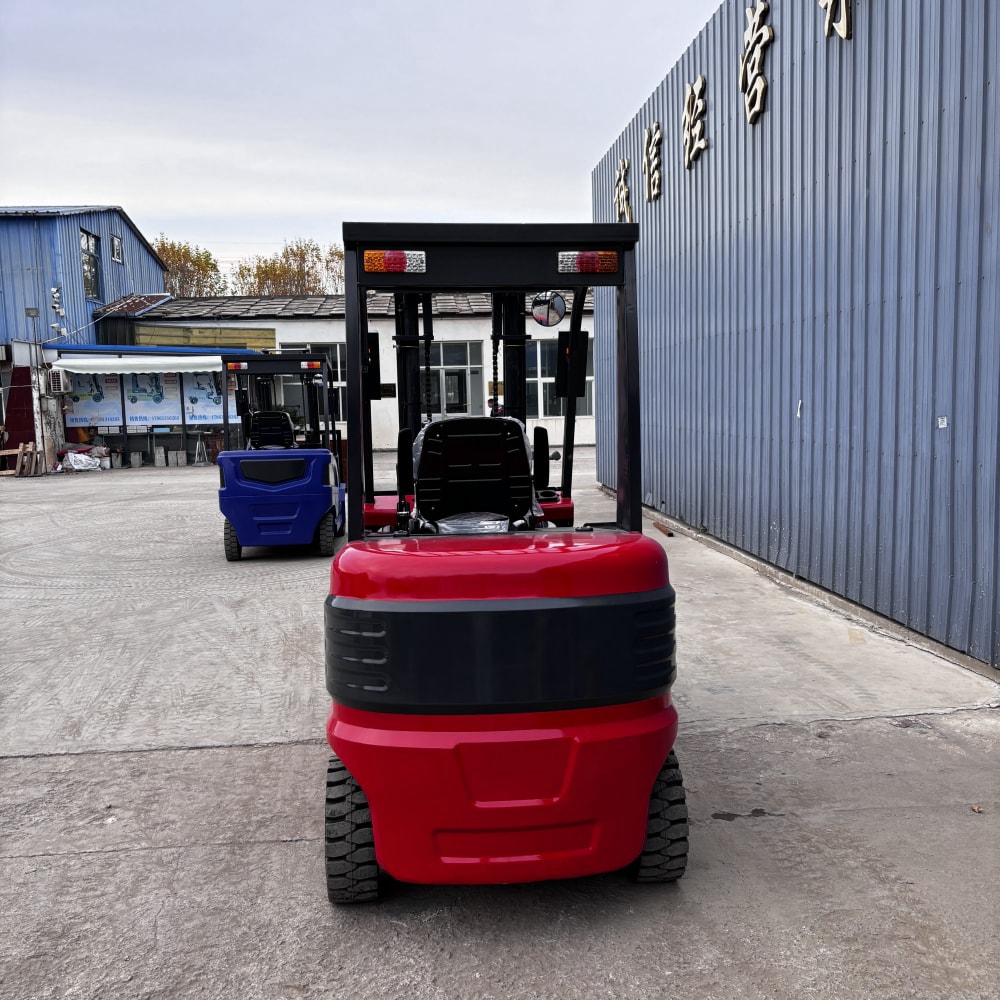

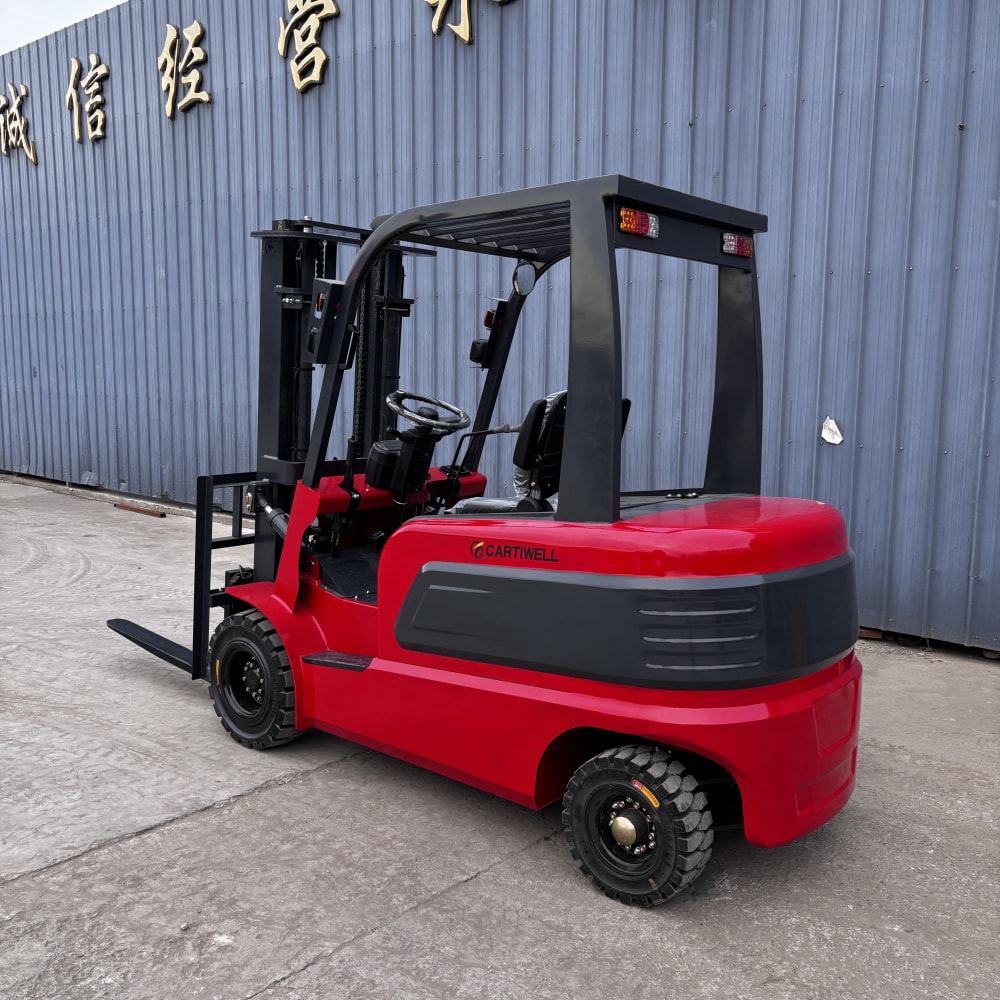

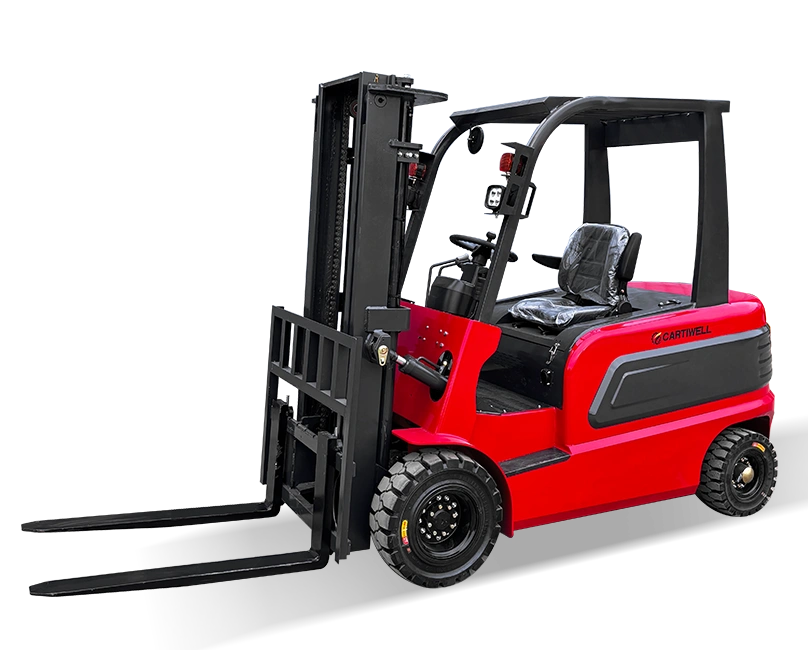

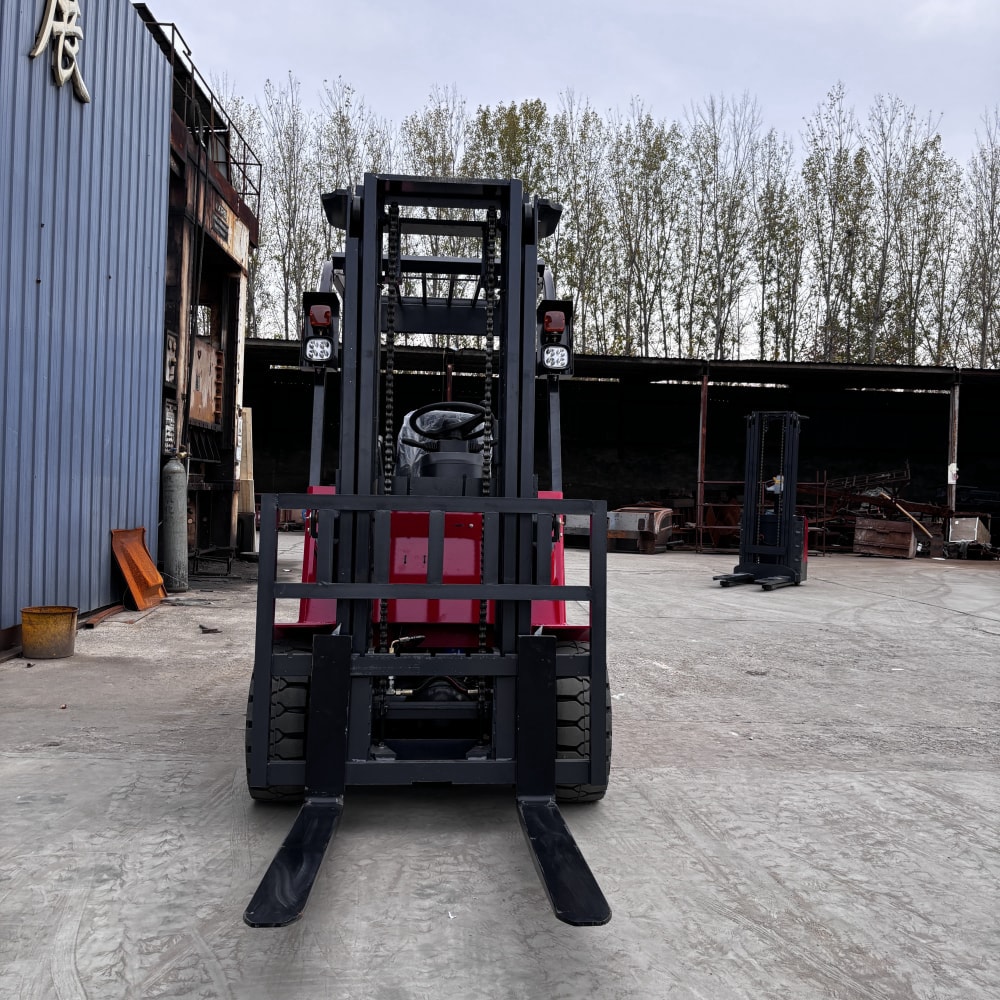

CPD-30 electric fork has strong load-bearing capacity, can easily handle heavy goods and meet diversified handling requirements. It has high handling efficiency, can quickly complete the loading, unloading and transshipment of goods, and effectively improve work efficiency. The operation is simple and easy to understand, and drivers can get started quickly, reducing the training cost. Advanced hydraulic system, smooth lifting of fork, precise control of cargo height. Powered by electricity, it is green and environmentally friendly, with low noise. Whether in warehouse, logistics center or factory workshop, CPD-30 electric fork can become a right-hand man for material handling by virtue of its advantages.
