SPECIFICATIONS | |
Measure | 2287*700*1350mm |
Overall weight | 660kg |
Operating weight | 735kg |
Emission certification | EURO5、EPA |
Model | RATO |
Rated output power/speed | 6.3(8.5)3600 KW(HP)/rpm |

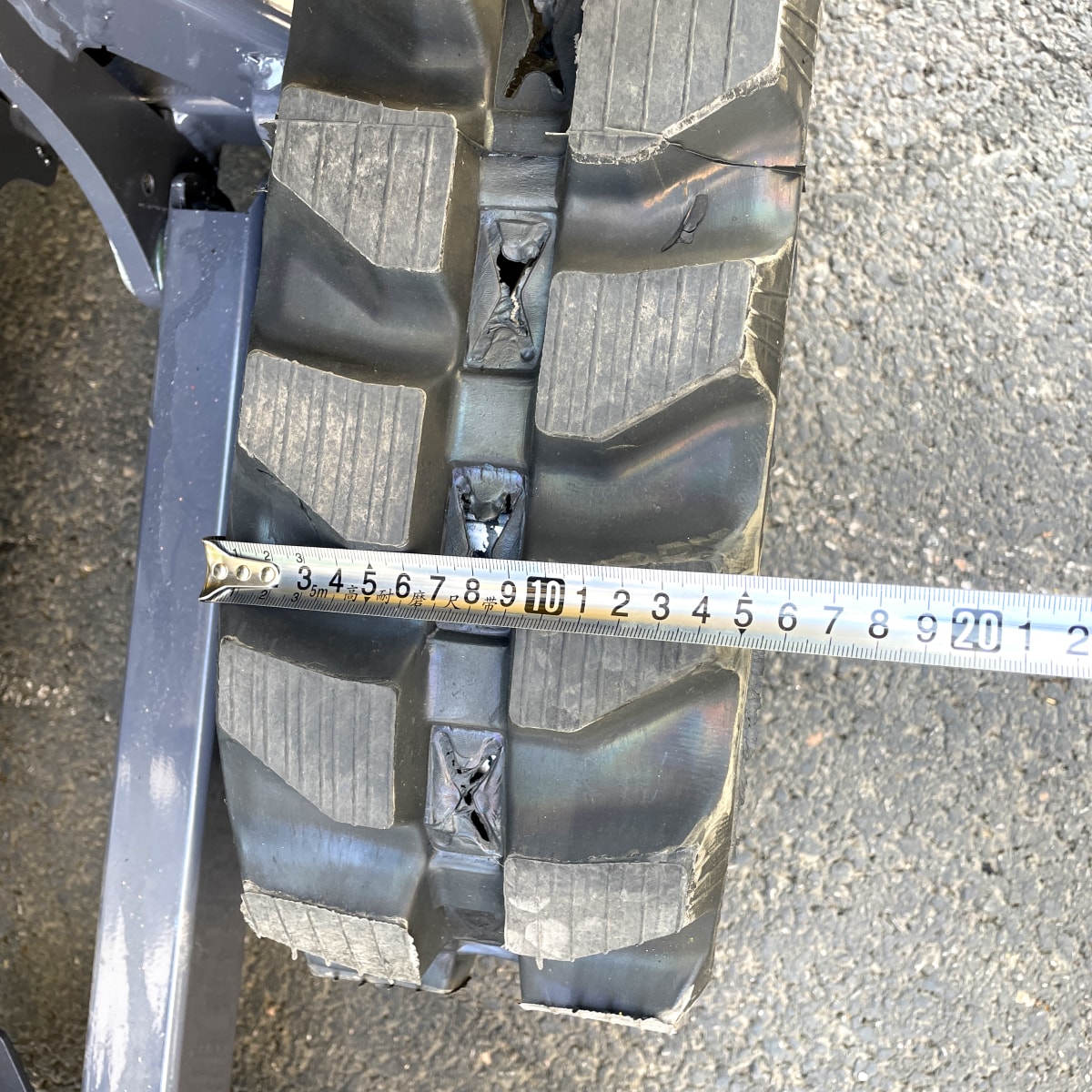

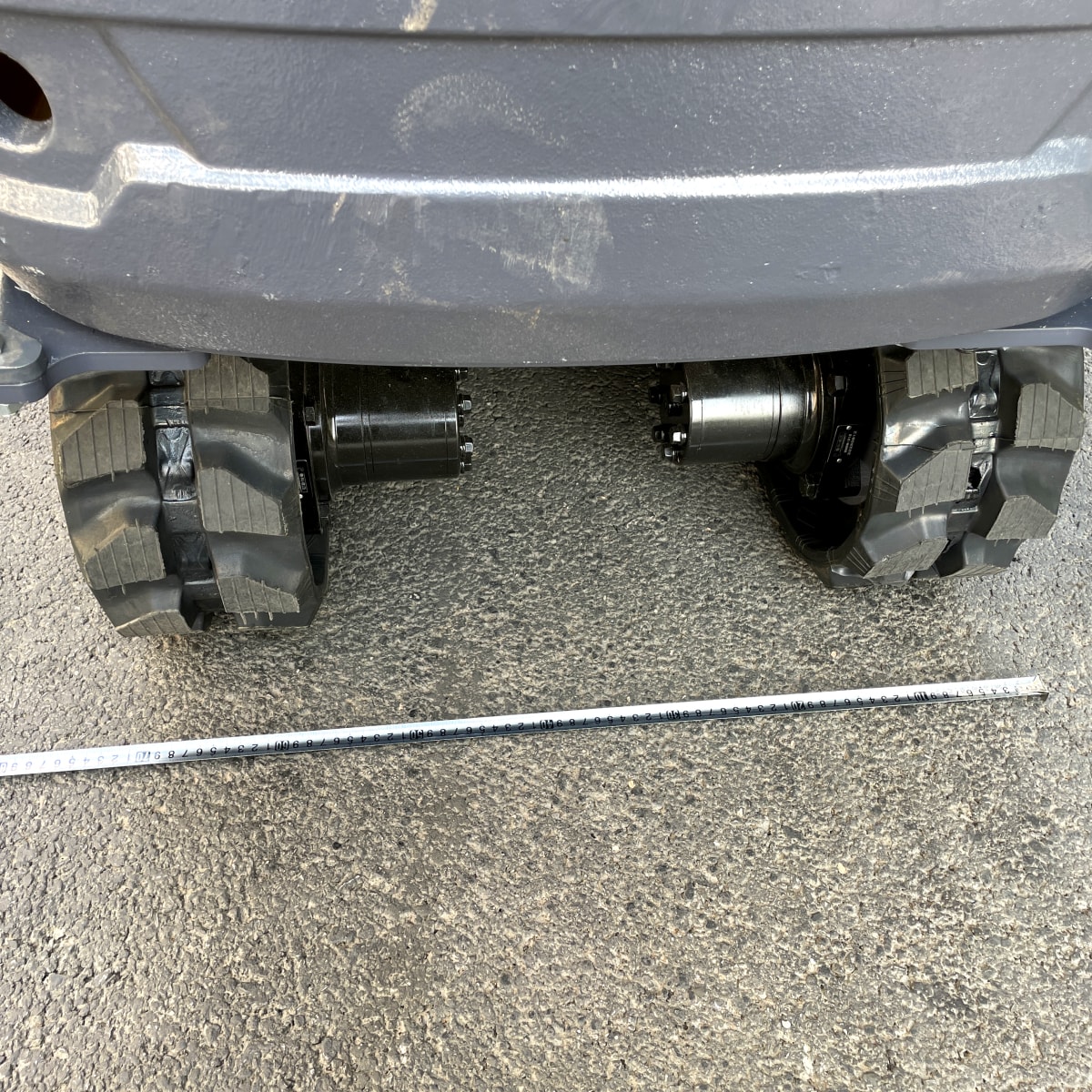

Crawler model | 150*72*34mm |
Track width | 150mm |
Standard bucket capacity | 0.012m3 |

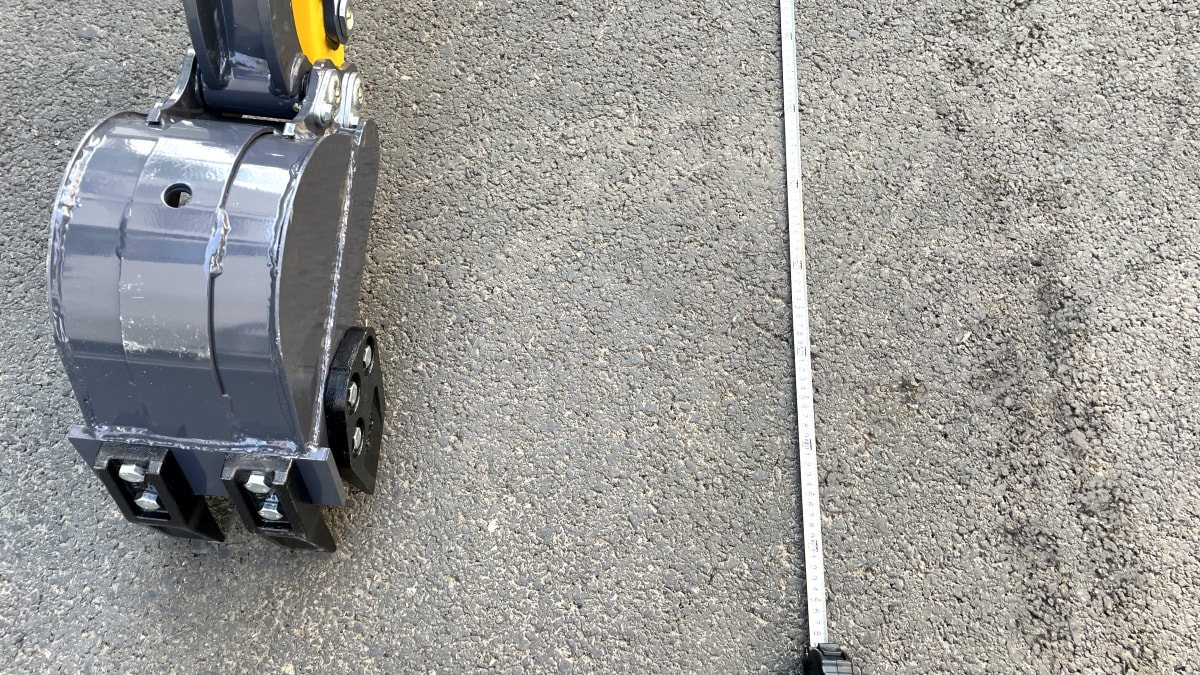

Standard bucket width | 200mm |
Max. digging force (bucket) | 3.5KN |
Max. excavation depth | 1091mm |
OPERATING RANGE | |
Max. vertical excavation depth | 1018mm |
Max.excavation height | 2114mm |
Max. unloading height | 1386mm |
Max.horizontal excavation radius | 2254mm |
Max.rotation radius of front end | 1185mm |
Walking speed | 1.5Km/h |
swiveling speed | 9.5rpm |
Pump type | Gear rotary pump 3+3 |
Pumping capacity | 21.6L/min |
System pressure | 16MPa |
Petrol tank | 6L |
Hydraulic oil tank | 11.4L |

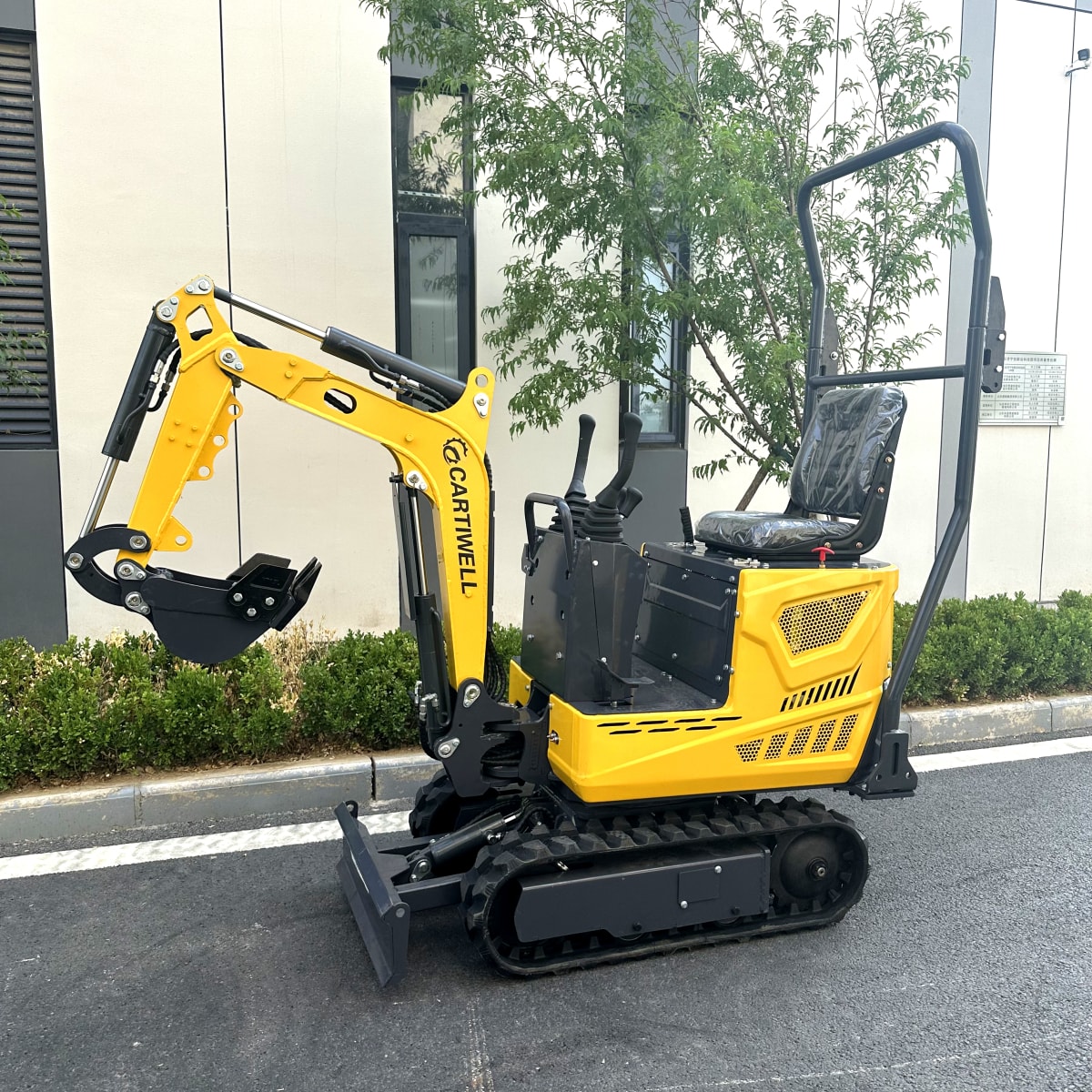

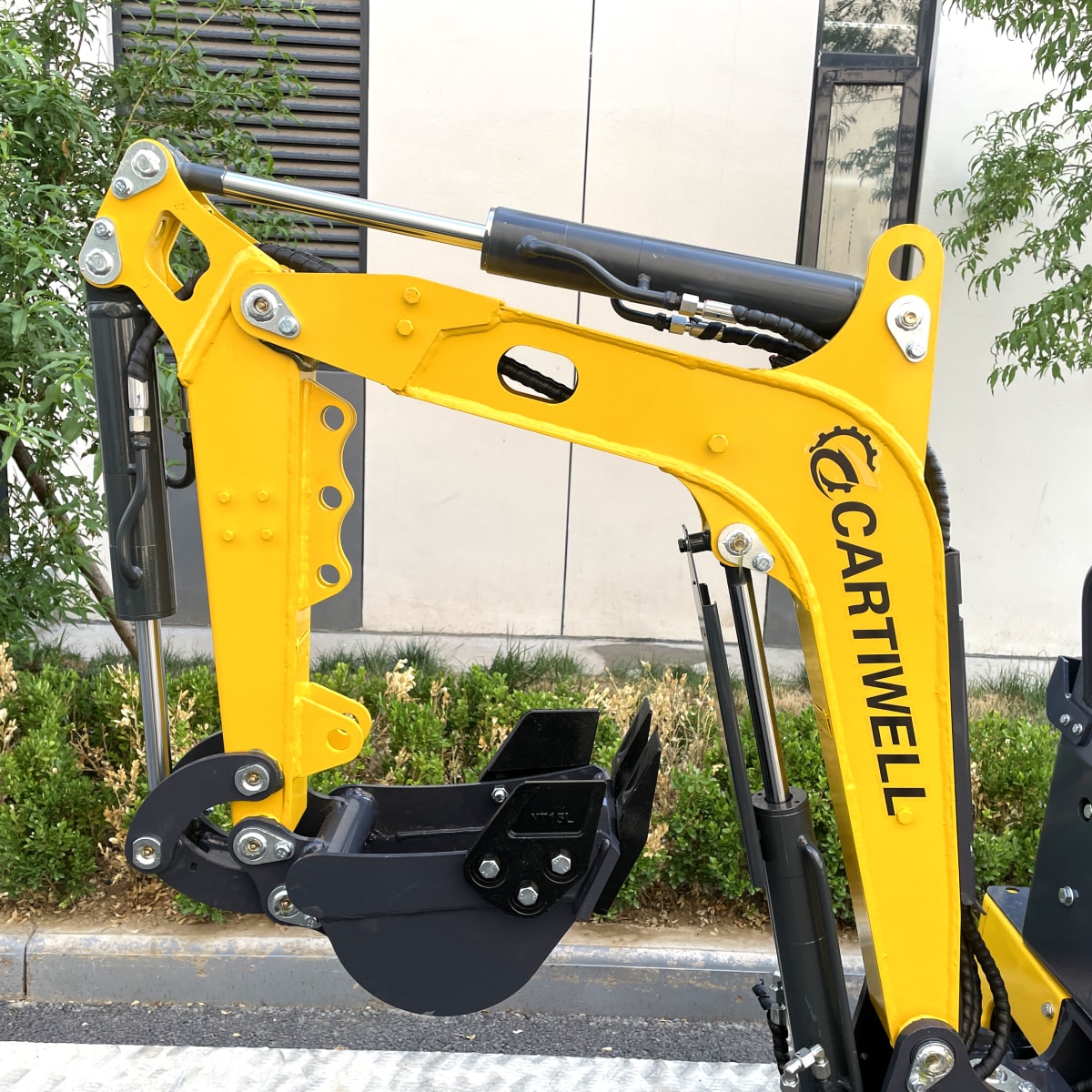

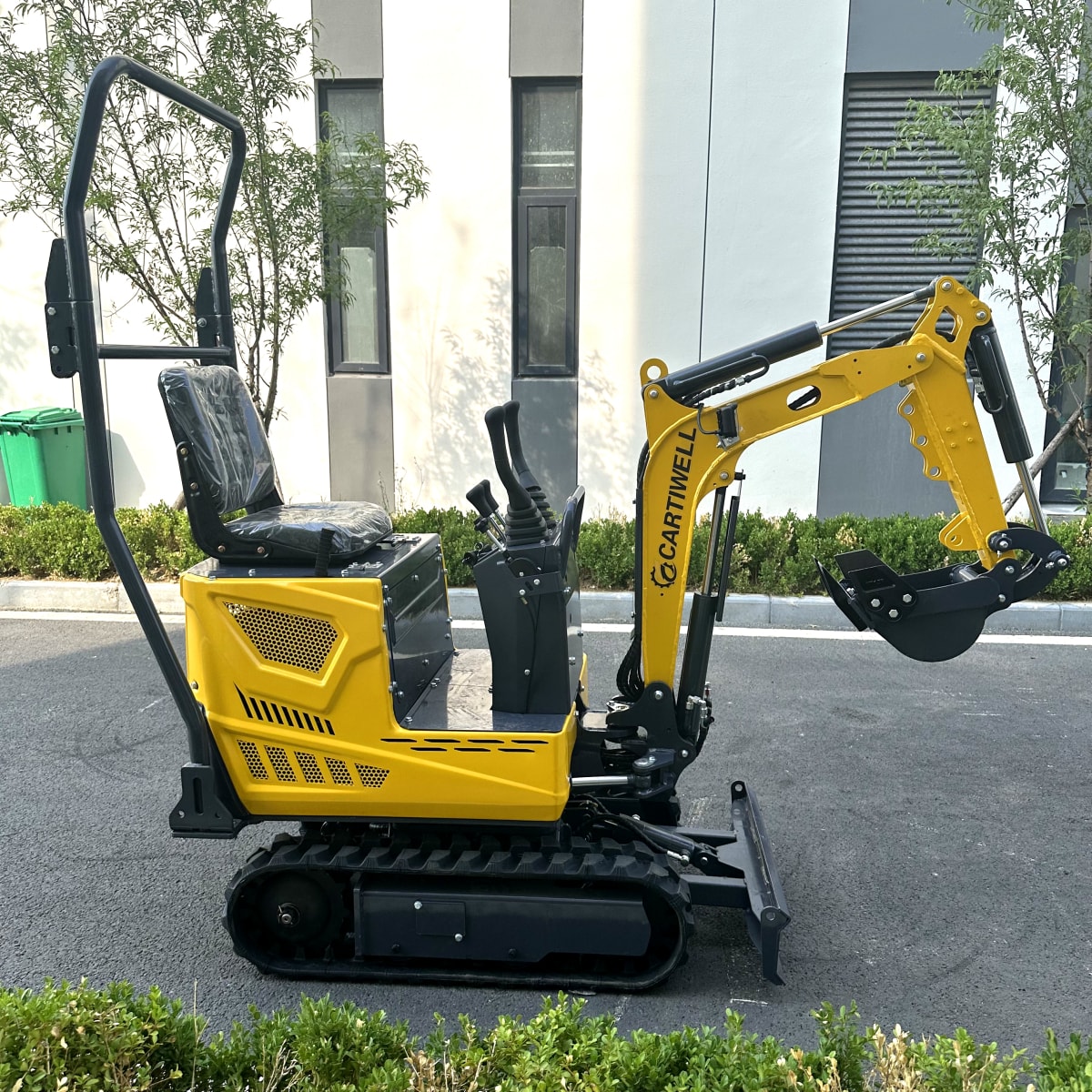

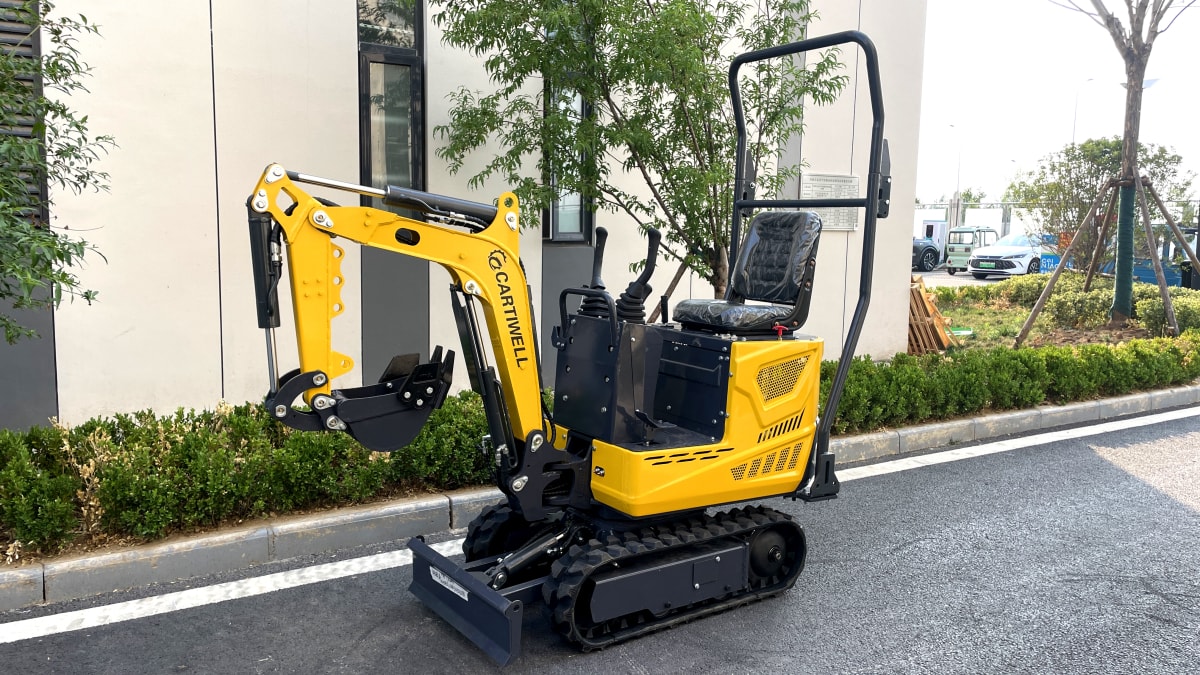

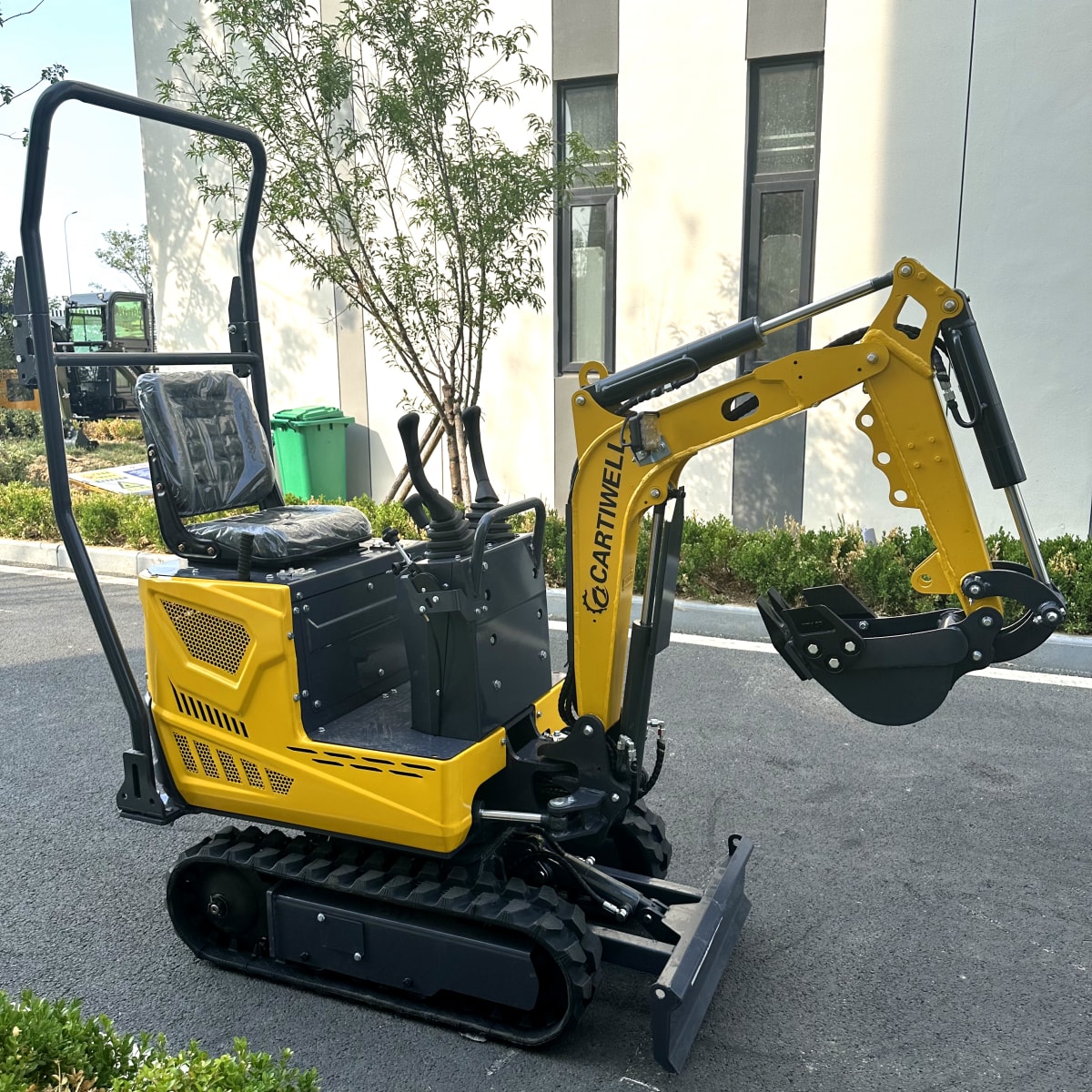

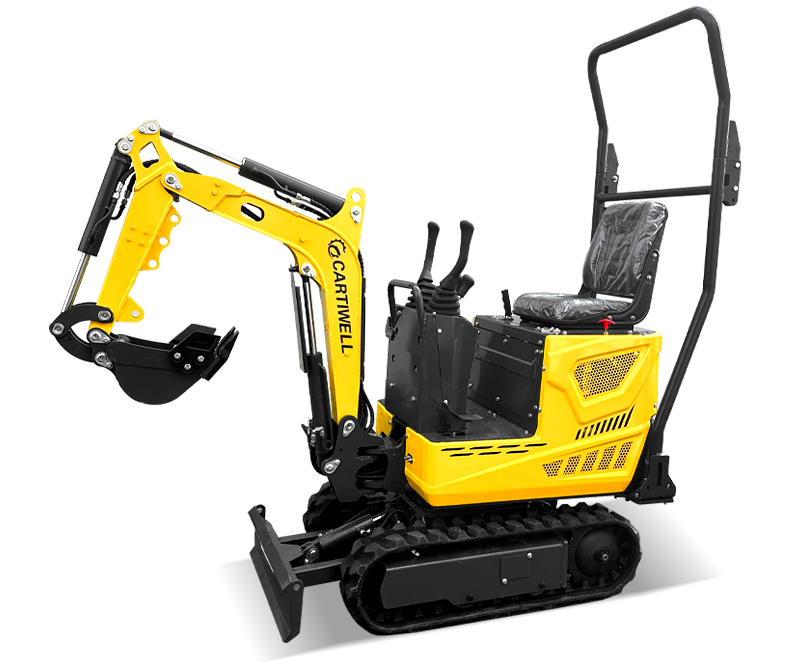

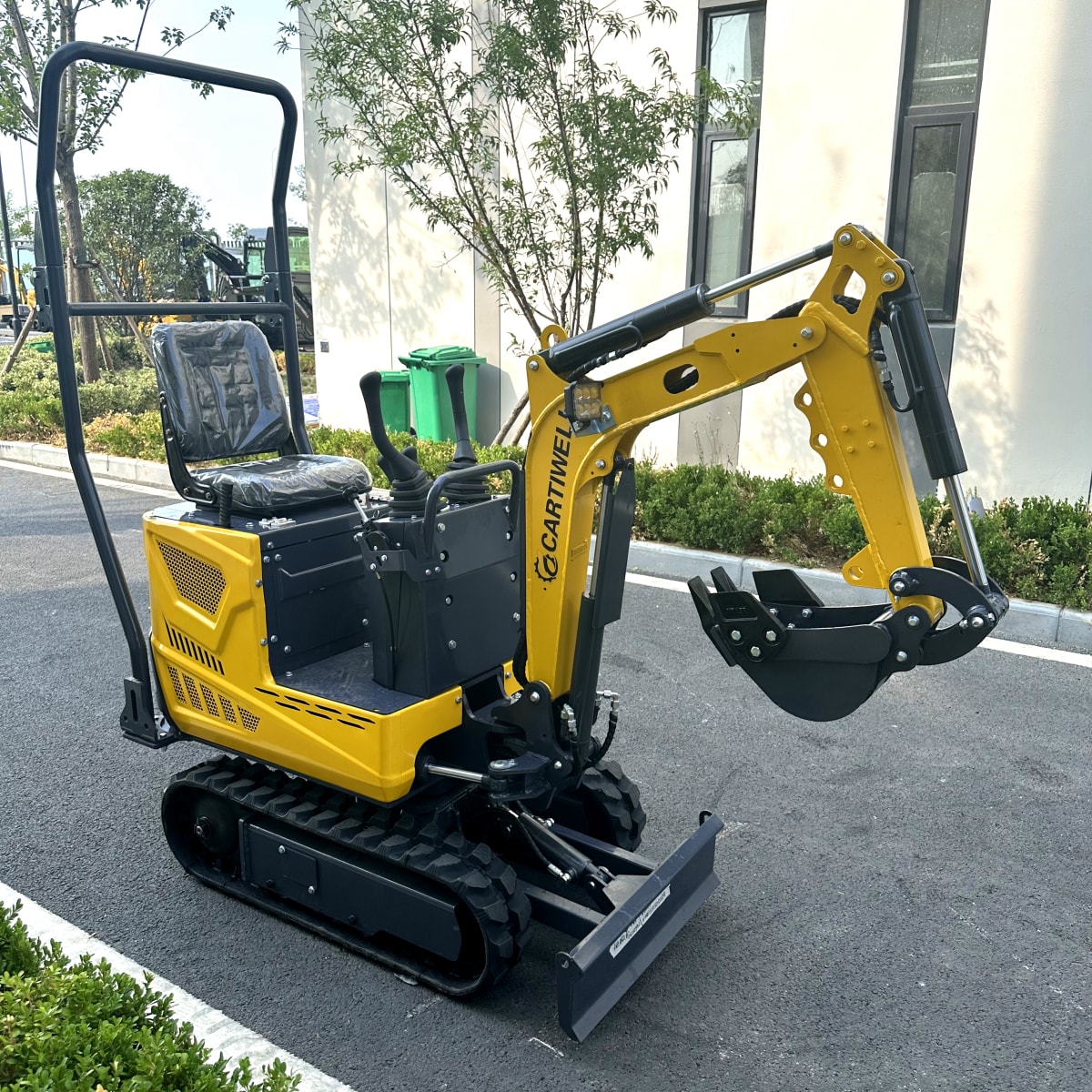

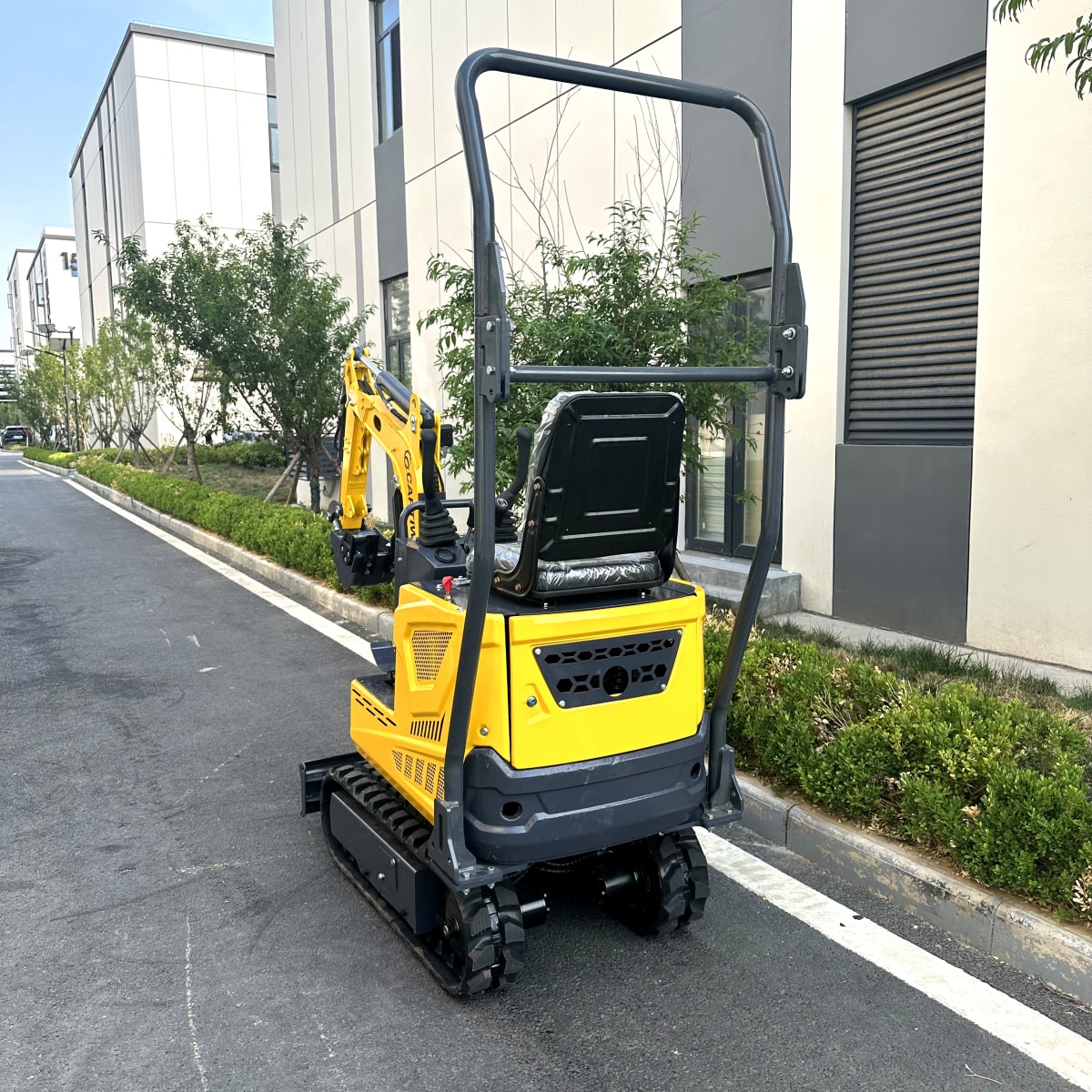

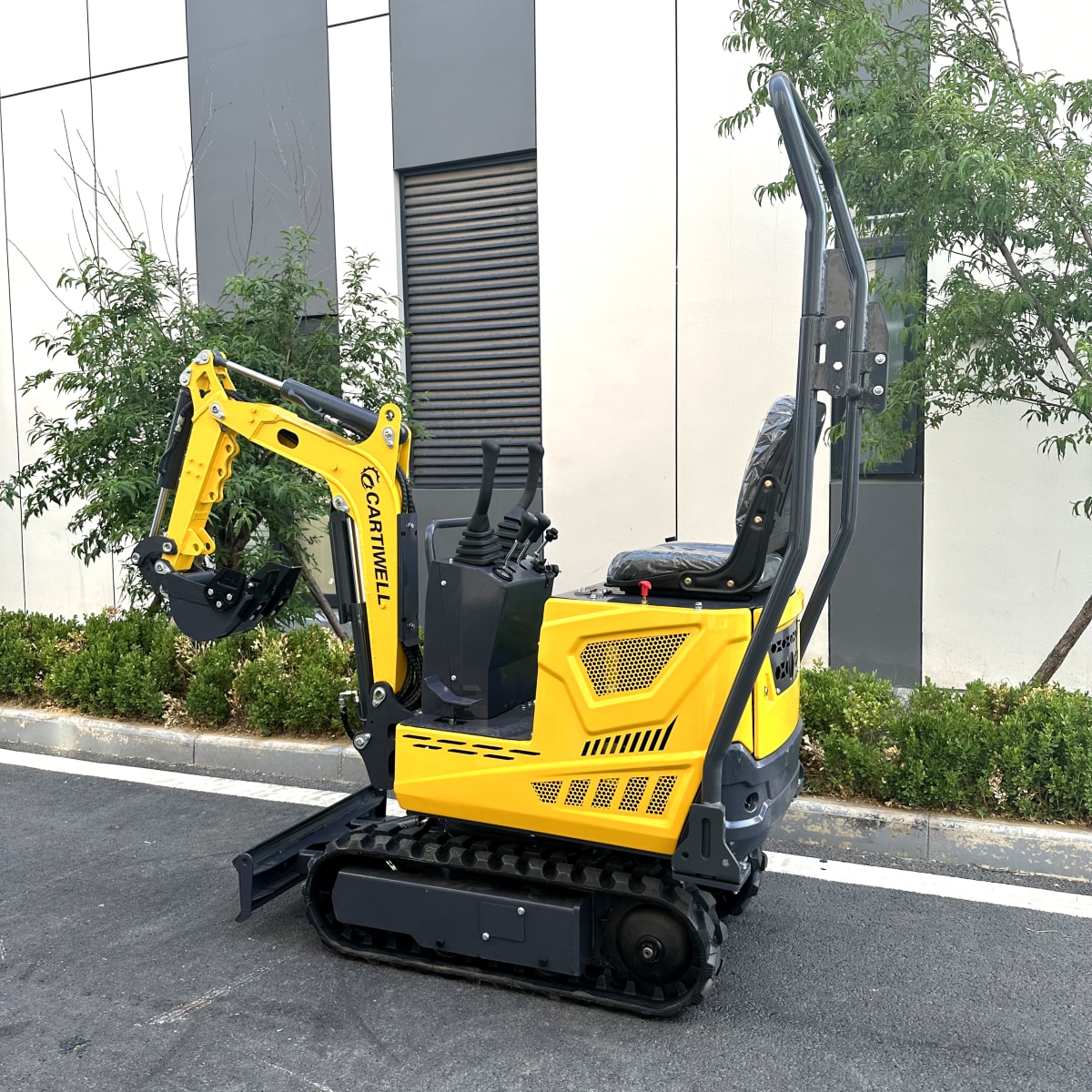

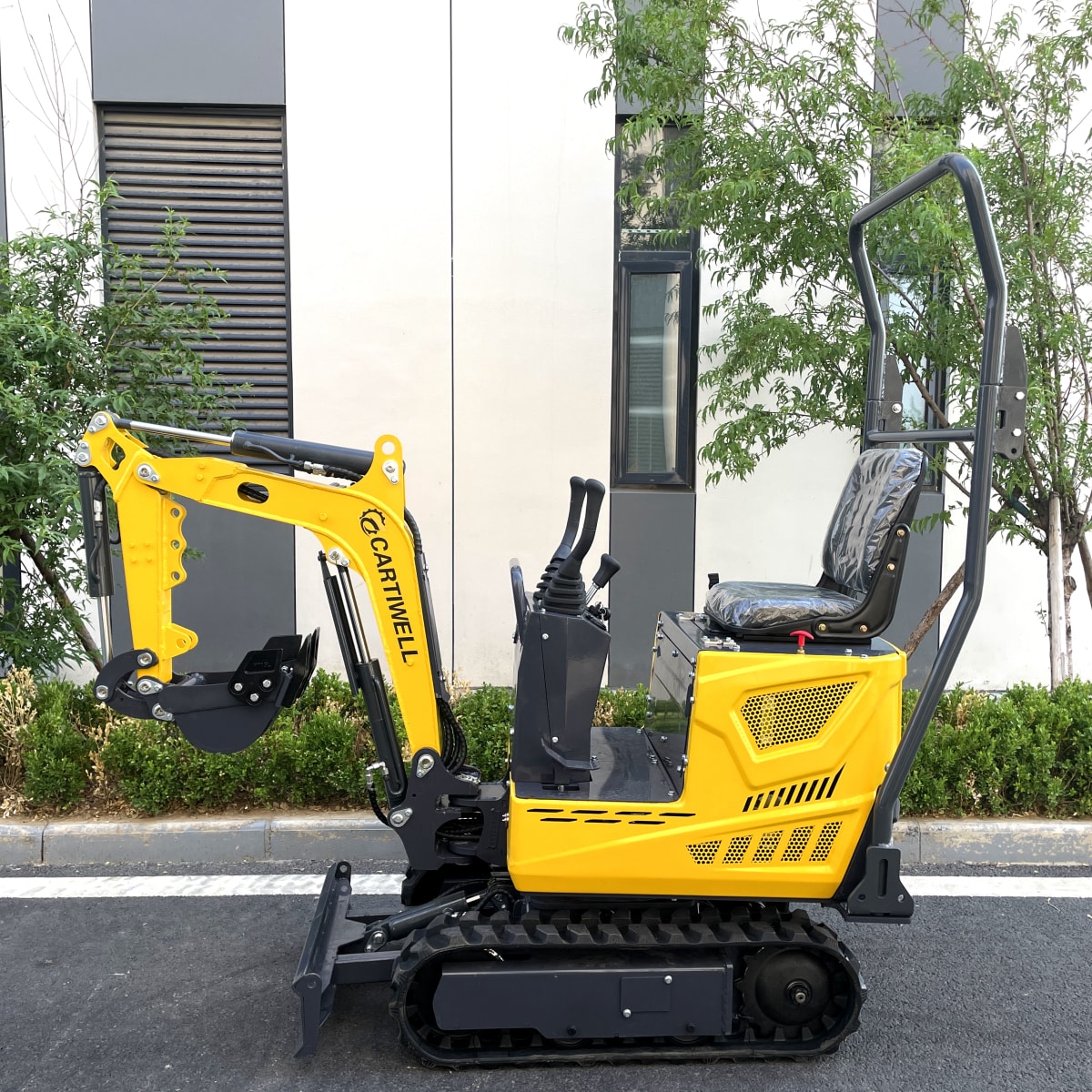

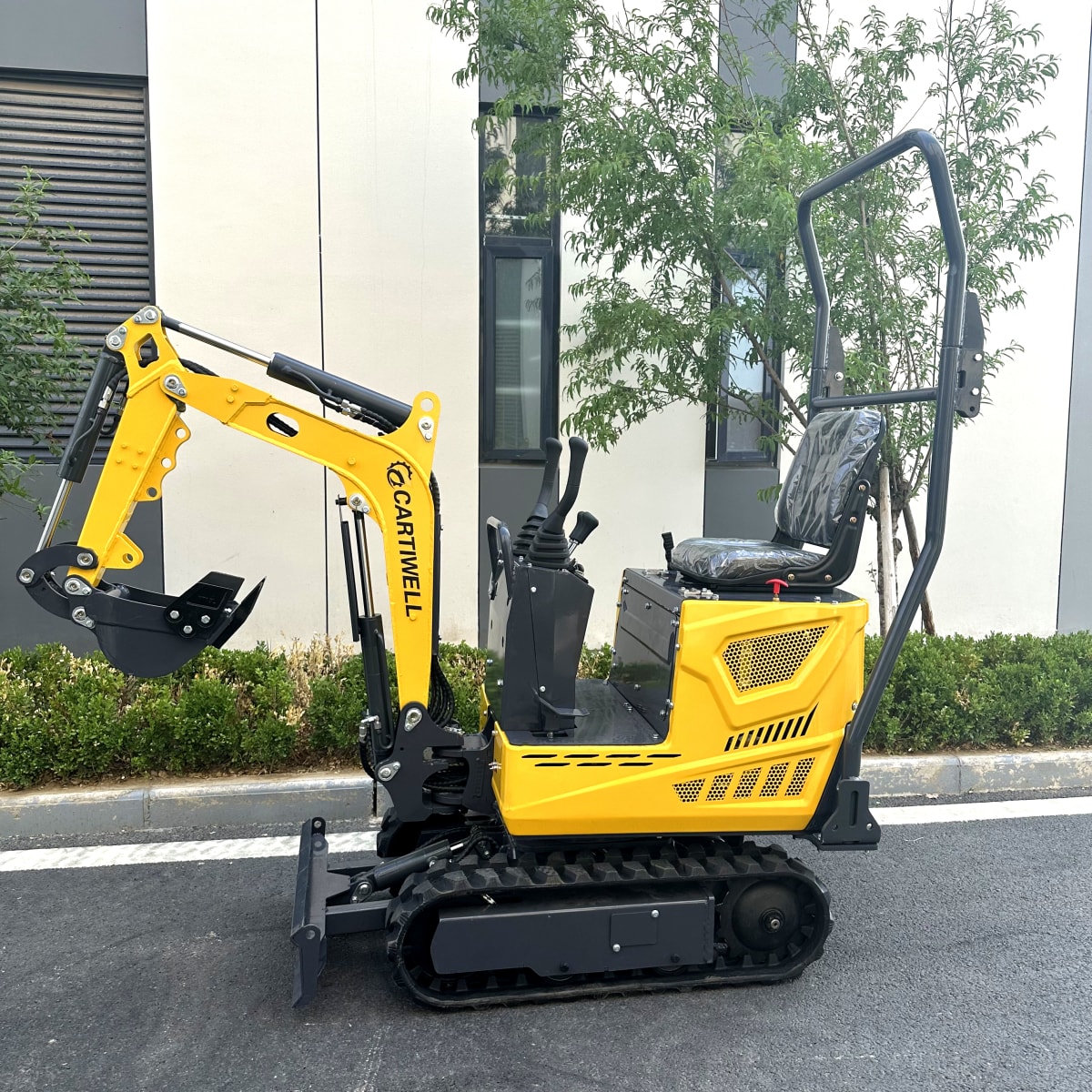

This is a CARTIWELL brand mini excavator CW-06, which can flexibly complete small-scale site excavation, garden trimming, narrow space crushing and other operations, and the mechanical arm cooperates with the bucket for precise operation. The advantages are obvious, the compact body adapts to narrow working conditions, and the tracked chassis ensures stable movement; Convenient operation and flexible handle control; Low energy consumption, low noise and little interference to the environment; It is a practical tool for small-scale construction scenes, which helps to easily solve various small and micro-operation needs.
