SPECIFICATIONS | |
Bucket Capacity | 0.025m³ |
Swing Speed | 0—12rmp |
Gradeability | 35° |
Max.Bucket Digging Force | 9KN |
Max.Arm Digging Force | 5.5KN |

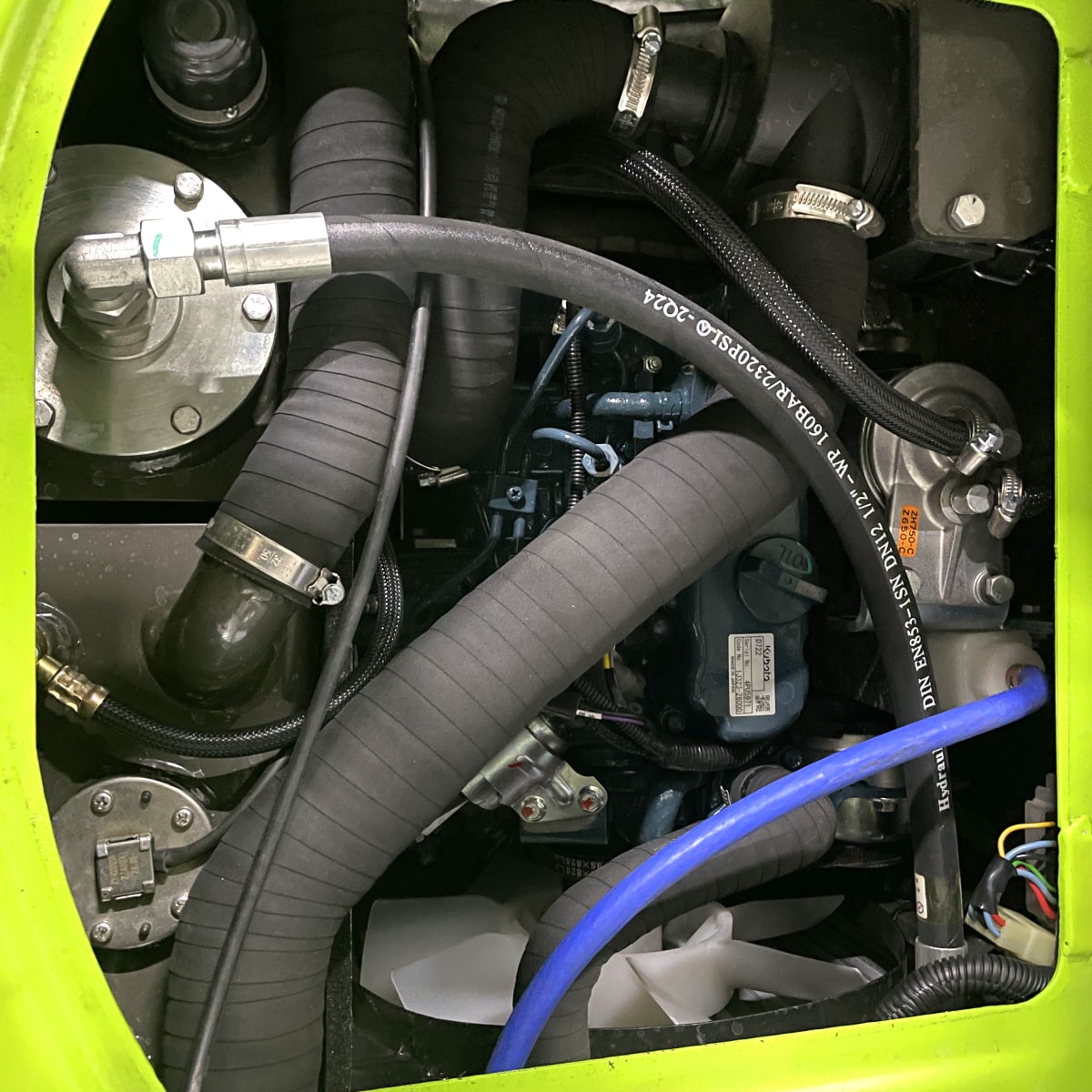

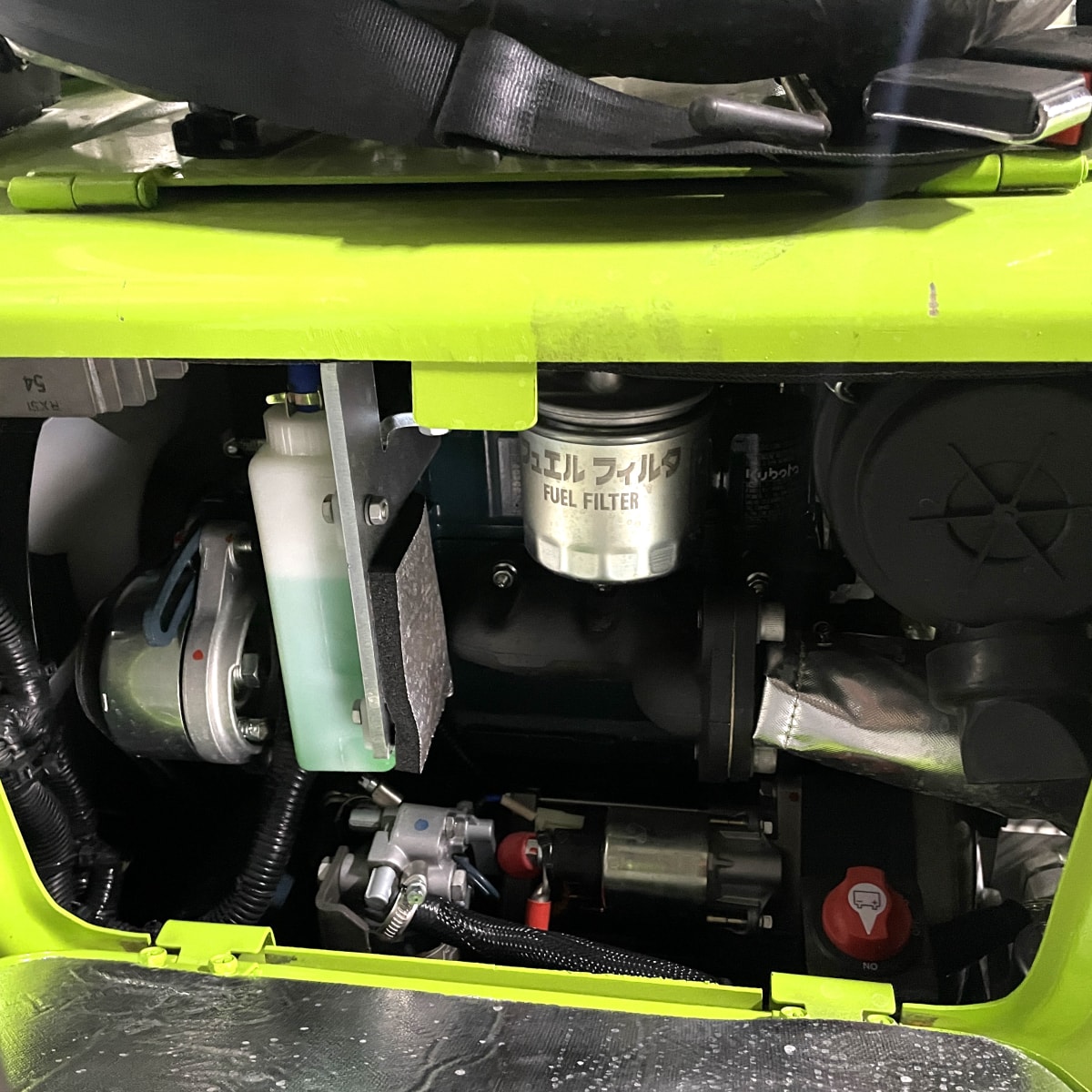

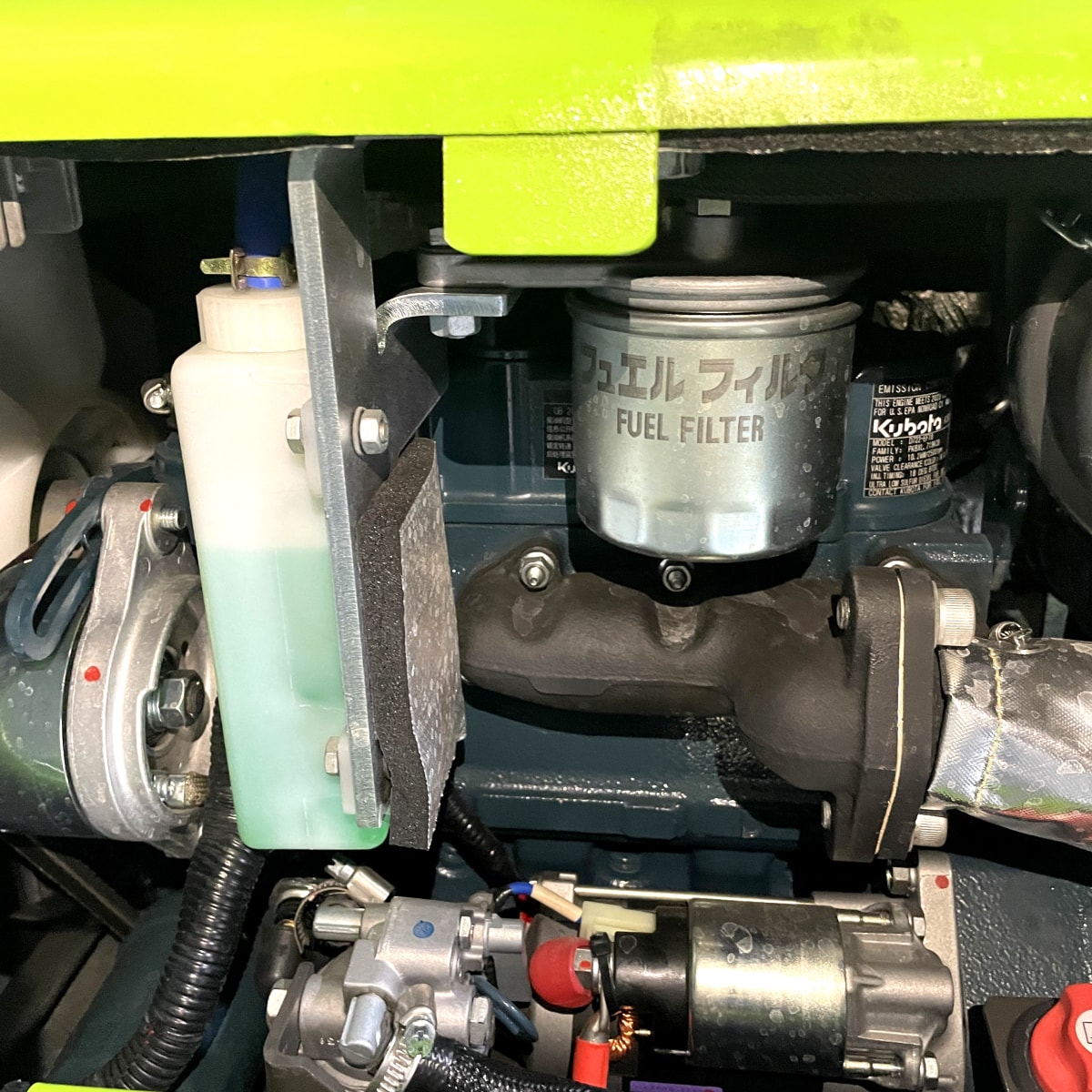

Engine Model | D722 – E4B |
Power/revolution speed | 10.2/2500 (KW/rmp) |
Operating weight | 1200kg |
System Pressure | 17MPa |
MACHINE SIZE | |
Dimension LengthWidthHeight | 3032×760/980x2270mm |
Cabin Height | 2270mm |
Track length | 1345mm |
Wheel(track) Distance | 580/760mm |
Minimum ground clearance | 125mm |
Tail Swing Radius | 550mm |
WORKING RANGE | |
Max.Digging Height | 3107mm |
Max.Dumping Height | 2172mm |
Max.Digging Depth | 1838mm |
Max.Vertical Digging Depth | 1709mm |
Max.Digging Reach | 3442mm |
Min.Swing Radius | 1398mm |
Counterweight hight | 395mm |
Ground length (Transportation) | 1597mm |

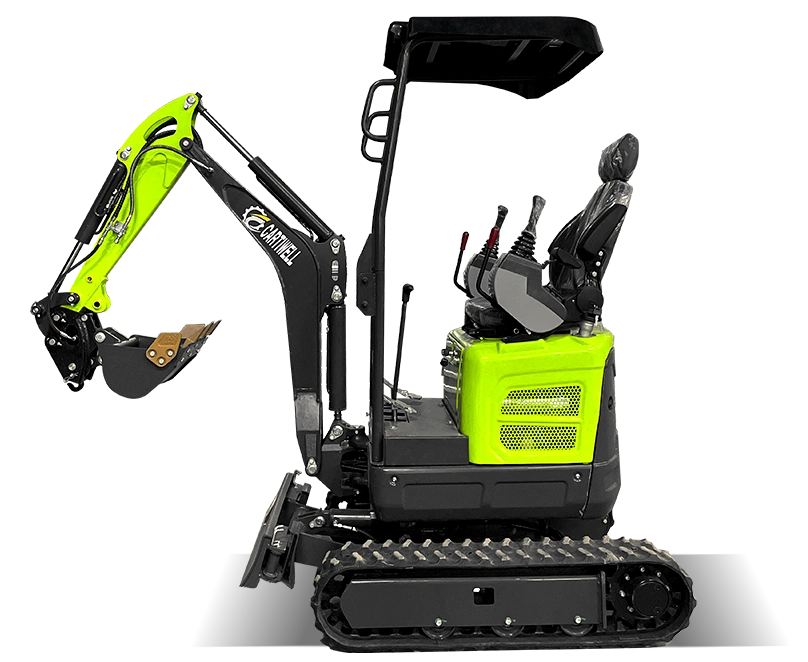

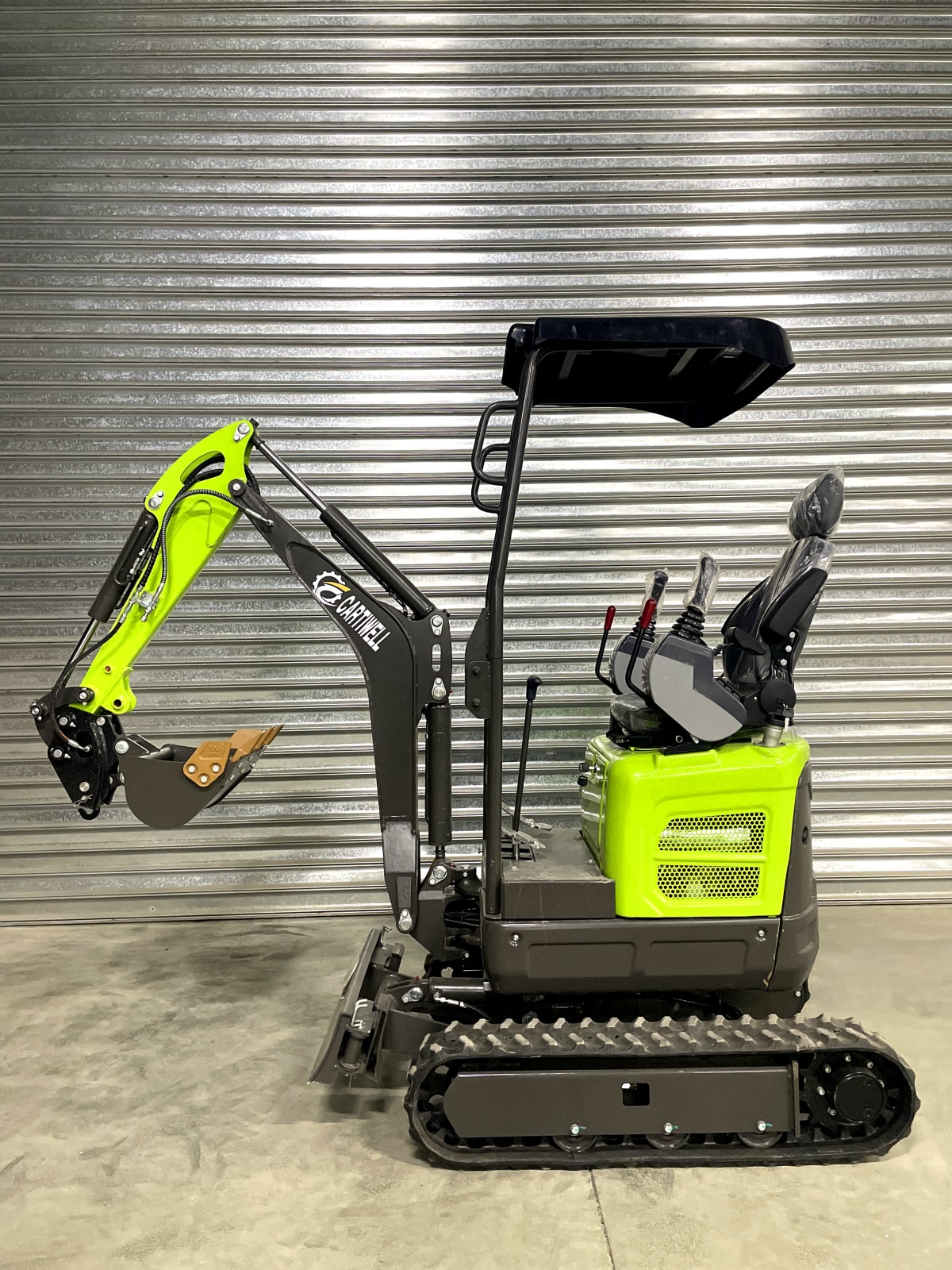

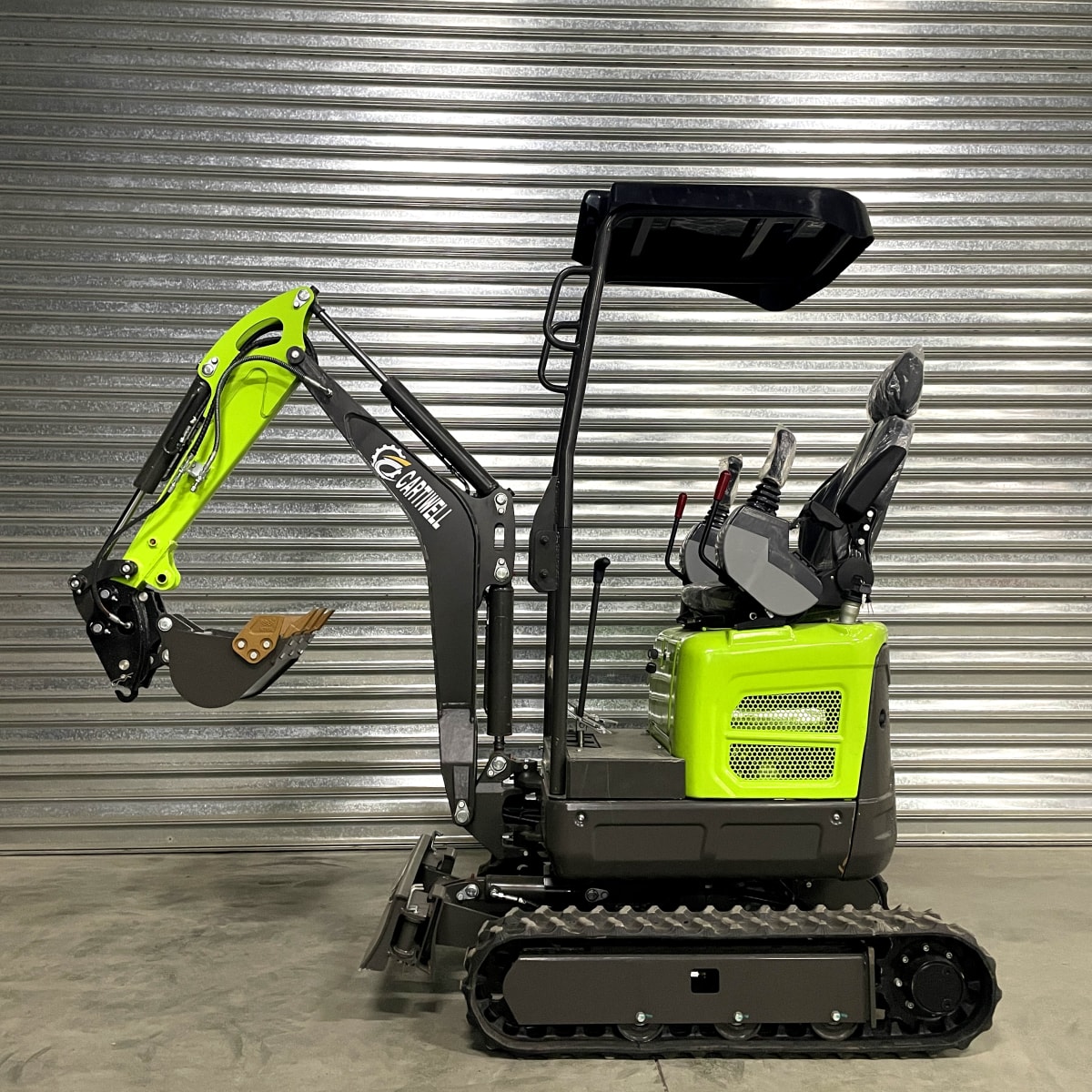

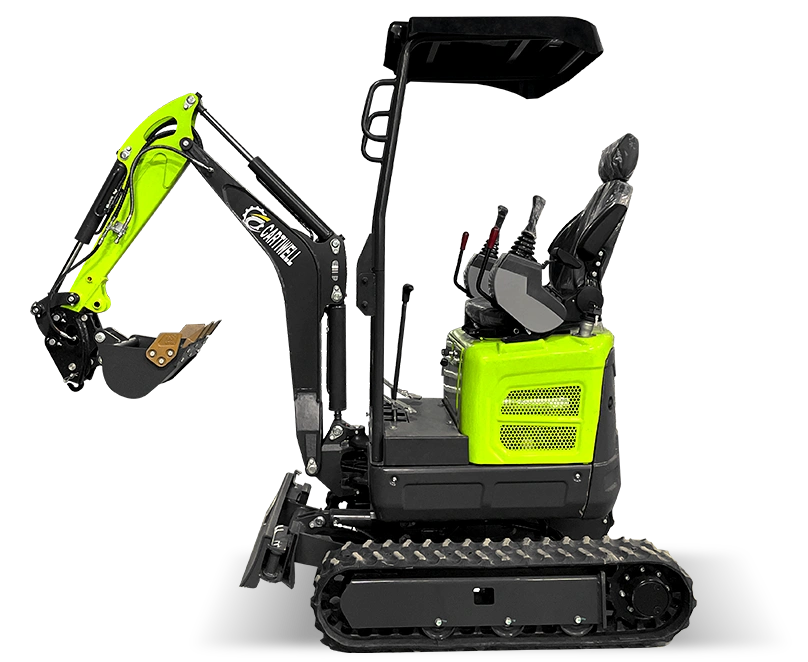

CW-13S mini excavator is compact, flexible and can shuttle freely in narrow space and complex terrain, which greatly improves the adaptability of construction. Easy to operate and comfortable to drive, which reduces the labor intensity and technical threshold of operators. Made of high-quality materials and advanced technology, the structure is durable and reliable, which reduces equipment failure and maintenance costs. In addition, it is energy-efficient and can effectively reduce energy consumption. At the scene of rural reconstruction, this small excavator can become a right-hand man in construction with its excellent function and obvious advantages.
