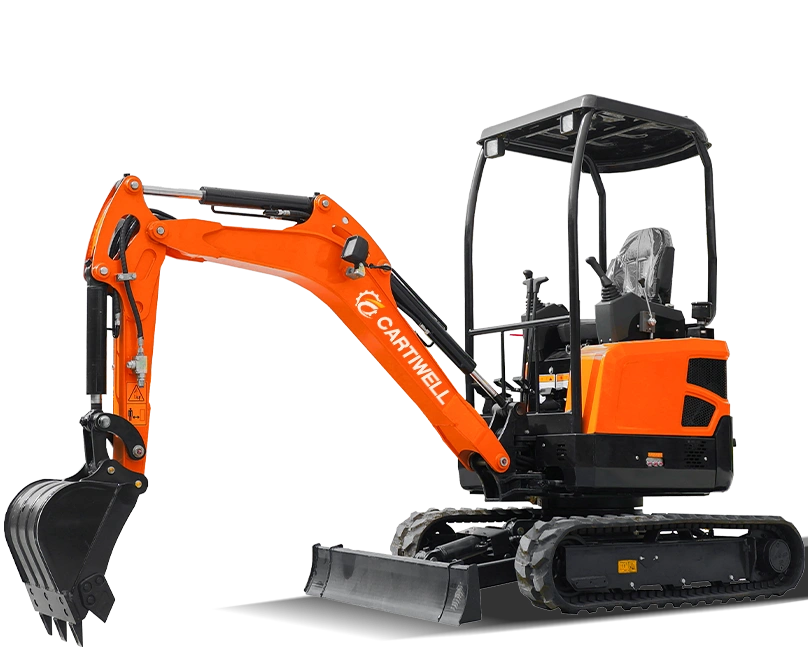

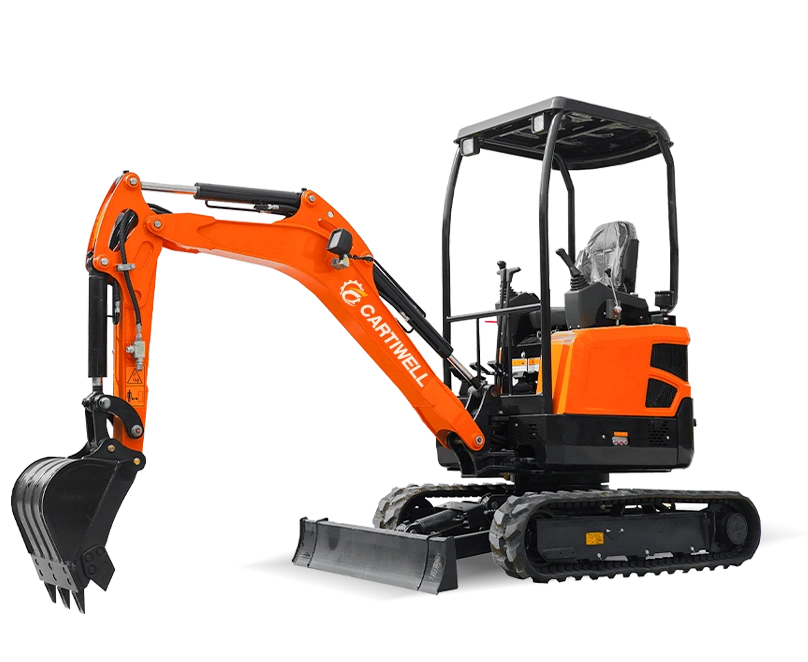

Mini Excavator

CW-20C

Technical Specifications

Operating Weight 2000 kg

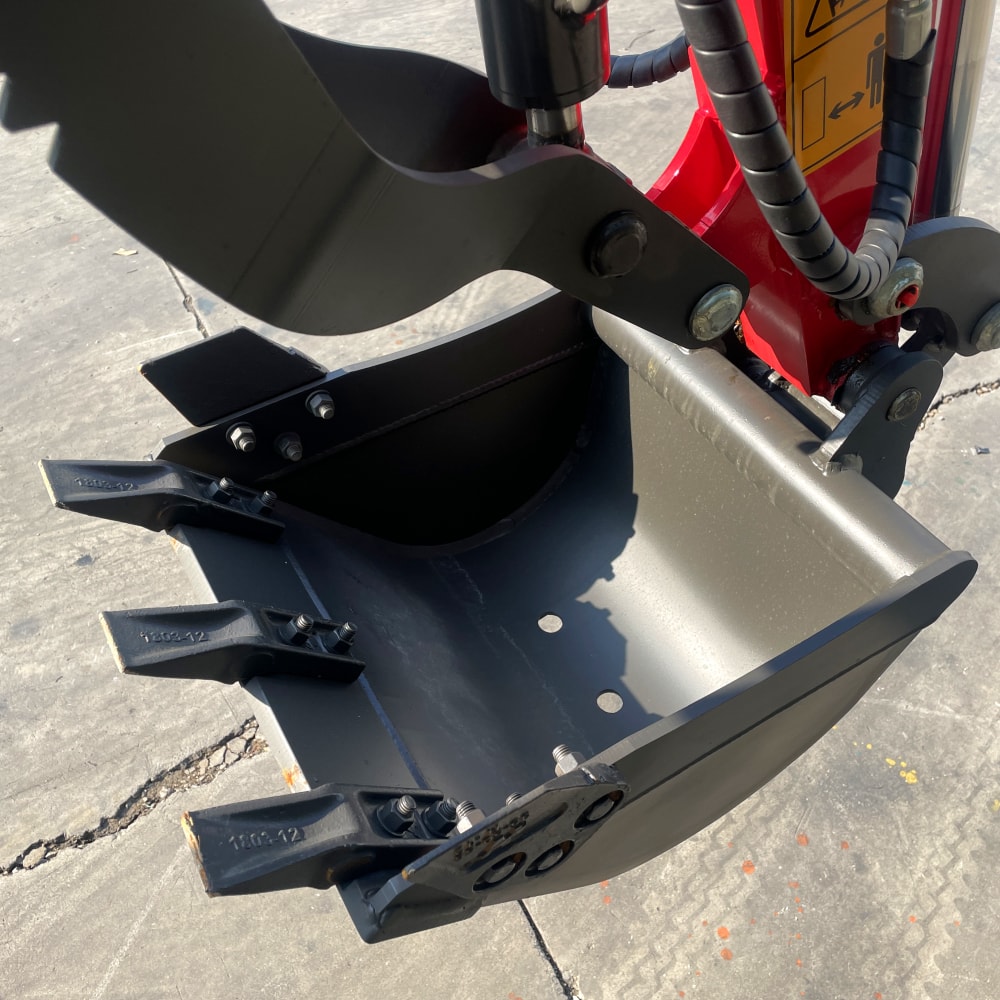

Bucket Capacity 0.07 m³

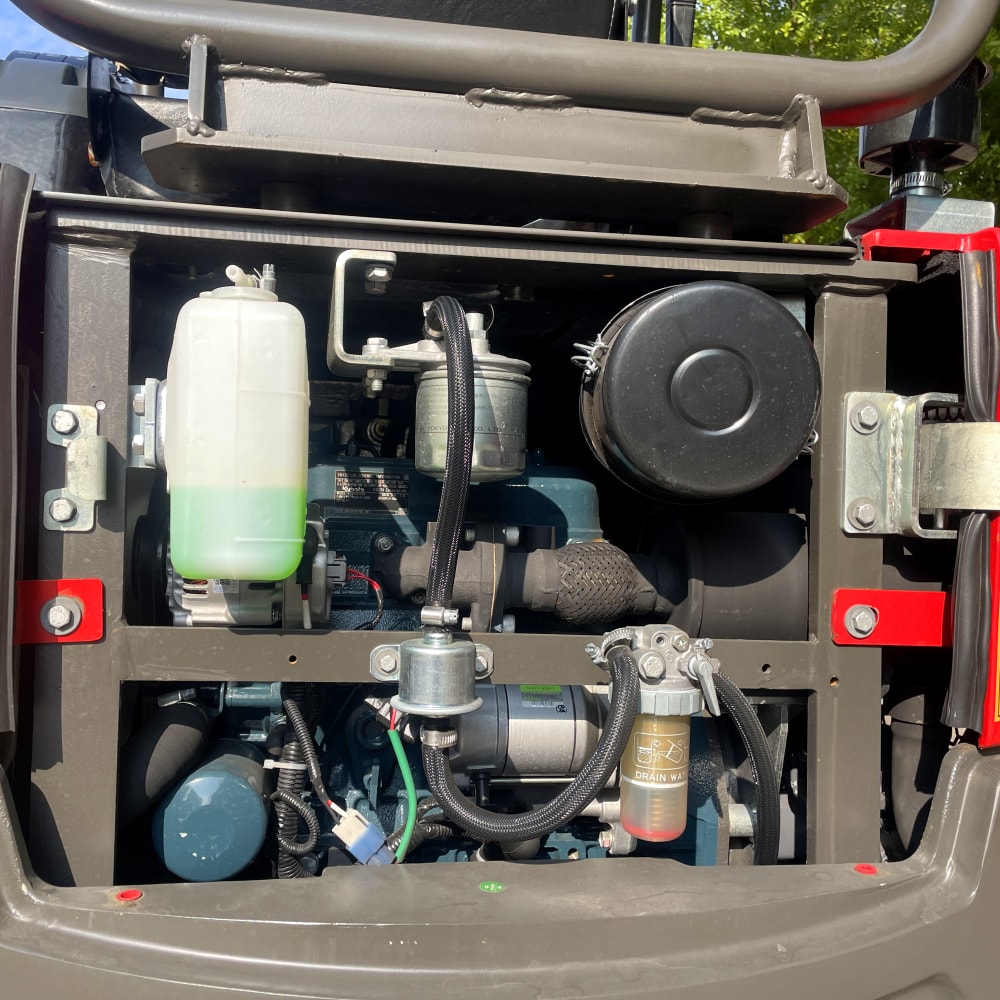

Engine Kubota D1105
Rated Power 14 kW (19 HP) at 2000 rpm
Displacement 1.12 L
Bucket Digging Force 18 kN
Arm Digging Force 11 kN
Gradeability 30°
Fuel Tank Capacity 18 L
Operating Pressure 22 MPa
Hydraulic Flow 56.4 L/min
Hydraulic Oil Capacity 15 L
Swing Motor Eaton
Swing Speed 0-9 rpm
Travel Motor Likechuan
Travel Speed (Low/High) 1.9 / 3.4 km/h

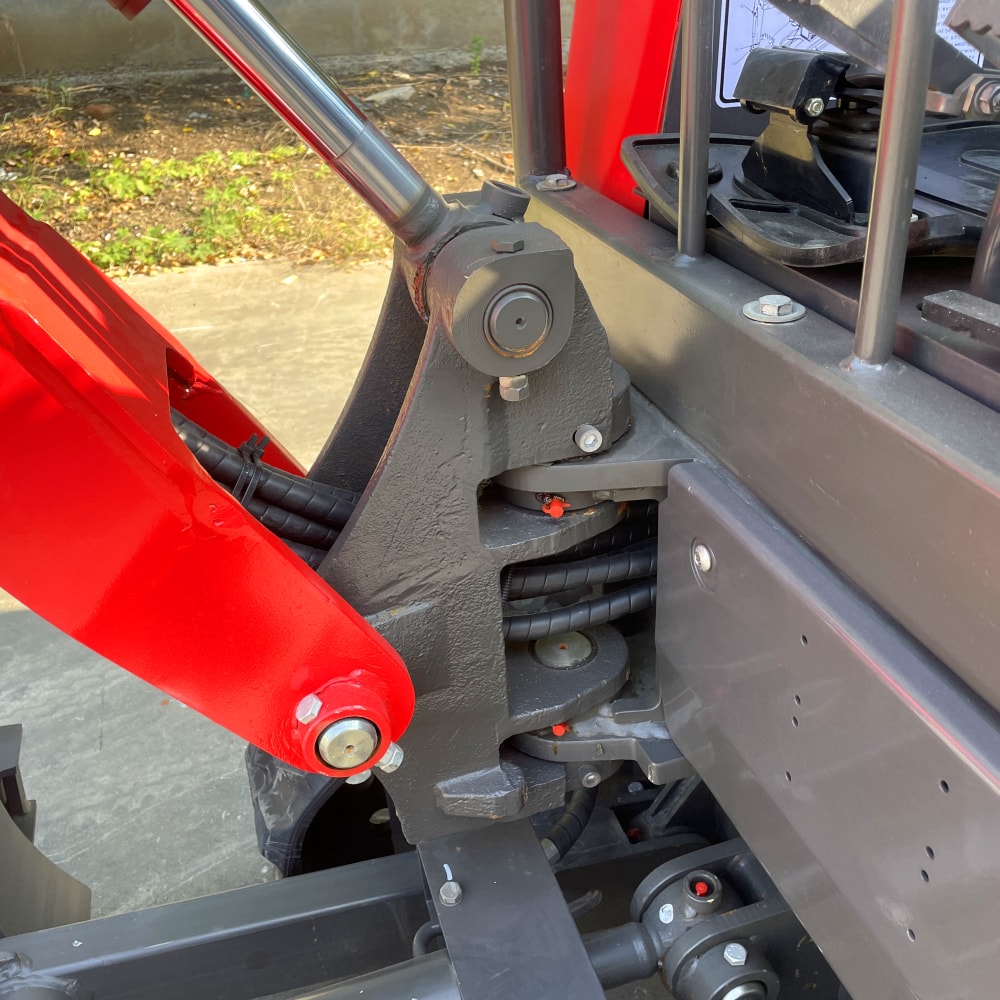

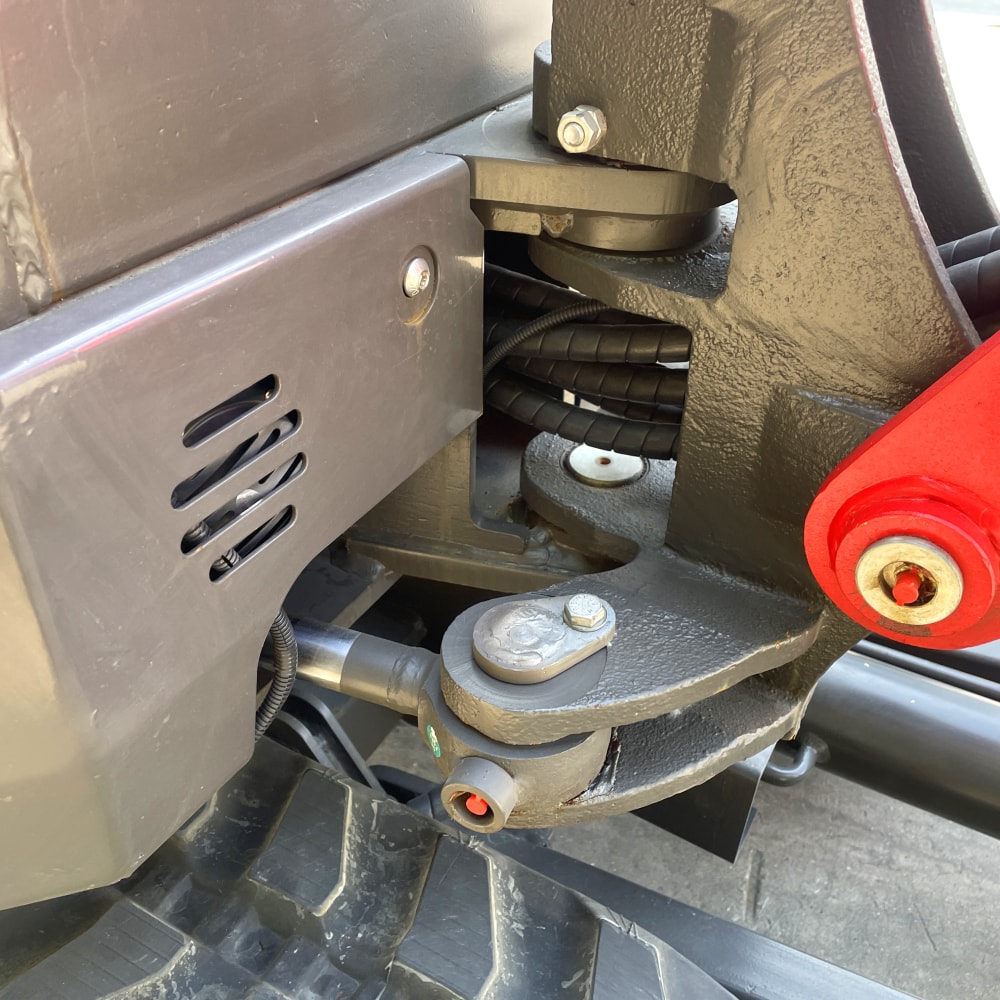

Boom Swing Angle (Left/Right) 50° / 55°
Wheelbase 1230 mm
Track Ground Length 1610 mm
Platform Ground Clearance 480 mm
Rear Swing Radius 800 mm
Chassis Width 990 mm
Track Width 230 mm
Track Height 400 mm
Transport Length 3555 mm

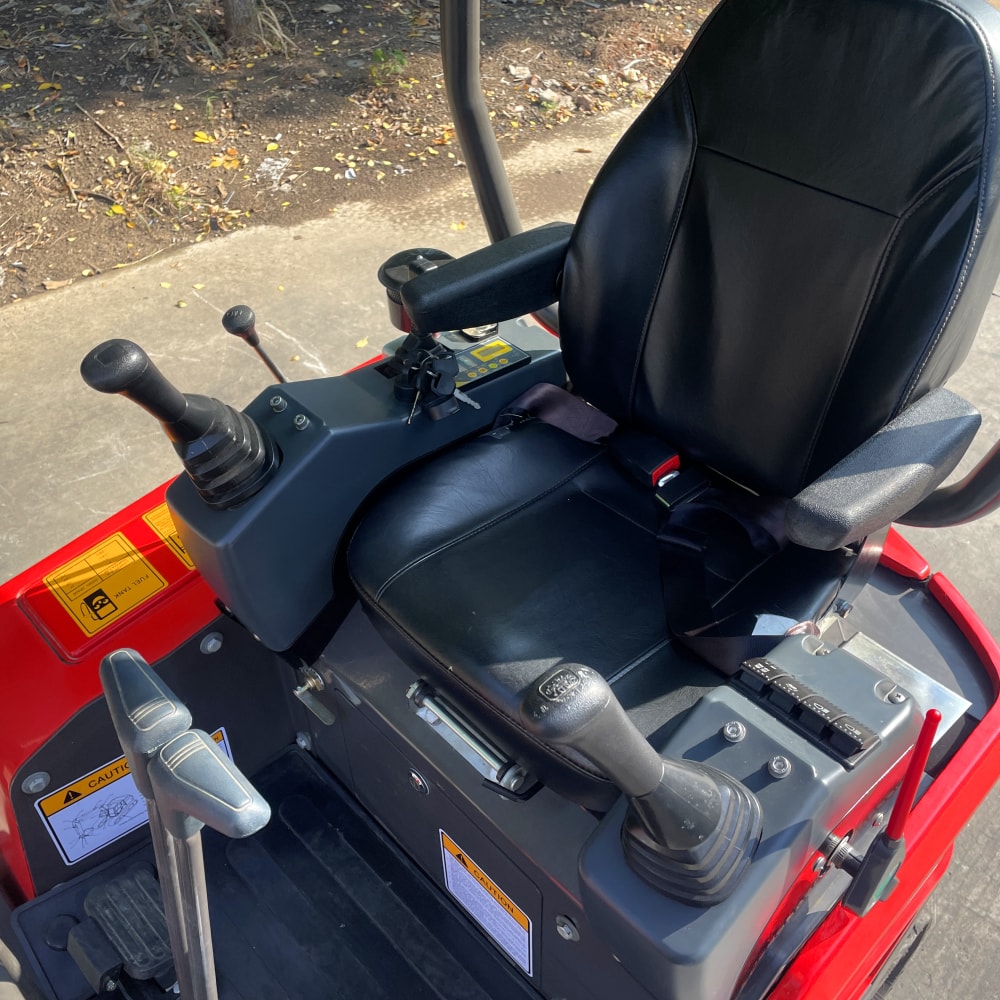

Seat to Floor Height 1500 mm
Overall Height 2290 mm
Maximum Digging Radius on Ground 3960 mm
Maximum Digging Radius 4040 mm
Maximum Digging Depth 2400 mm
Maximum Digging Height 3700 mm
Maximum Unloading Height 2440 mm
Maximum Vertical Digging Depth 2025 mm
Minimum Swing Radius 1610 mm

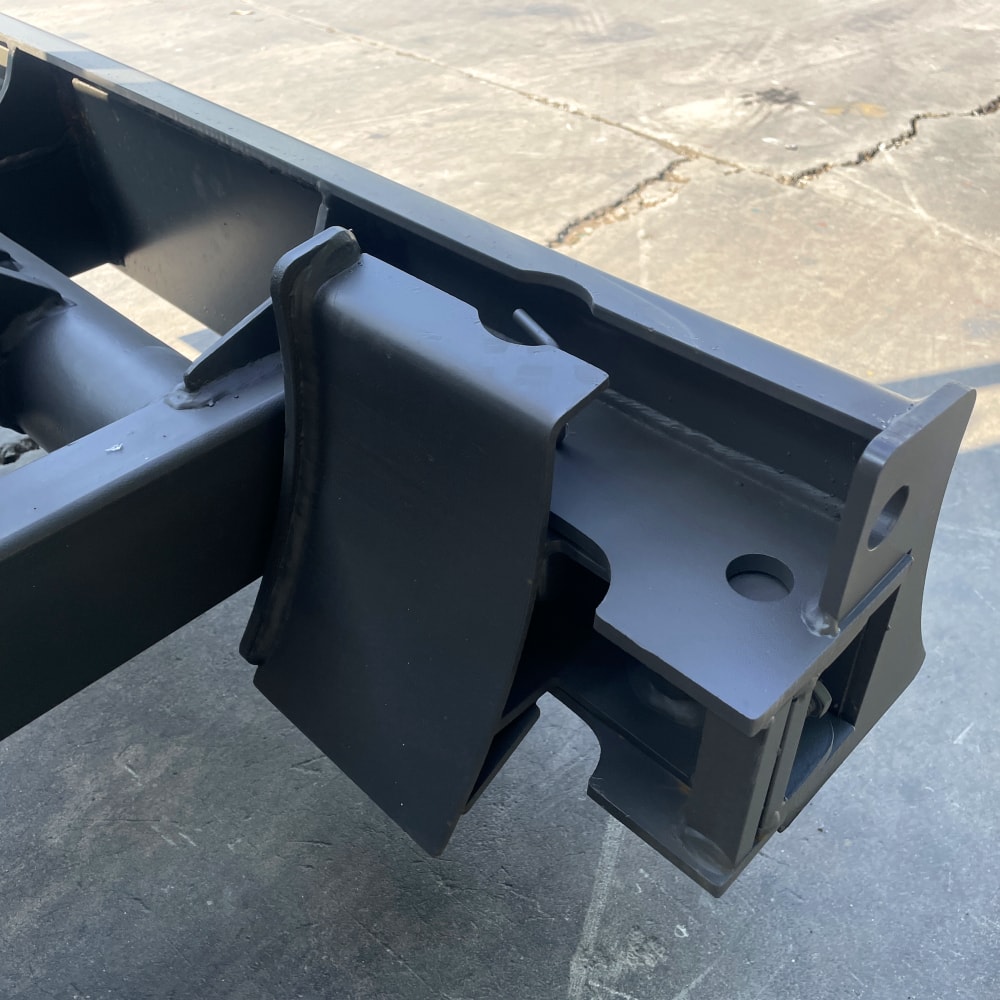

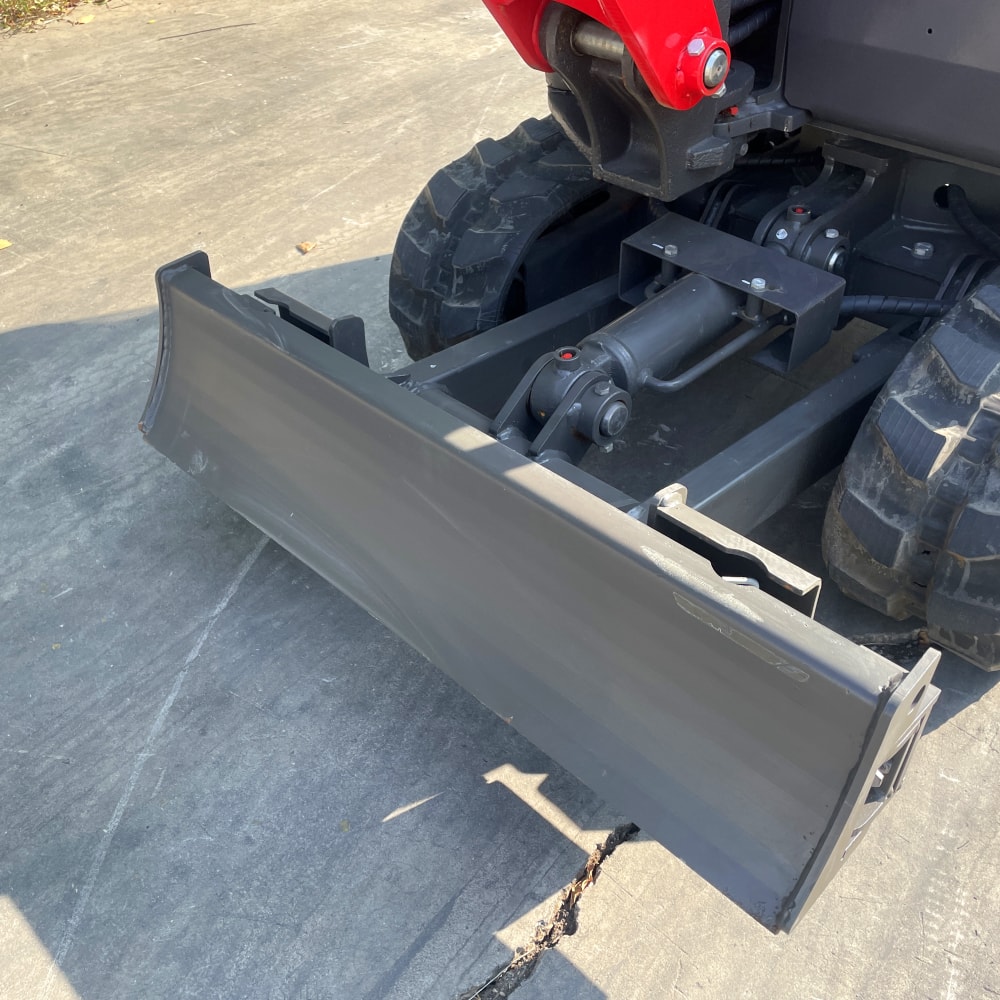

Dozer Blade Lifting Height 240 mm
Dozer Blade Digging Depth 270 mm

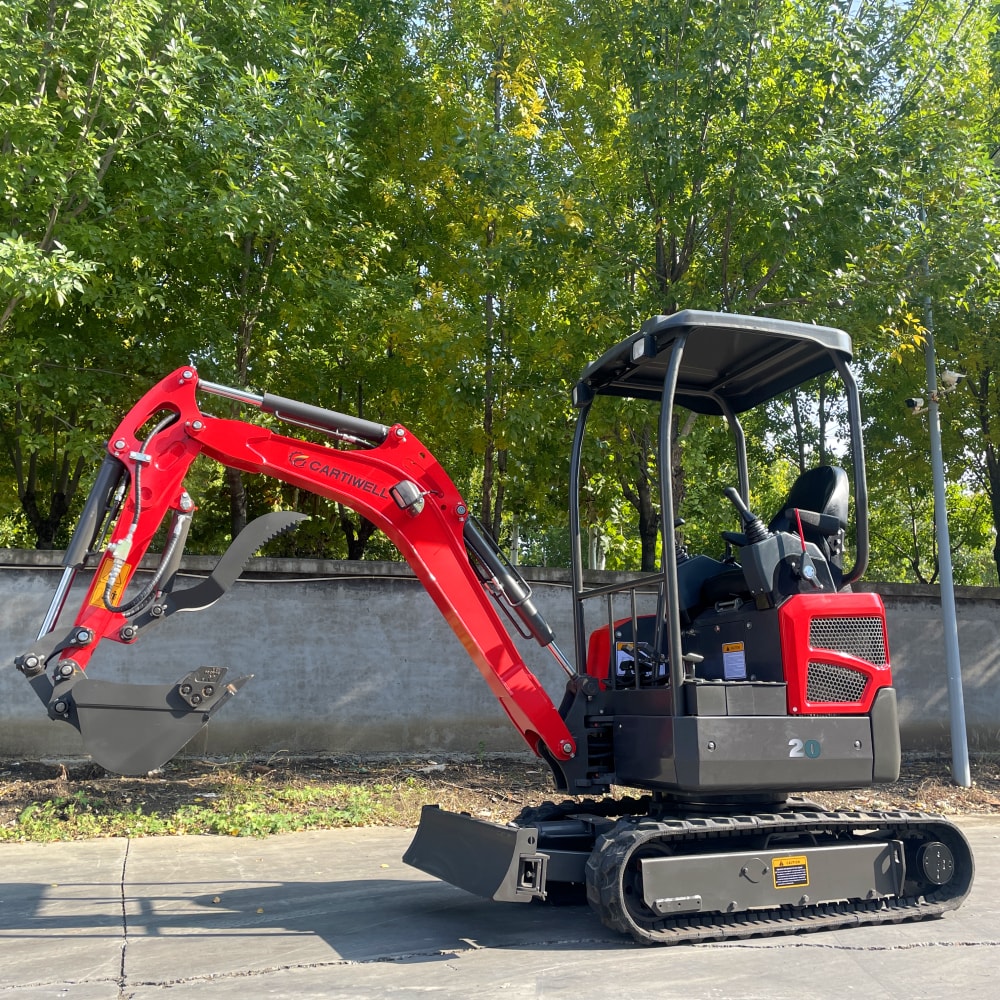

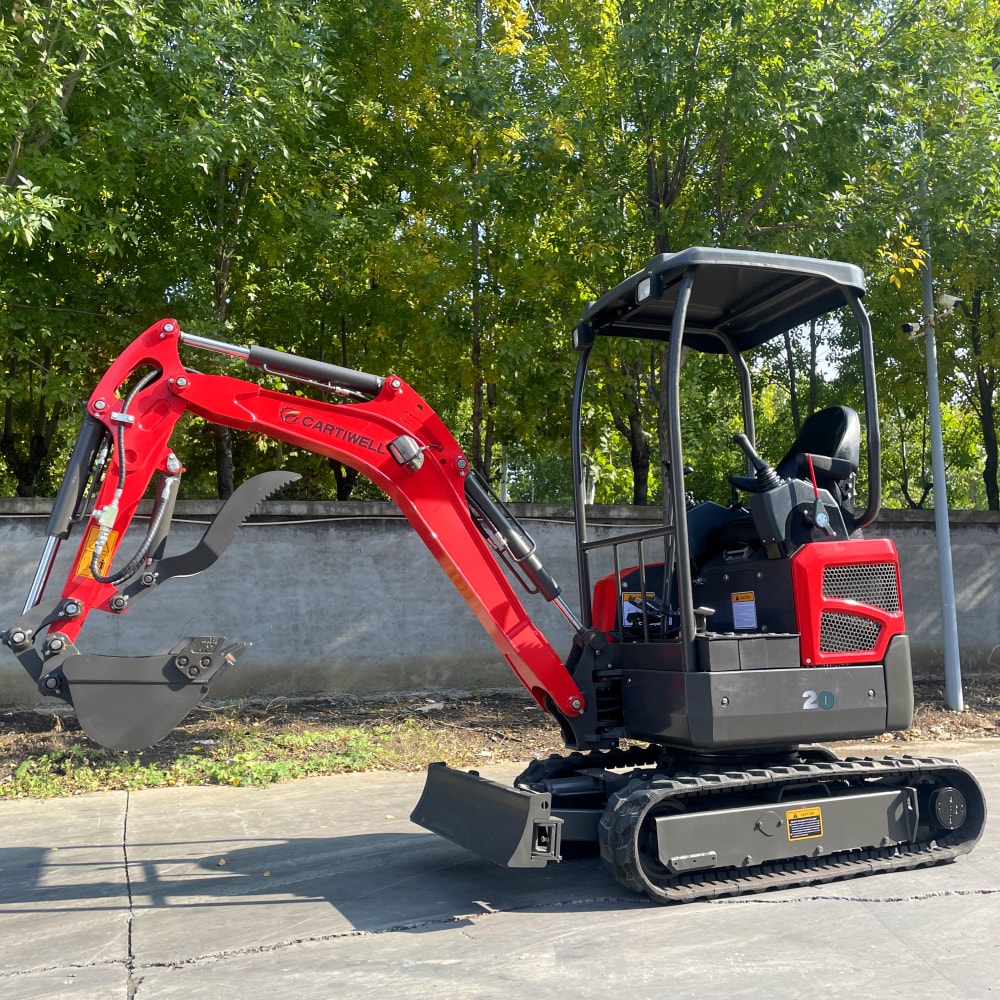

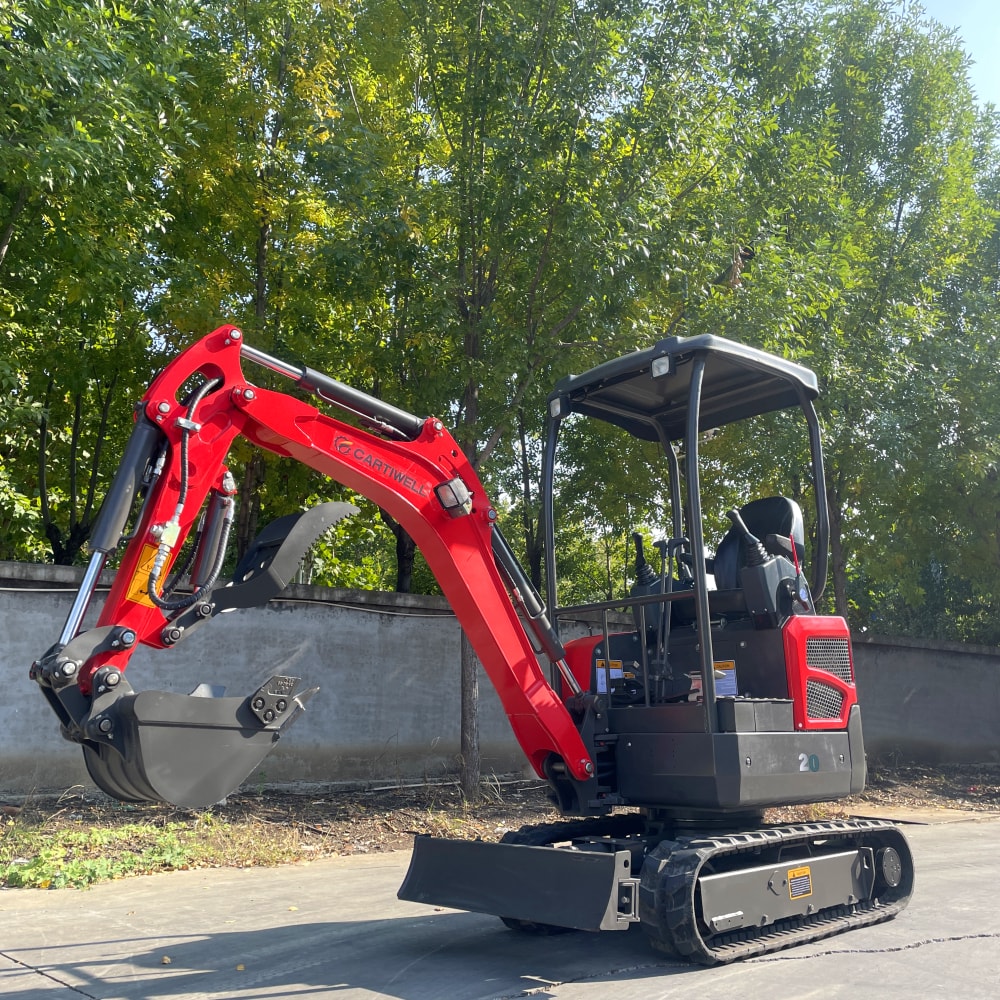

CW-20C

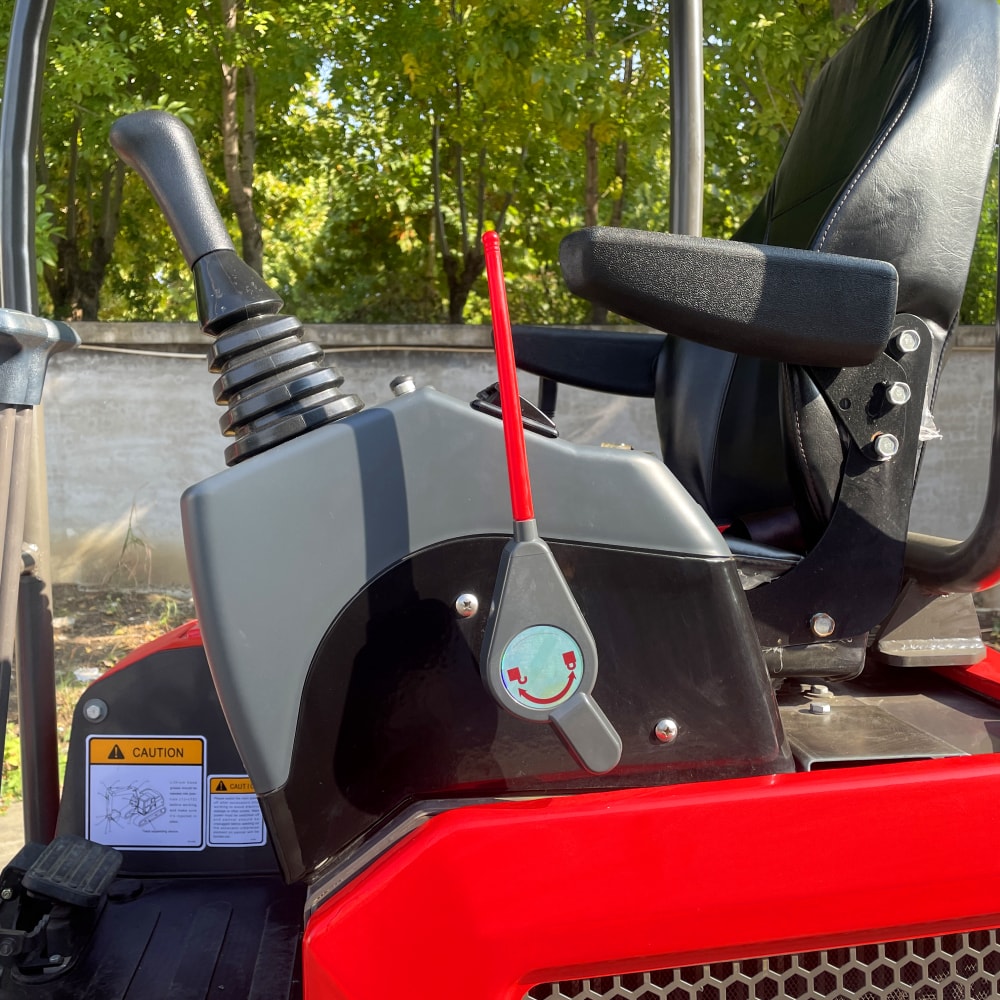

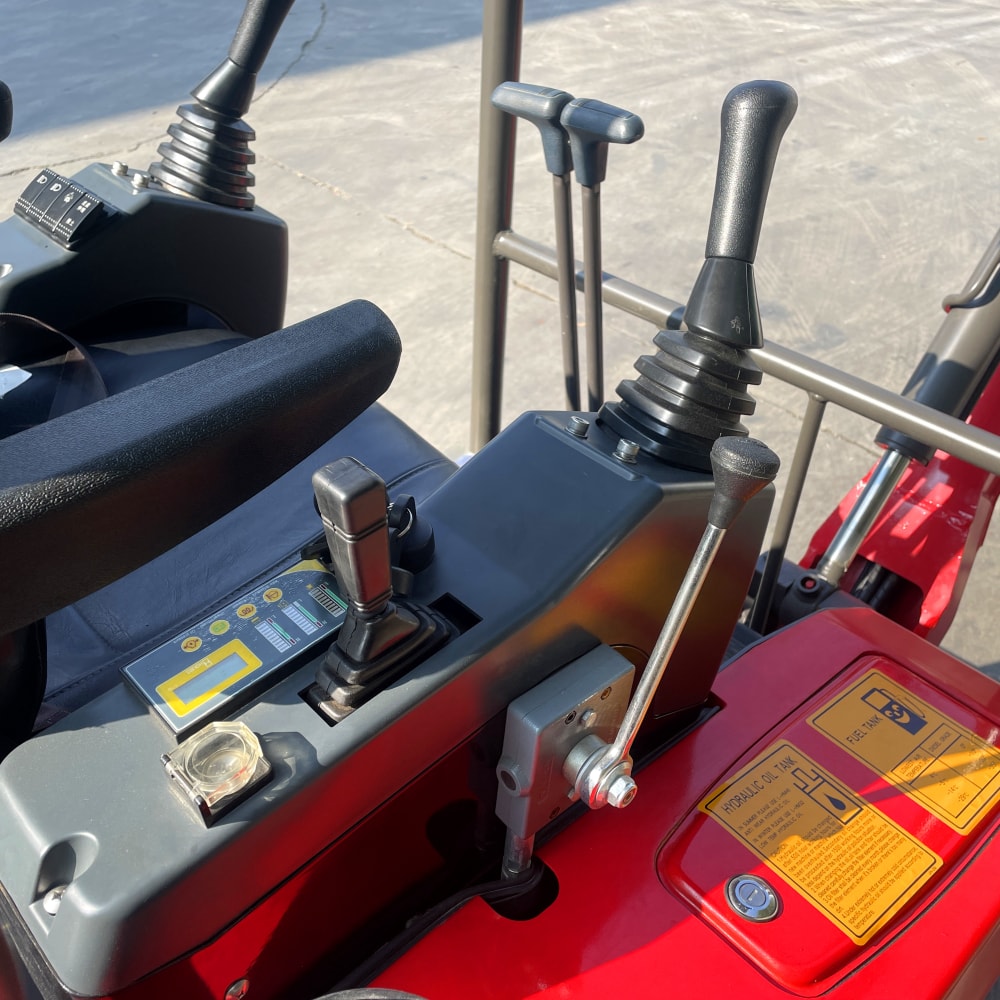

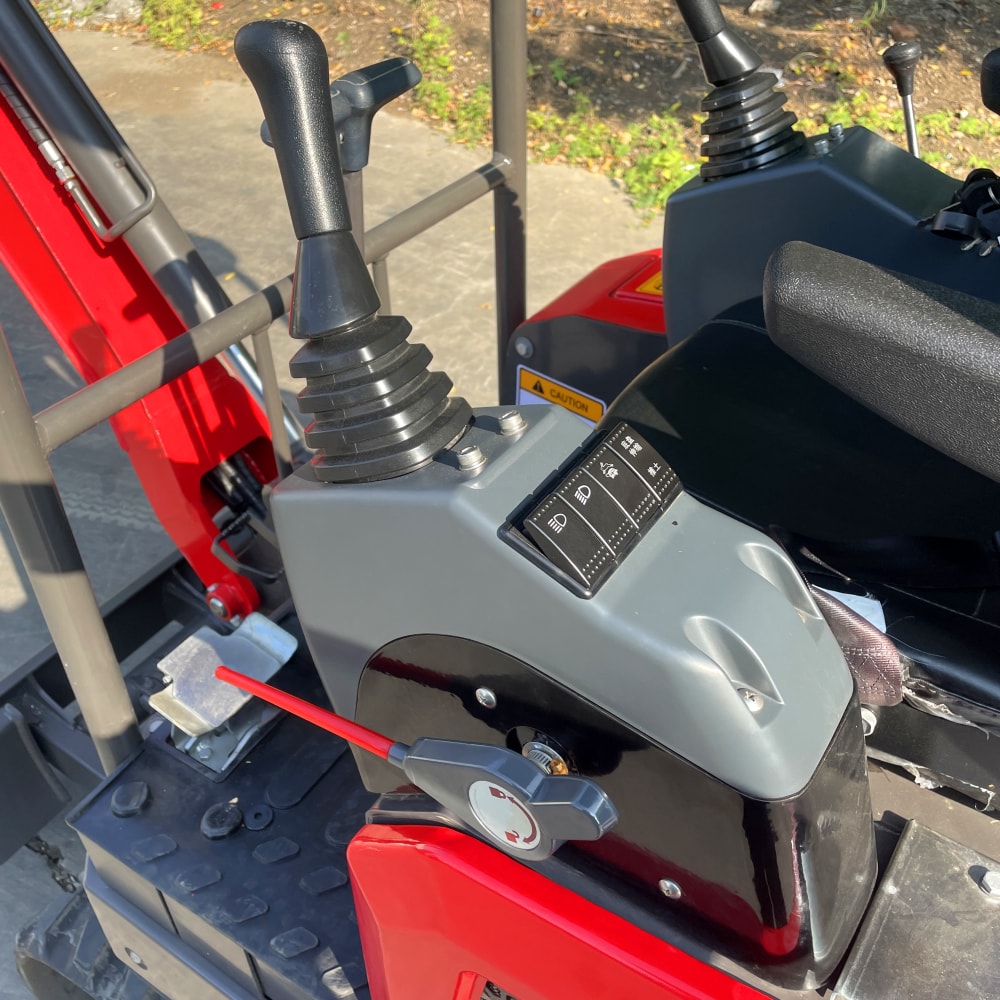

CW-20C mini excavator is powerful and practical. With strong power excavation, soil, sand and stones can be easily excavated, and it is not a problem to dig out roots like this. The loading function is also excellent, and the bucket can load and carry the excavated materials, which is convenient for transfer. In addition, the crawler chassis design enables it to move stably on a variety of complex terrain such as grass and adapt to different working environments. In operation, the handle controls the flexible rotation and expansion of the mechanical arm to achieve accurate operation, which is suitable for landscape engineering, small building construction and other scenes and provides efficient and convenient support for related projects.

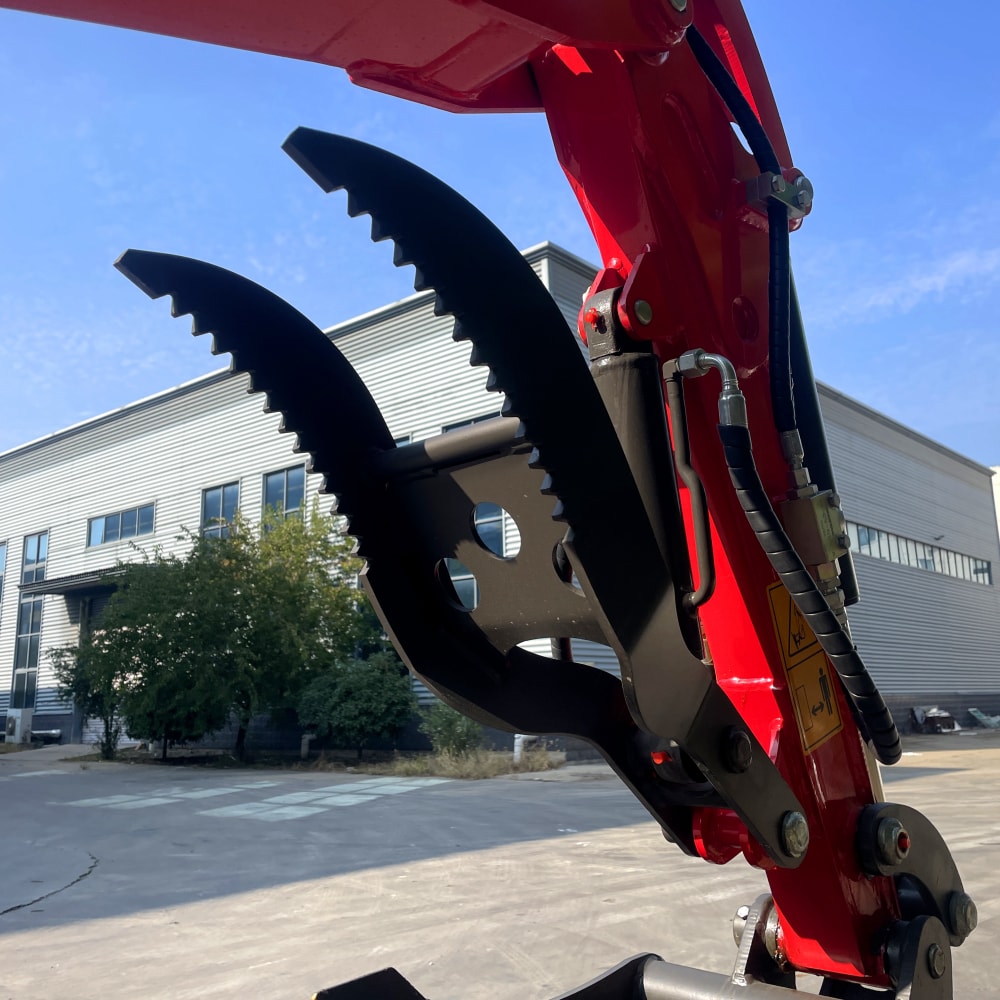

Accessories
