| SPECIFICATIONS | |
| Operation Weight | 8377 lbs / 3.8 ton |
| Digging Bucket Capacity | 4.24 cubic FT/0.12m3 |

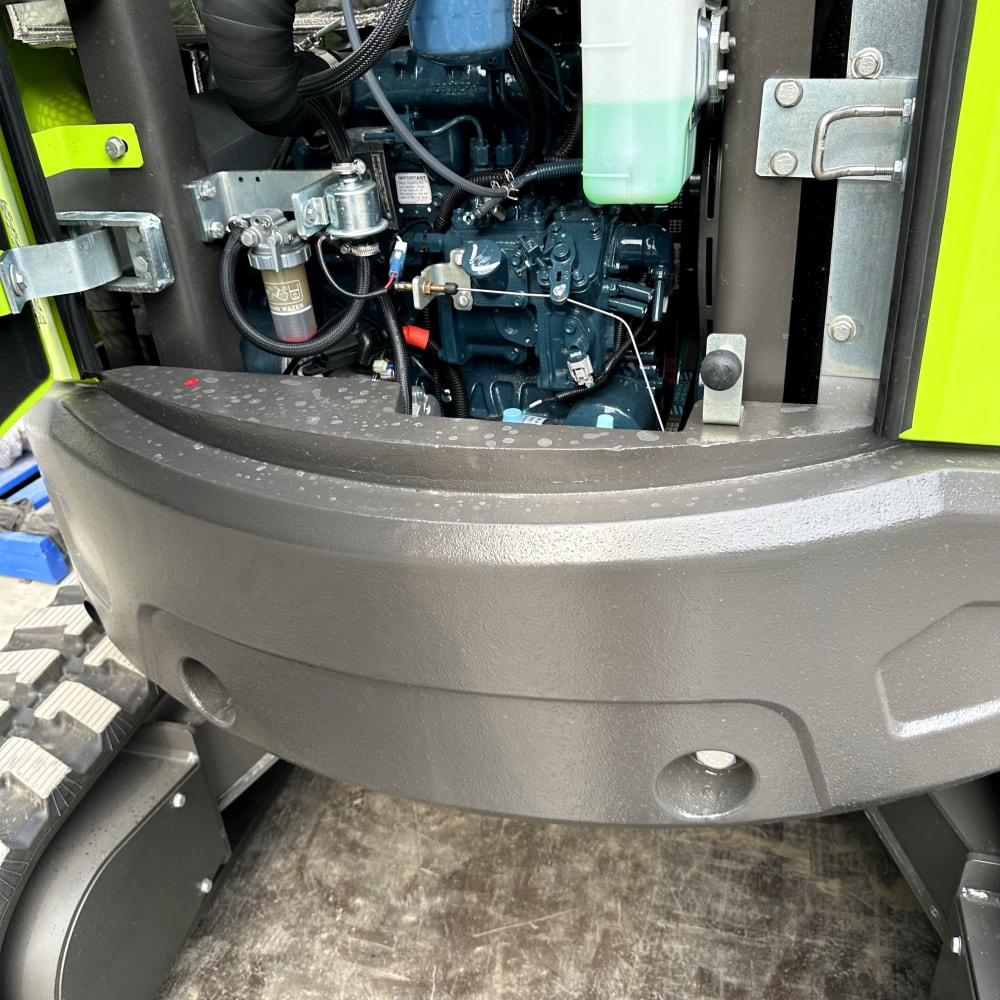

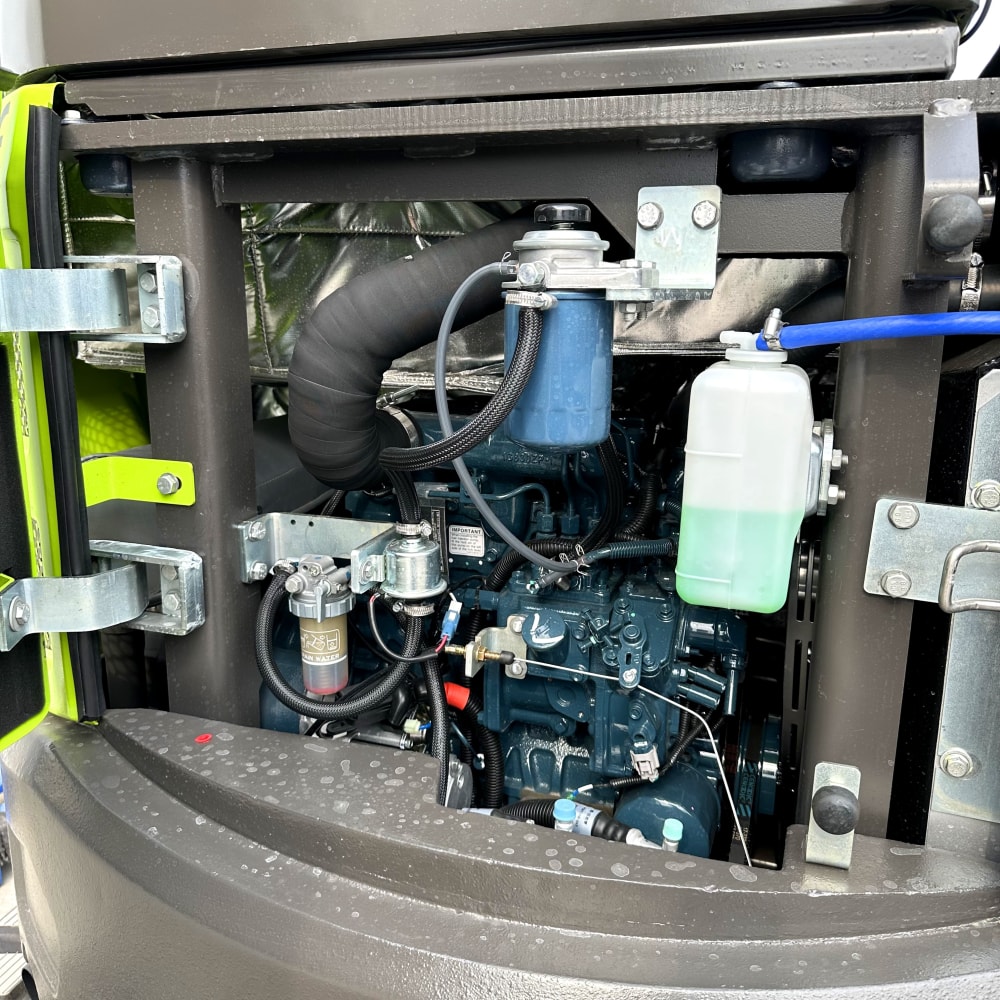

| Engine | KUBOTA D1703 |
| Rated Power | 18.2 KW(25HP)2200 rpm |
| Displacement | 1.65 L |
| Max. Bucket Digging Force | 6676 lbs (30KN) |
| Max. Arm Digging Force | 4046 lbs (18KN) |
| Max. Grade Ability | 30° |
| Fuel Capacity | 11.6 gals/44 L |
| Operating Pressure | 3263 PSI (22.5 Mpa) |
| Hydraulic Flow Rate | 28.5 GPM (108L/min) |
| Hydraulic Oil Capacity | 10.6 gals/40 L |
| Swing Motor | Aidi |
| Swing Speed | 0-11RPM |

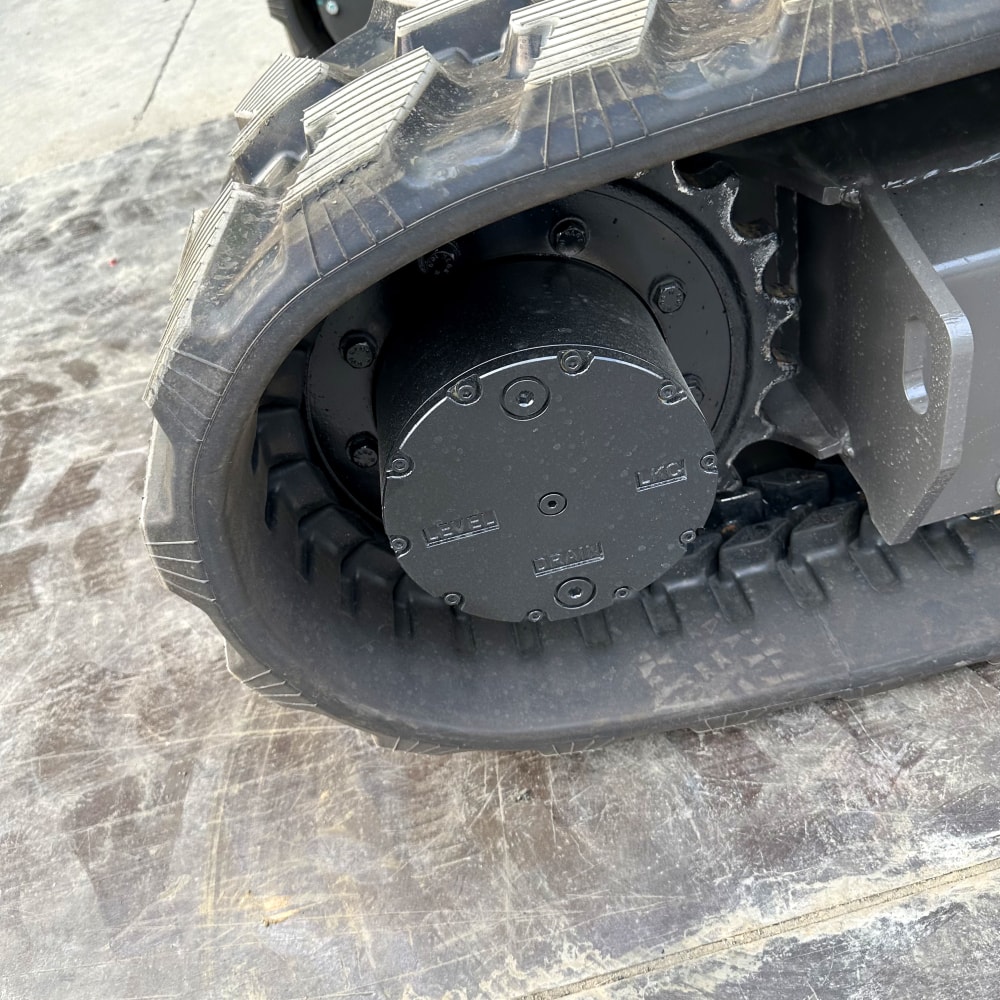

| Traveling Motor | Likechuan |
| Travel Speed (Low/High) | 2.4/4.4 KM/H |

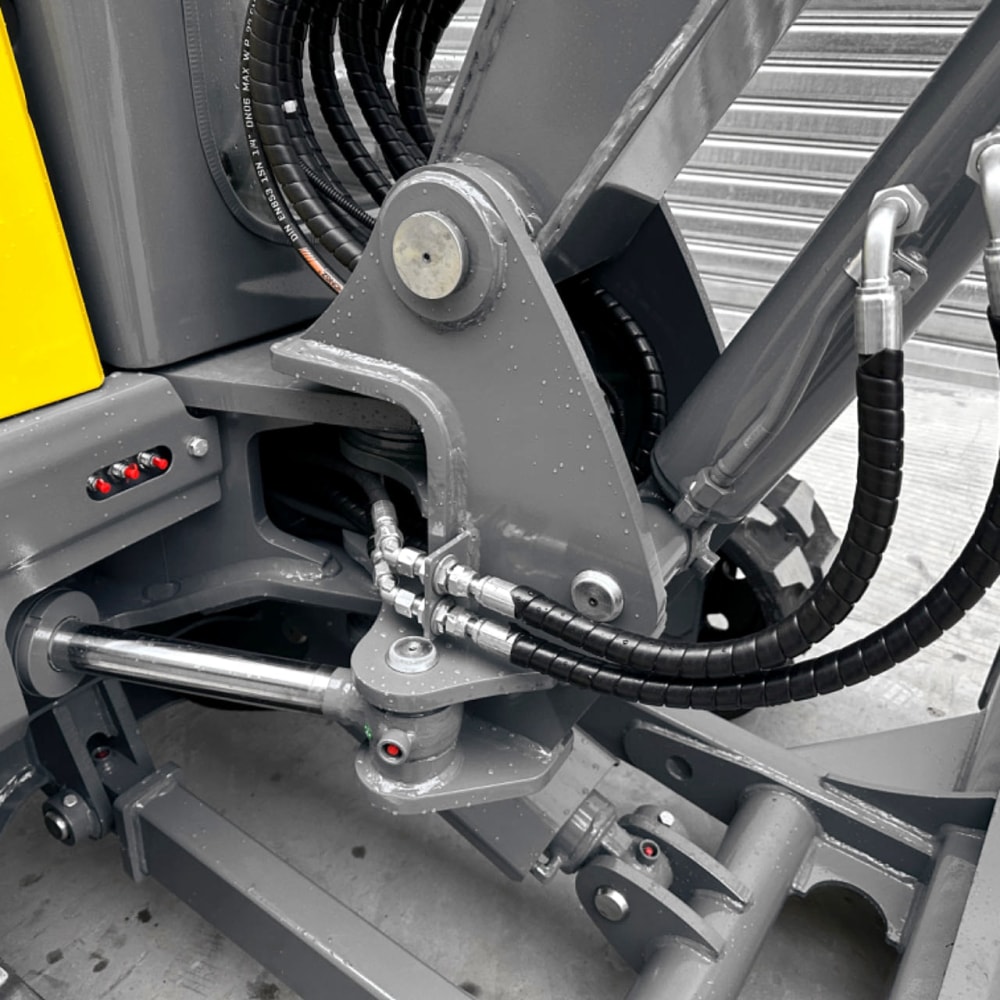

| Boom Swing Angel(L/R) | 50°/55° |
| MAIN DIMENSIONS | |
| Wheelbase | 1670 mm/5’6″ |
| Total Length of Track | 1420 mm/4’8″ |
| Platform Ground Clearance | 595 mm/2′ |
| Platform Back Turning Radius | 2154 mm/7’1″ |
| Chassis Width | 1550 mm/5’1″ |
| Track Width | 300 mm/11.8″ |
| Track Height | 460 mm/1’6″ |
| Transport Length | 4915 mm/16’1.5″ |
| Seat to Floor Height | 1451 mm/4’9″ |
| Overall Height | 2524 mm/8’3″ |
| OPERATING RANGE | |
| Max. Digging Radius on Ground | 5359 mm/17’7″ |
| Max. Digging Radius | 5481 mm/18′ |
| Max. Digging Depth | 3208 mm/10’6″ |
| Max. Digging Height | 4800 mm/15’9″ |
| Max. Unloading Height | 3406 mm/11’2″ |
| Max. Vertical Digging Depth | 2957 mm/9’9″ |
| Min. Swing Radius | 2531 mm/8’4″ |
| Max. Lifting Height of Dozer Blade | 364 mm/1’2″ |
| Max. Digging Depth of Dozer Blade | 384 mm/1’3″ |

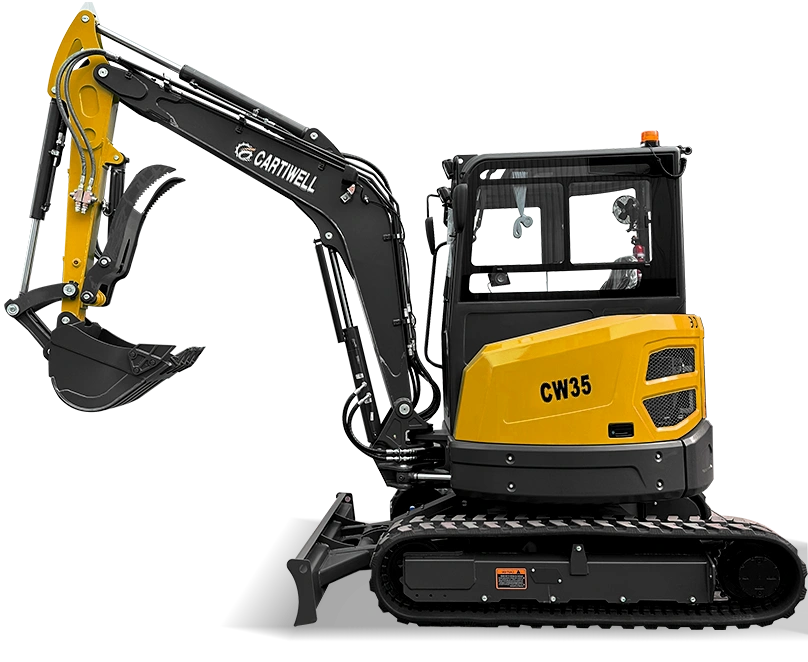

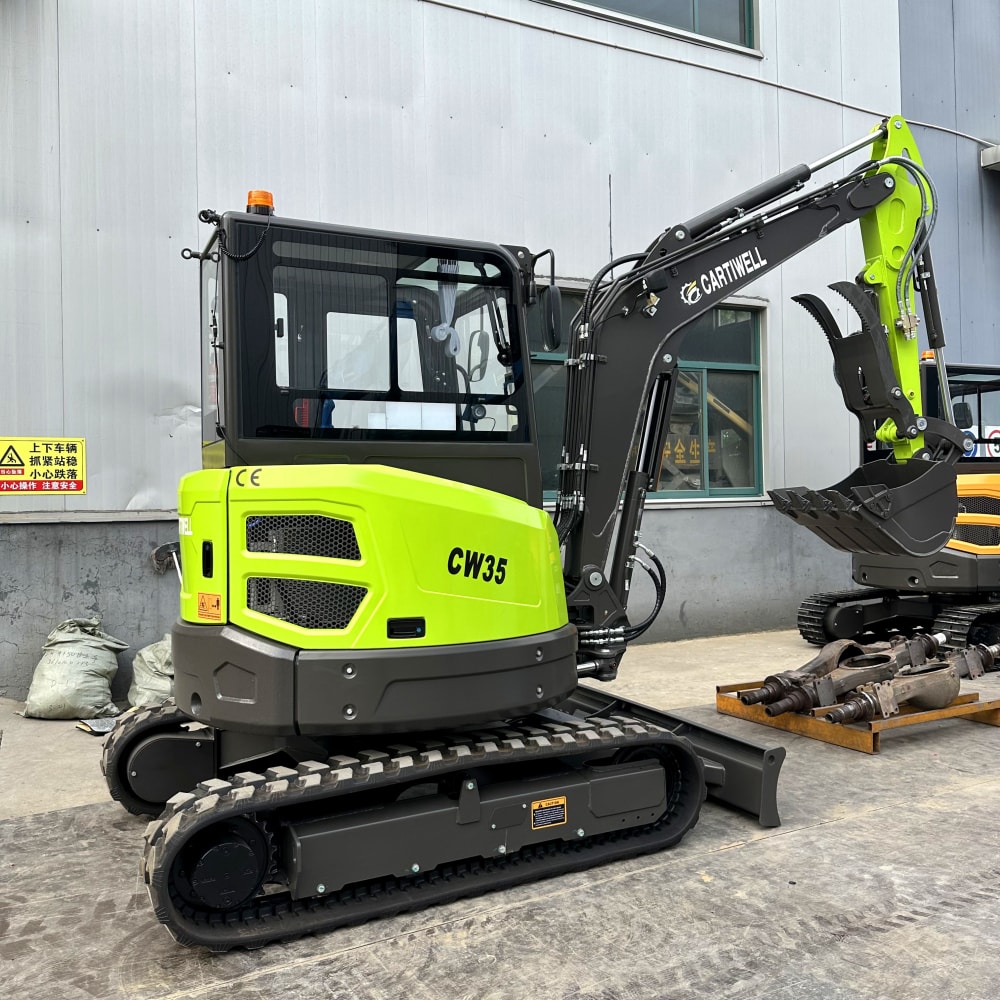

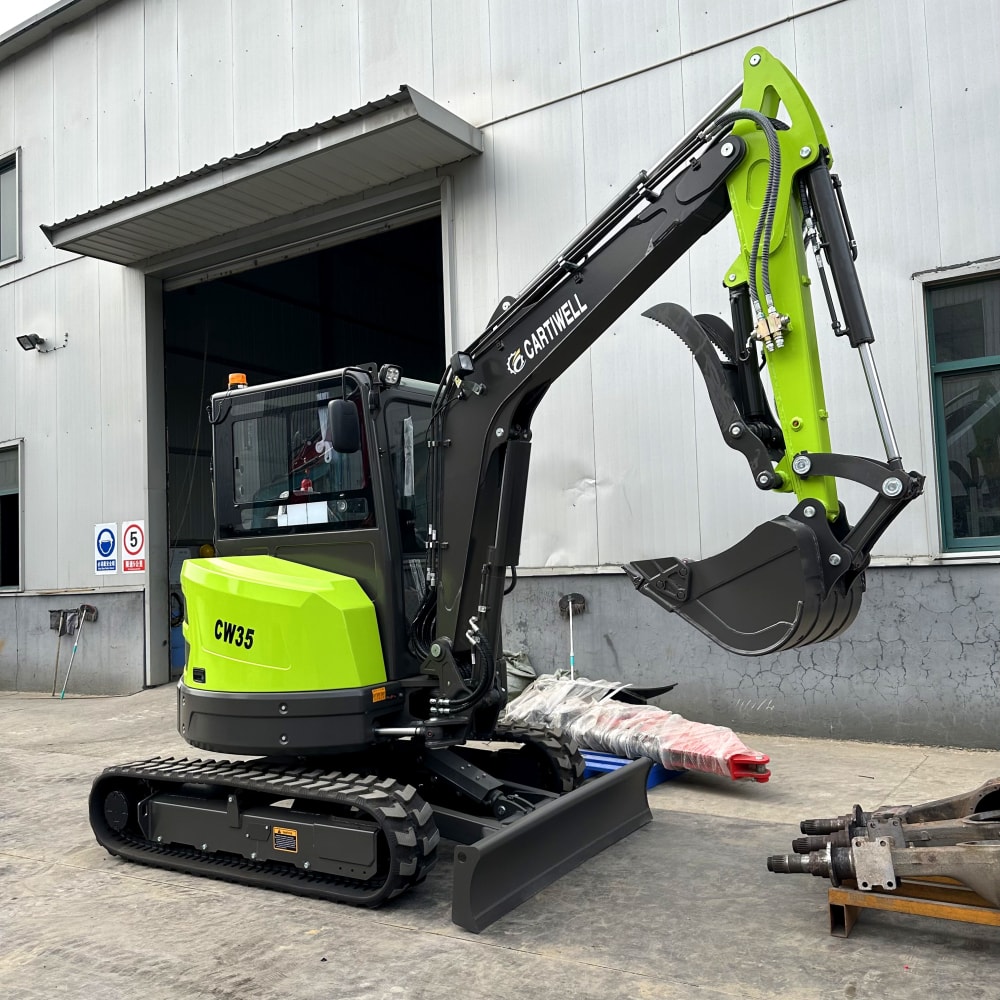

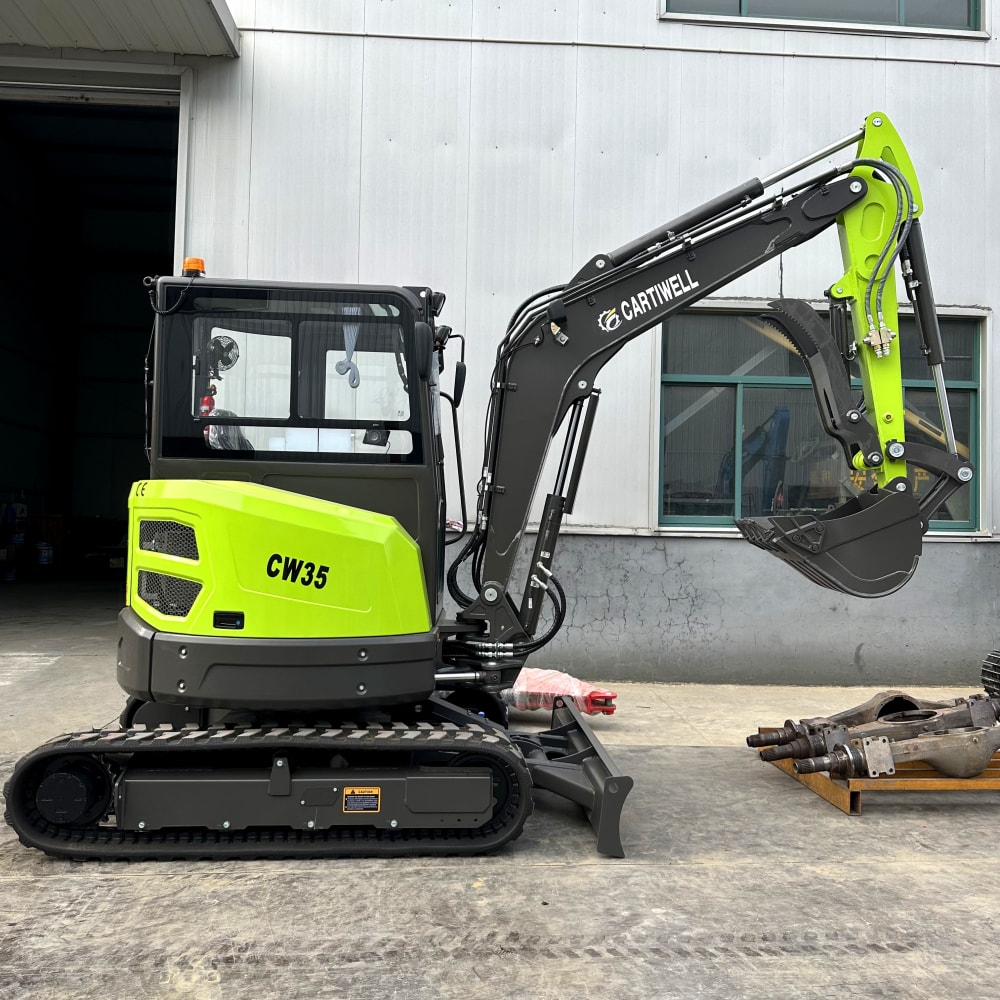

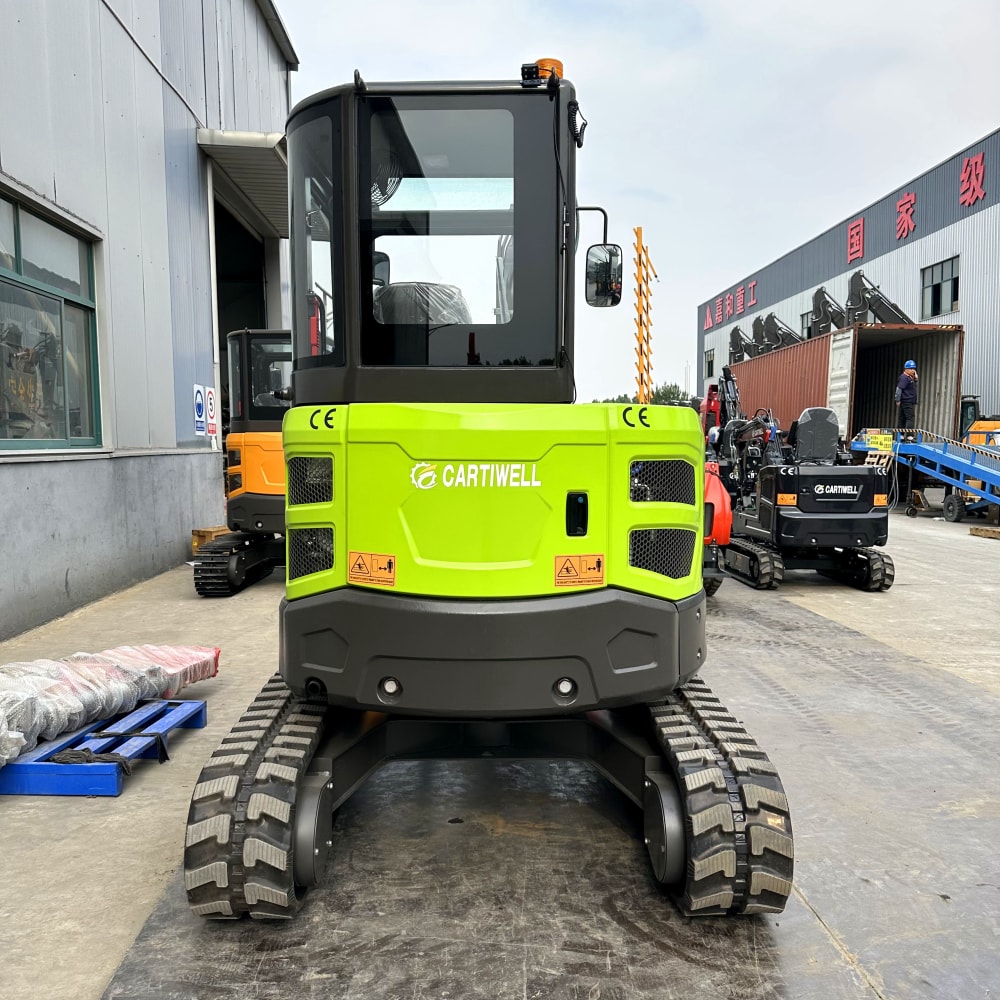

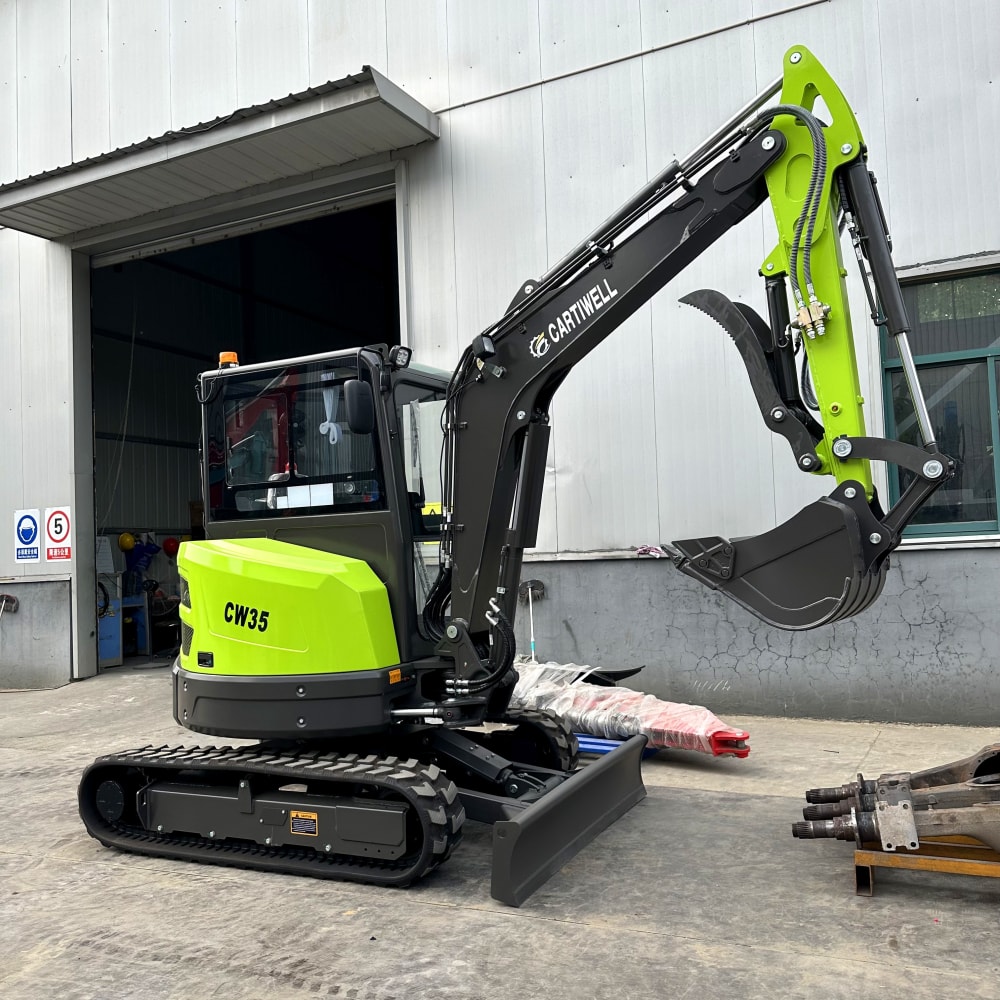

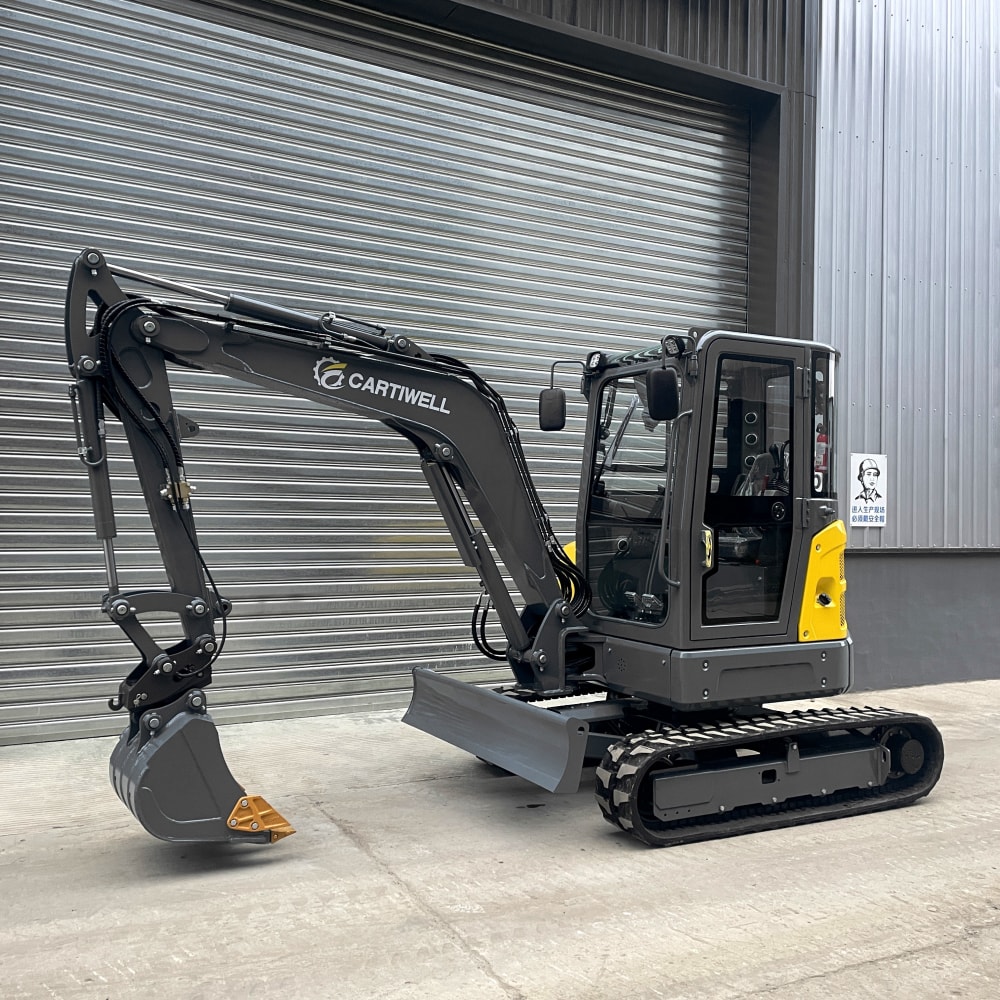

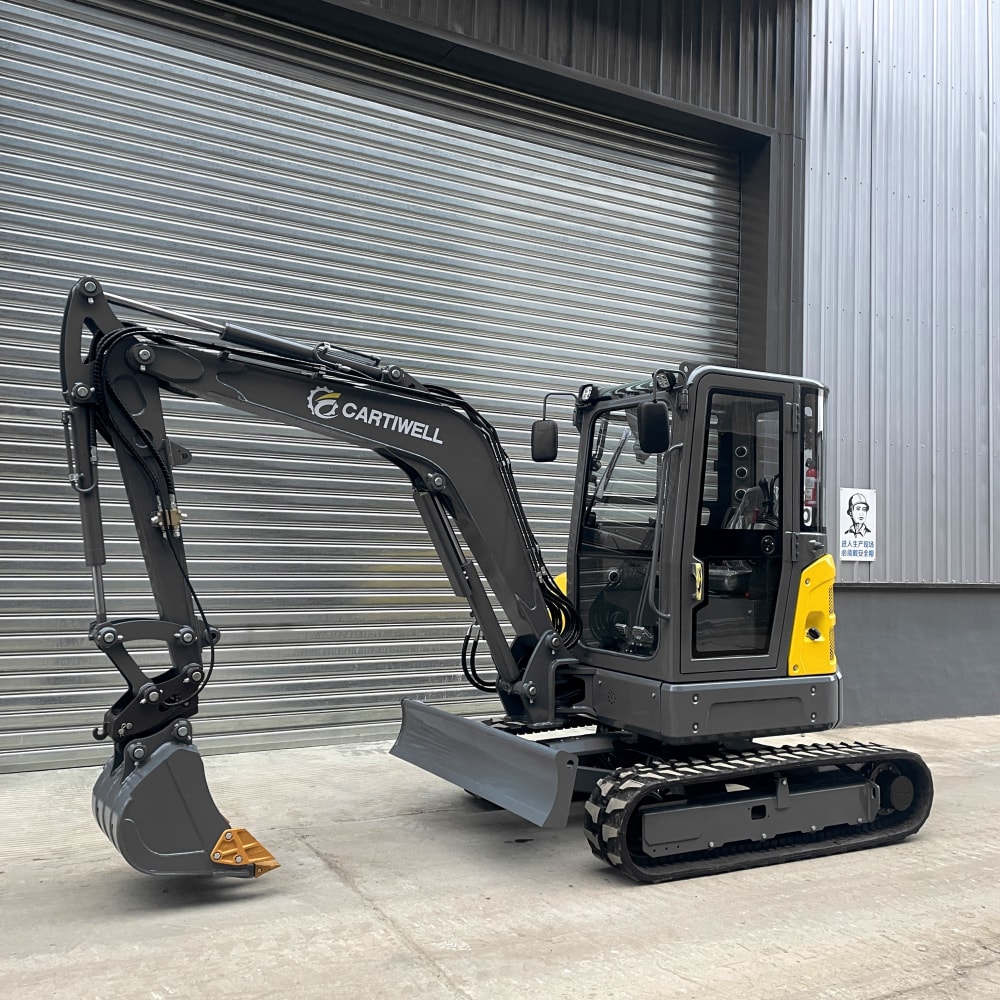

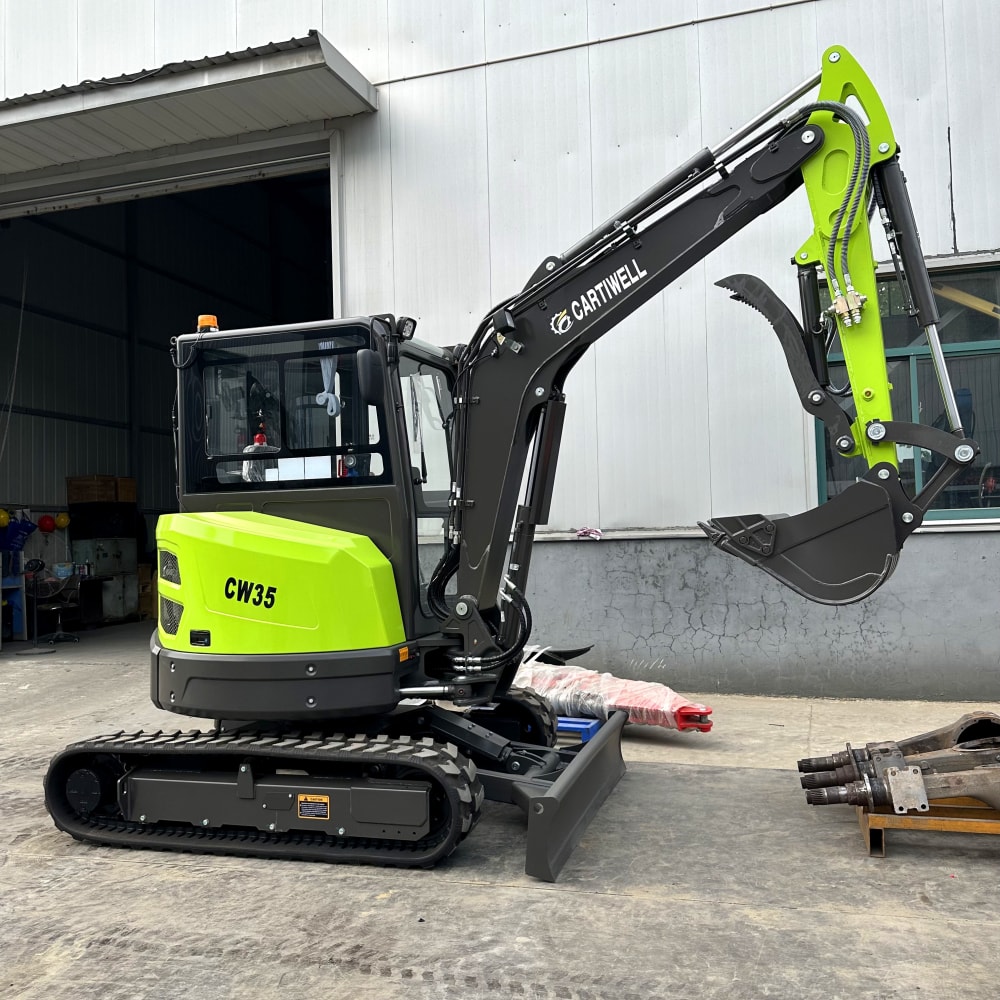

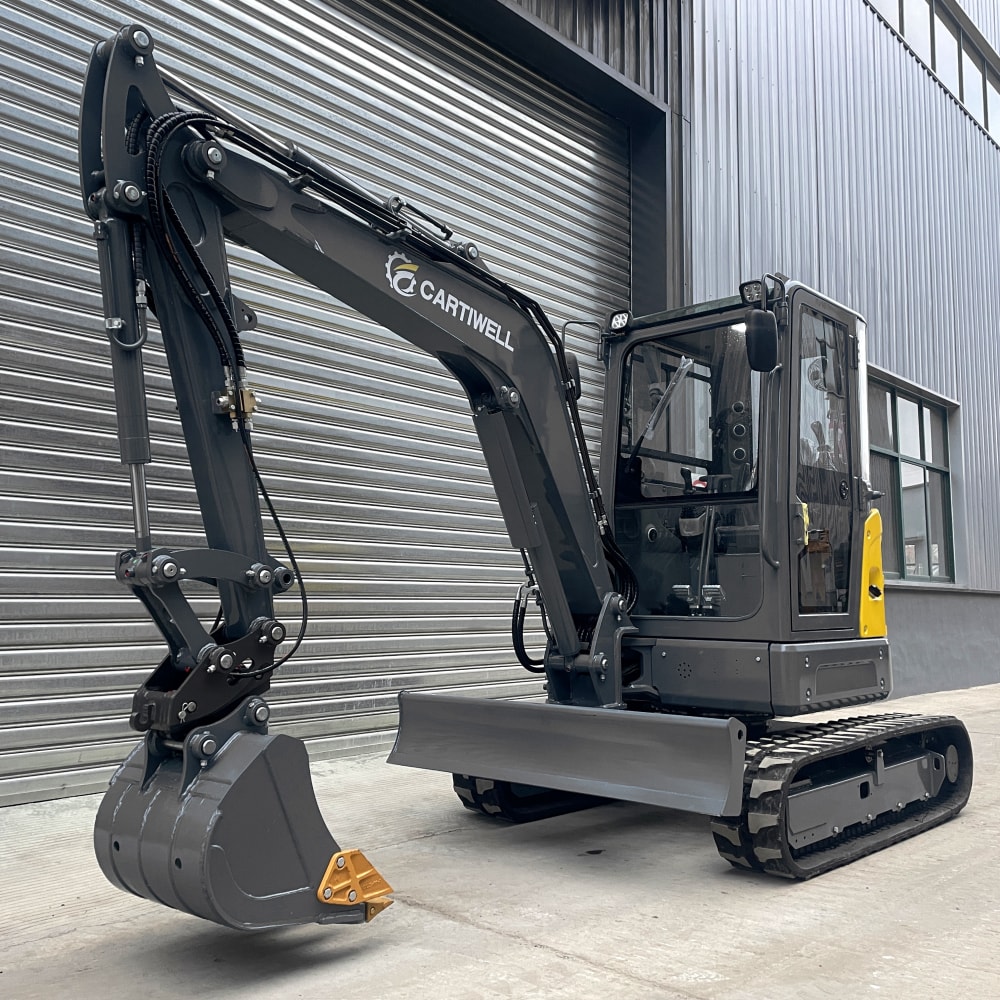

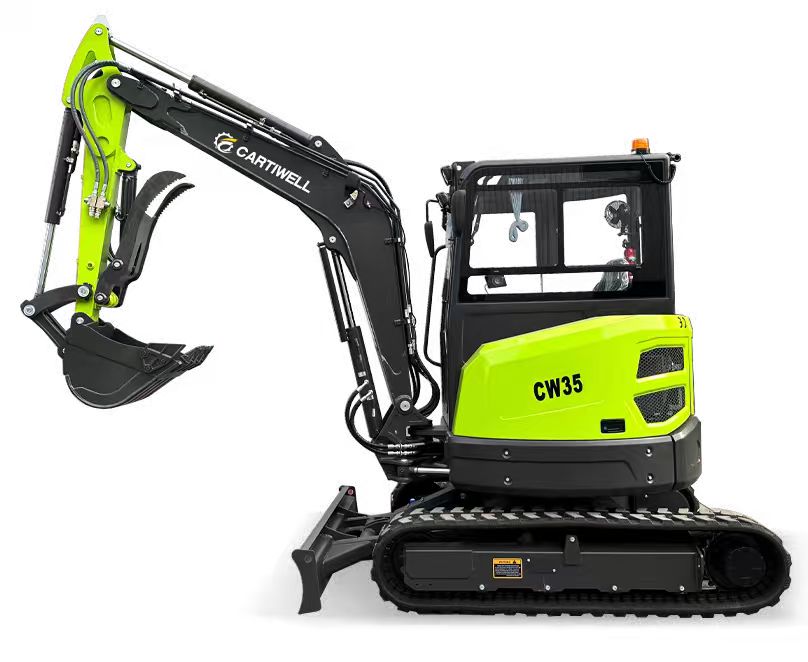

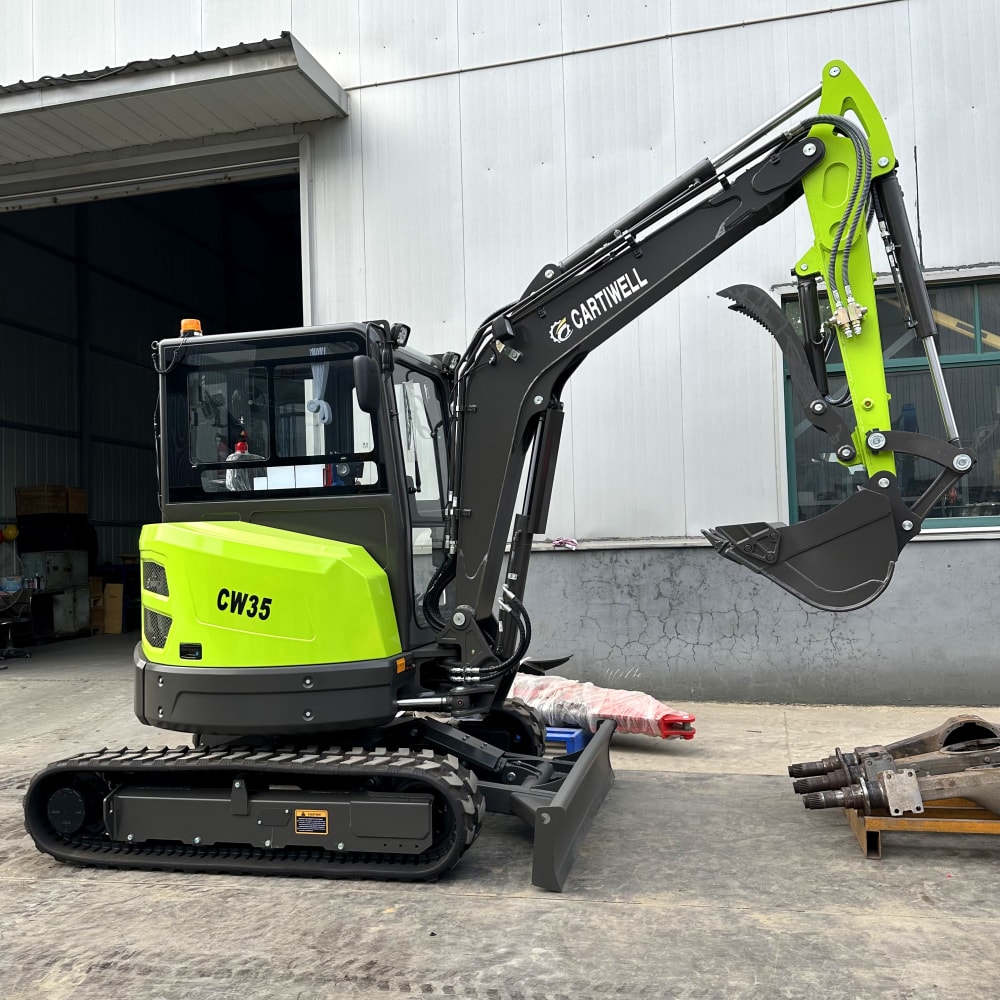

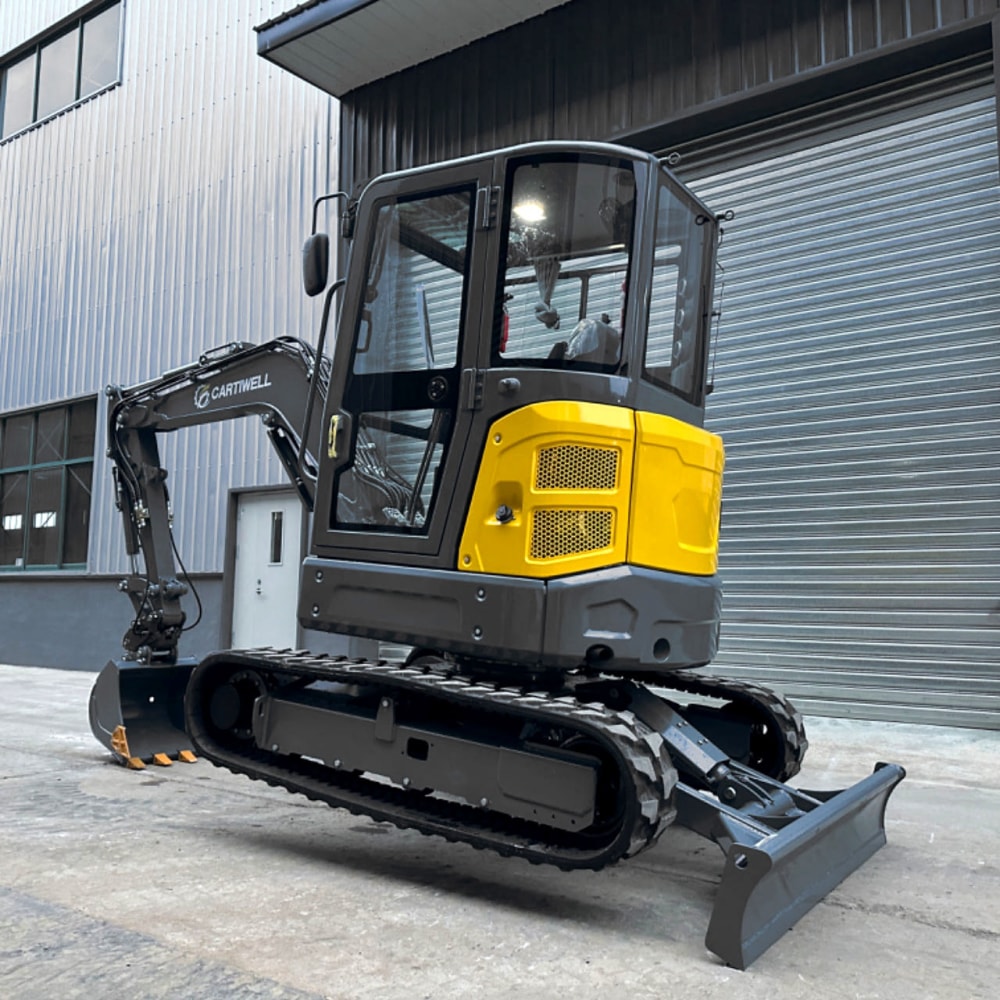

CW-35 mini excavator has many advantages. Strong power system and efficient hydraulic system make the operations such as digging and grabbing crisp and efficient. Handle driving design, sensitive and accurate control, reducing the difficulty of operation. Structurally, the crawler design enhances the passability and stability in complex terrain; The digging arm is firm and flexible, and can realize multi-angle operation. In addition, the machine has good heat dissipation performance to ensure long-term stable operation; It can also adapt to a variety of working AIDS, with diverse functions, and can meet different construction needs such as excavation, loading and crushing, and is a right-hand man for small projects.
