DUMP TRUCK

CWD-500B

Technical Specifications

Model CWD-500B
Engine type Gasoline
Engine power 9 HP
Displacement 270 cc
Net weight 390 kg
Transmission 3 forward + 1 reverse
Tipping system Hydraulic
Maximum loading capacity 500 kg
Bin dimensions 1000 × 700 × 450 mm
Maximum raised bucket-top height 2400 mm

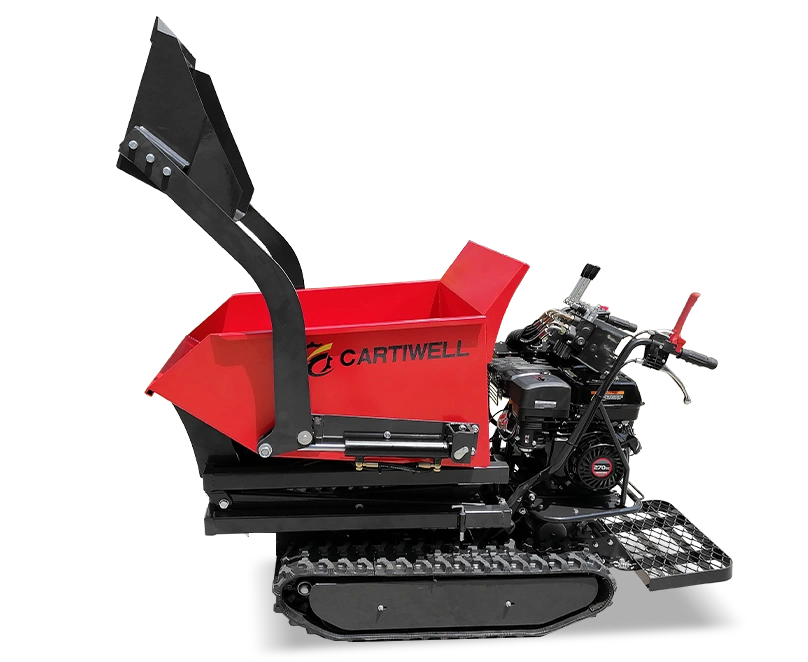

CWD-500B

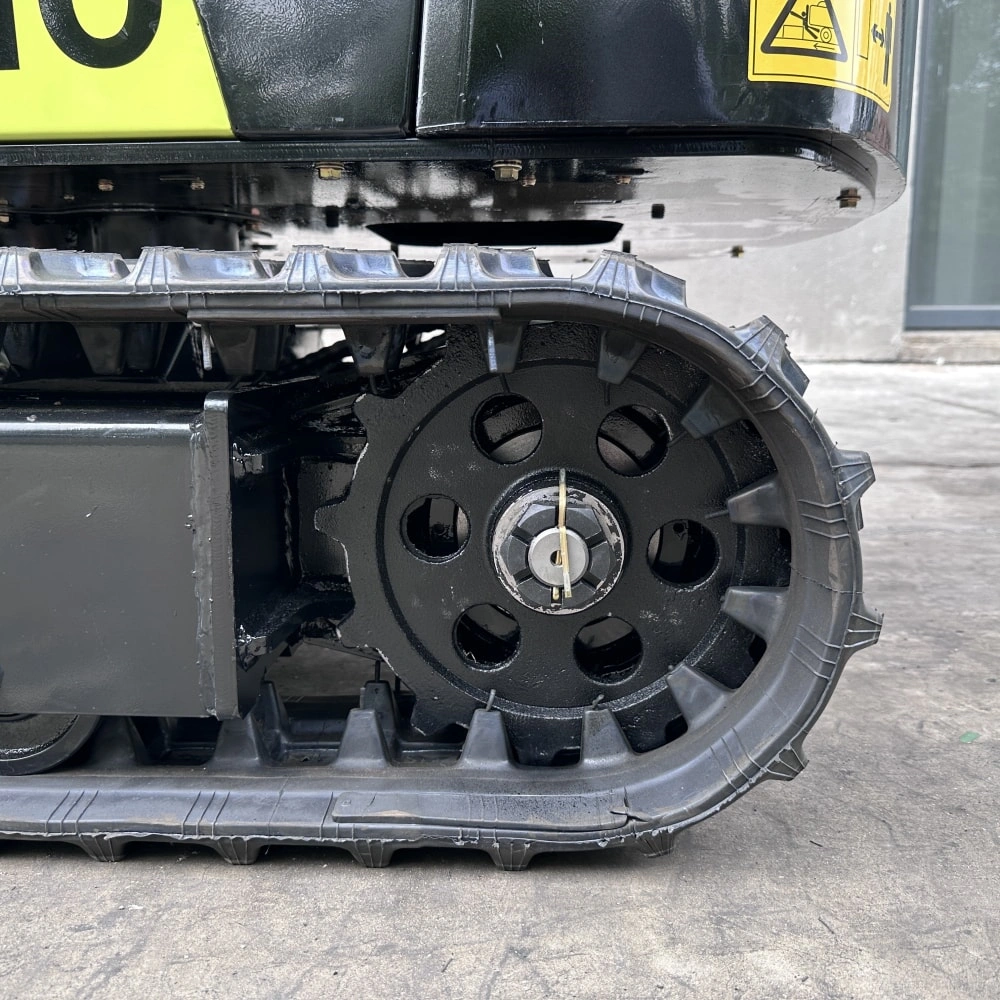

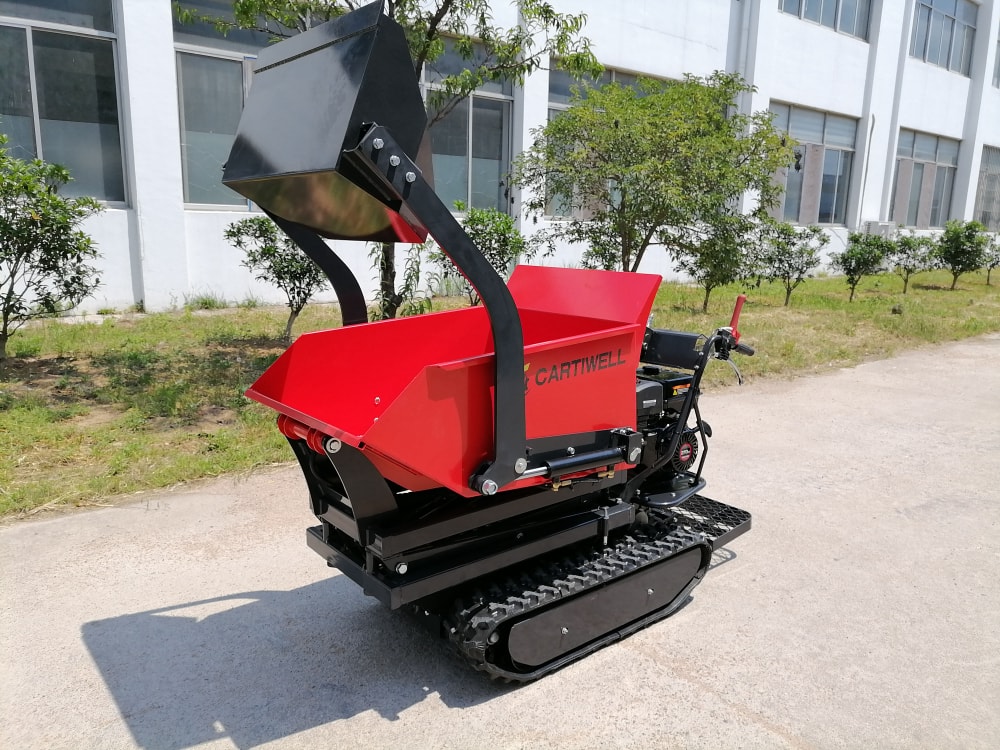

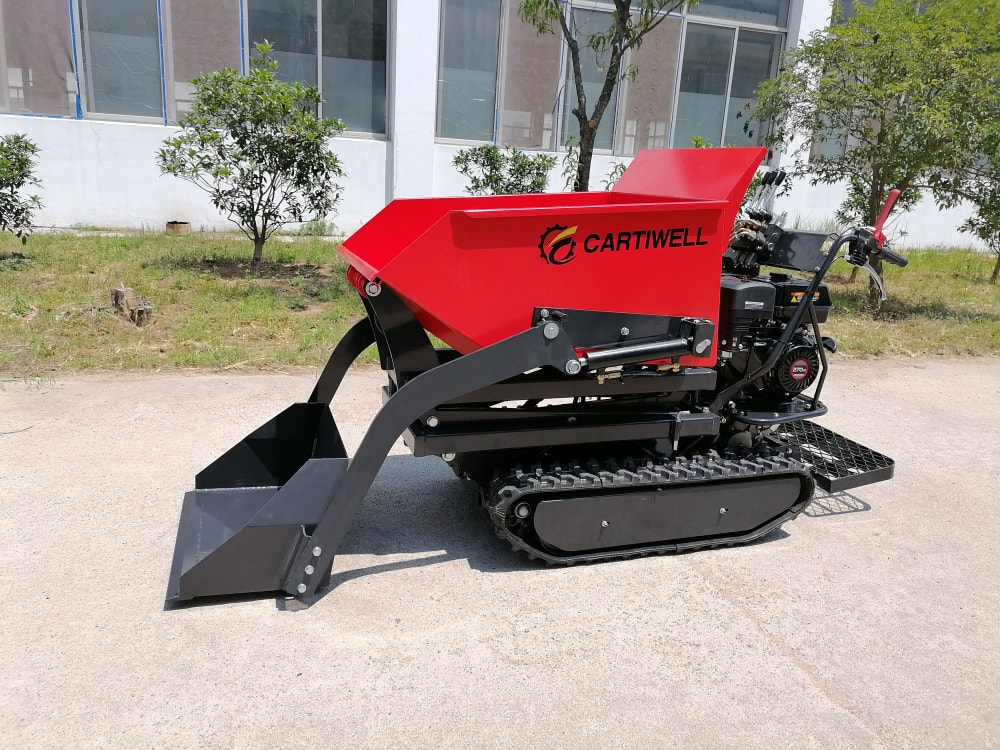

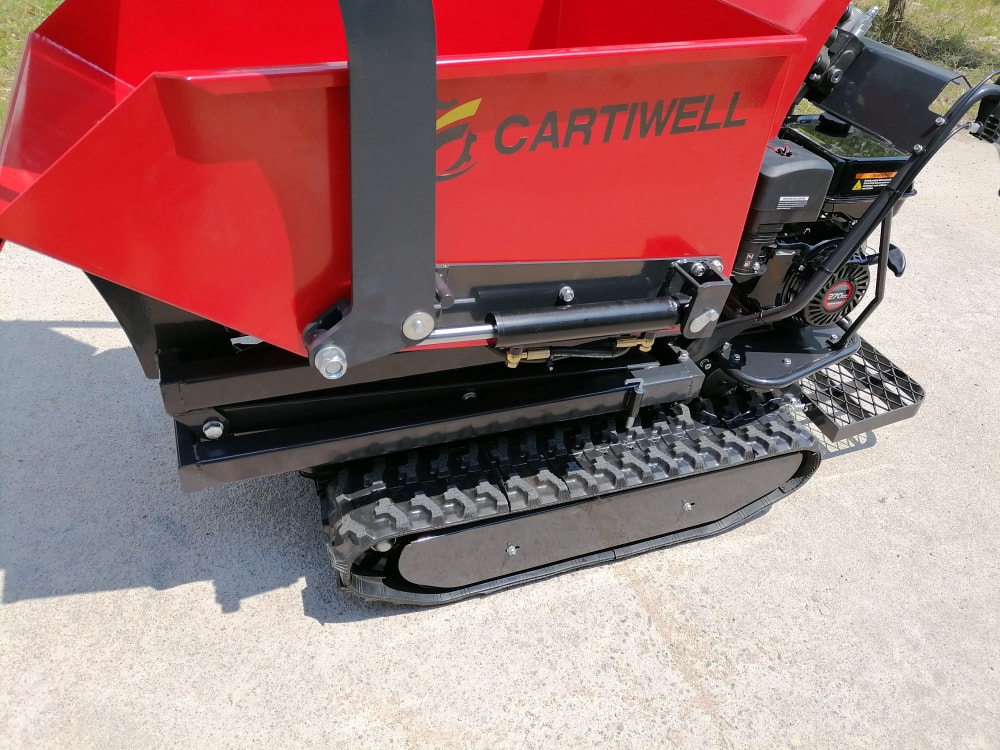

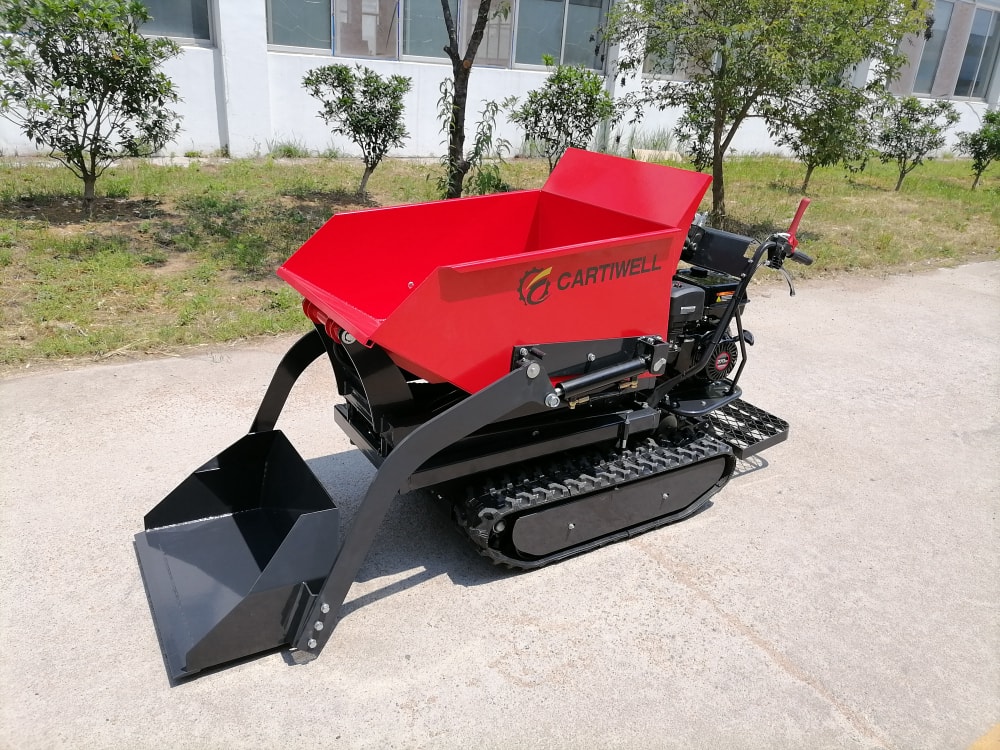

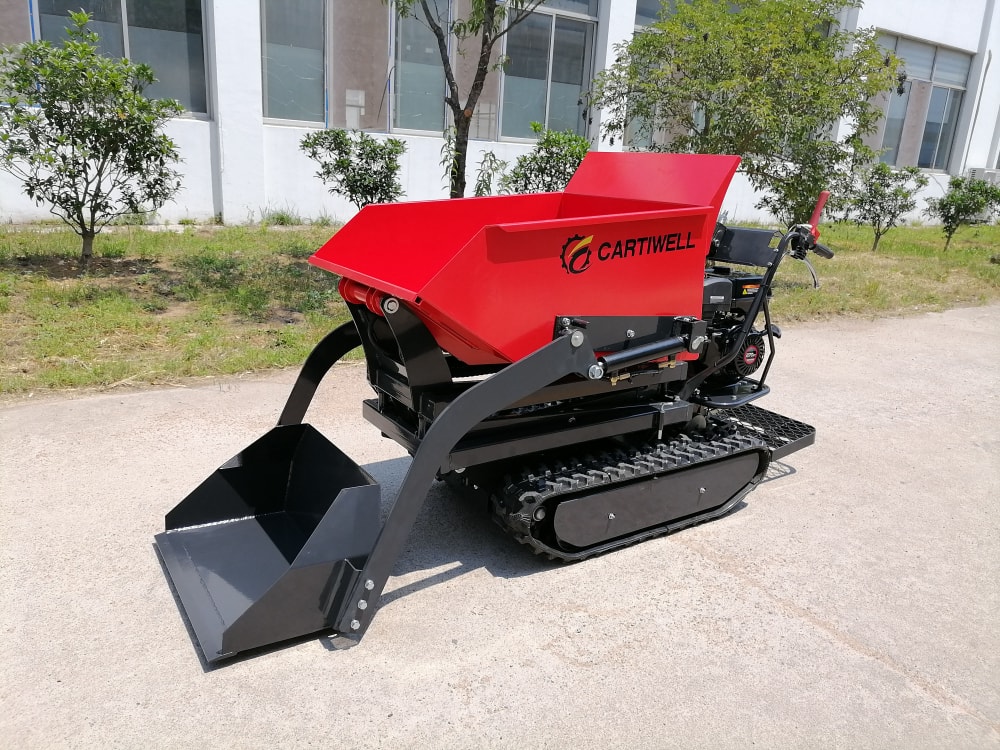

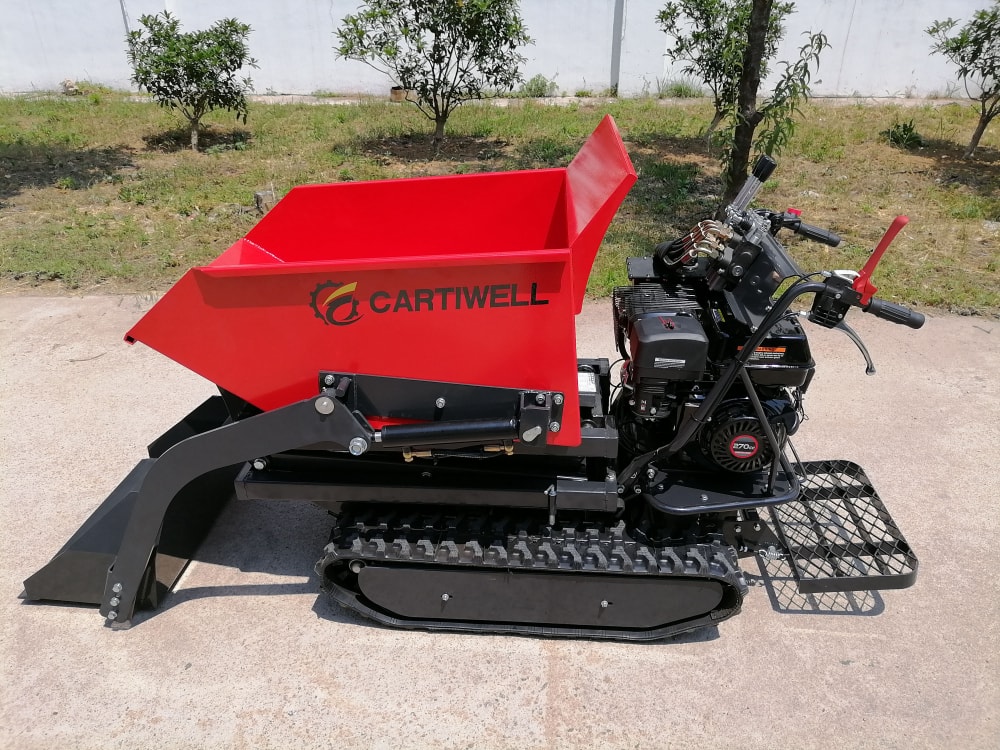

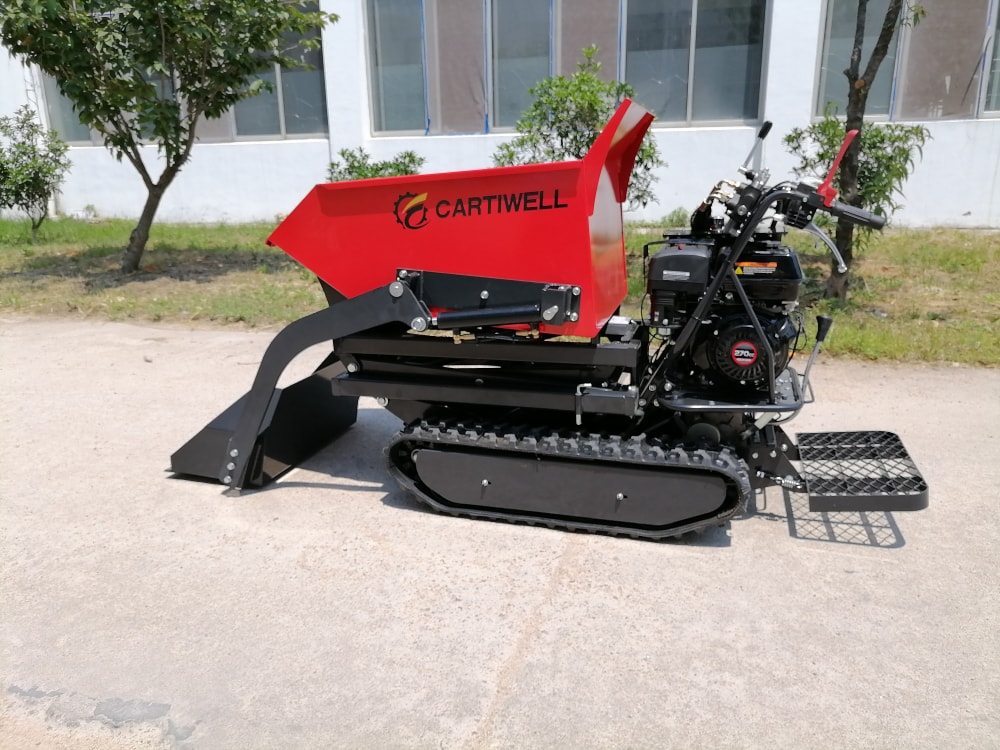

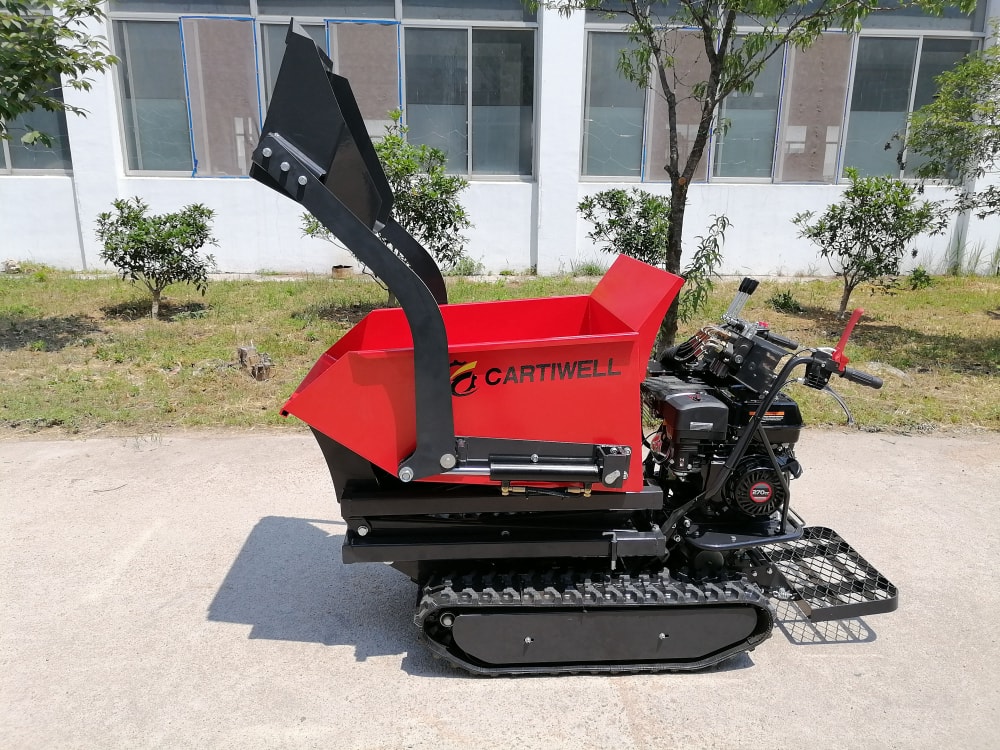

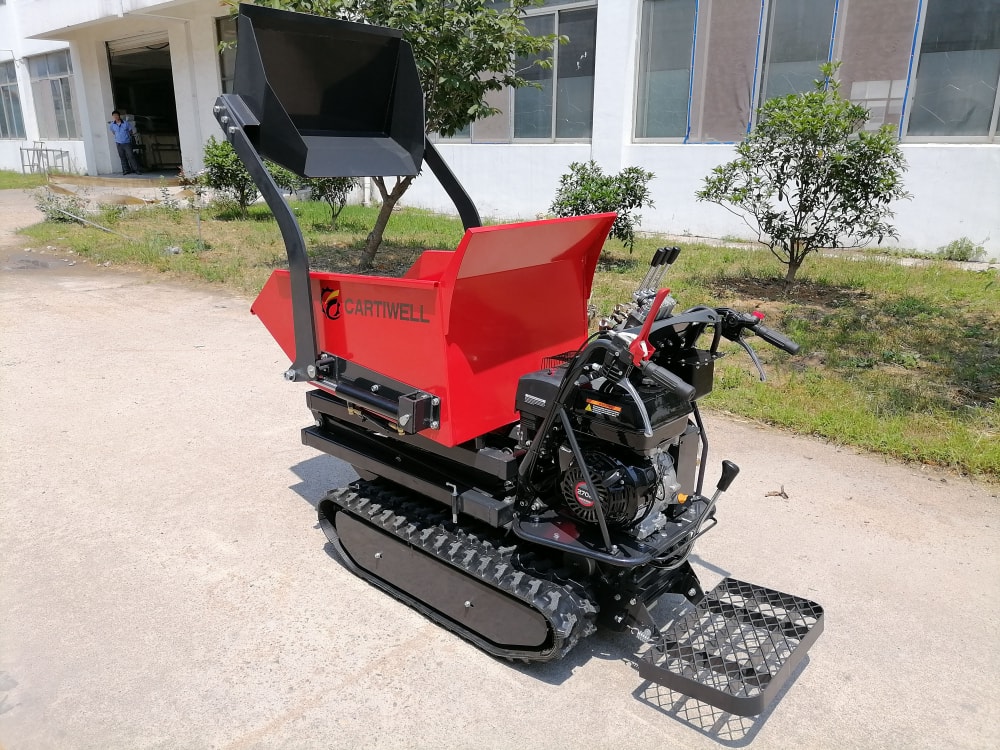

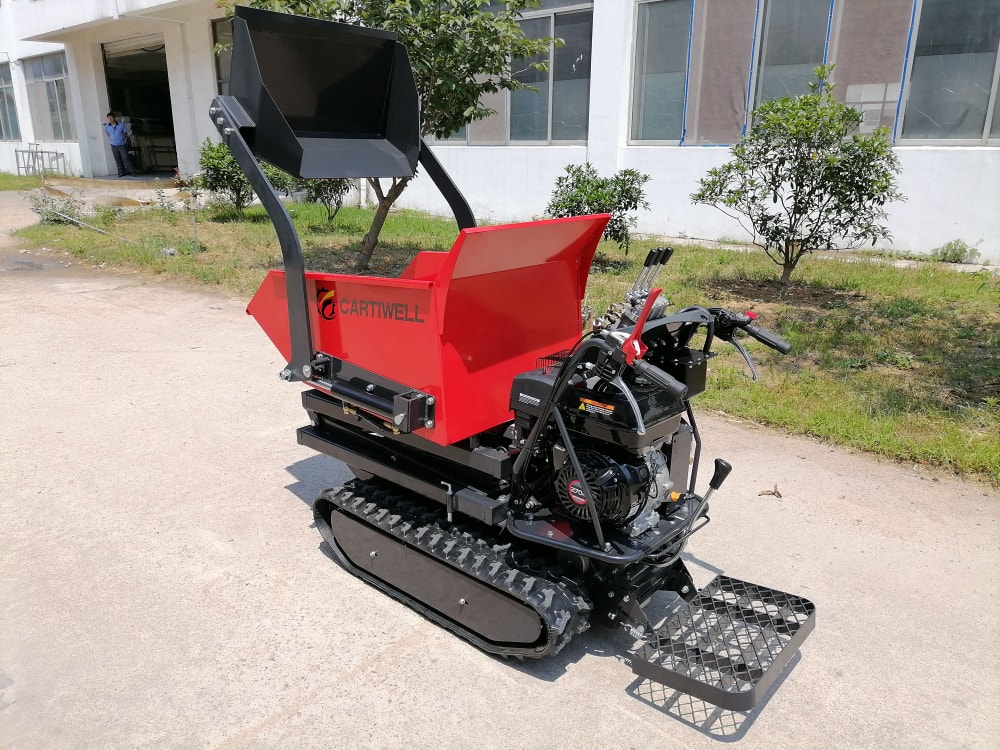

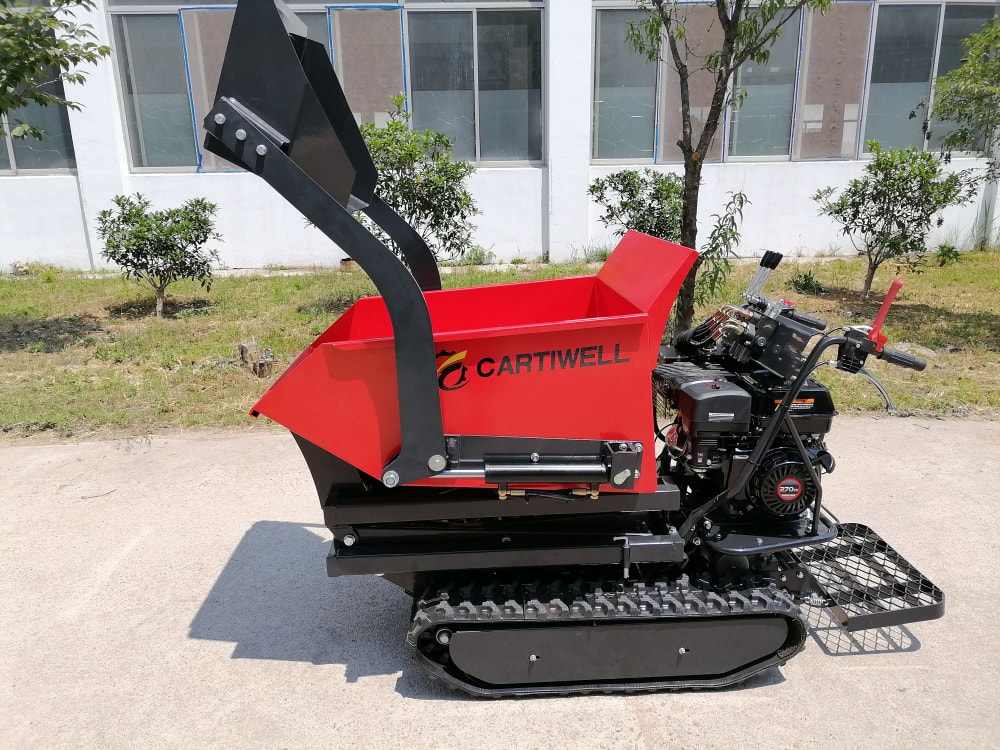

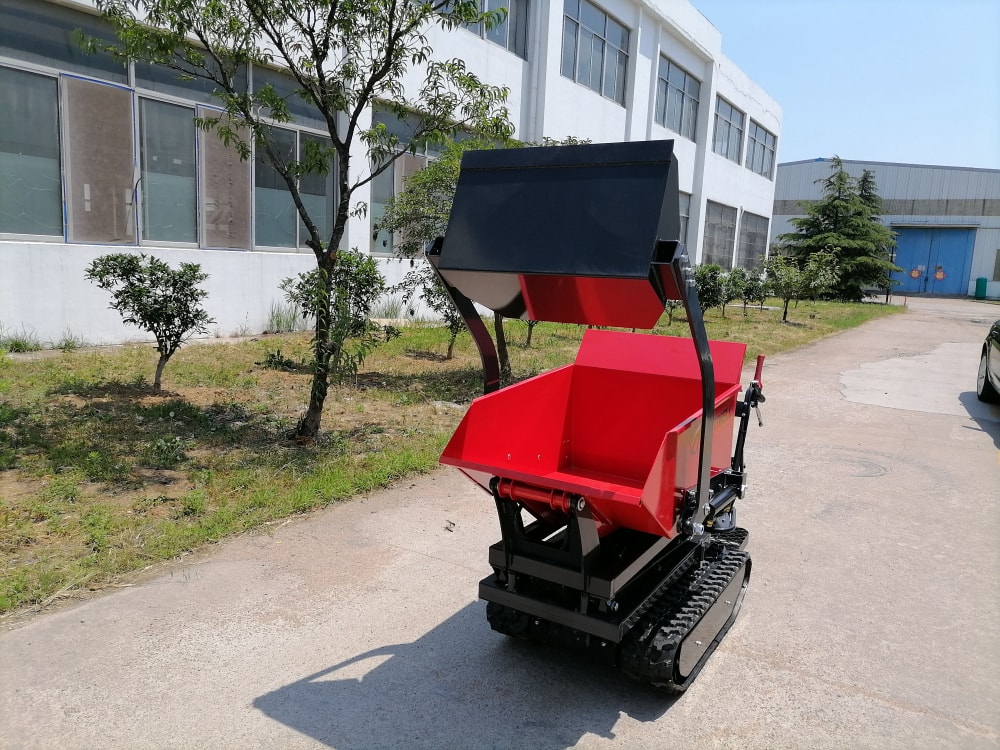

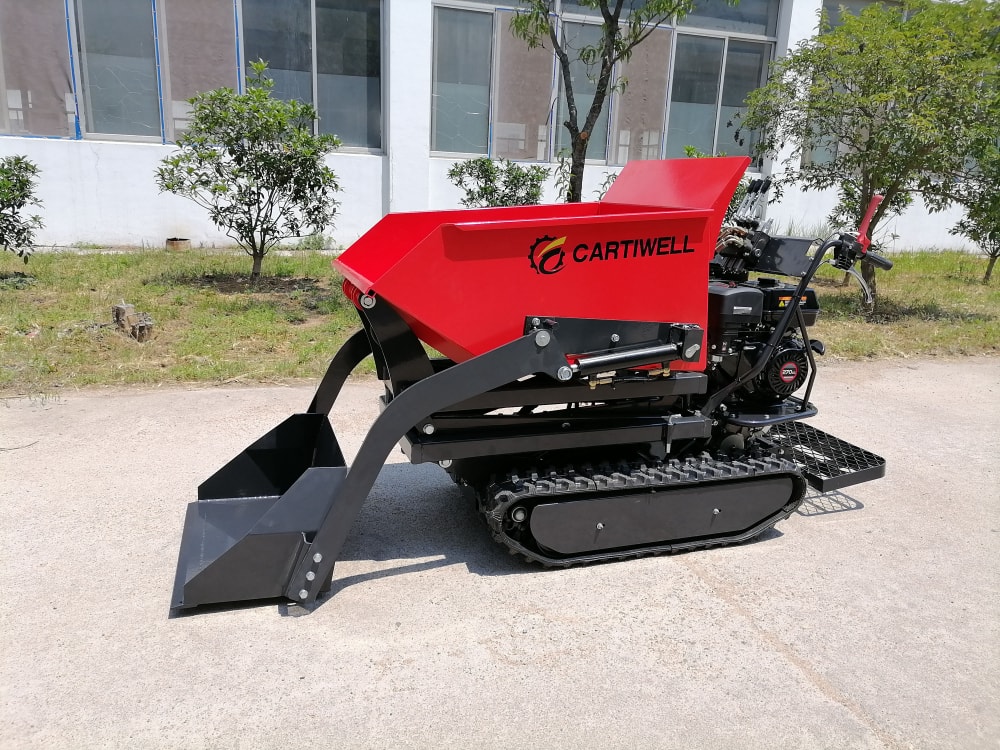

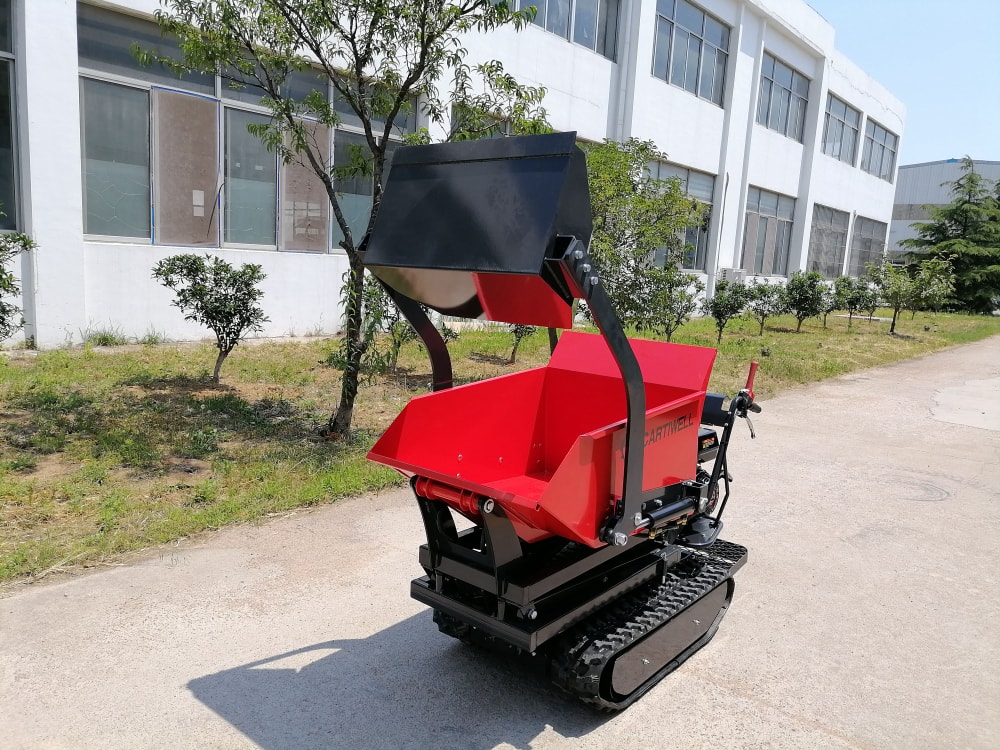

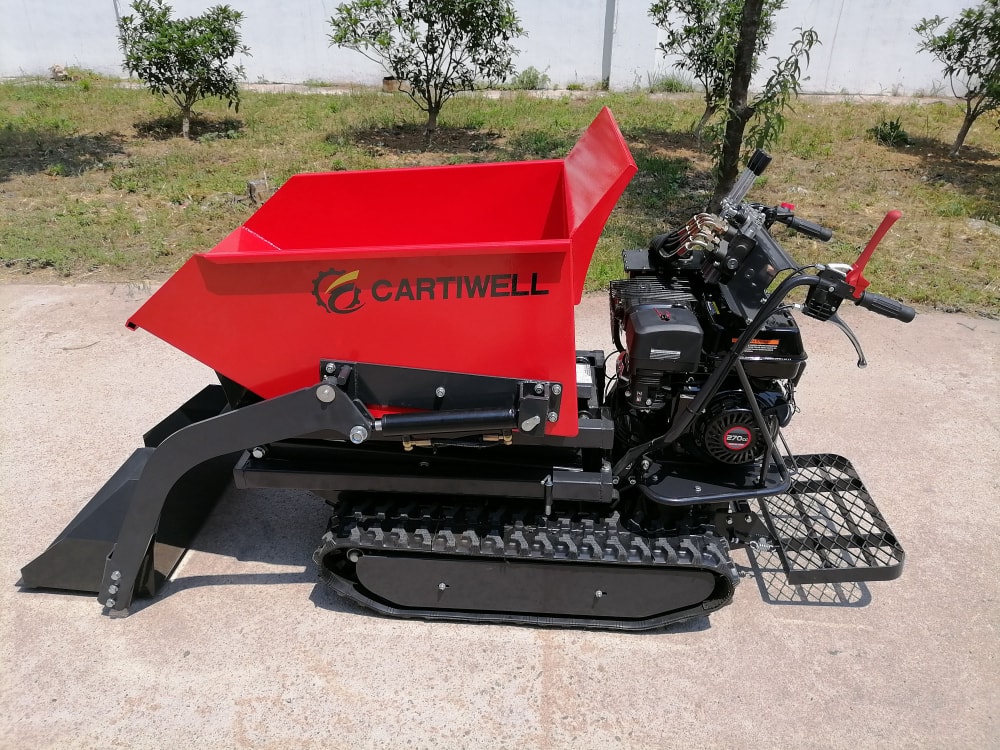

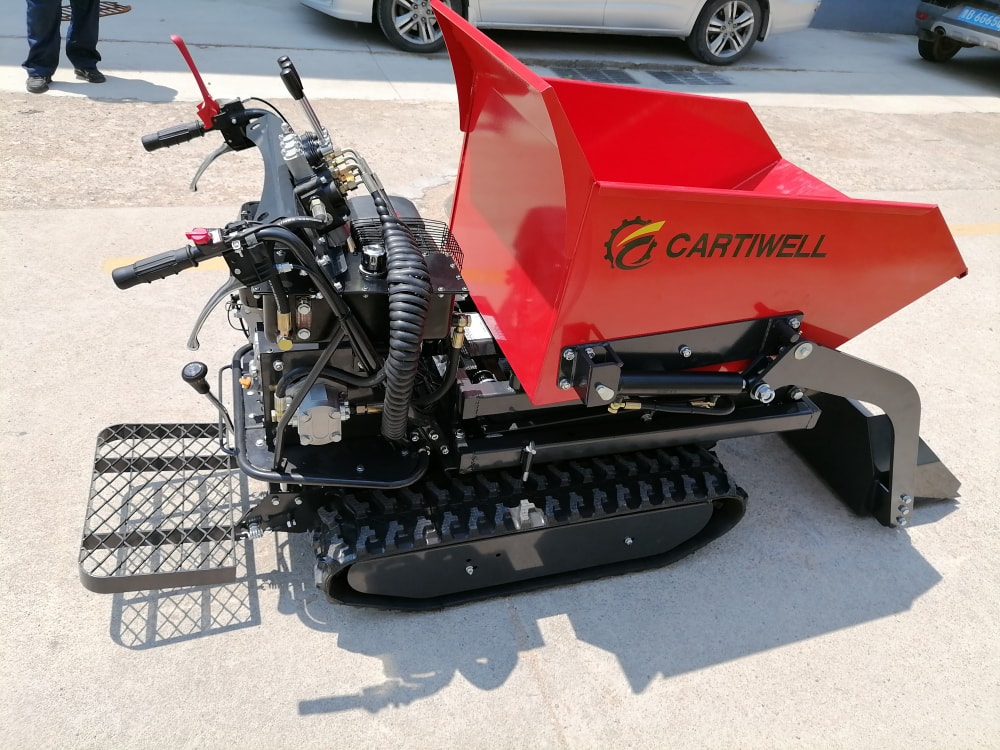

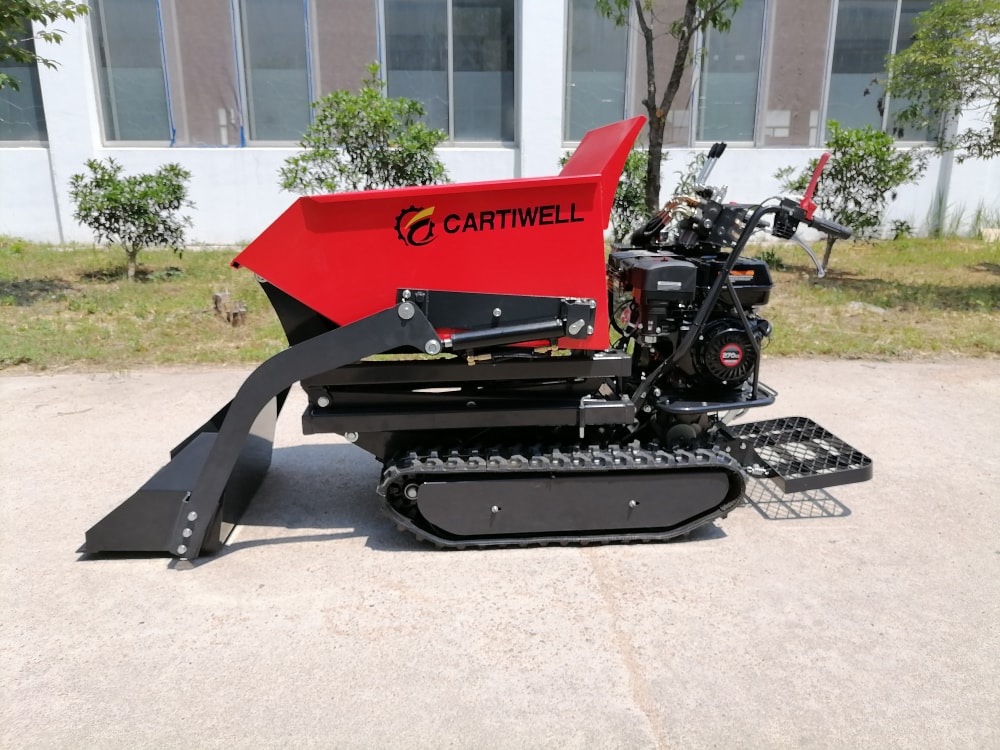

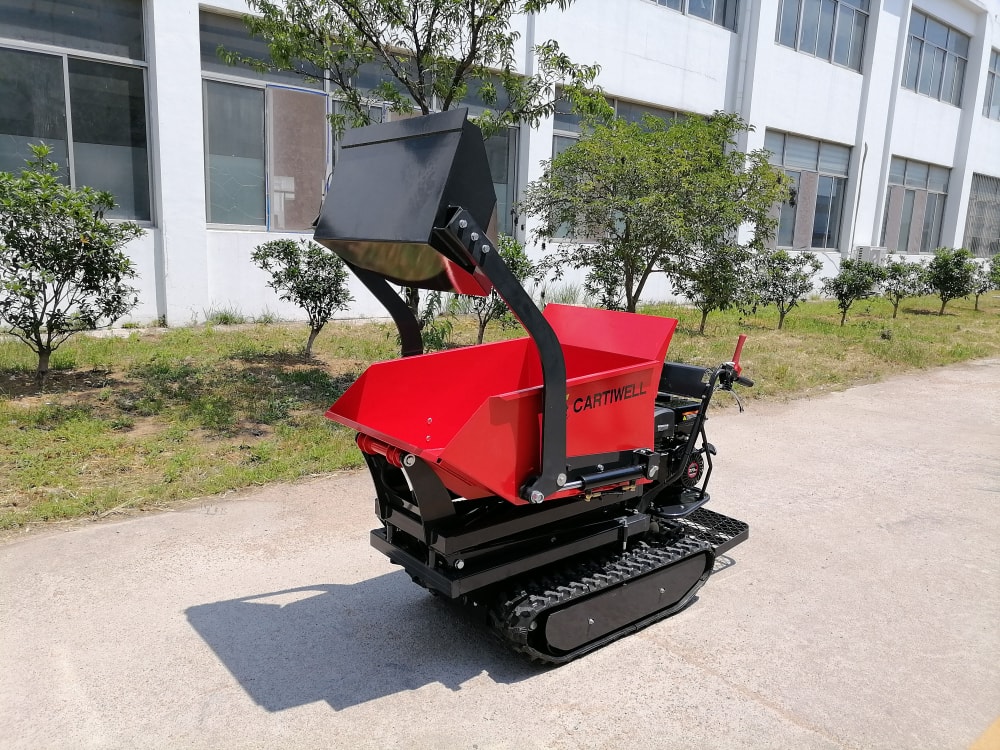

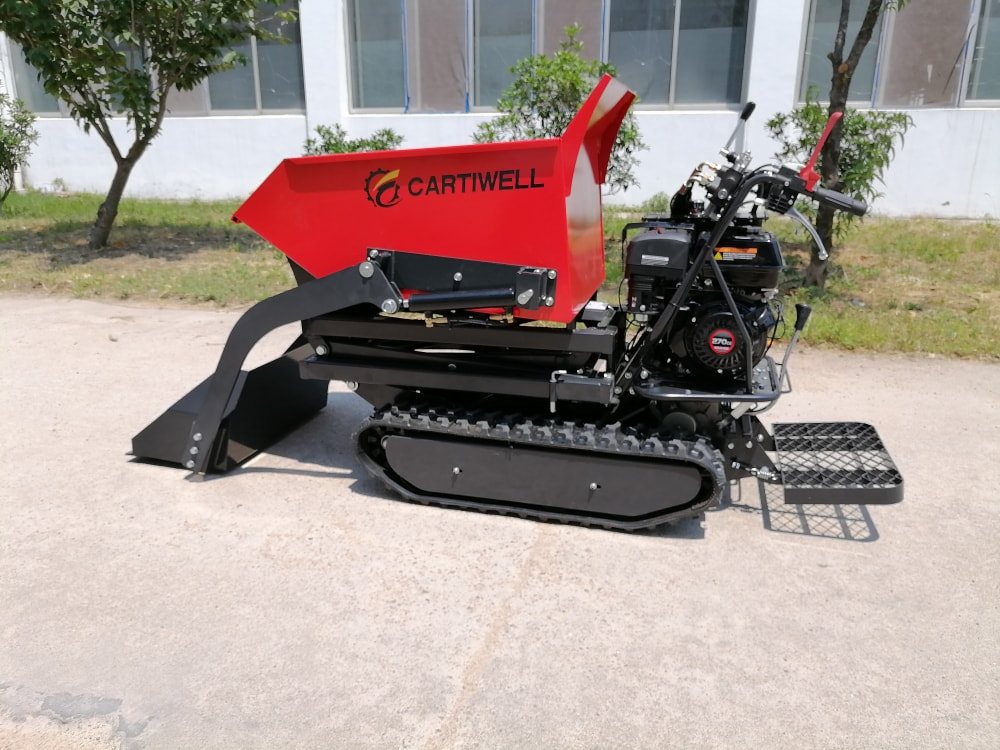

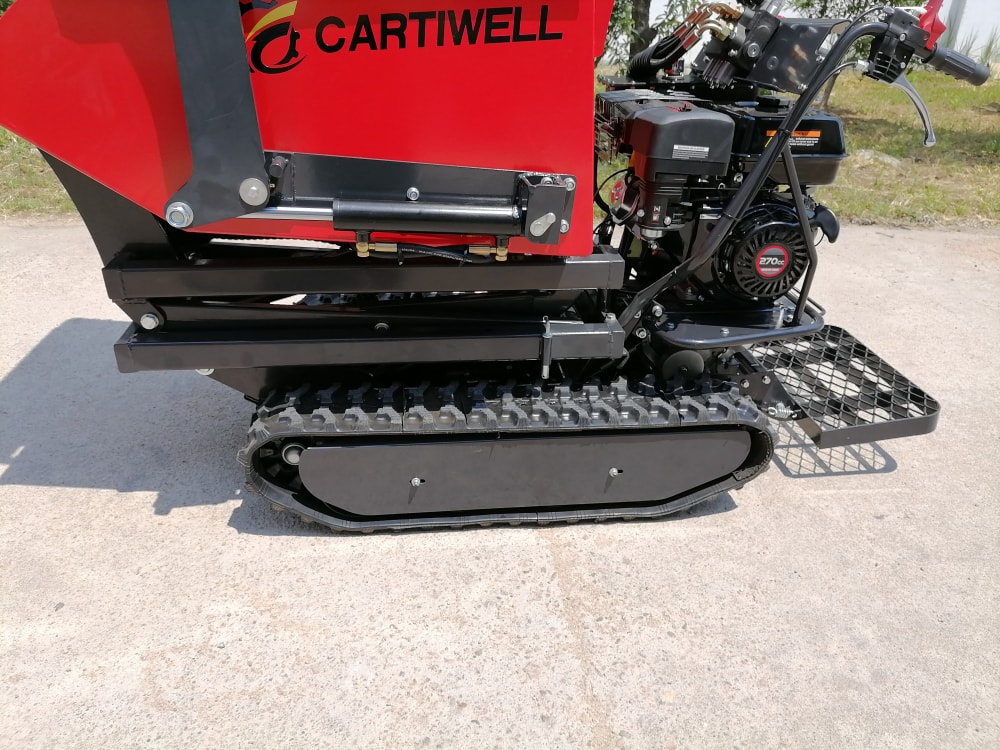

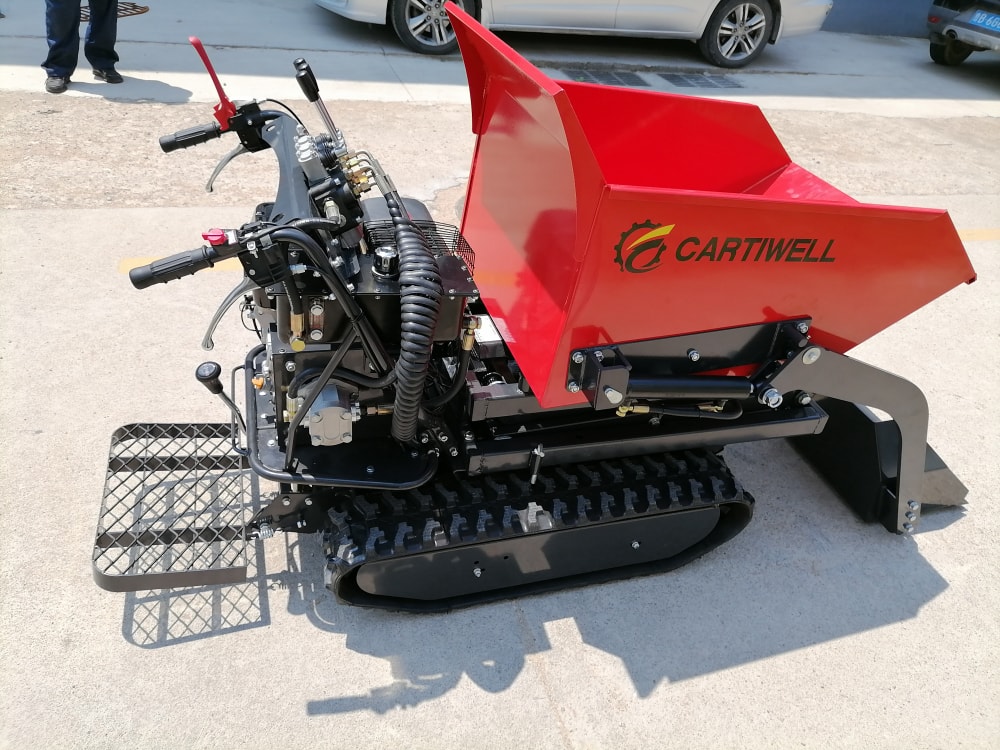

The CWD-500B is a compact tracked mini dumper with a hydraulic self-loading bucket and a high-tip unloading system. Its 9 HP gasoline engine and rubber tracks support material transport on construction sites, in gardens and around farms.

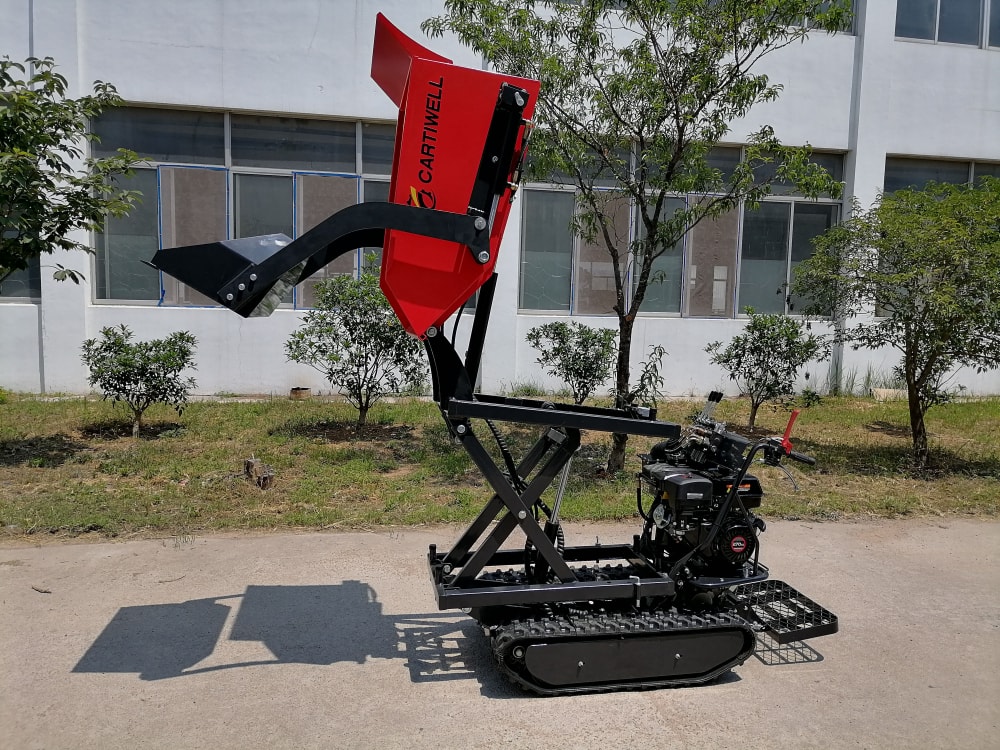

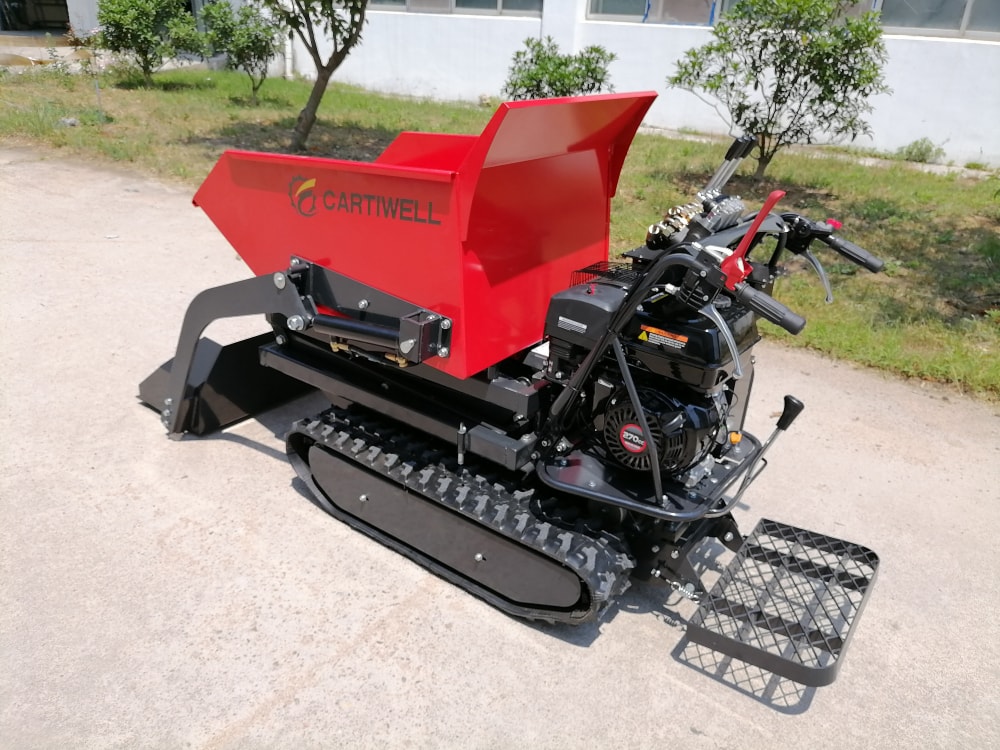

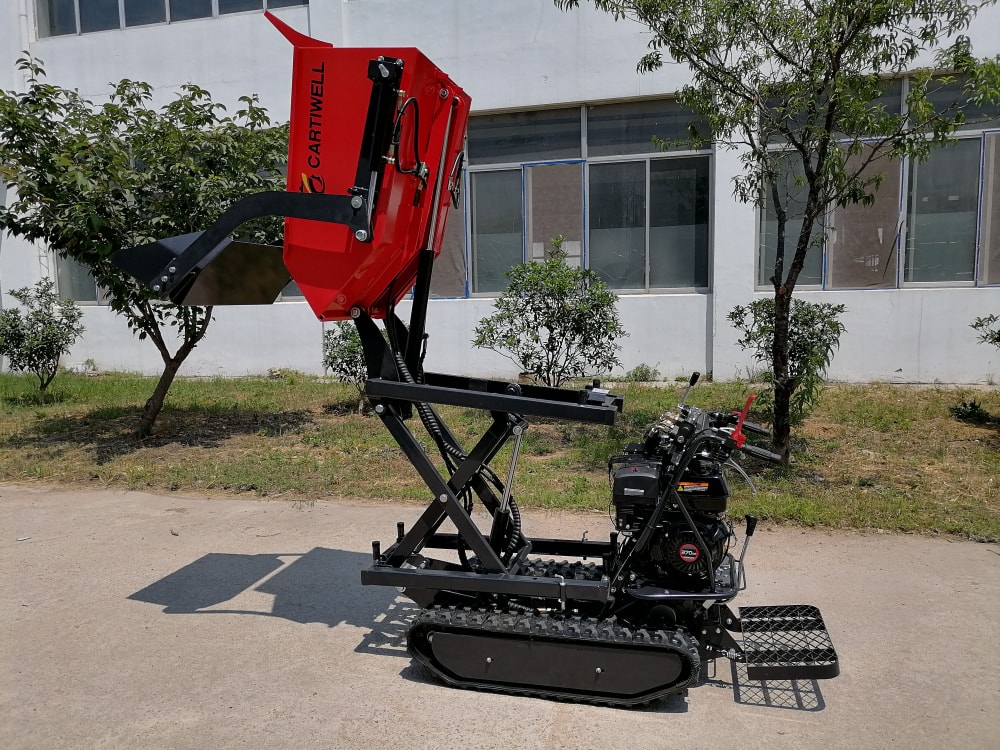

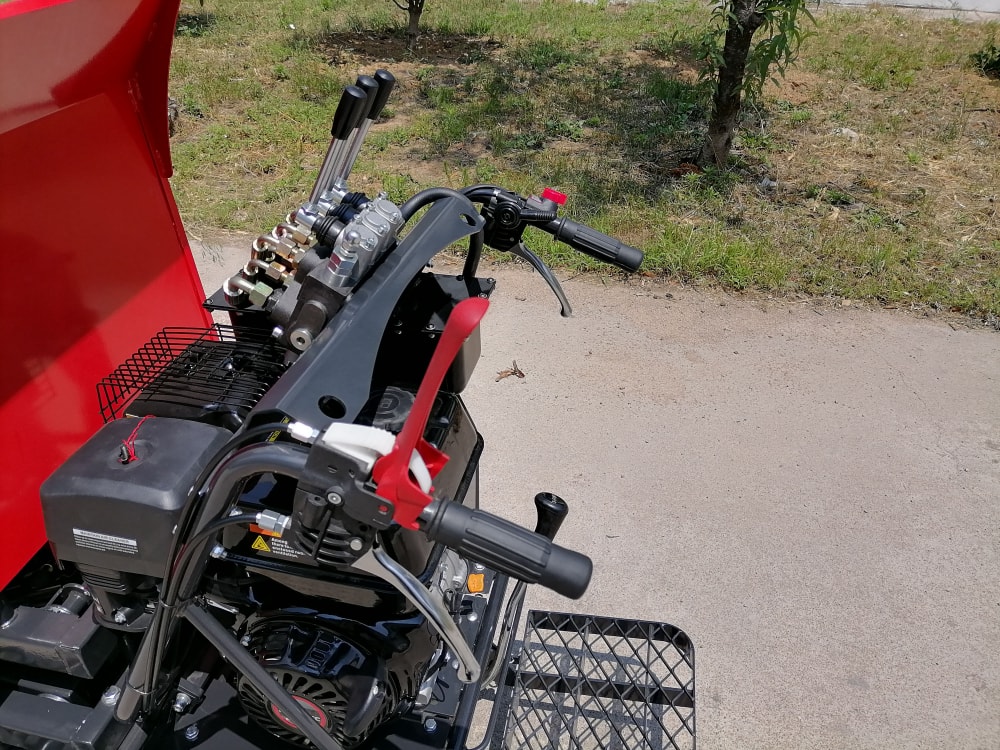

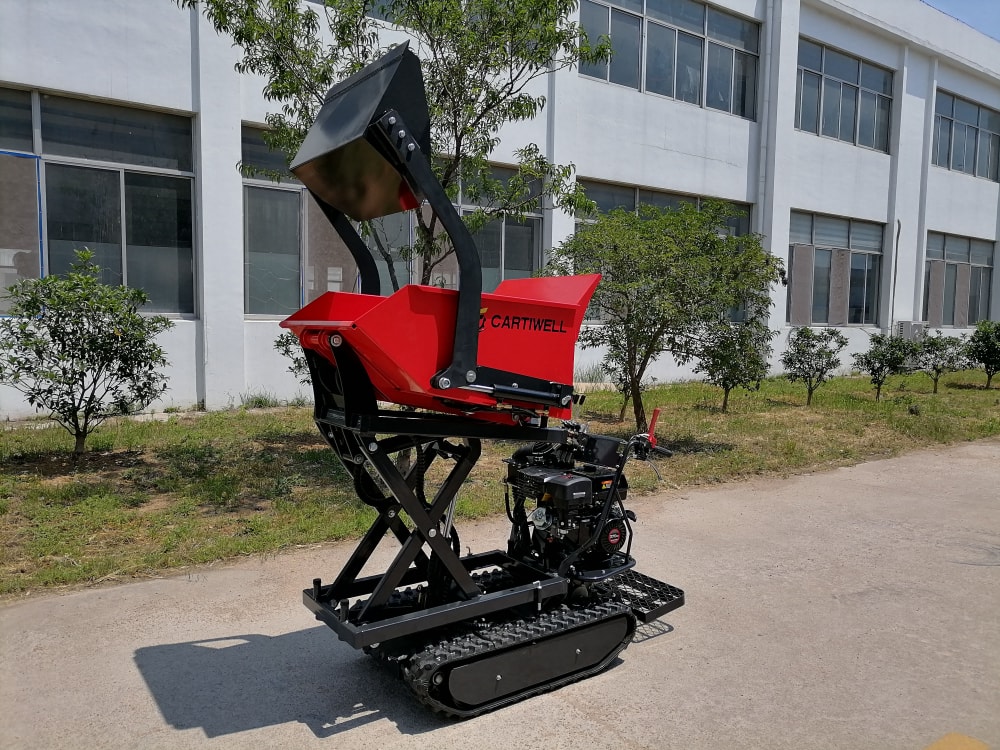

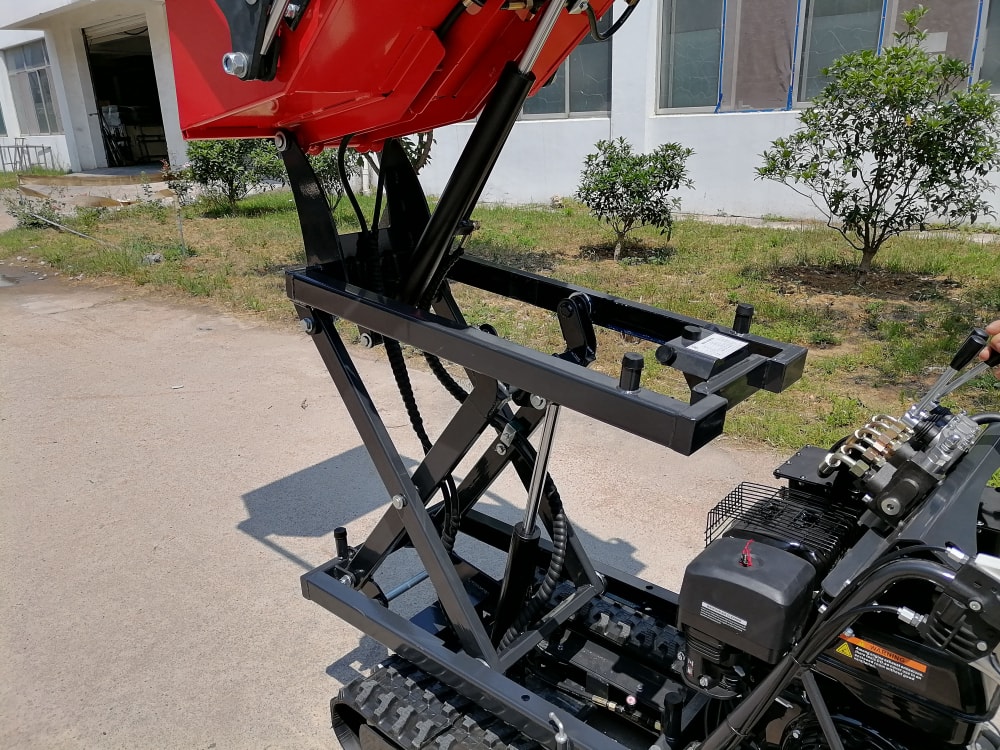

The machine combines a 500 kg maximum loading capacity with hydraulic tipping, rear operator controls and a foldable standing platform. The lifting mechanism raises the top of the tipped bucket to a maximum height of 2400 mm for unloading into higher-sided containers.

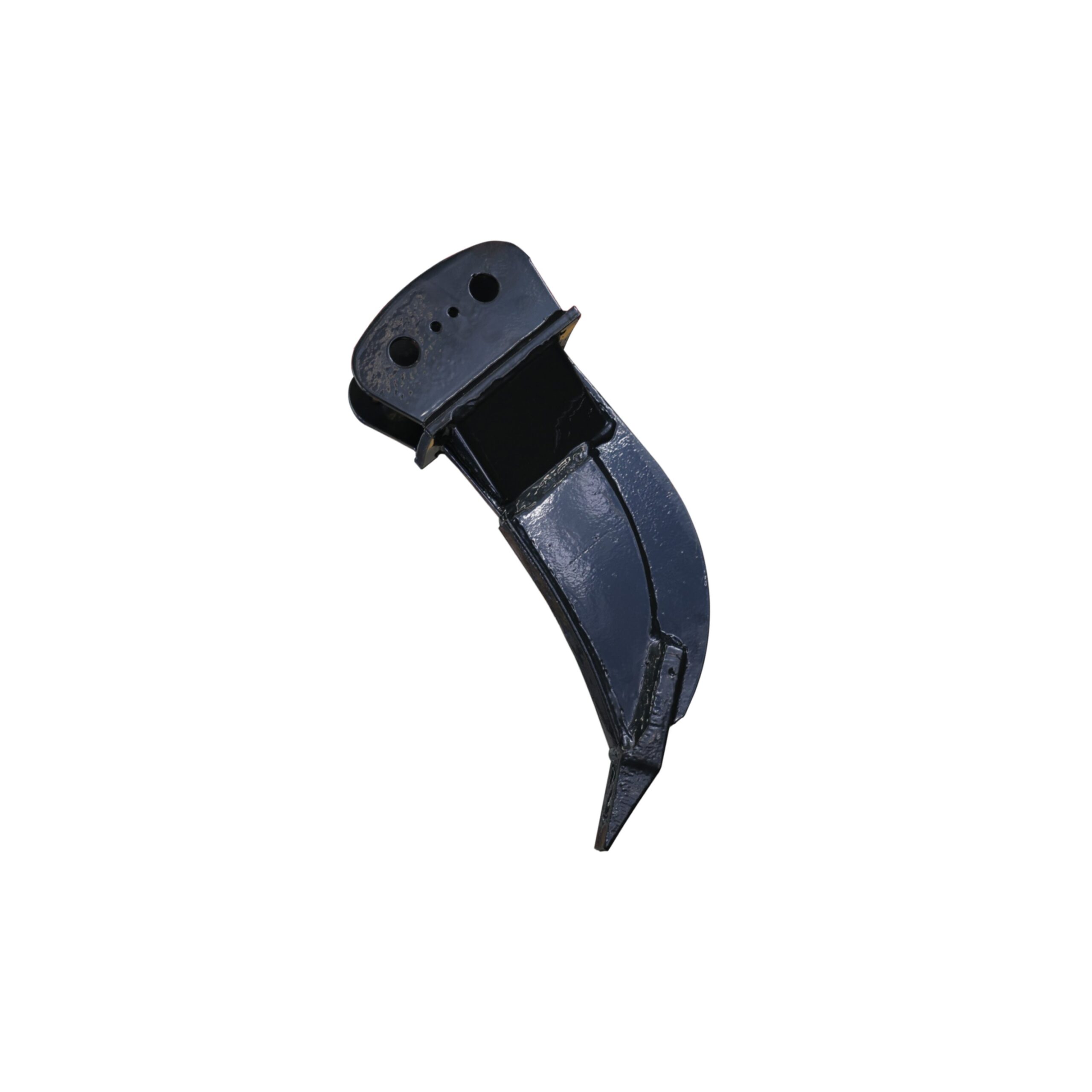

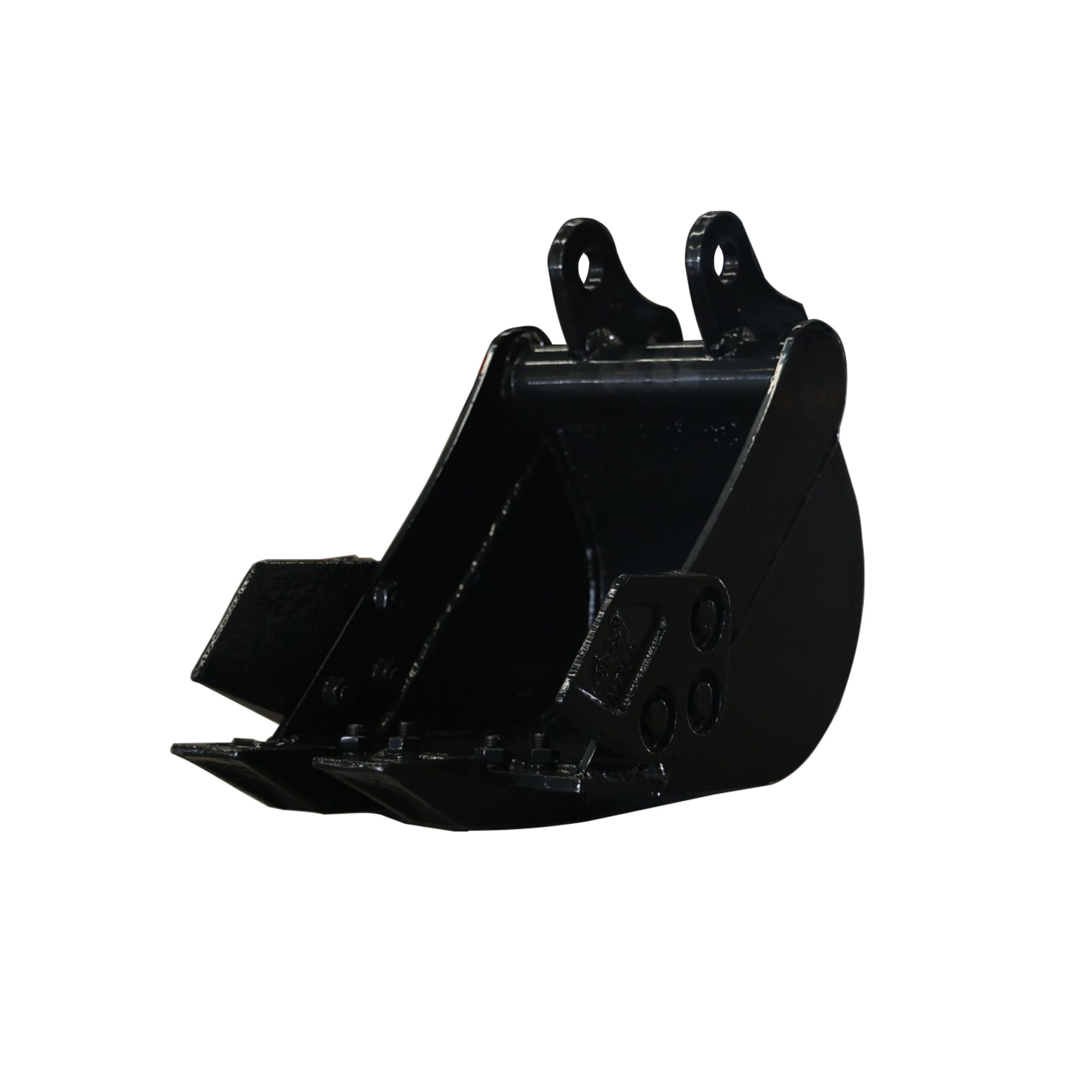

Accessories
