| PRODUCT INFORMATION | |
| Max. working height | 2479mm |
| Max. pin height | 1926 mm |
| Max. Dumping height | 1398 mm |
| Max. Dumping distance | 100 mm |
| Max. Dumping Angle | 53° |
| Rollback of bucket on ground | 32° |
| Departure angle | 18° |
| Total height | 1185 mm |
| Ground clearance | 1100 mm |
| Wheel base | 653 mm |
| Overall length without bucket | 1552 mm |
| Total width | 990 mm |
| Bucket width | 1080 mm |
| Total length with bucket | 1992 mm |
| Turn radius forward turning | 1205 mm |

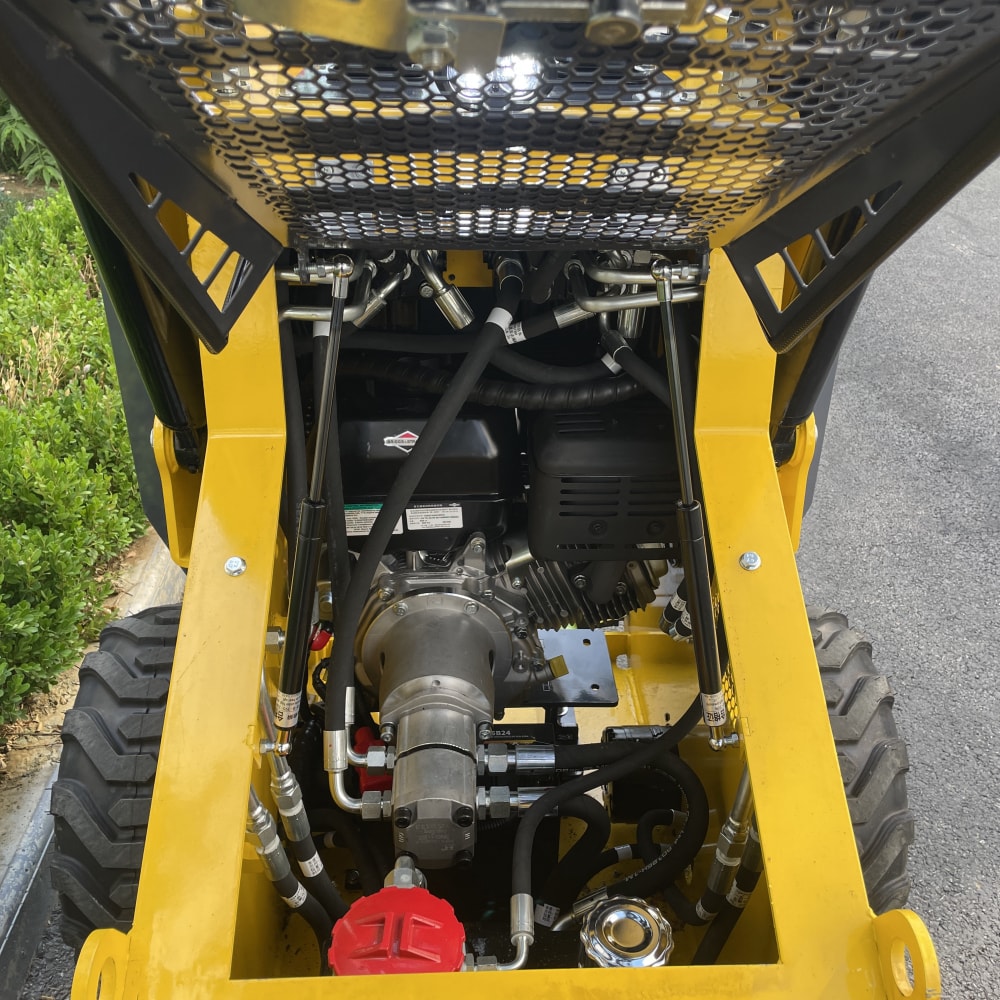

| Engine | Briggs st ration |
| Rated Power(KW) | 10KW(13.5HP) |
| Rotating speed (rpm) | 3600 |
| Noise (Db) | <95 |
| Pressure(Mpa | 17 |
| Raise | 4 |
| Dump | 1.3 |
| Lower | 3.2 |
| Operating Load | 260 Kg |
| Bucket Capacity | 0.08 m3 |
| Max. Lifting Force | 300 Kg |
| Travel Speed | 0-6 Km/h |
| Operating Weight | 1000 Kg |

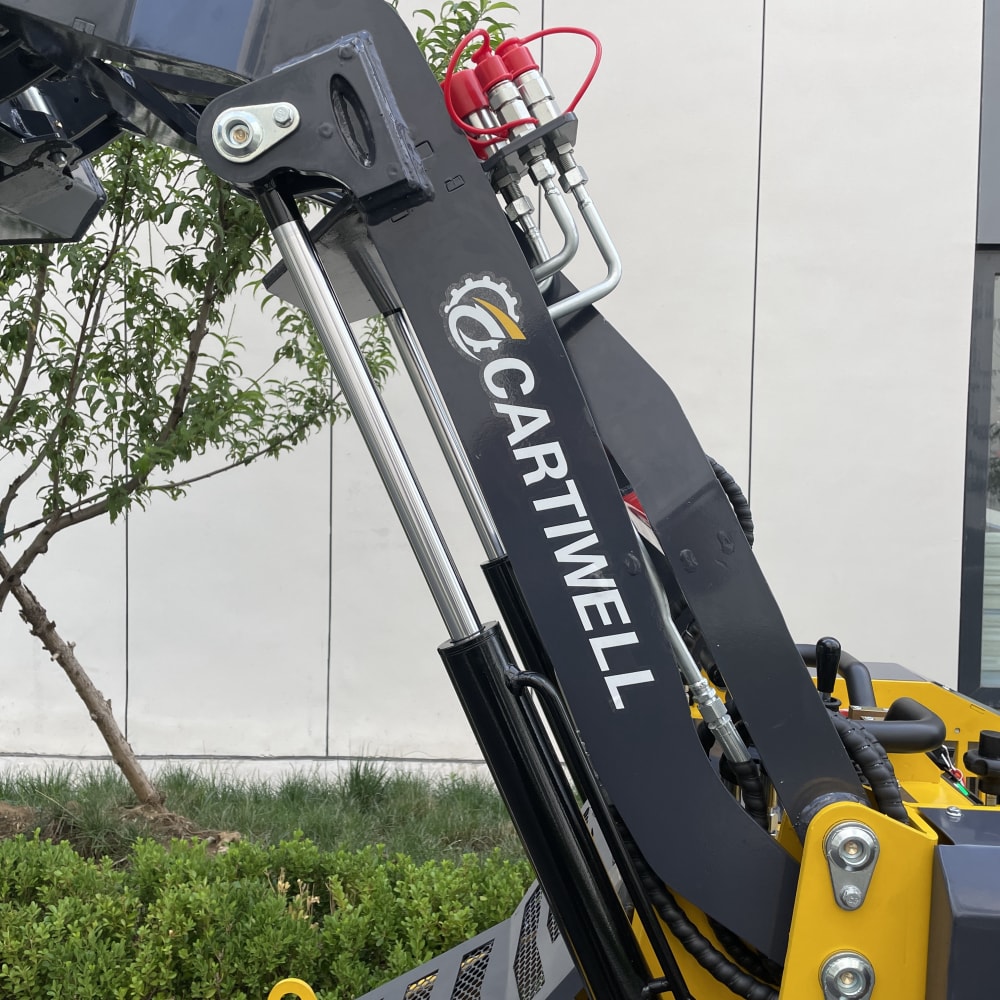

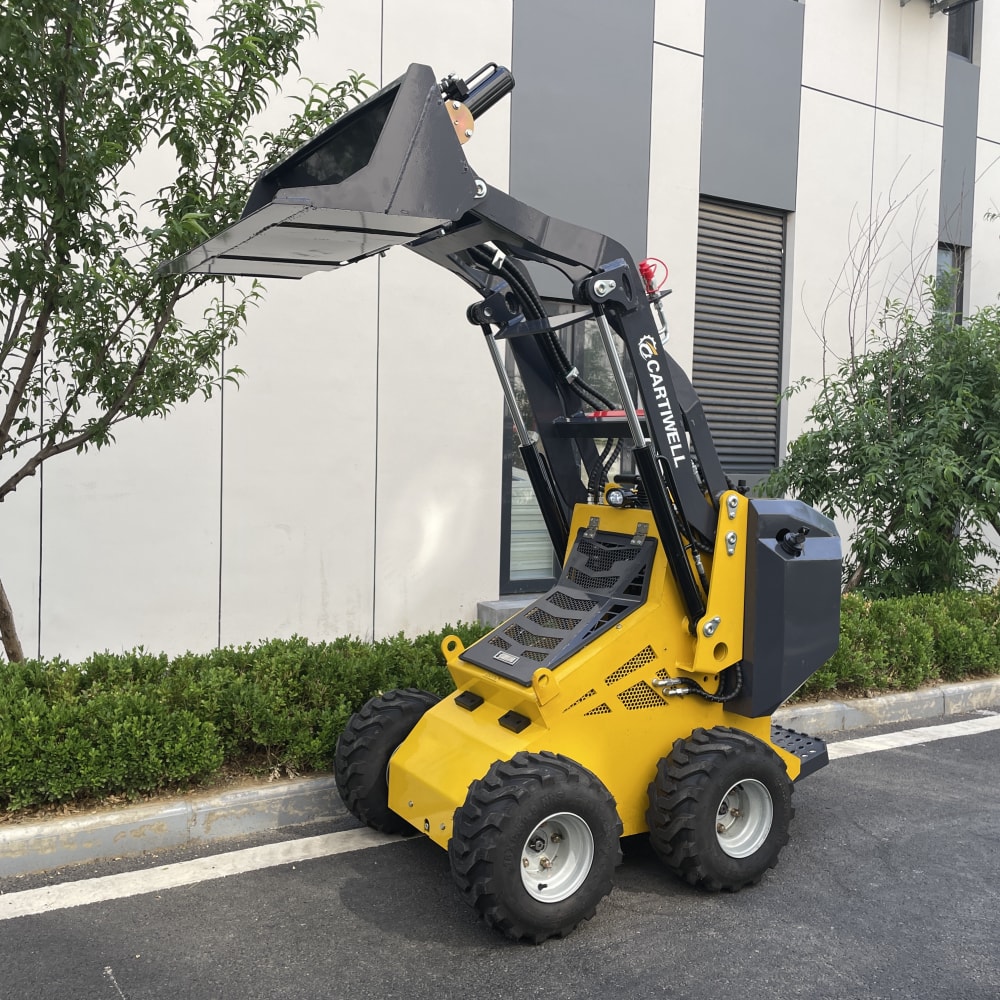

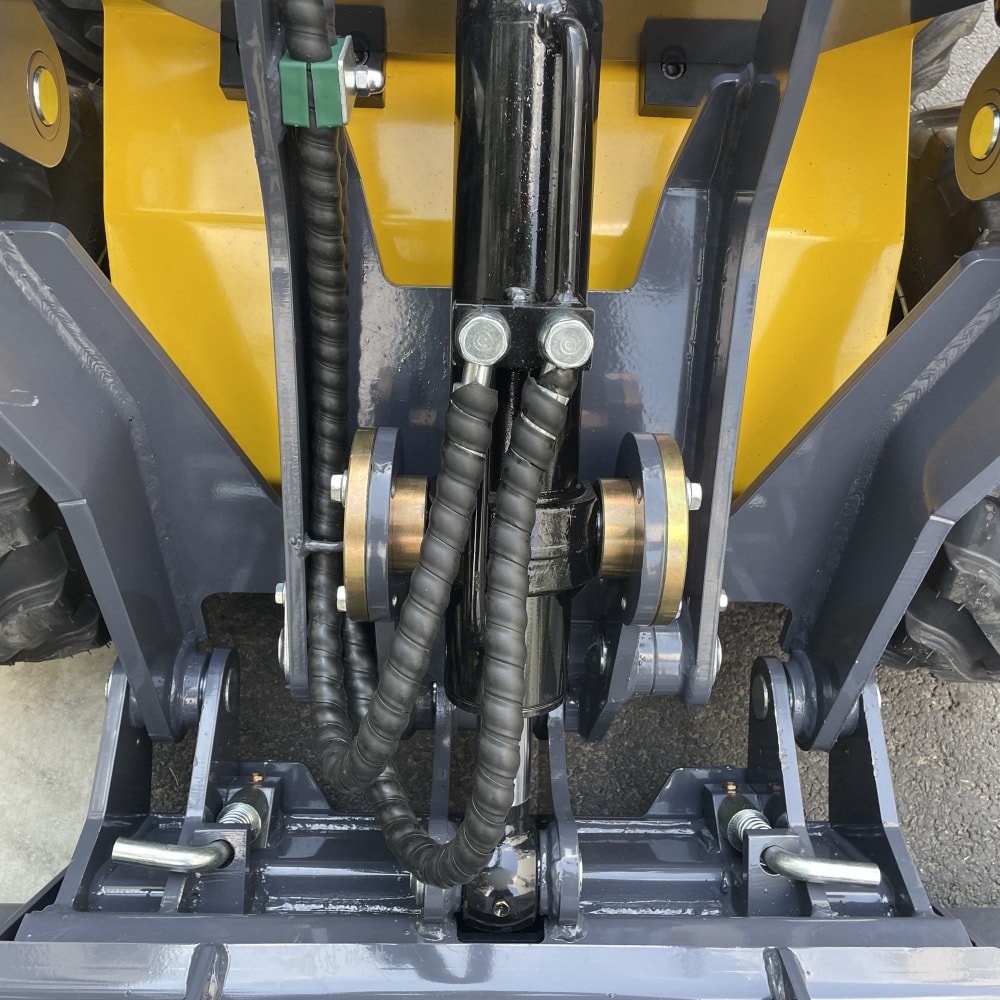

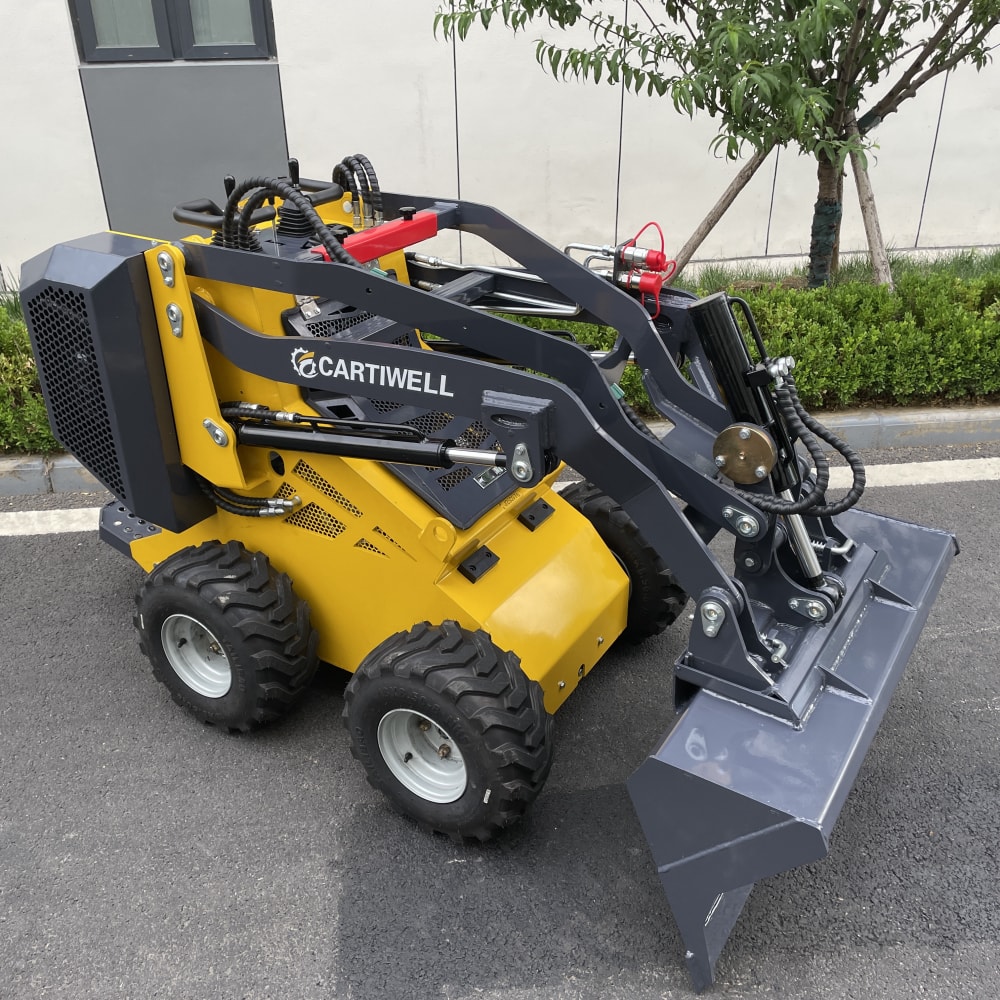

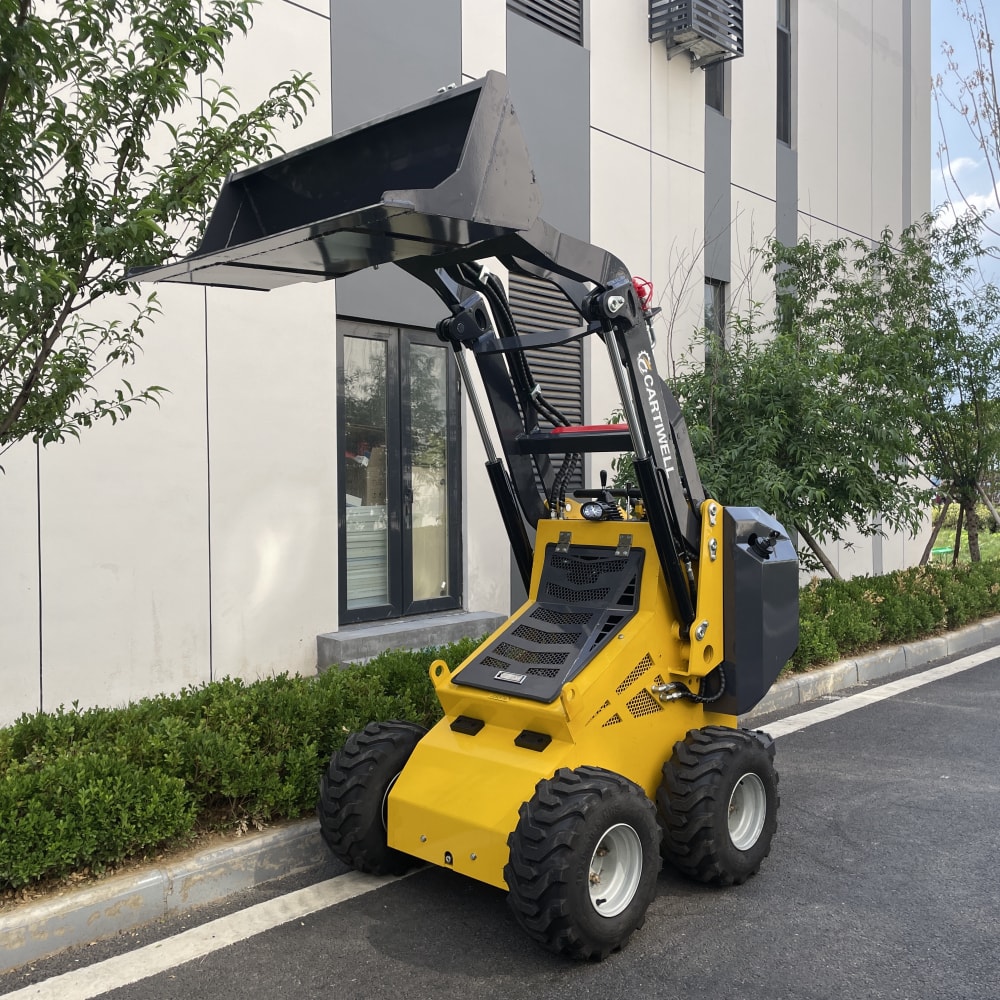

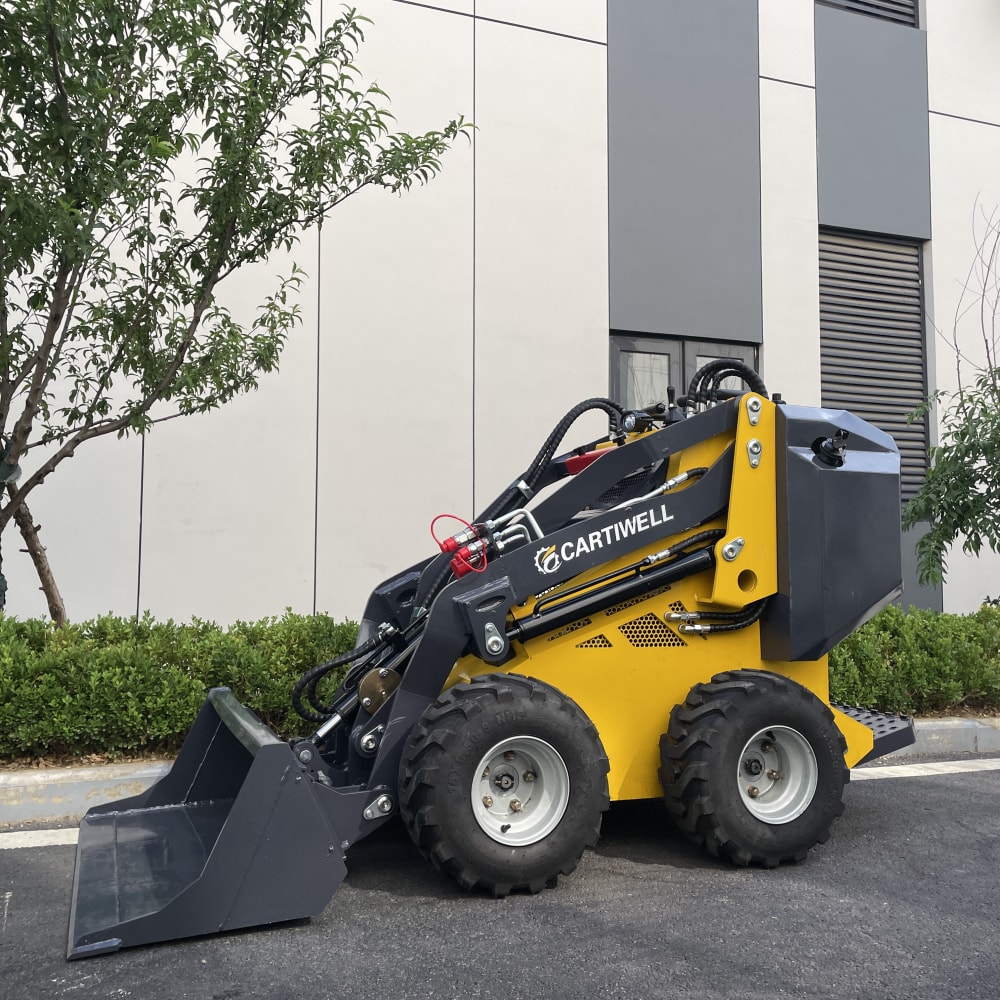

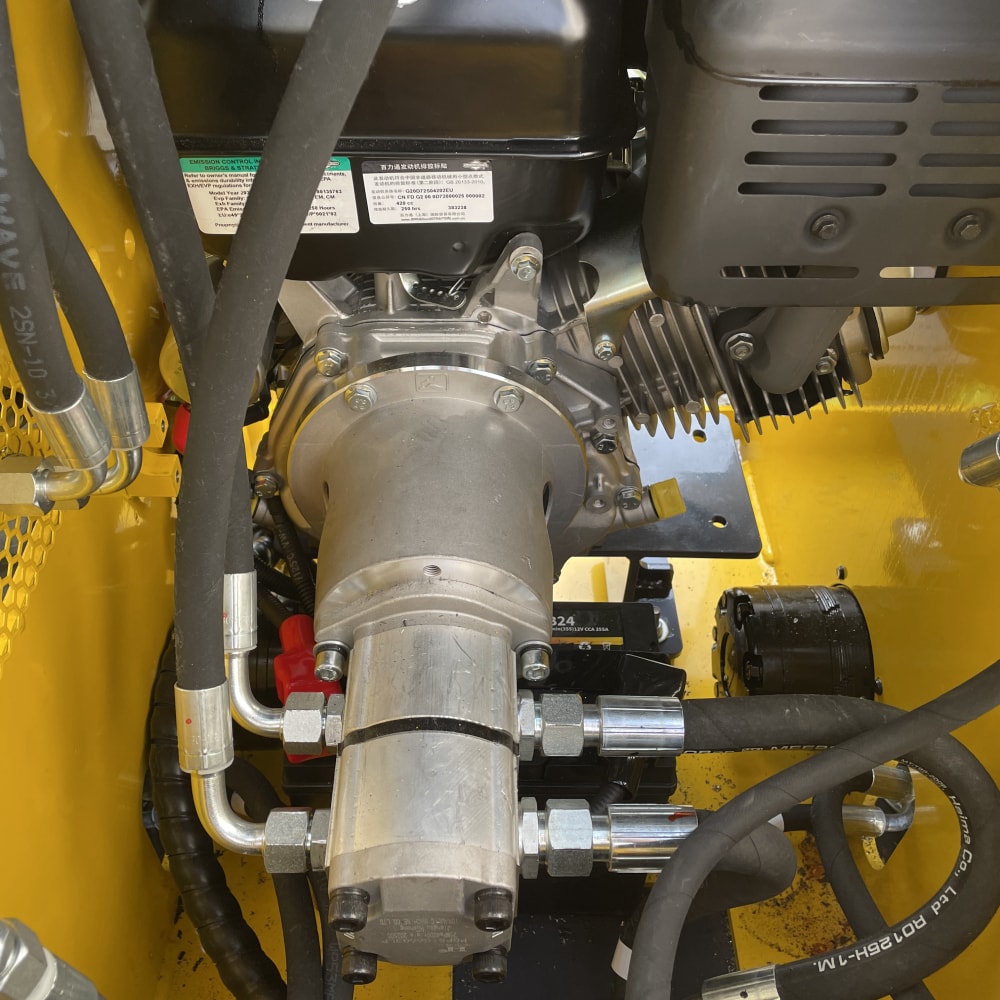

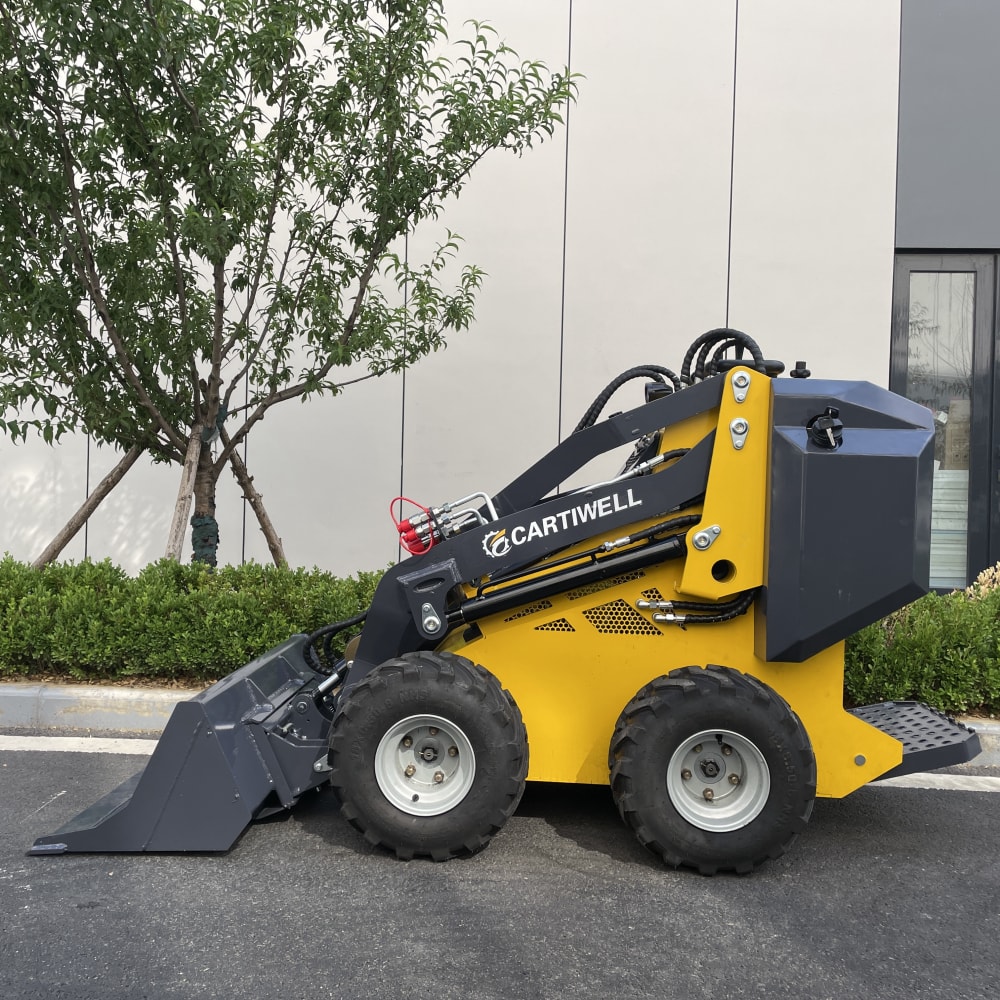

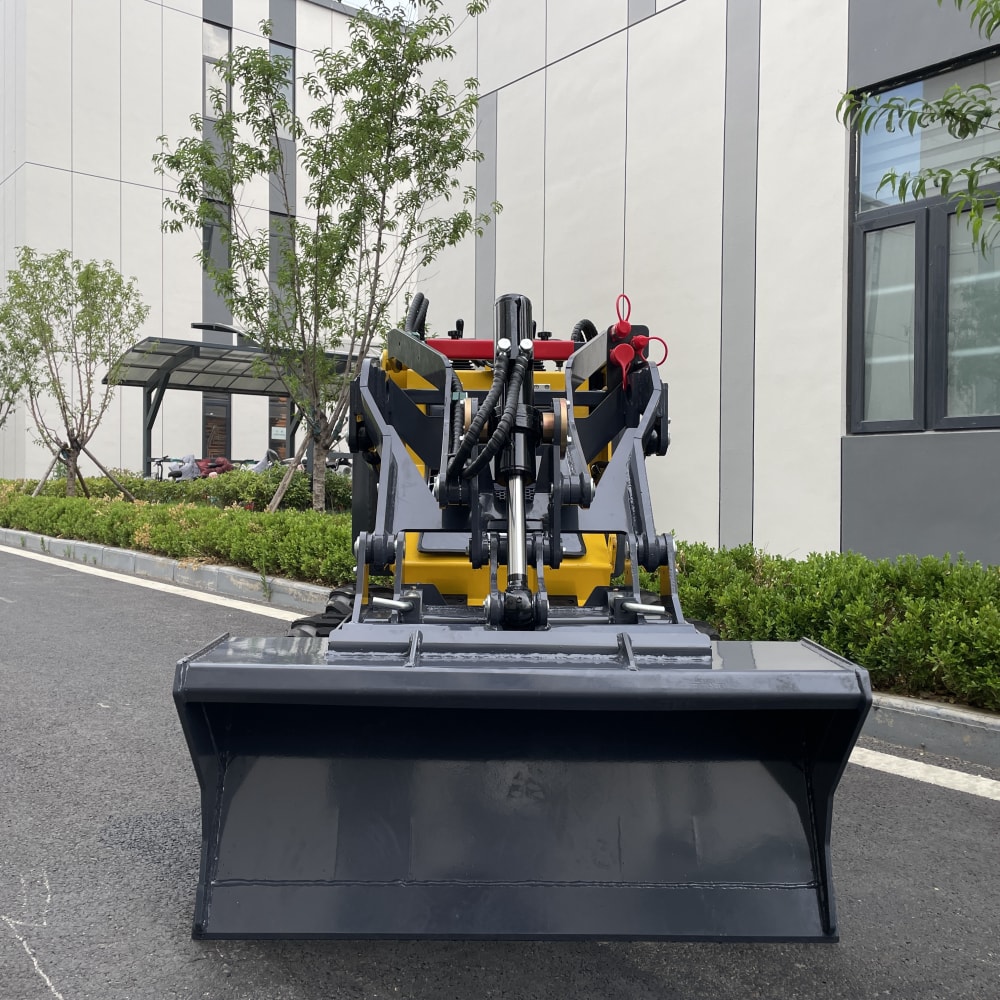

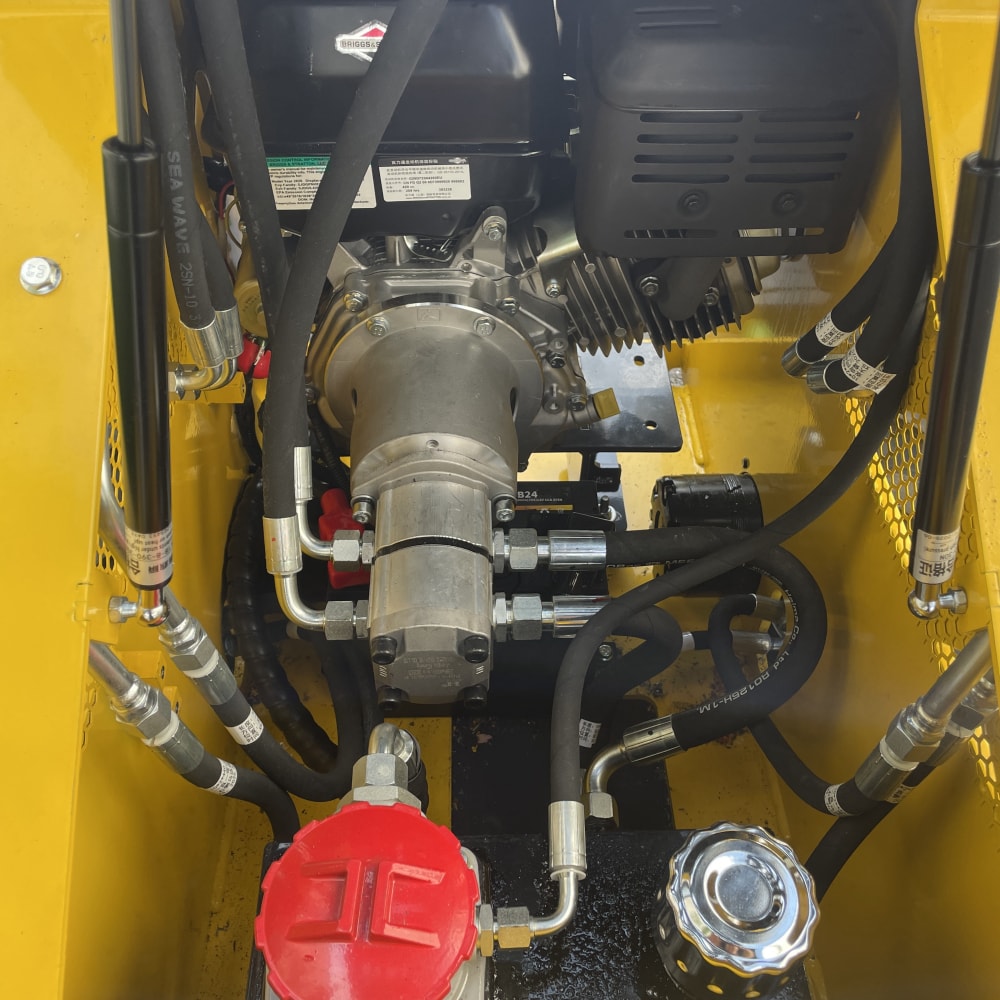

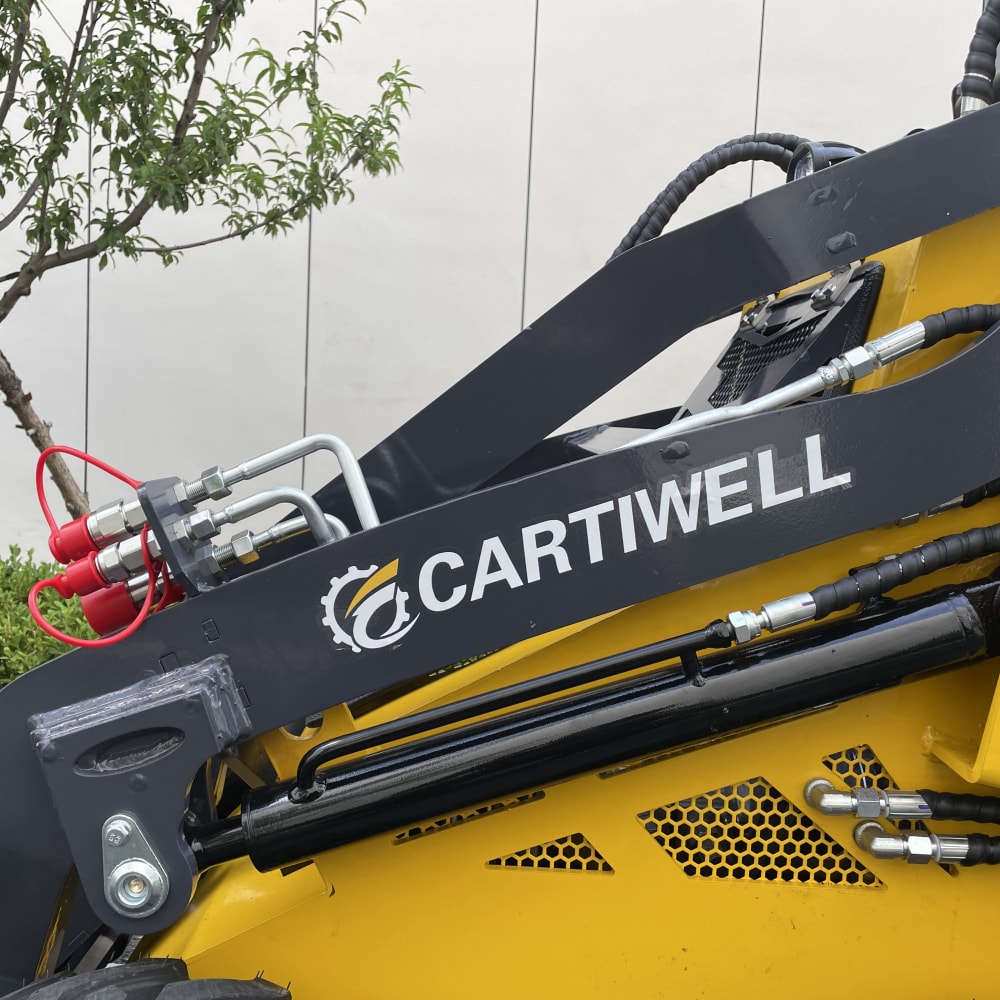

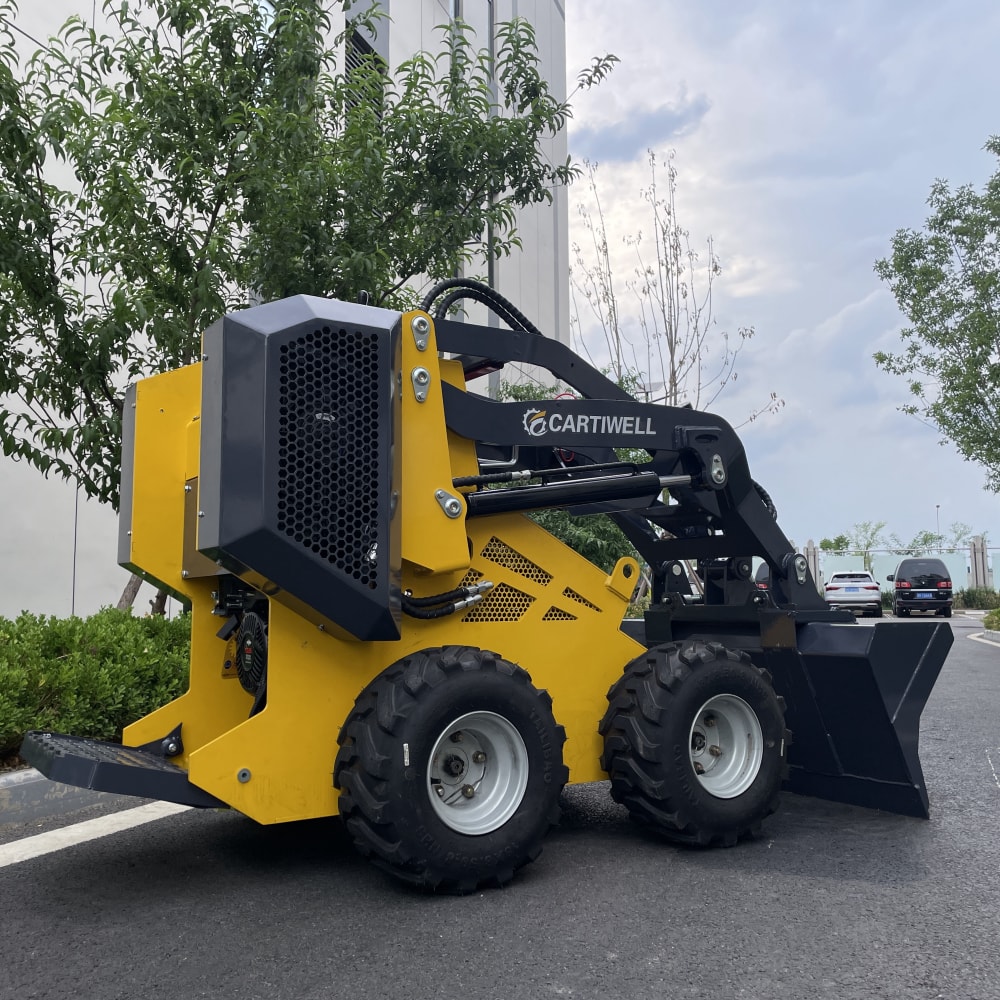

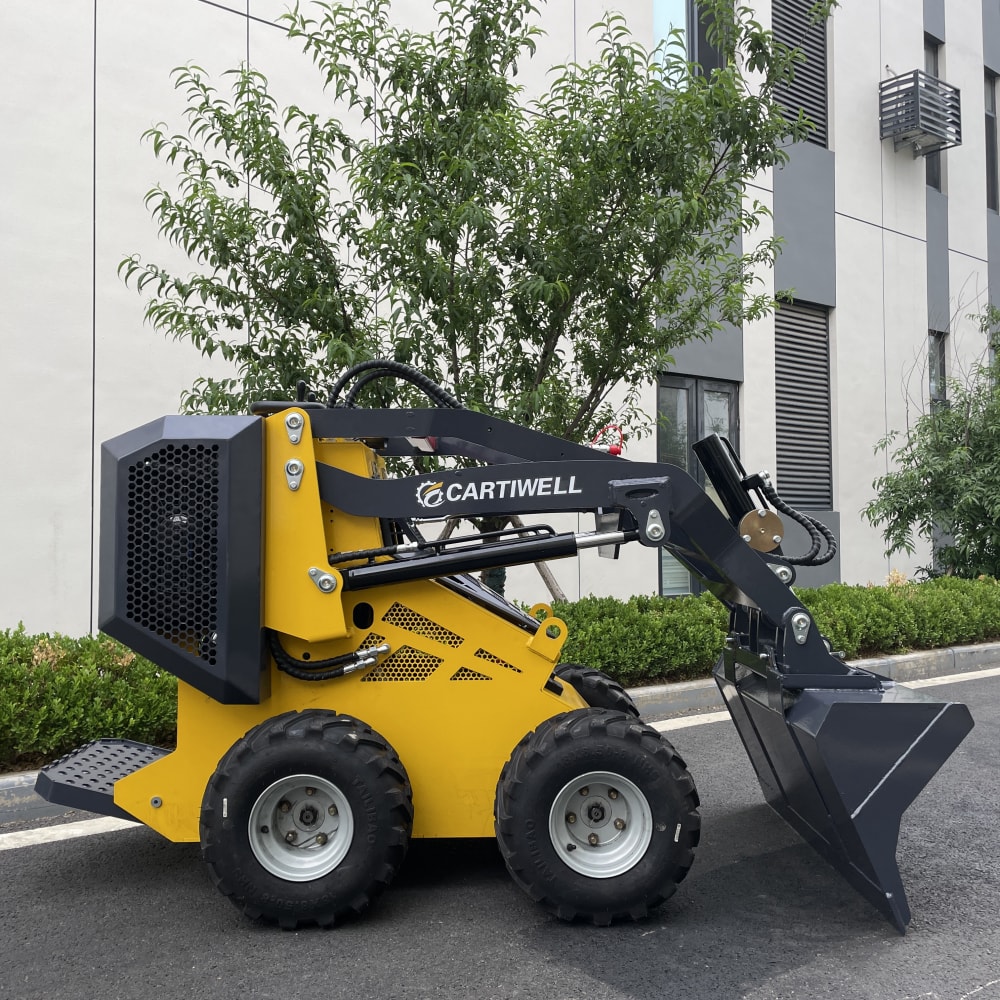

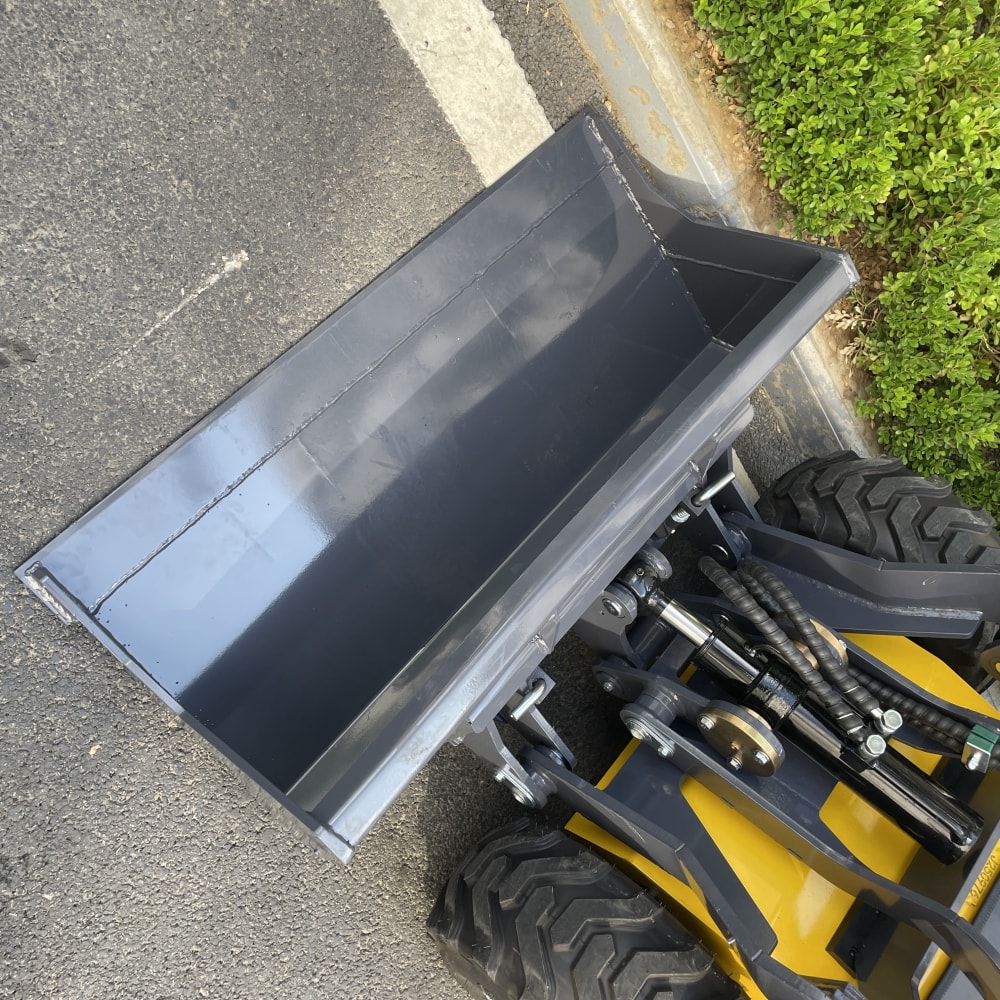

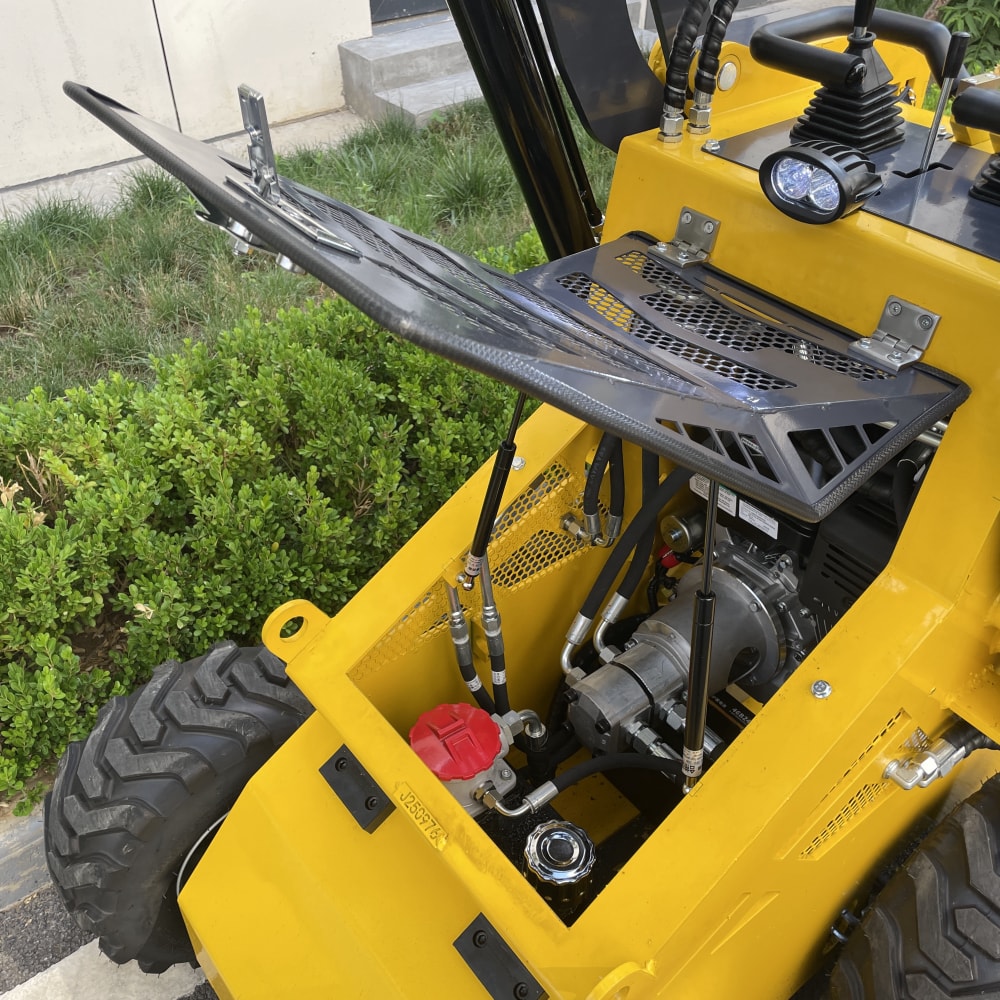

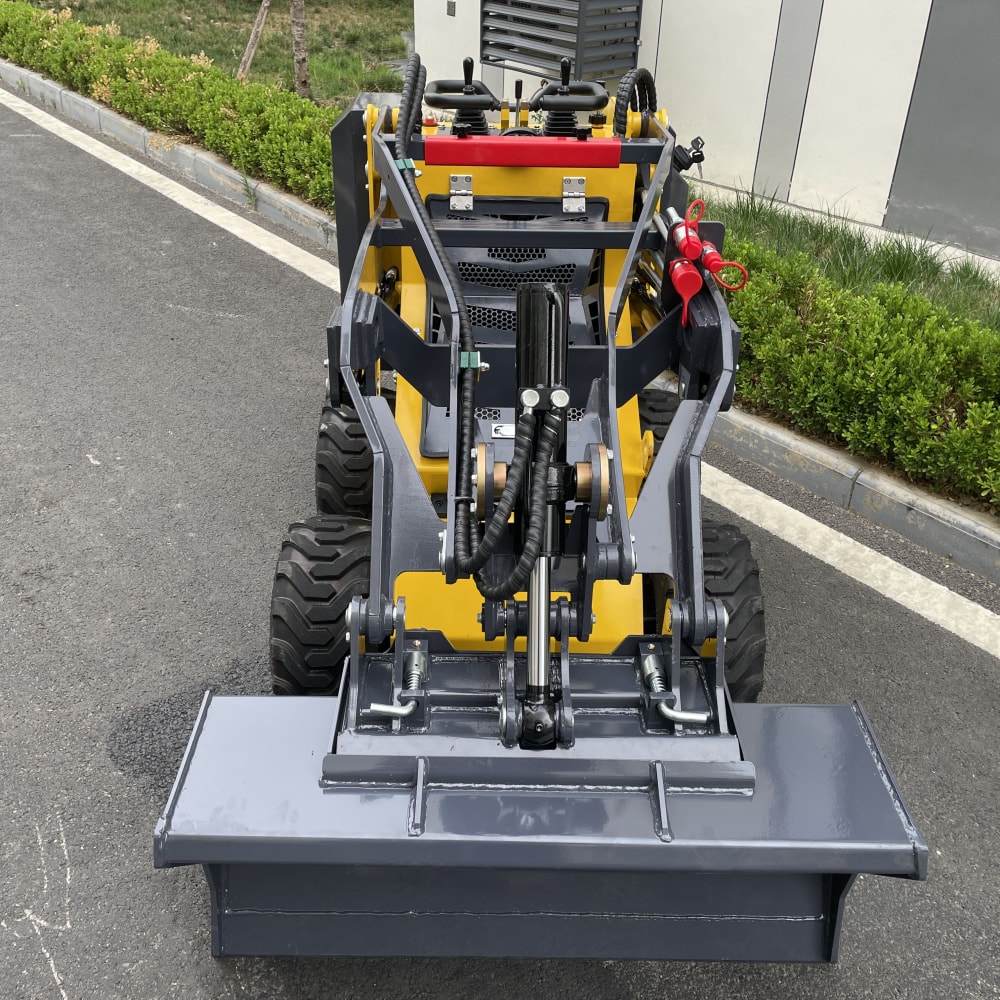

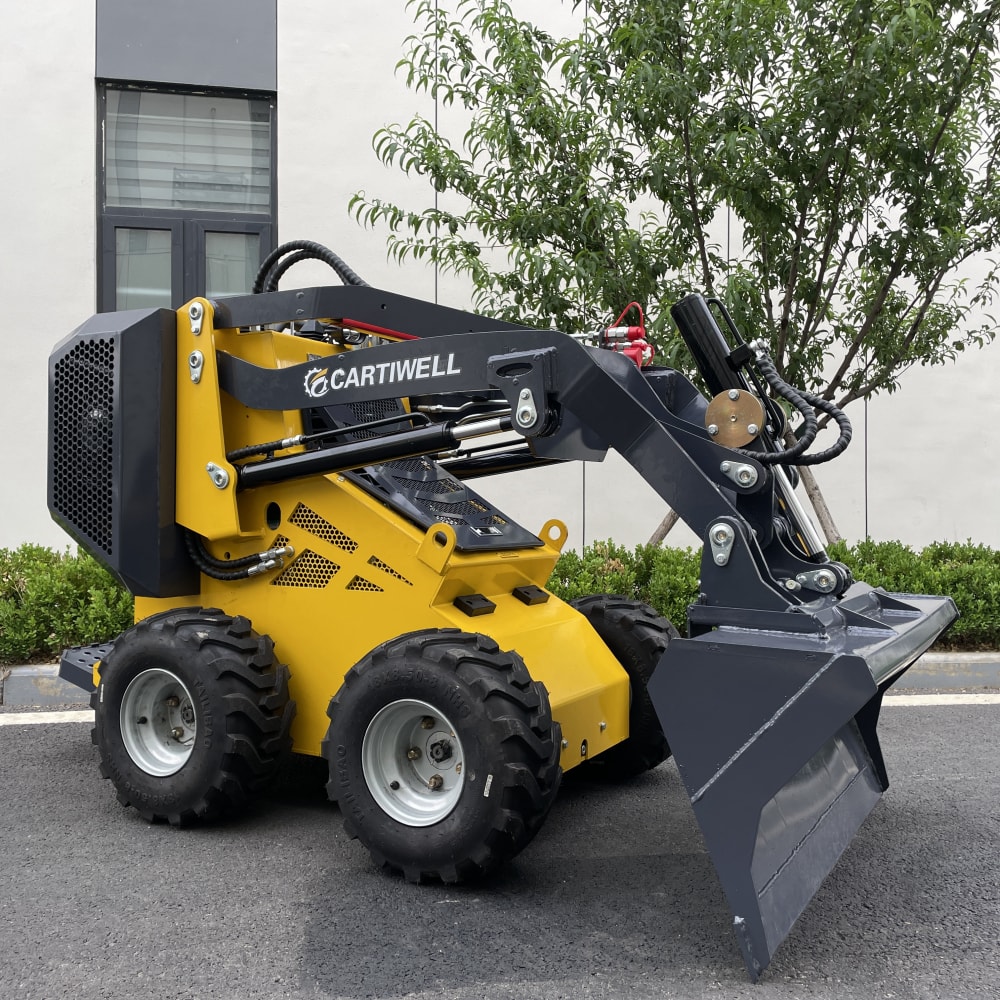

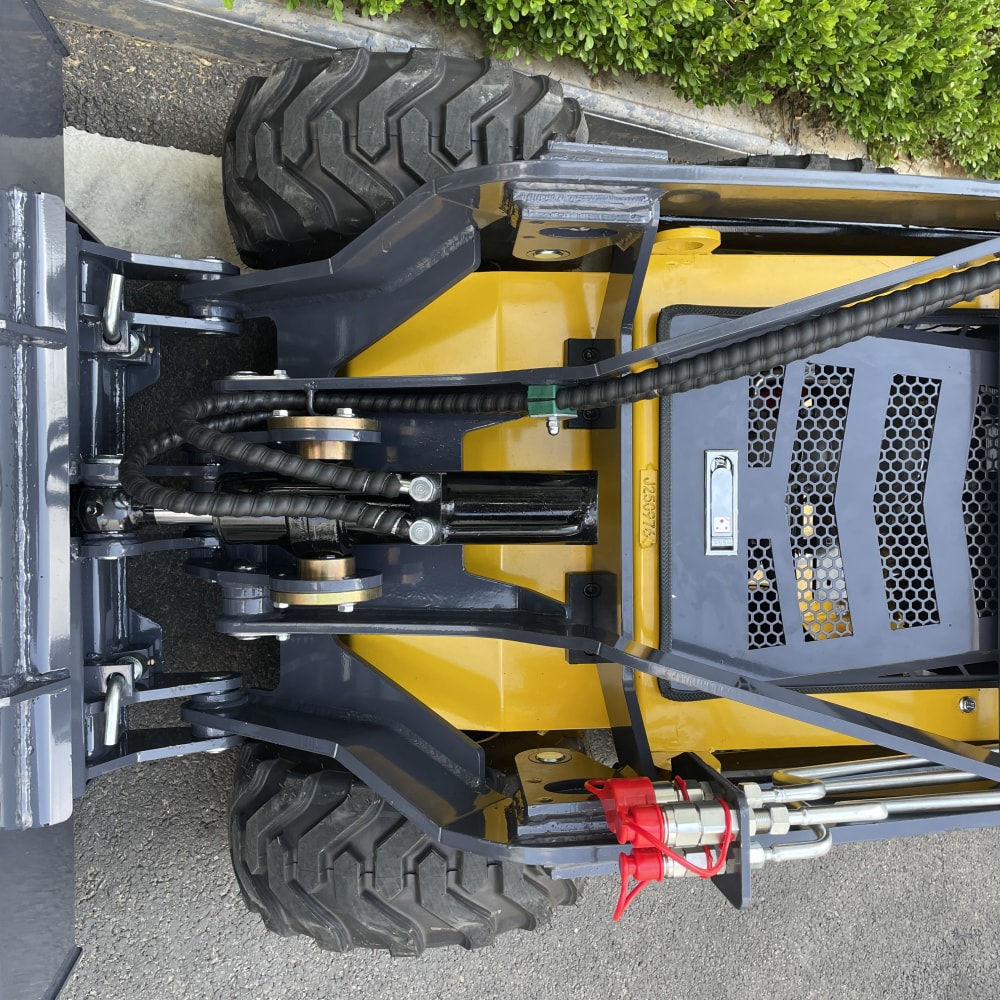

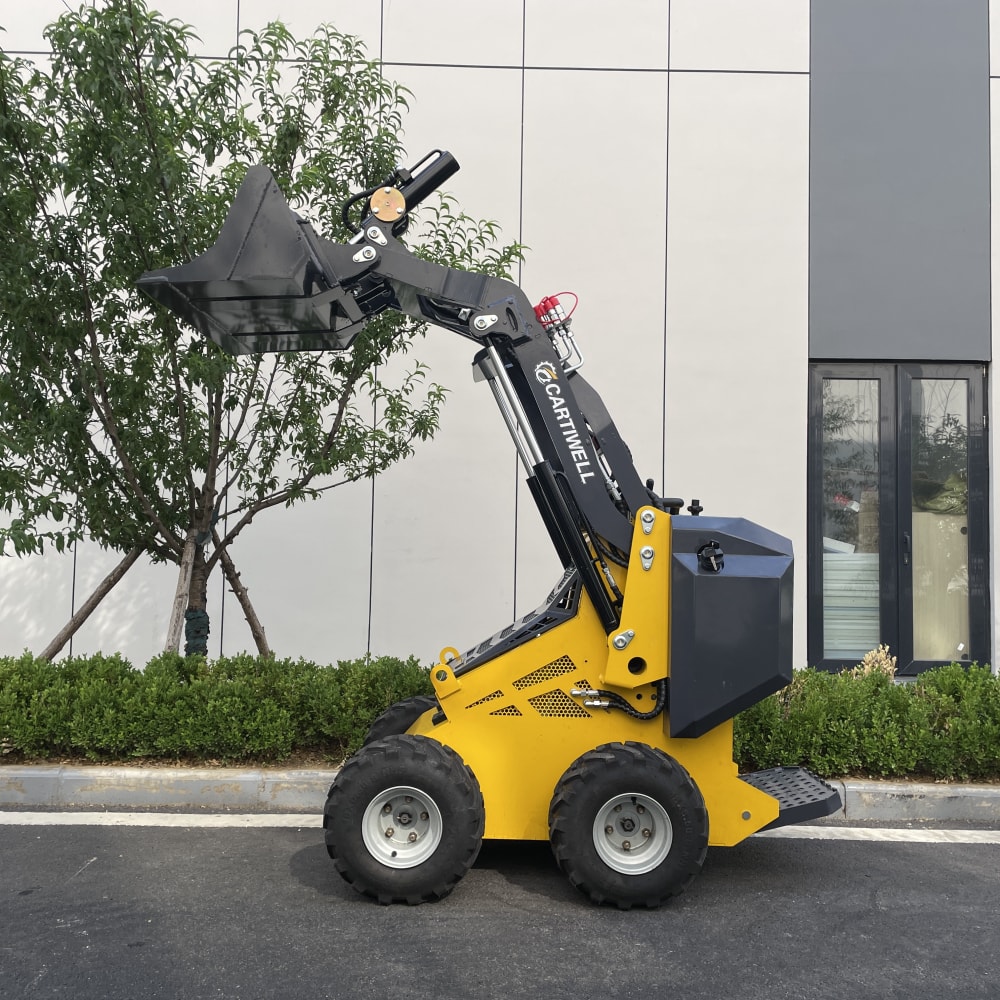

This SCW-380 skid loader is powerful. It is equipped with an automatic balance bucket, which can effectively maintain the stability of the bucket when loading and unloading materials, reduce the spillage of materials, and improve work efficiency and accuracy. The advanced hydraulic system has strong power and sensitive response, and can smoothly complete lifting, tilting and overturning actions. Thickened lifting arm design enhances the structural strength and durability of the equipment, and can bear more loads and adapt to high-intensity operations. In addition, the loader has the characteristics of replaceable auxiliary tools, and can quickly replace various accessories such as a hammer and a sweeper according to different working conditions, which expands the application scenarios of the equipment and is widely applicable to small-scale building construction, garden engineering and other fields.
