| MACHINE RATING | |
| Max working height | 2474 mm |
| Max pin height | 1977 mm |
| Max Dumping height | 1275 mm |
| Max Dumping distance | 175 mm |
| Max Dumping Angle | 70° |
| Rollback of bucket on ground | 25° |
| Departure angle | 23° |
| Total height | 1300 mm |
| Ground clearance | 120 mm |
| Wheel base | 890 mm |
| Overall length without bucket | 1767 mm |
| Total width | 1030 mm |
| Bucket width | 1070 mm |
| Total length with bucket | 2319 mm |
| DIMENSIONS | |
| Turn radius forward turning | 1440 mm |
| Overall length without the bucket after | 1633 mm |
| folding the pedal | |
| Rated Power | 18.2KW(23HP) |
| Rotating speed | 3600 |
| Noise | ≤95 |
| Pressure | 17 |
| Raise | 4 |
| Dump | 1.3 |
| Operating Load | 390 Kg |
| Bucket Capacity | 0.13 m3 |
| Max Lifting Force | 450 Kg |
| Travel Speed | 0-4.5Km/h |
| Operating Weight | 960 Kg |

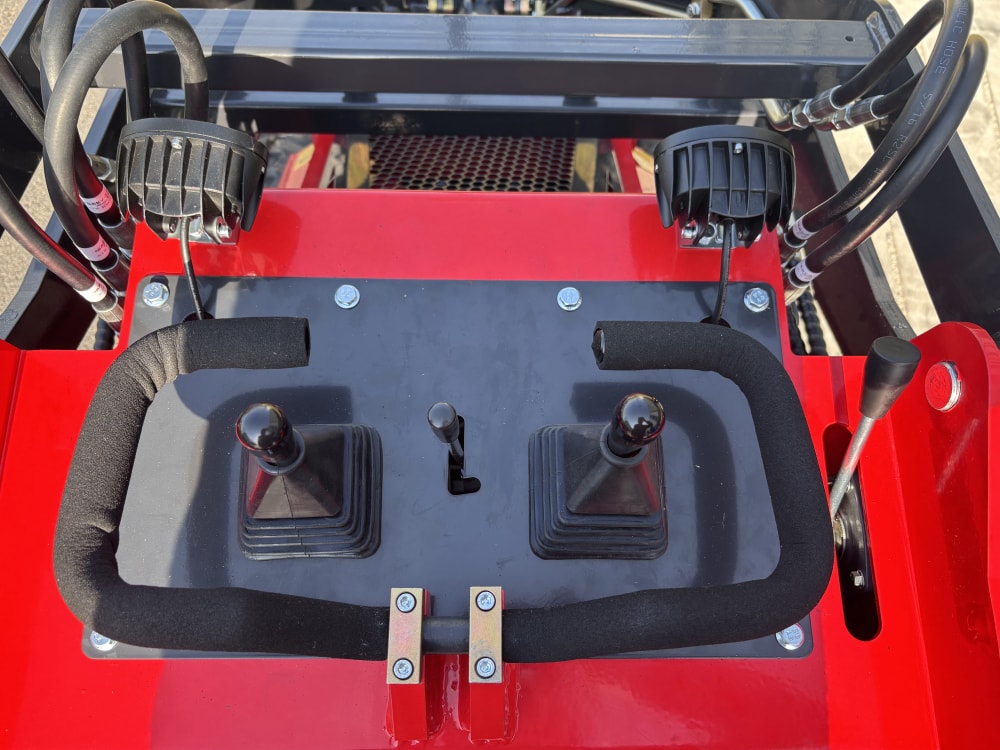

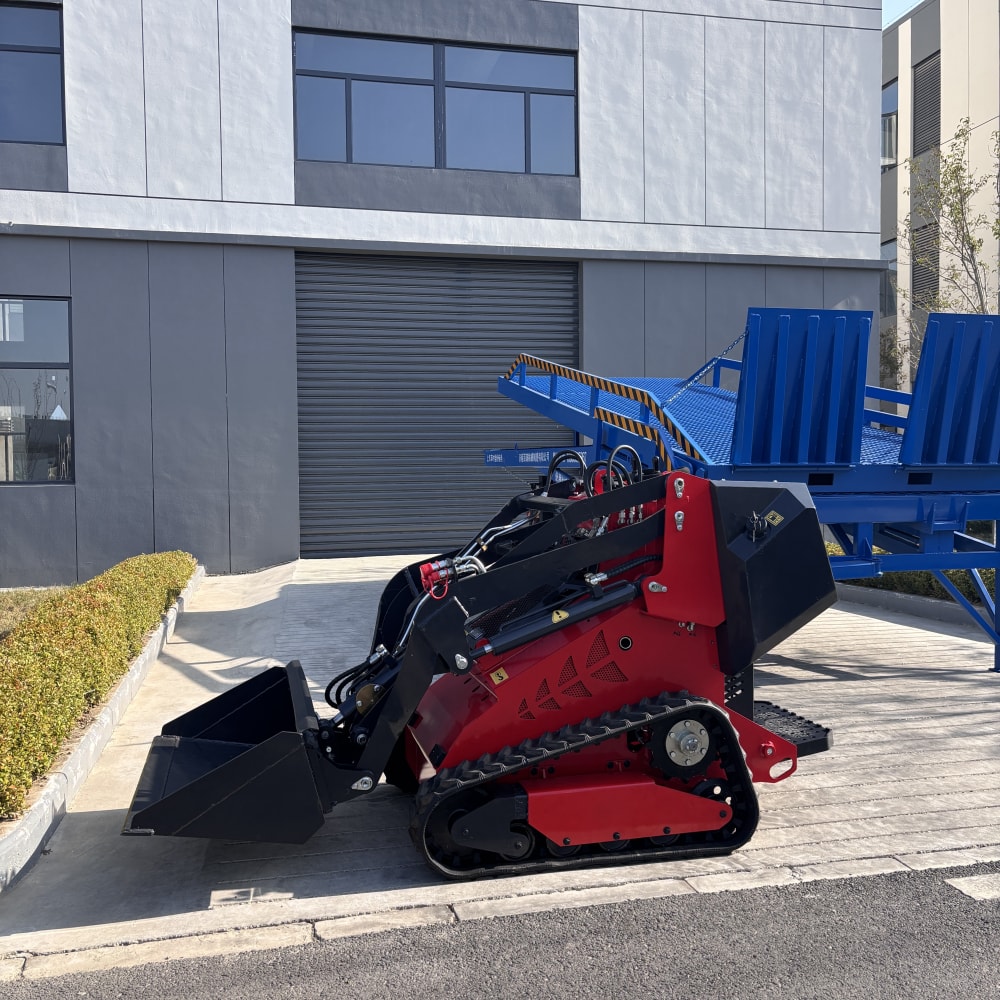

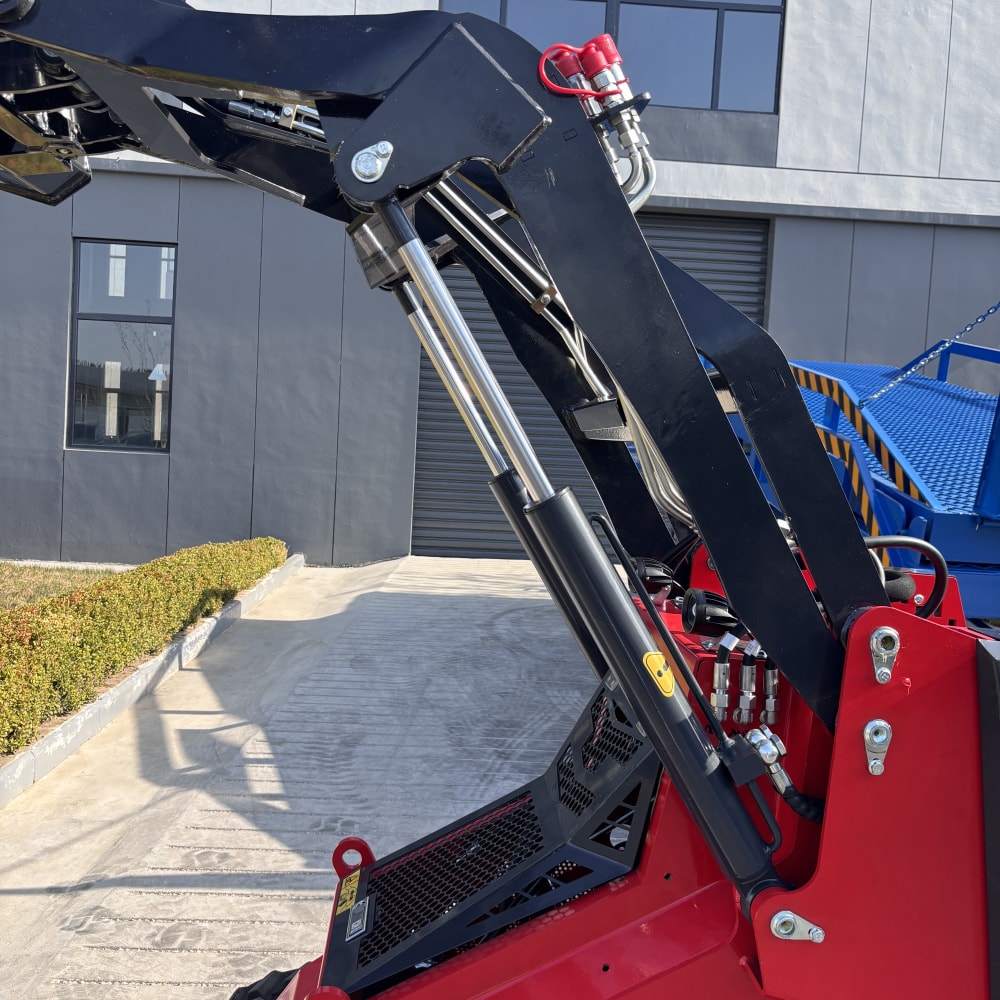

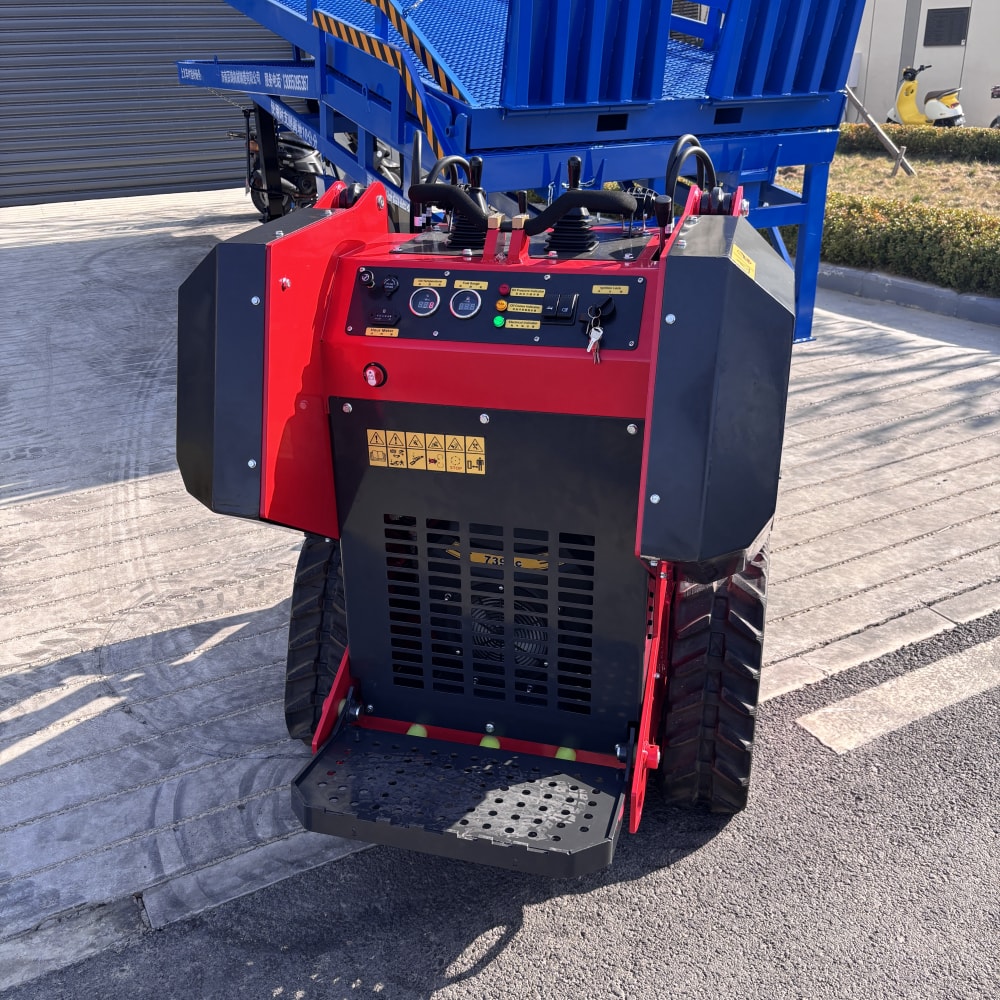

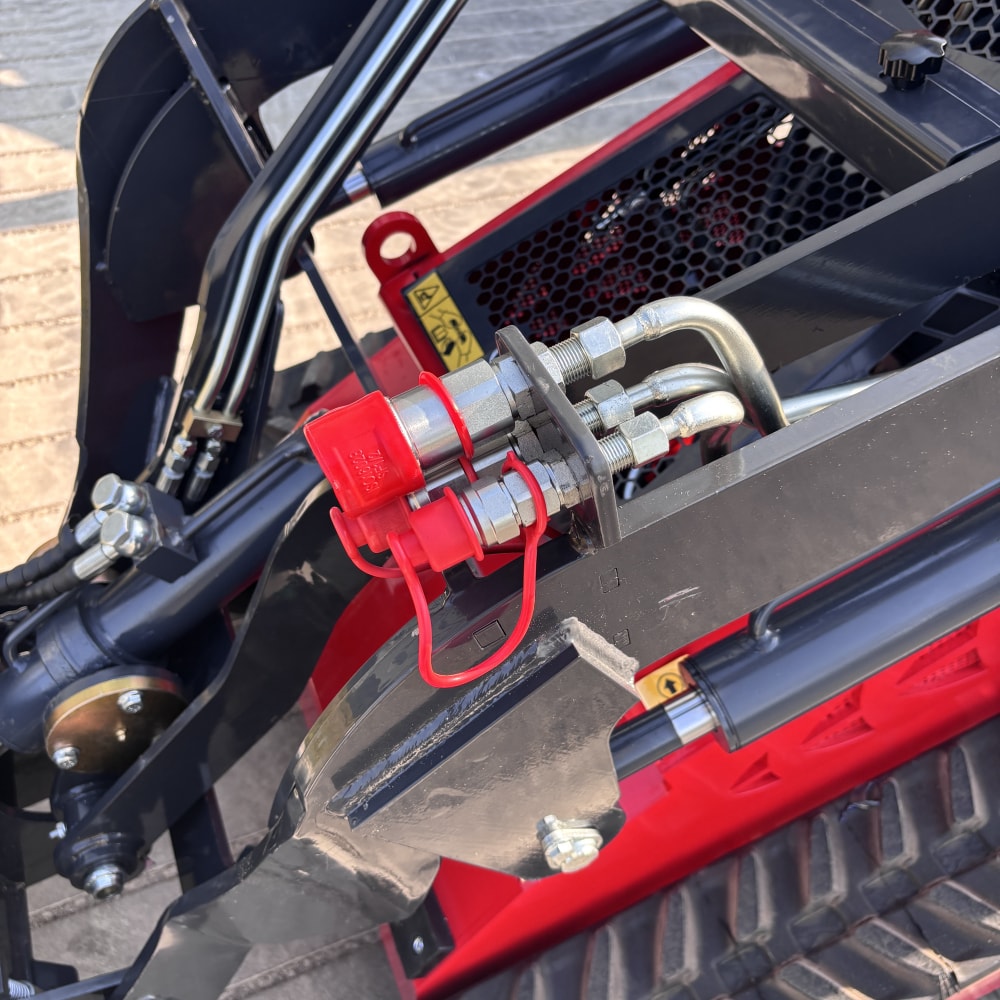

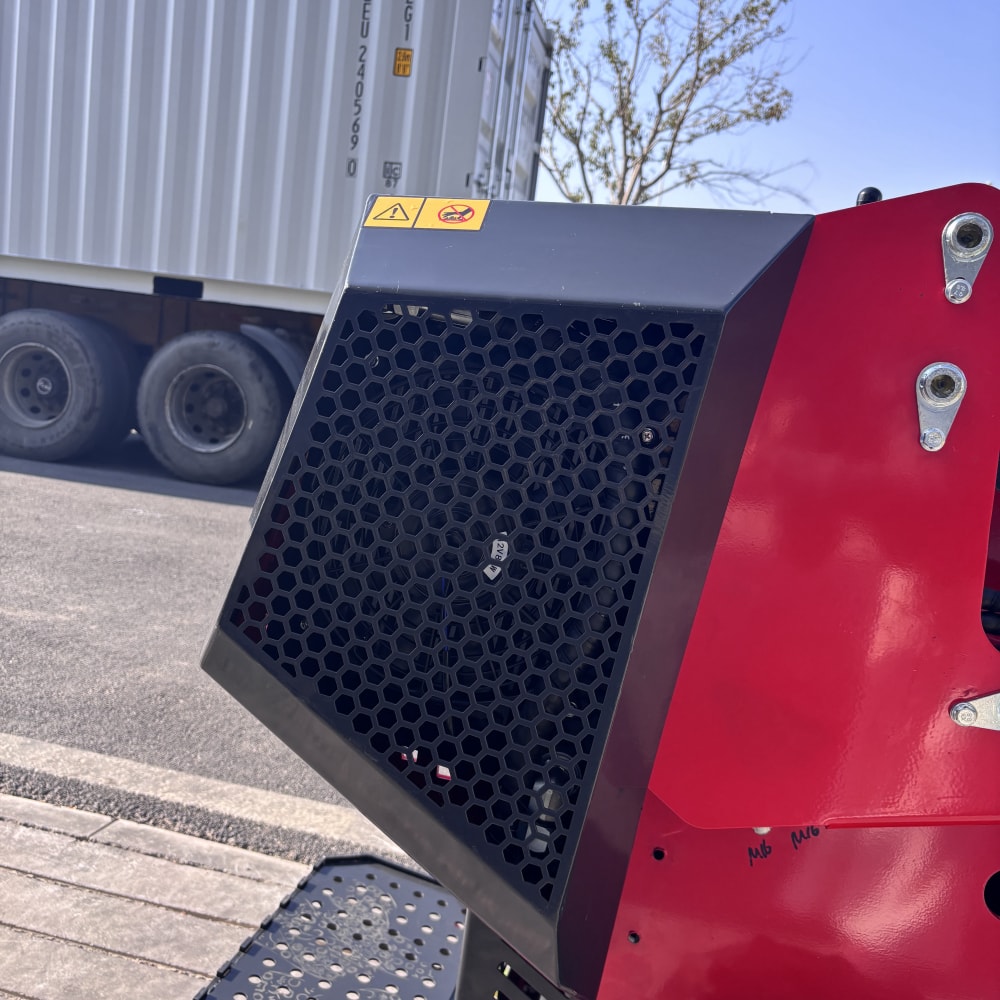

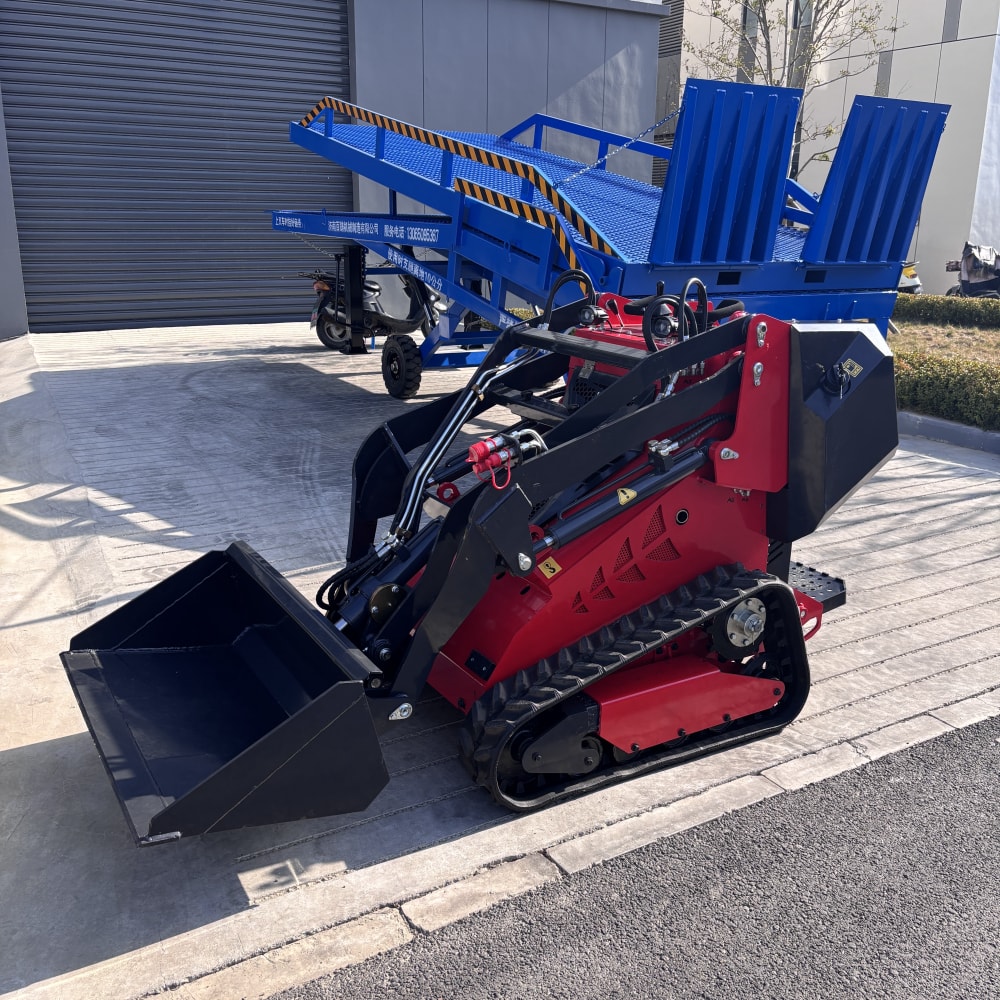

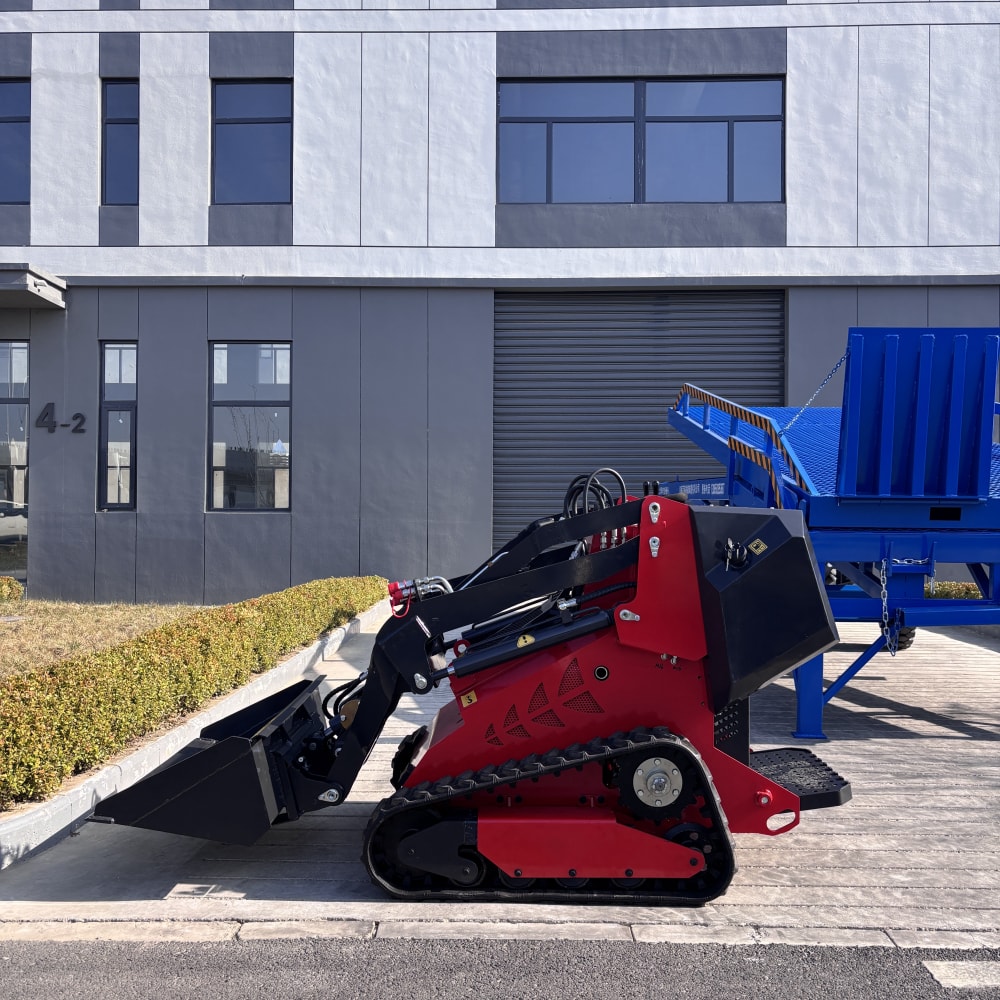

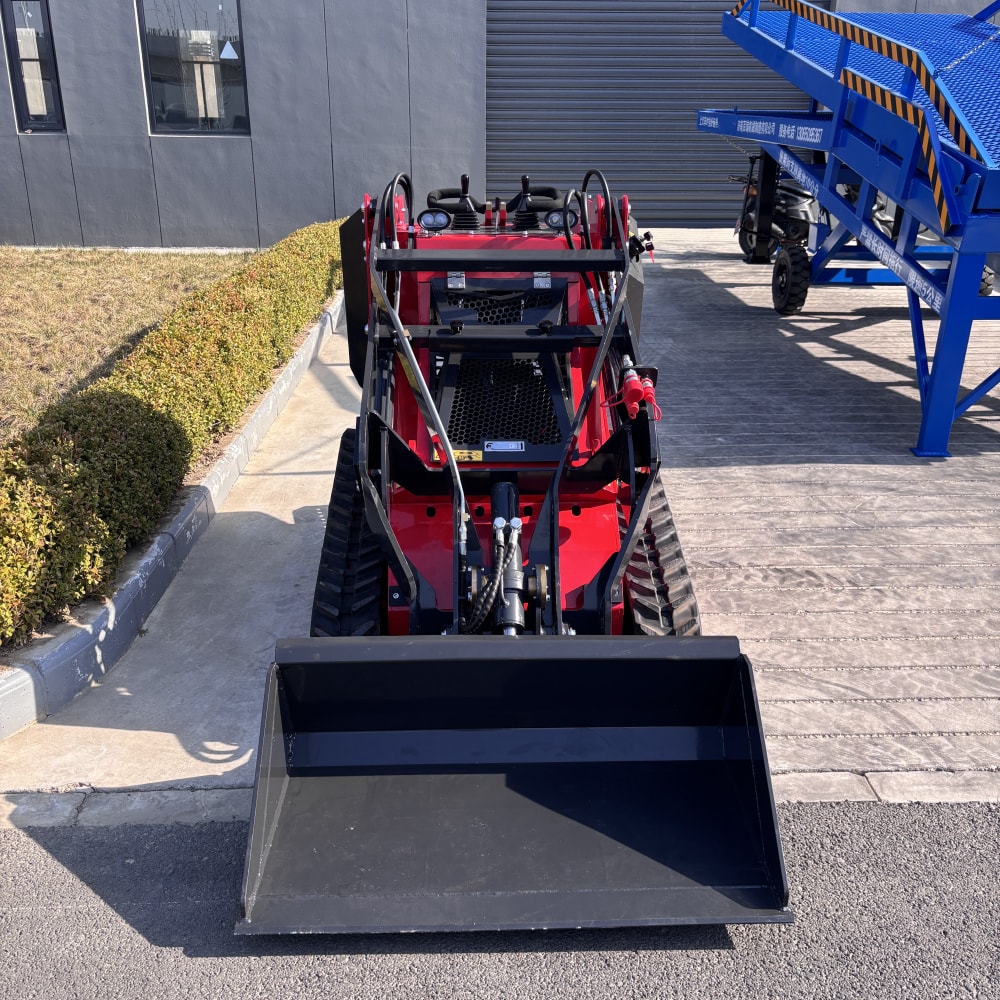

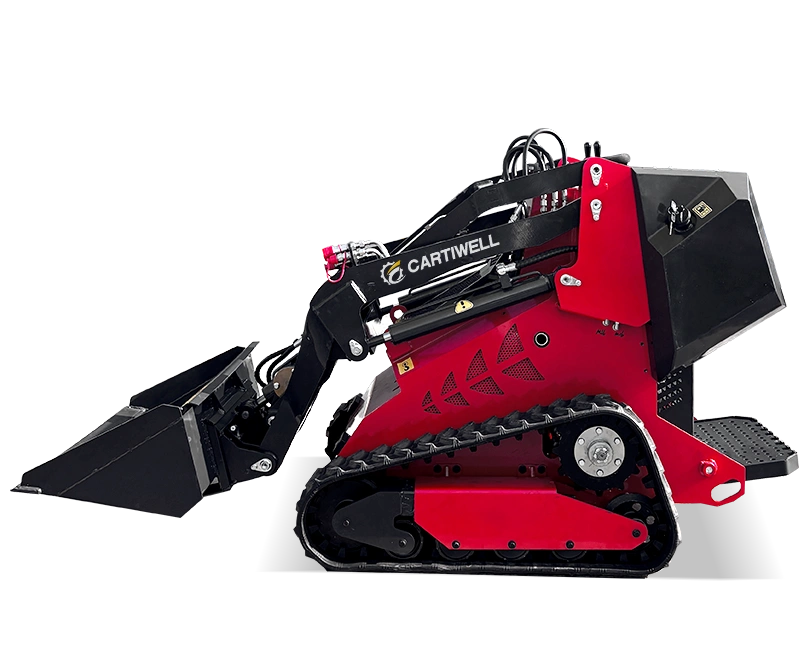

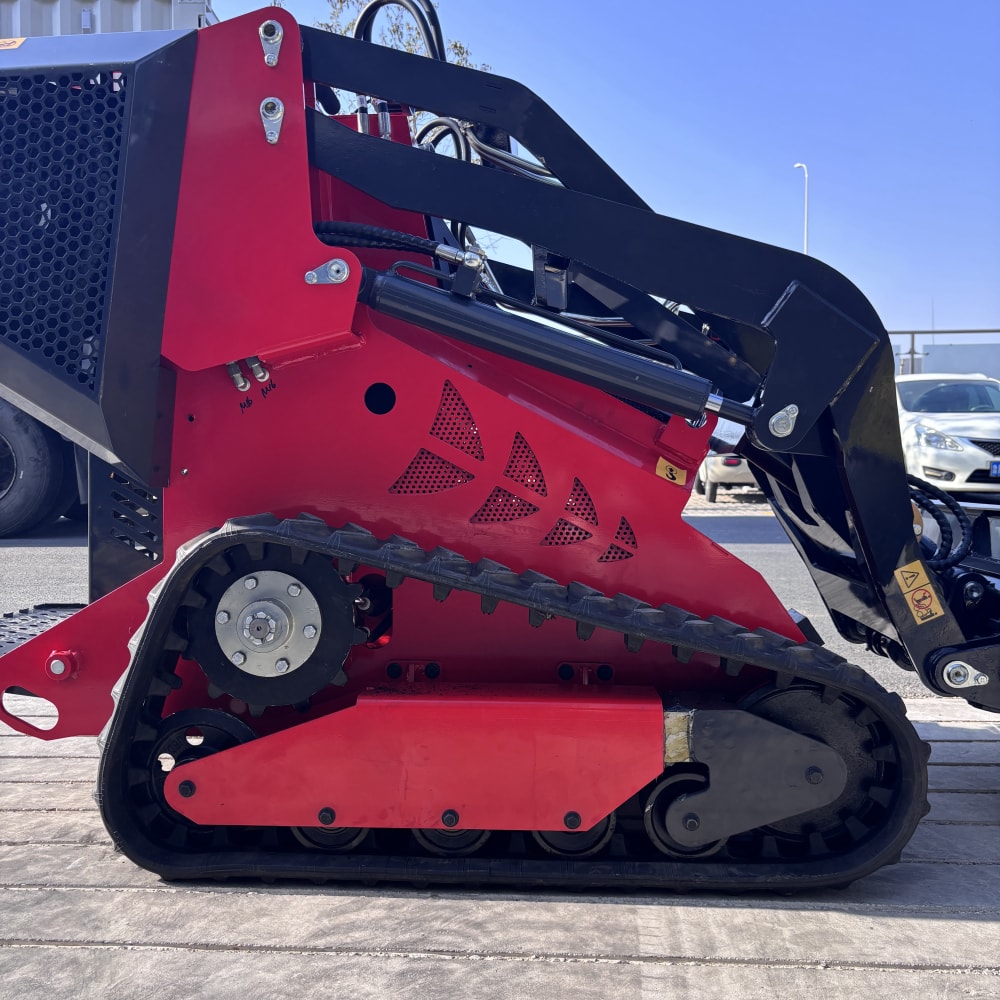

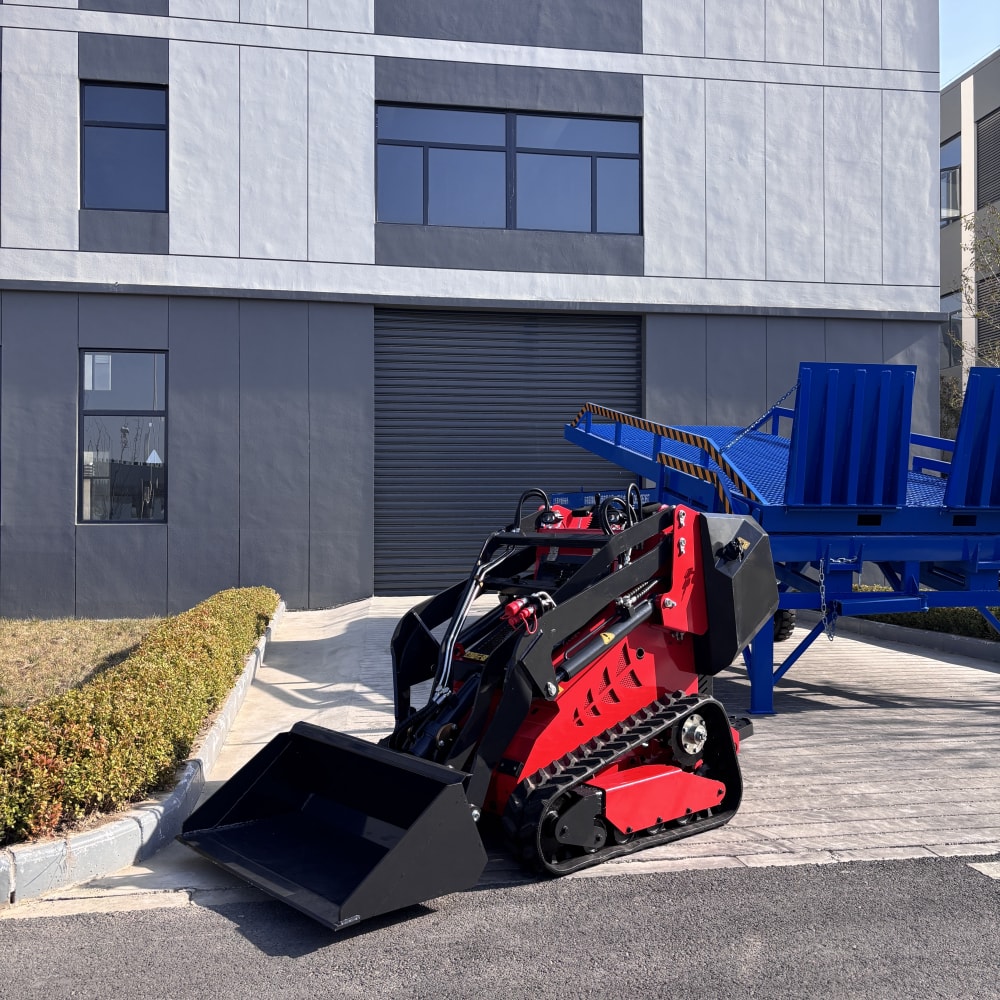

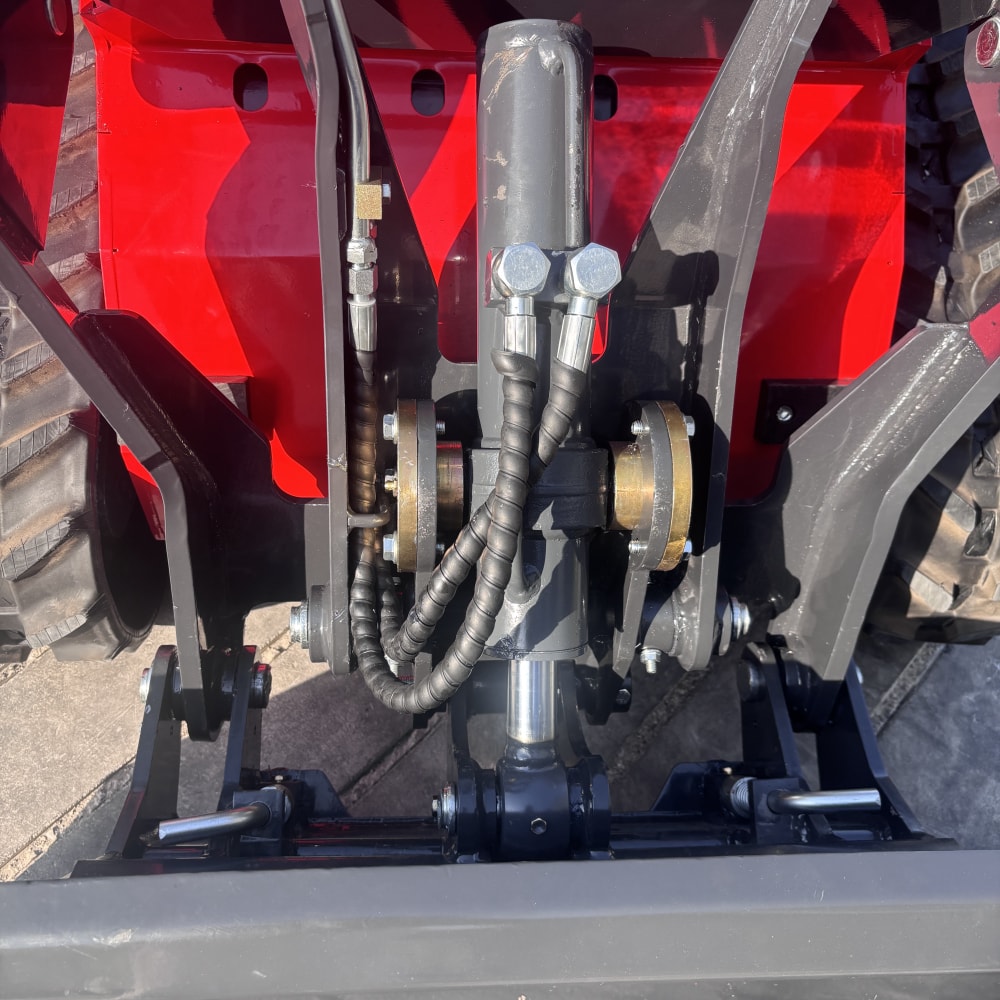

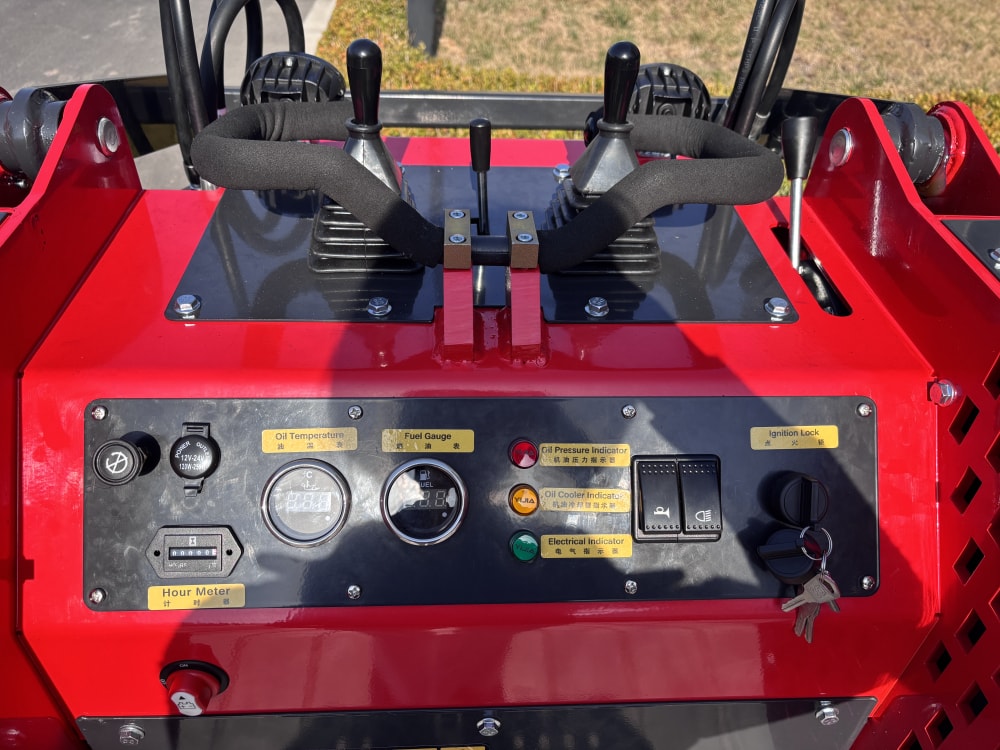

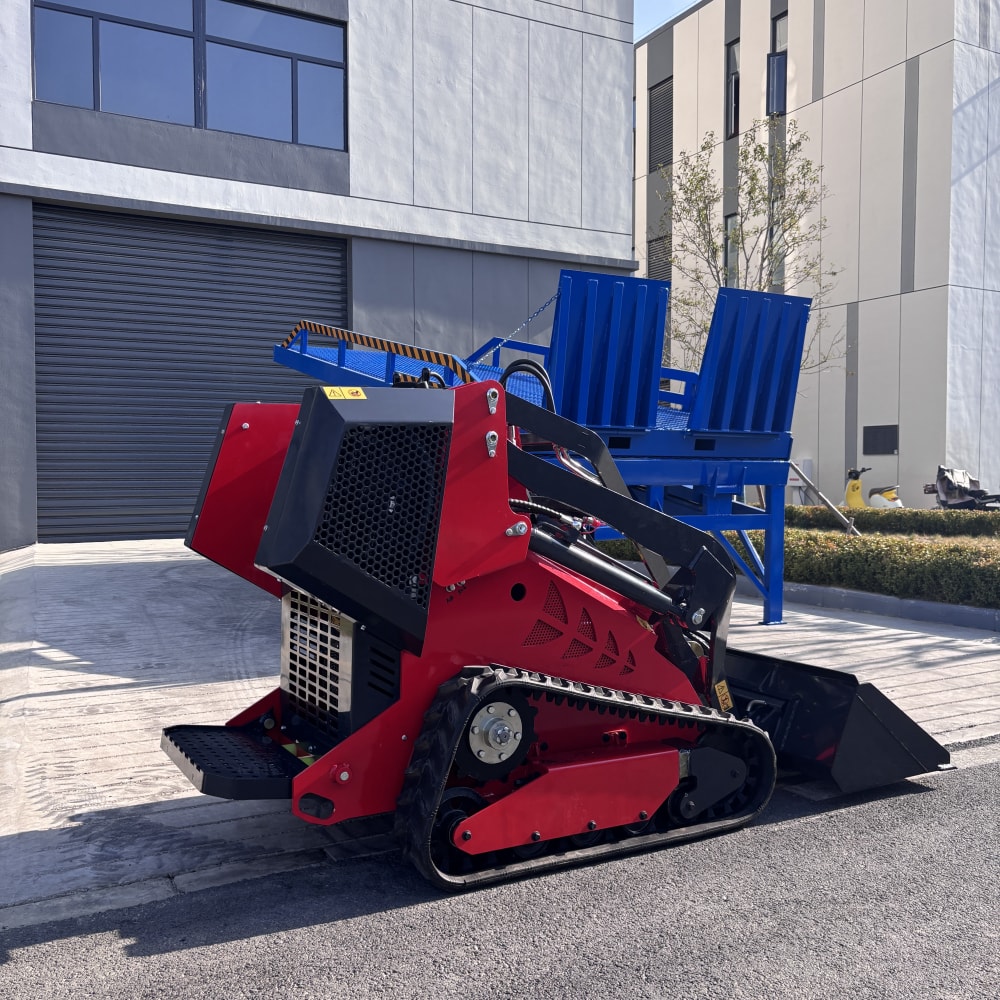

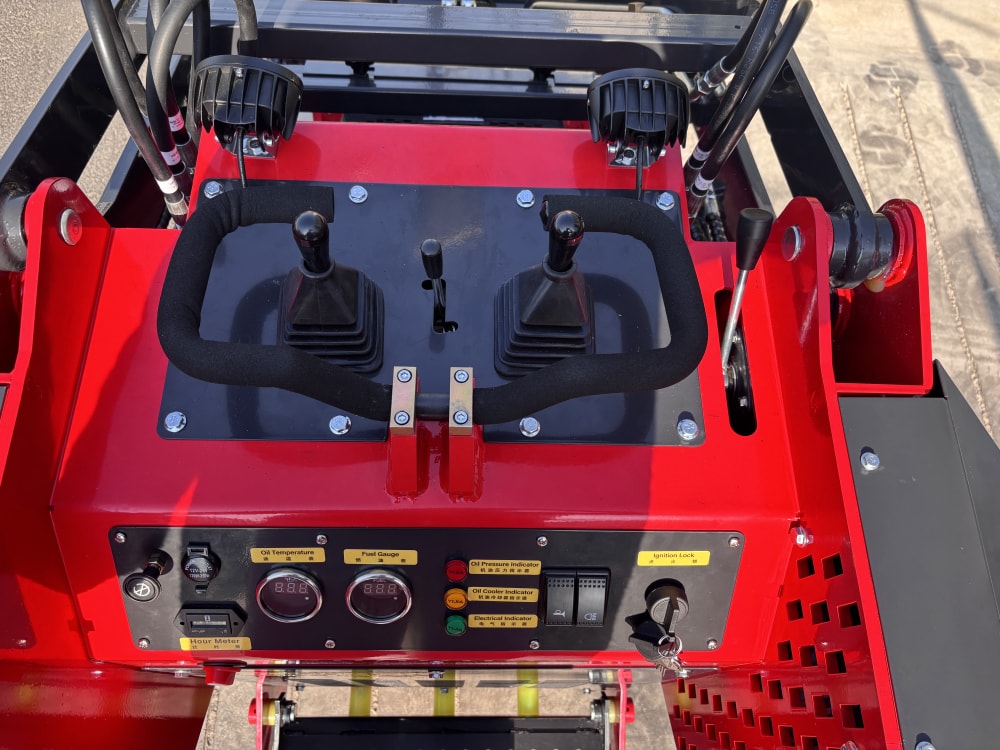

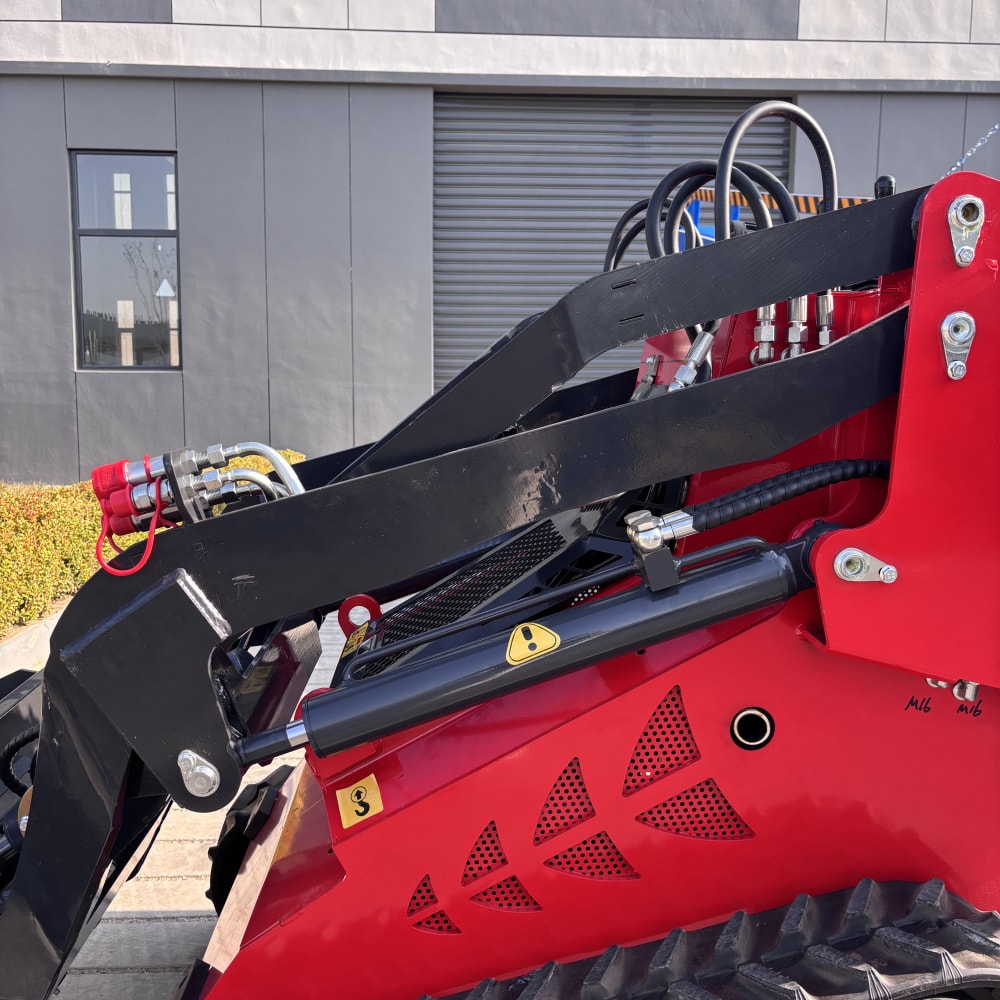

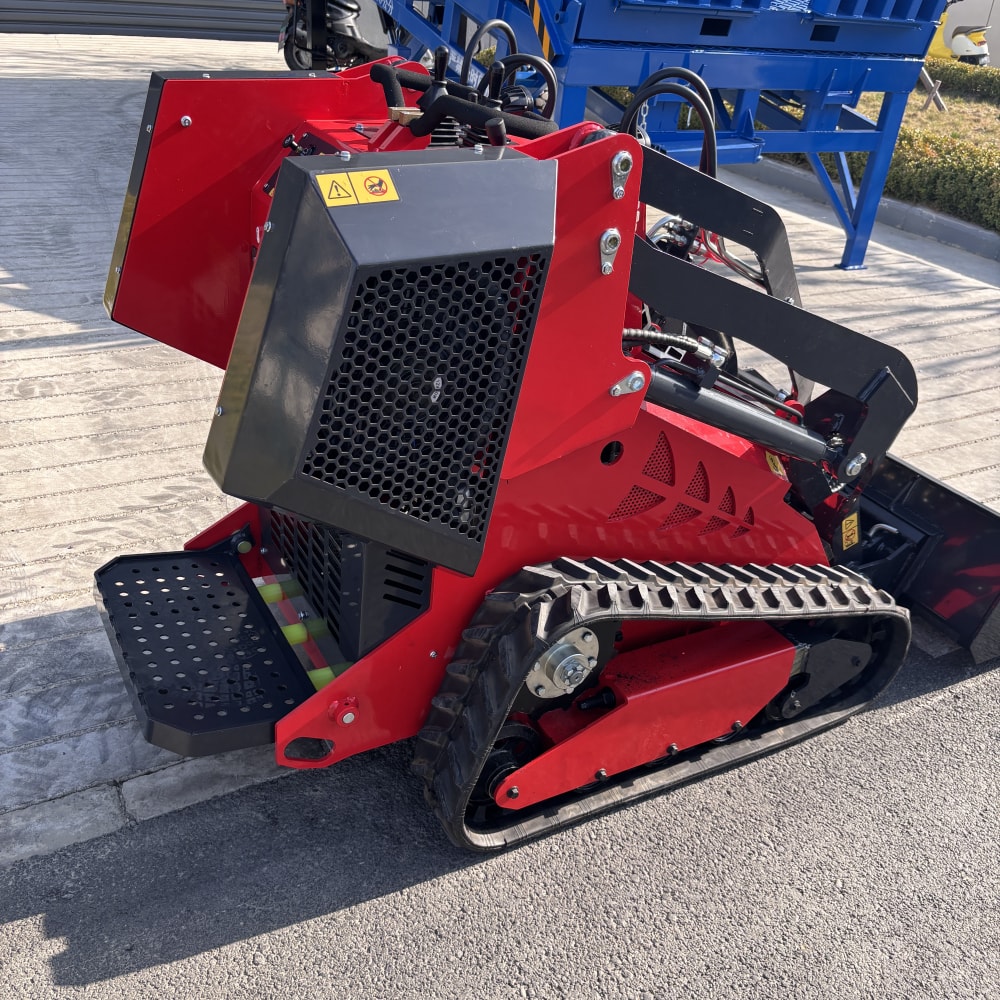

This SCW-450 skid loader is a right-hand man in engineering operation. It is equipped with an efficient engine with strong power, which can easily cope with all kinds of heavy-duty operations and provide a solid guarantee for the efficient operation of equipment. Advanced hydraulic system, quick and stable response, can accurately control the actions of loader. The control of the driving handle is convenient and flexible, so that the operator can easily control the equipment and reduce the labor intensity. The multiple cooling holes can effectively dissipate the heat generated during the operation, ensuring that the equipment is always in a stable working state. In addition, it also has the feature of replaceable assistive devices, and can meet diverse construction needs such as earthwork handling, pavement crushing, site cleaning, etc. by quickly replacing different assistive devices such as a hammer and a sweeper.
