| SPECIFICATIONS | |
| Operation Weight | 5940 lbs/2.7 ton |
| Digging Bucket Capacity | 3.53 cubic FT/0.1m3 |
| Engine | KUBOTA D1105 |
| Rated Power | 14 KW (19HP) 2000 rpm |
| Displacement | 1.12L |
| Max.Bucket Digging Force | 5283 lbs (23.5KN) |
| Max.Arm Digging Force | 3147.3lbs (14KN) |
| Max.Grade Ability | 30° |
| Fuel Capacity | 6.1 gals /23 L |
| Operating Pressure | 2973.3PSI (20.5Mpa) |
| Hydraulic Flow Rate | 26.27 GPM(61.6 L/min) |
| Hydraulic Oil Capacity | 6.34 gals / 24 L |
| Swing Motor | Danfuss |
| Swing Speed | 0-10RPM |
| Traveling Motor | Likechuan |
| Travel Speed (Low/High) | 2.6/4.5Km/H |
| Boom Swing Angel(L/R) | 50°/55° |
| MAINDIMENSIONS | |
| Wheelbase | 1150mm/3’9″ |
| Total Length of Track | 1250 mm/4’1″ |
| Platform Ground Clearance | 566 mm/1’10” |
| Platform Back Turning Radius | 980 mm/3’3″ |
| Chassis Width | 1550 mm/5’1″ |
| Track Width | 230 mm/9″ |
| Track Height | 400 mm/1’4″ |
| Transport Length | 4195mm/13’9″ |
| Seat to Floor Height | 1441 mm/4’9″ |
| Overall Height | 2480 mm/7’2″ |
| OPERATING RANGE | |
| Max. Digging Radius on Ground | 4716 mm/15’6″ |
| Max. Digging Radius | 4835 mm/15’10” |
| Max. Digging Depth | 2830 mm/9’3″ |
| Max. Digging Height | 4427 mm/14’6″ |
| Max. Unloading Height | 3005 mm/9’10” |
| Max. Vertical Digging Depth | 2500 mm/8’2″ |
| Min. Swing Radius | 2160 mm/7’1″ |
| Max. Lifting Height of Dozer Blade | 308 mm/1′ |
| Max. Digging Depth of Dozer Blade | 360 mm/1’2″ |

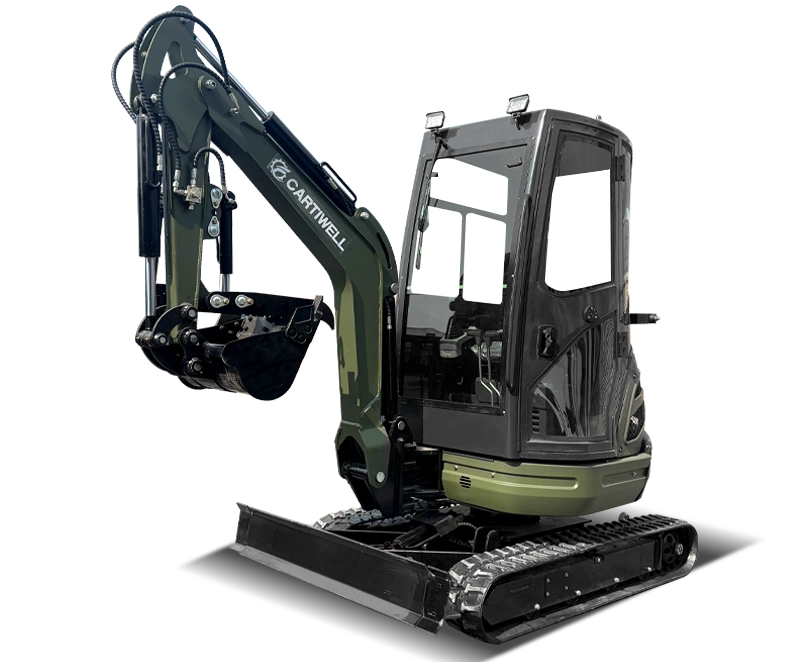

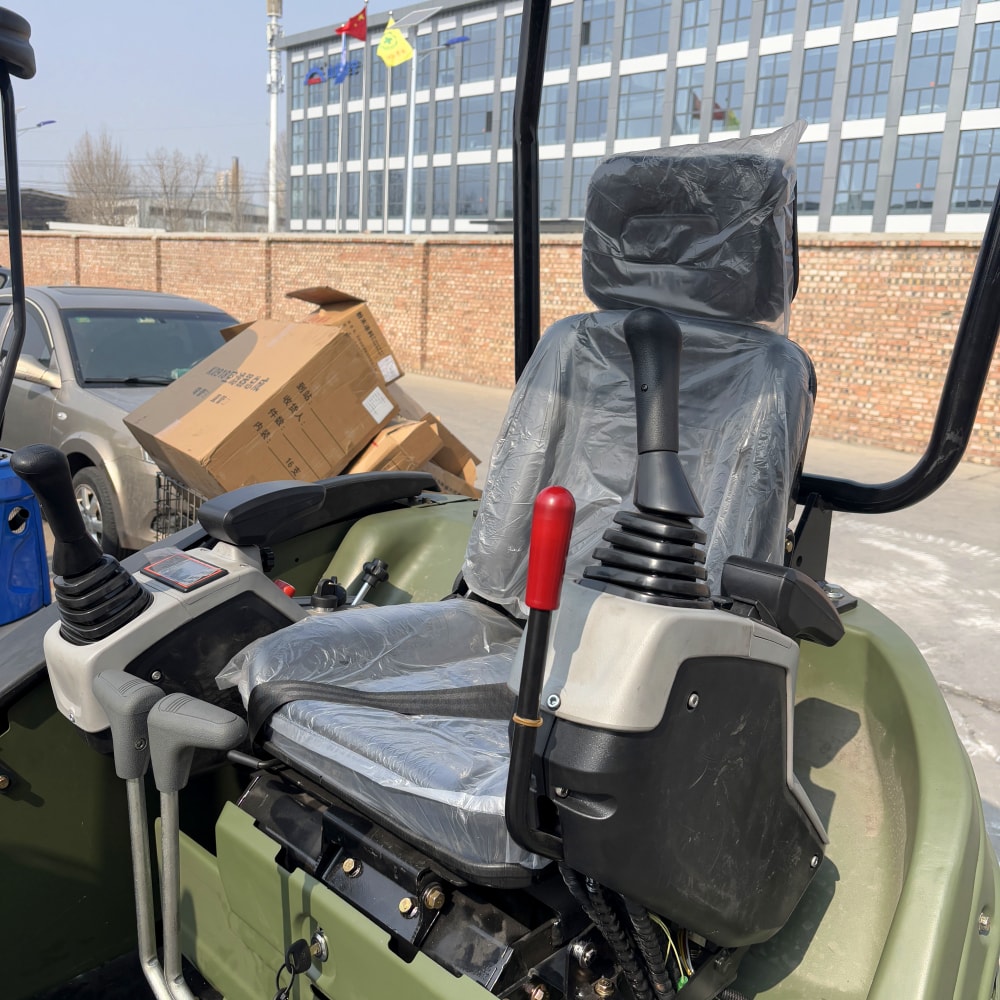

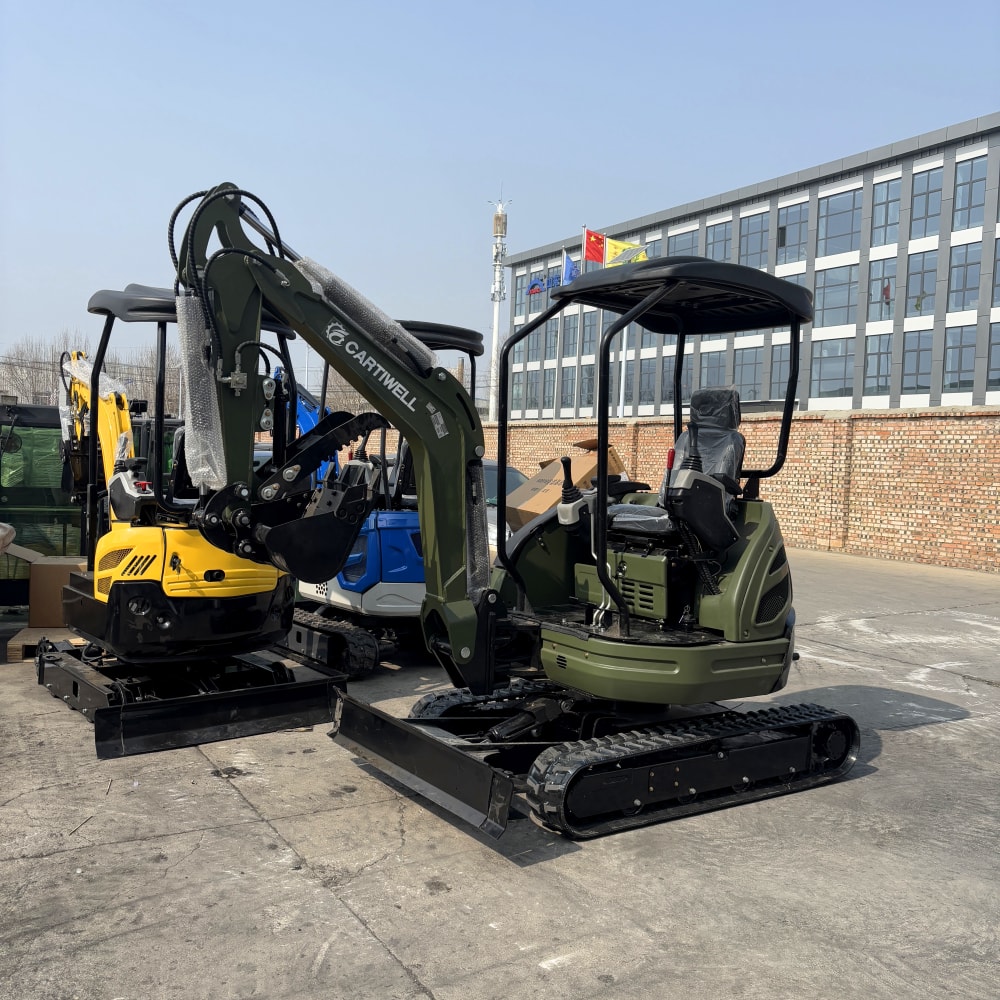

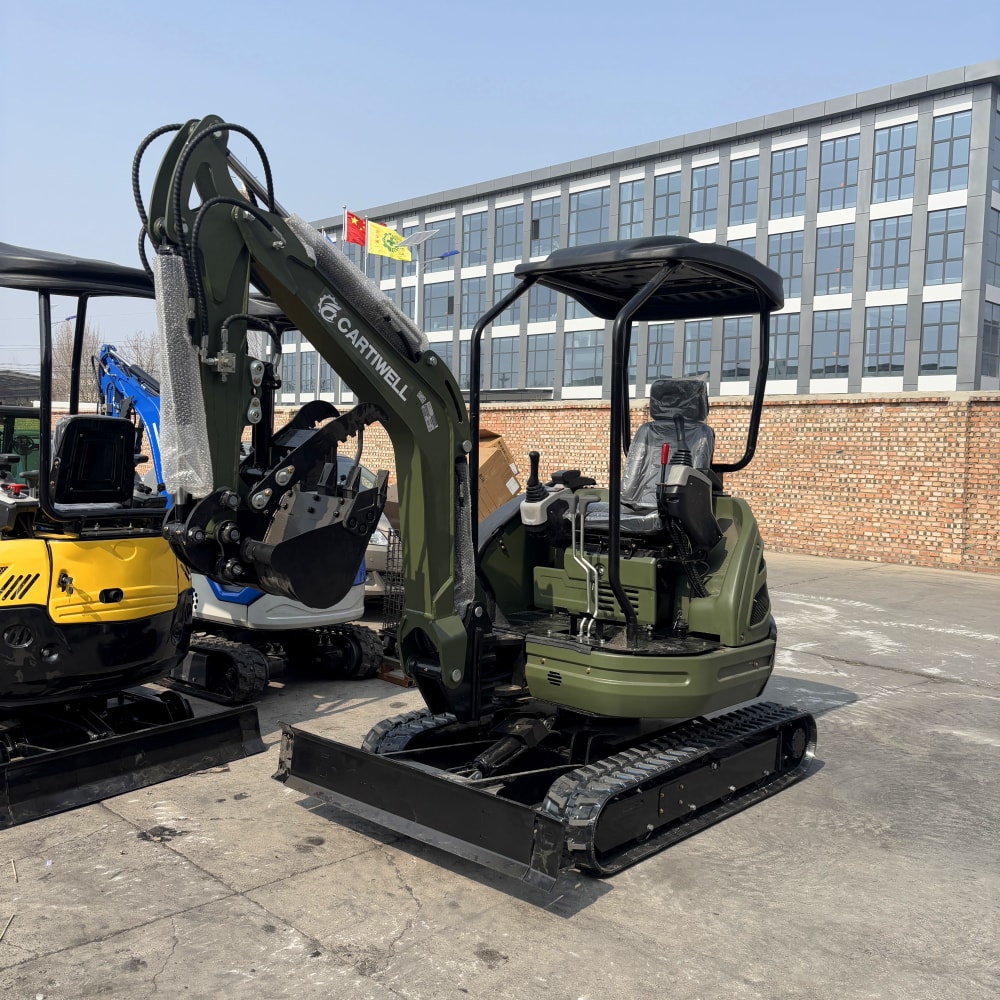

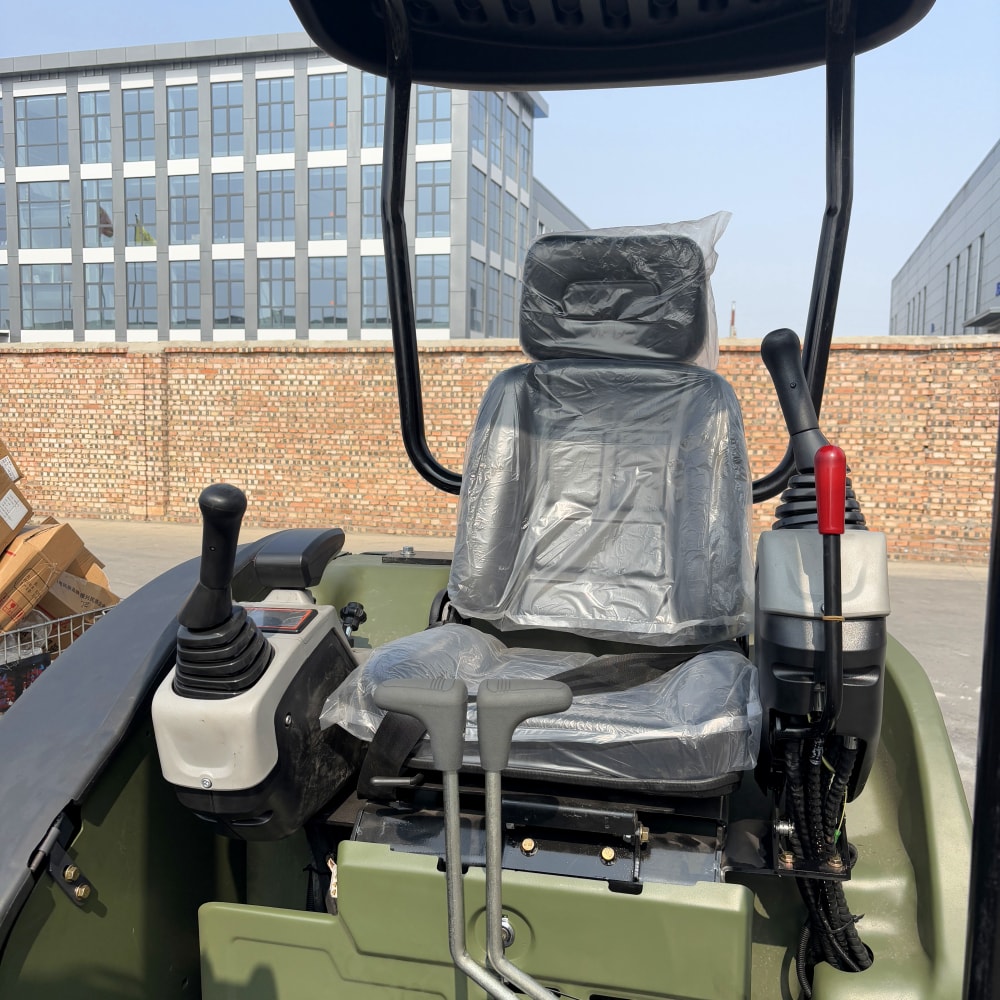

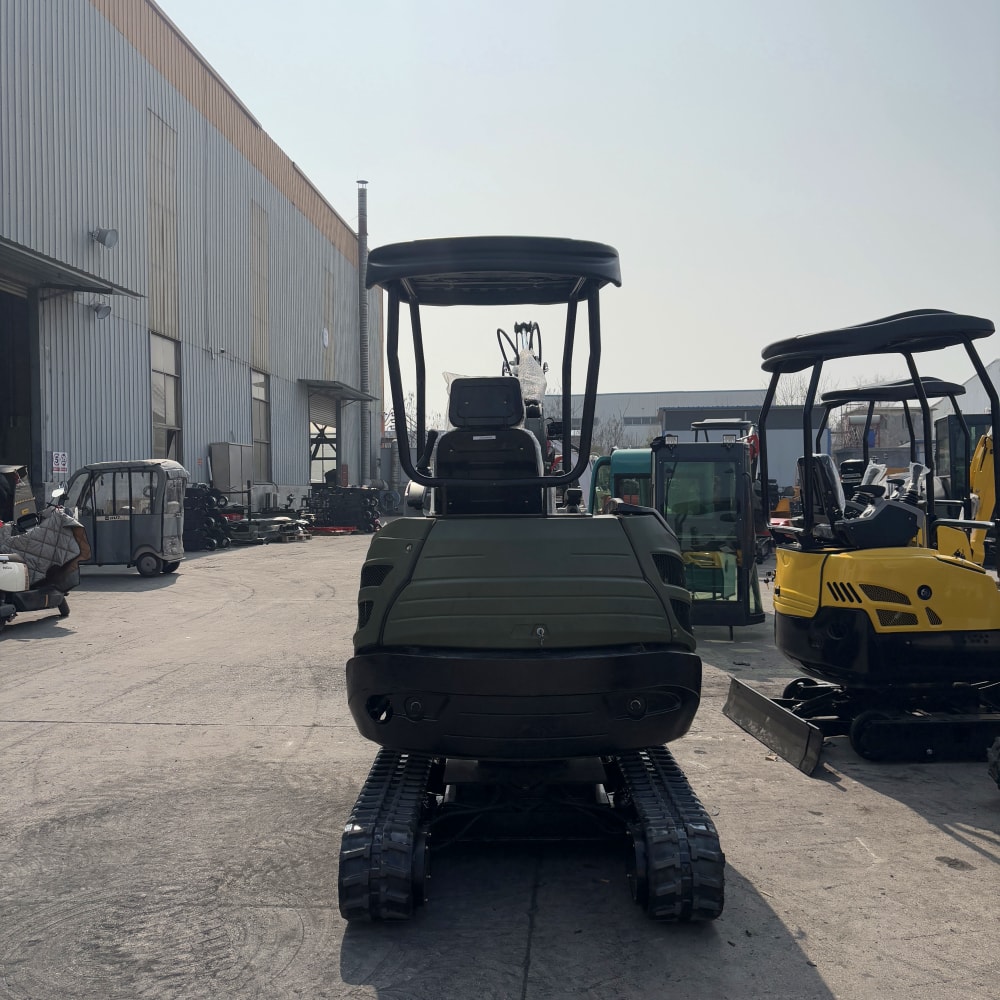

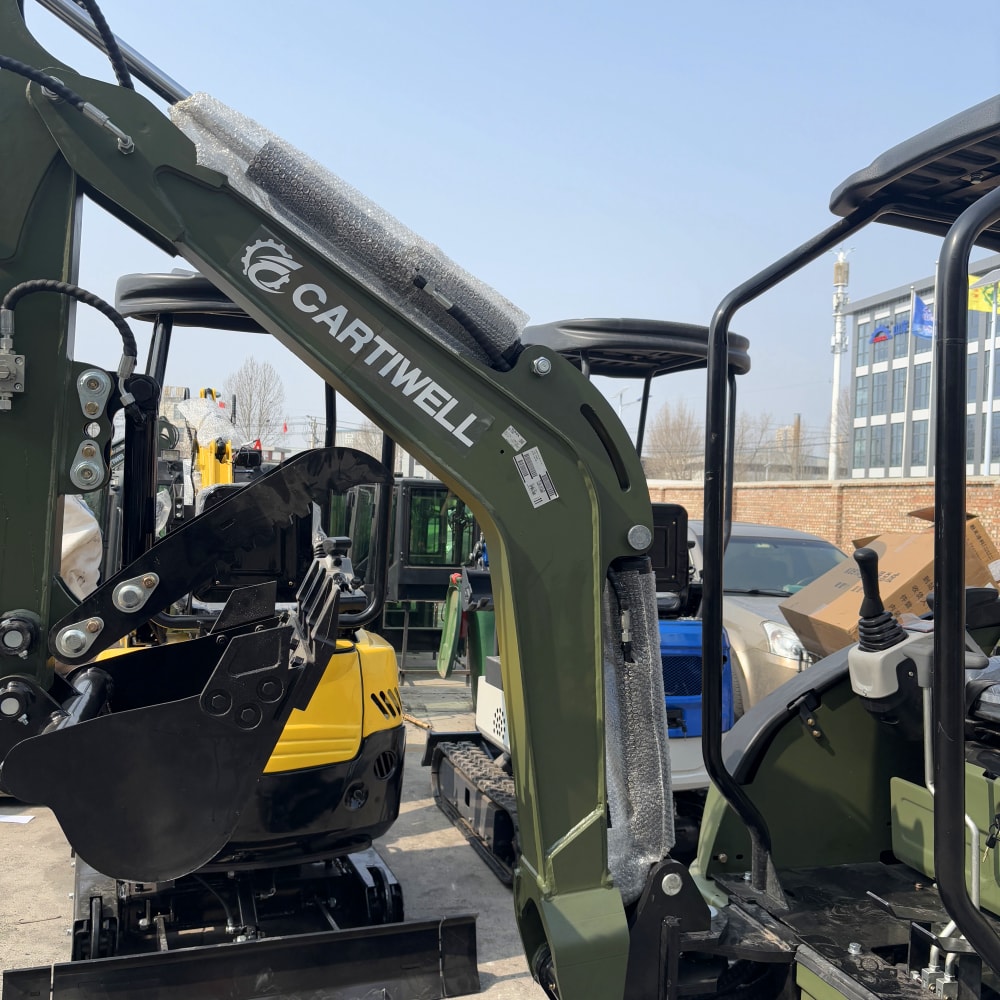

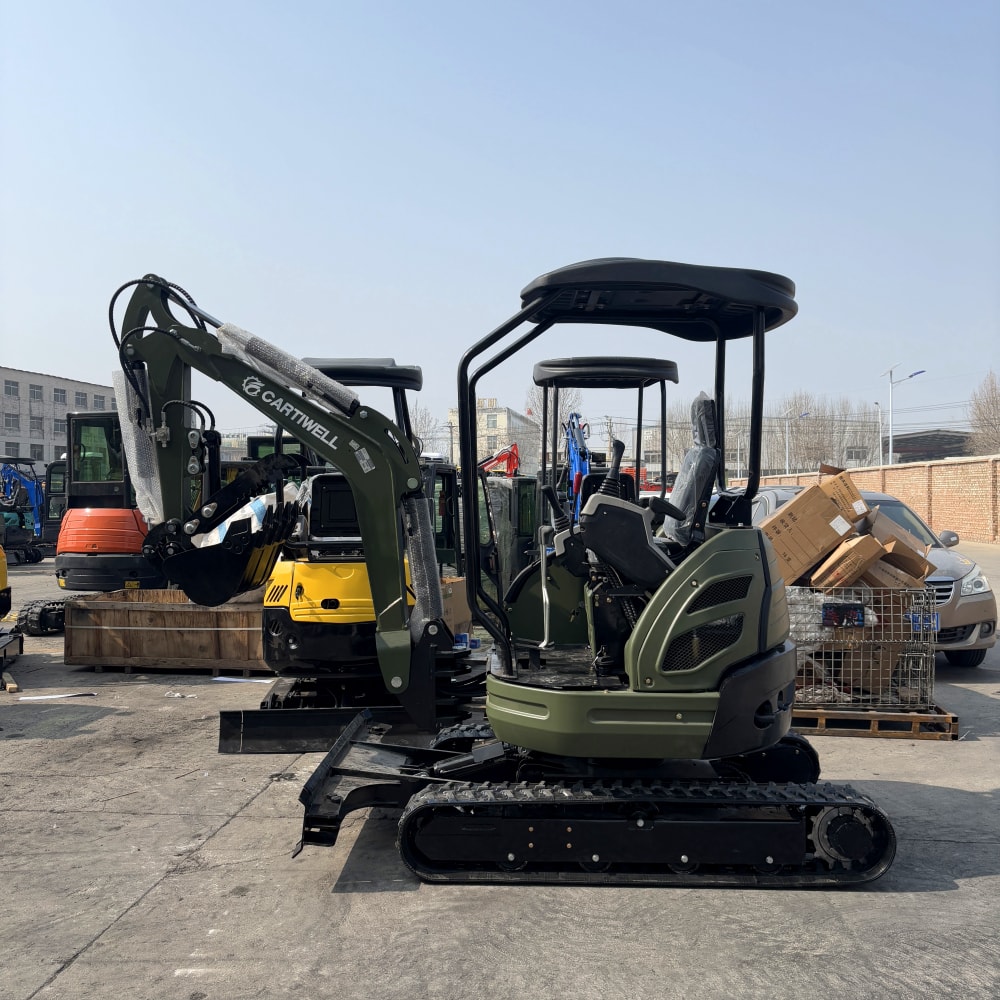

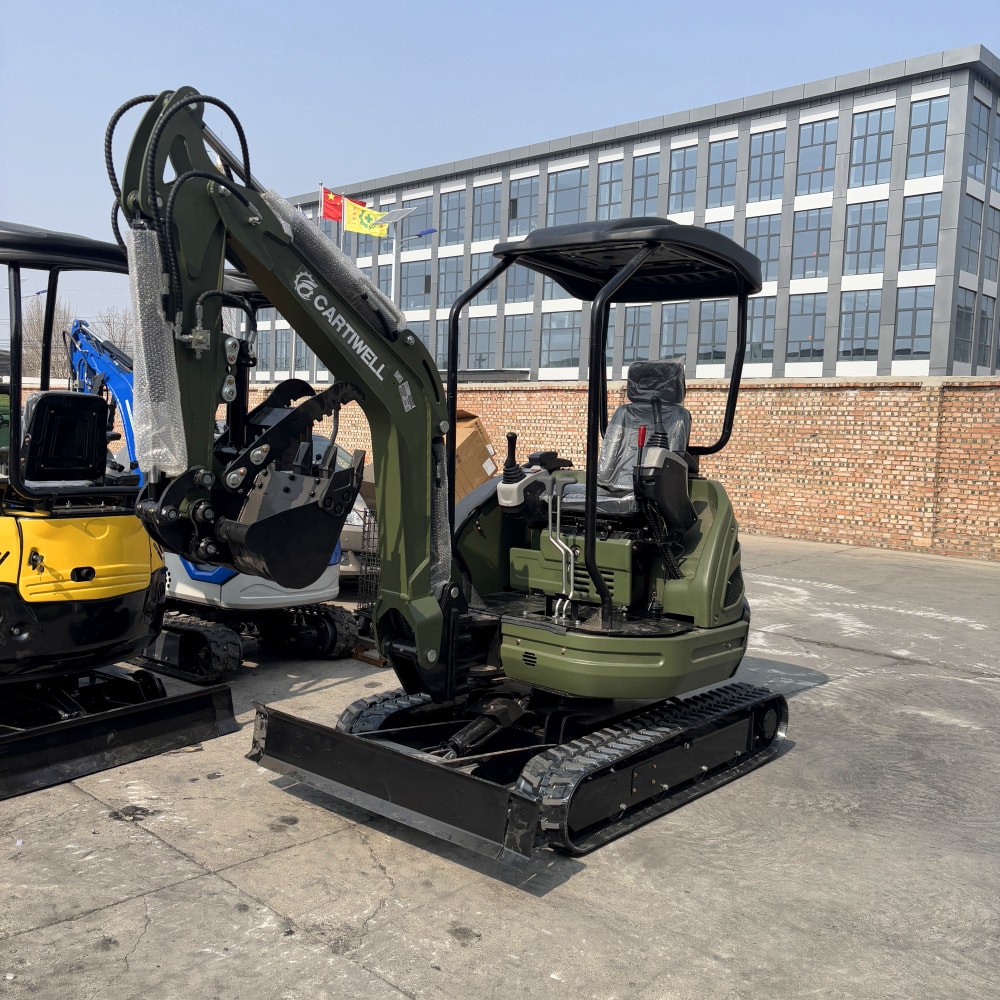

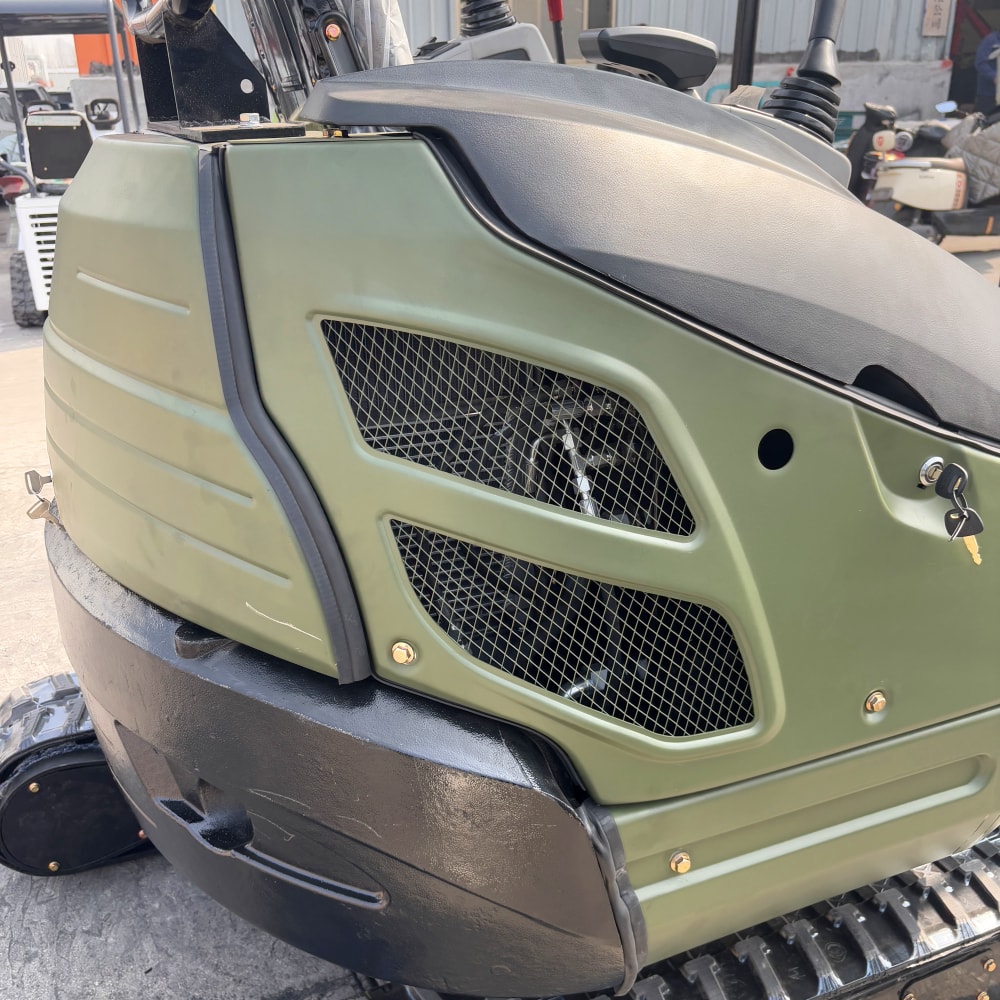

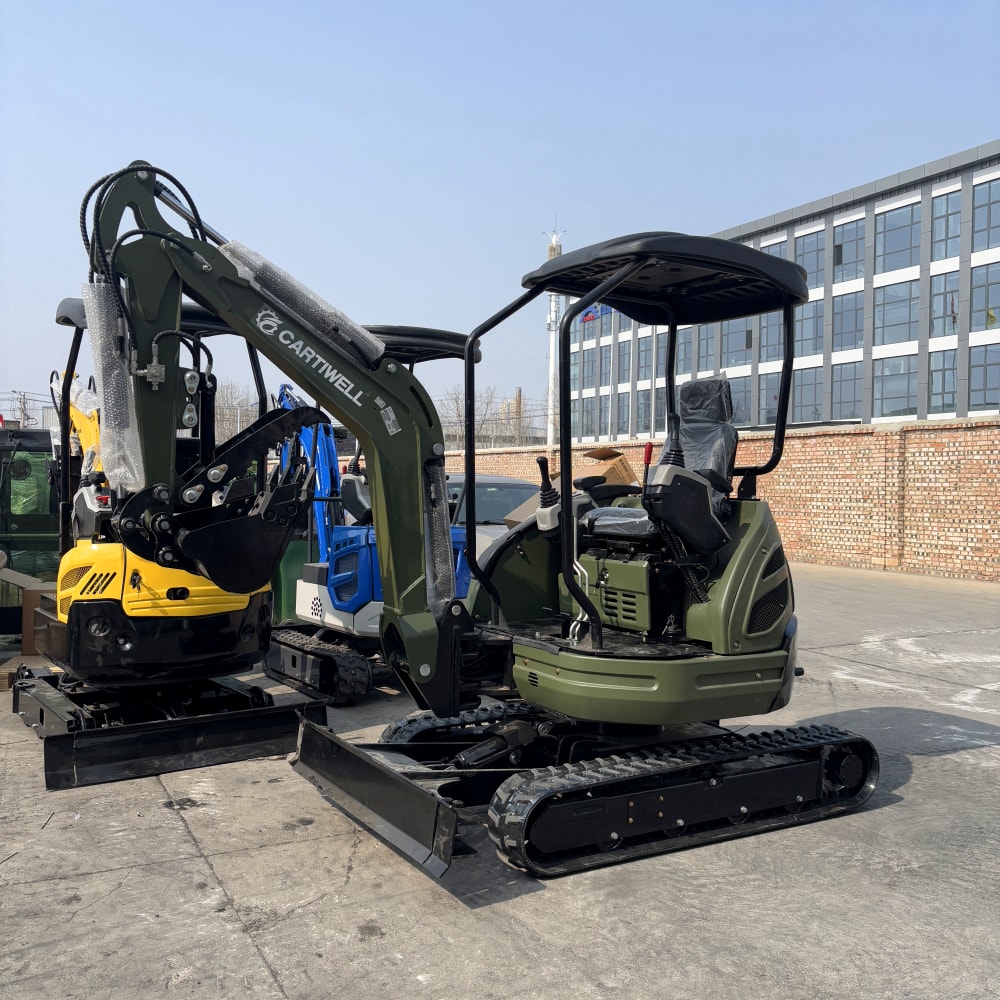

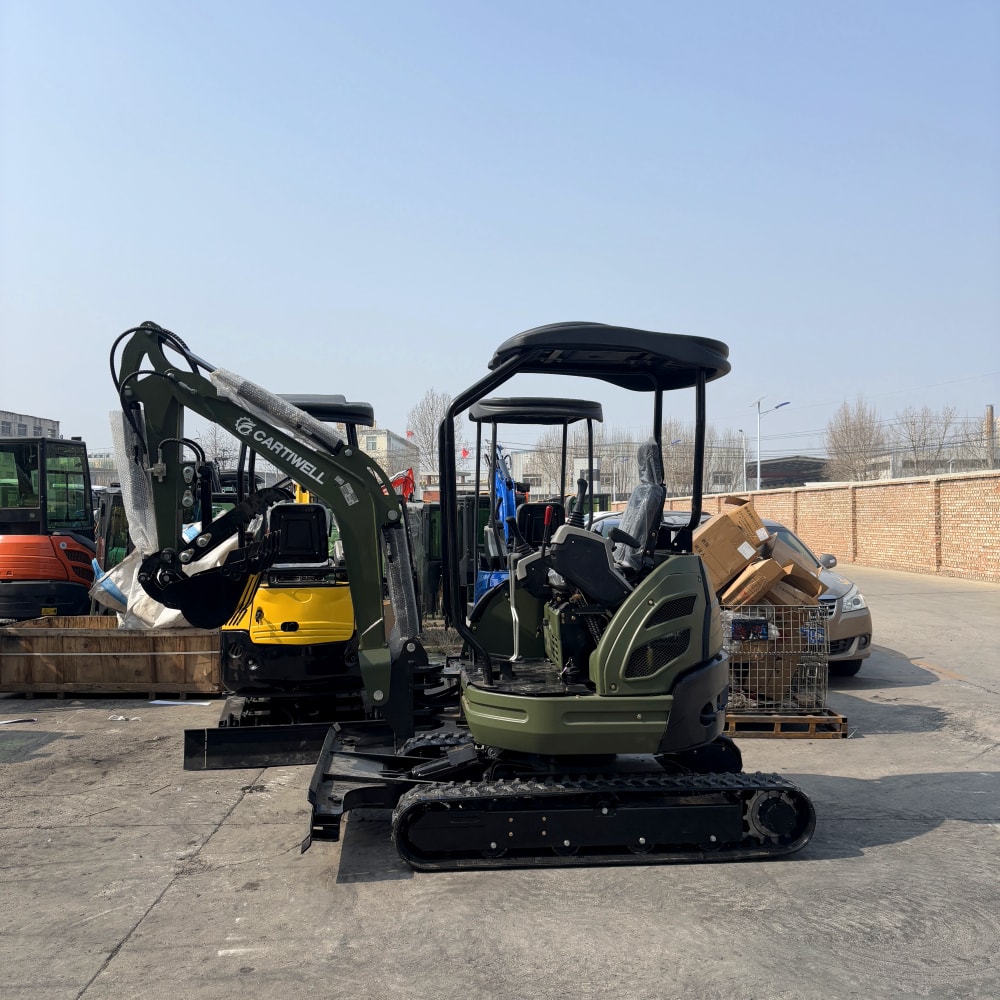

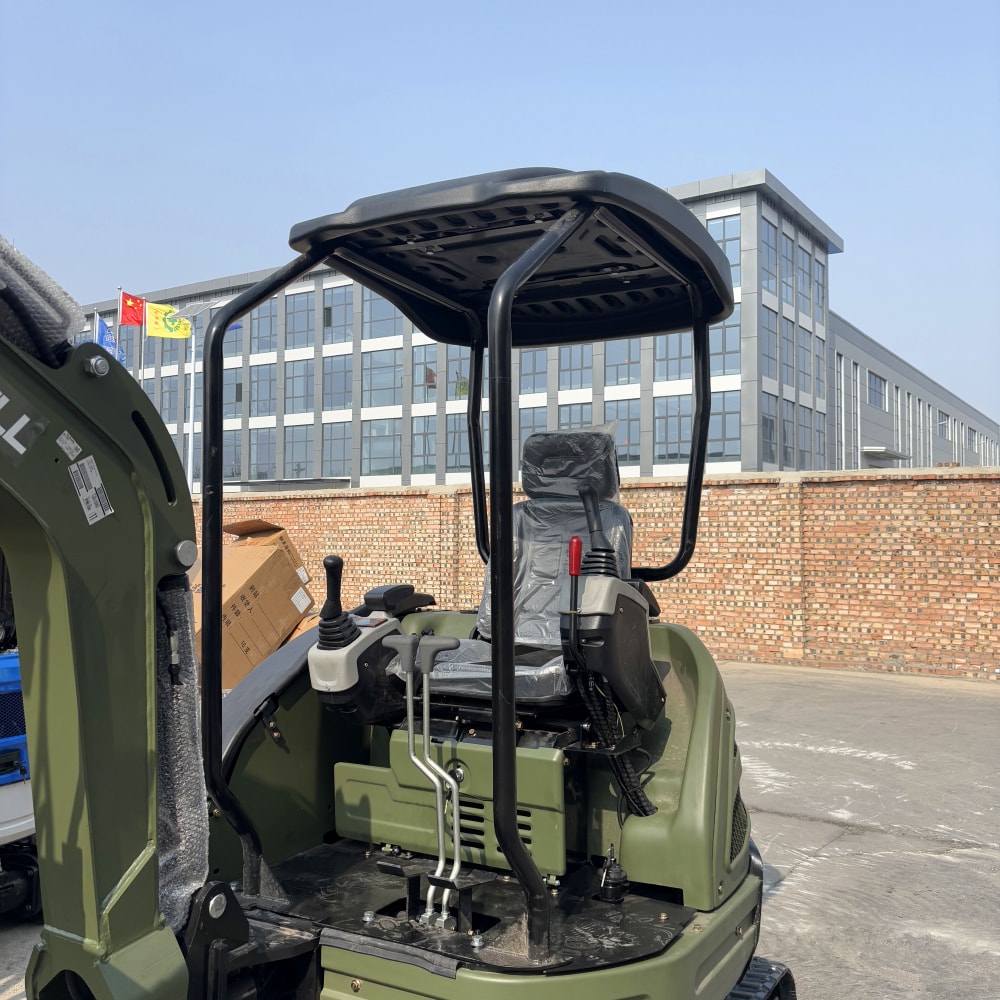

CW-20U mini excavator is an engineering weapon. It can customize the cab to create a personalized and comfortable operating environment. The rotating motor has strong power and flexible operation, and the operation is accurate and efficient. The hidden motor is ingenious in design, beautiful and protective to the motor. It is full of power and low fuel consumption, which can effectively reduce the use cost. Advanced hydraulic system ensures smooth movement. After reinforcement, the structure is more durable, can adapt to all kinds of complicated and harsh working conditions, and can complete the task well whether it is building foundation construction or garden renovation.
