| SPECIFICATIONS | |
| Operation Weight | 5940 lbs/2.7 ton |

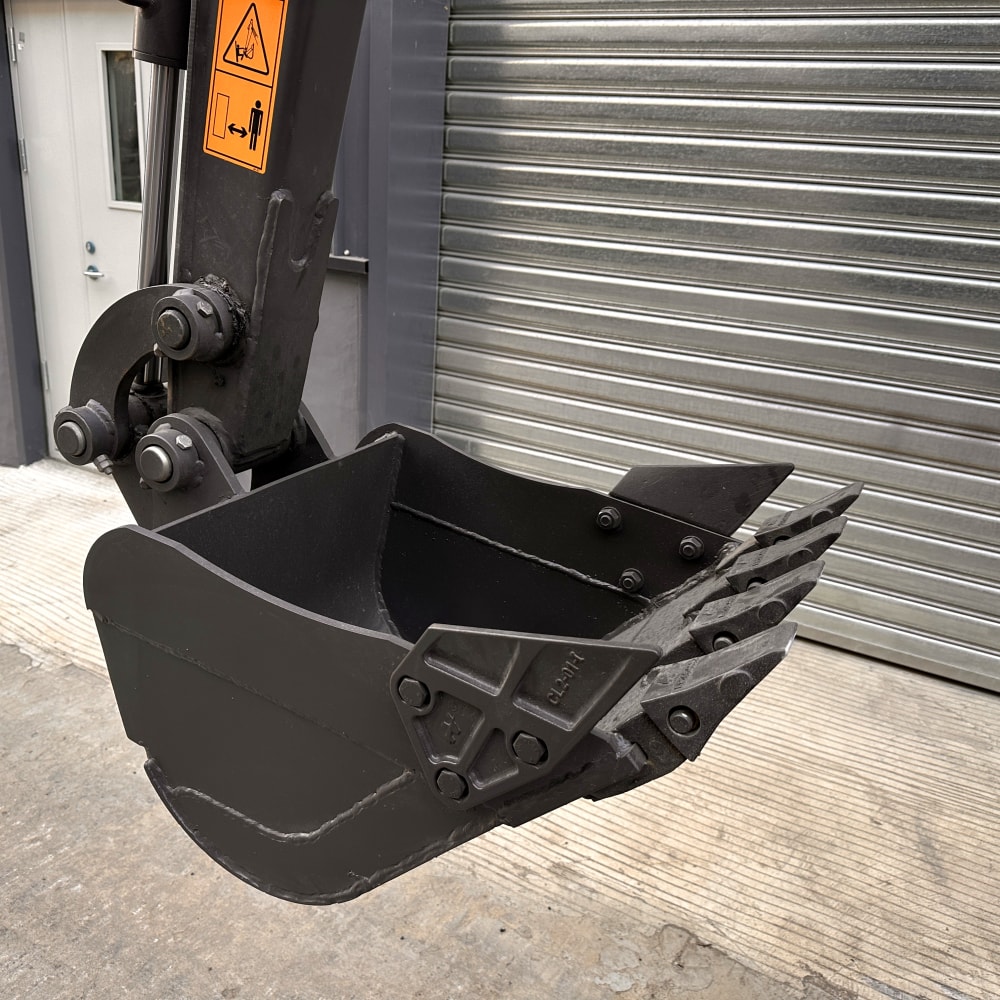

| Digging Bucket Capacity | 3.53 cubic FT/0.1m3 |
| Engine | KUBOTA D1105 |
| Rated Power | 14 KW (19HP) 2000 rpm |
| Displacement | 1.12L |
| Max.Bucket Digging Force | 5283 lbs (23.5KN) |
| Max.Arm Digging Force | 3147.3lbs (14KN) |
| Max.Grade Ability | 30° |
| Fuel Capacity | 6.1 gals /23 L |
| Operating Pressure | 2973.3PSI (20.5Mpa) |
| Hydraulic Flow Rate | 26.27 GPM(61.6 L/min) |
| Hydraulic Oil Capacity | 6.34 gals / 24 L |
| Swing Motor | Danfuss |
| Swing Speed | 0-10RPM |
| Traveling Motor | Likechuan |
| Travel Speed (Low/High) | 2.6/4.5Km/H |

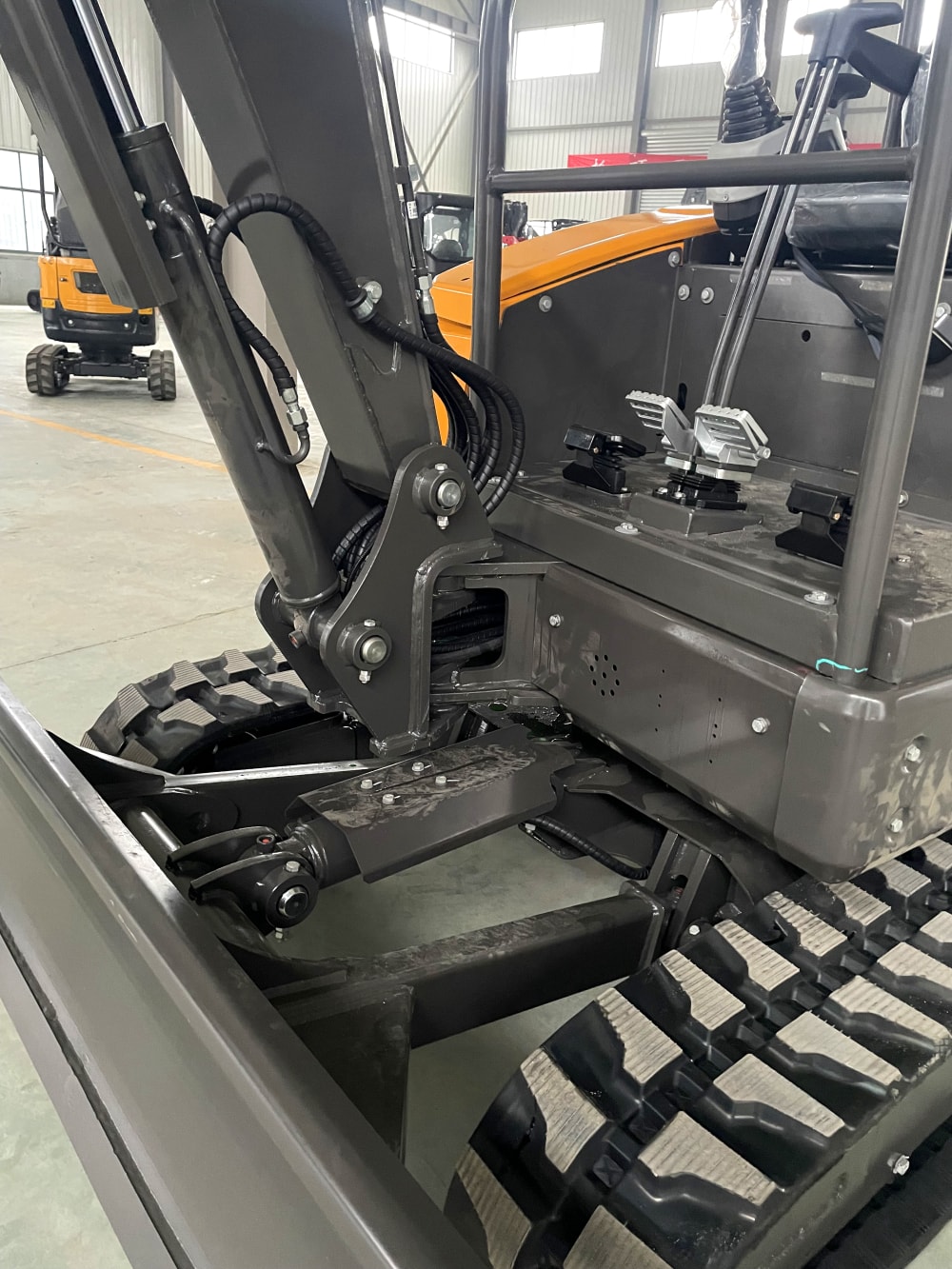

| Boom Swing Angel(L/R) | 50°/55° |
| MAINDIMENSIONS | |
| Wheelbase | 1150mm/3’9″ |
| Total Length of Track | 1250 mm/4’1″ |
| Platform Ground Clearance | 566 mm/1’10” |
| Platform Back Turning Radius | 980 mm/3’3″ |
| Chassis Width | 1550 mm/5’1″ |
| Track Width | 230 mm/9″ |
| Track Height | 400 mm/1’4″ |
| Transport Length | 4195mm/13’9″ |
| Seat to Floor Height | 1441 mm/4’9″ |
| Overall Height | 2480 mm/7’2″ |
| OPERATING RANGE | |
| Max. Digging Radius on Ground | 4716 mm/15’6″ |
| Max. Digging Radius | 4835 mm/15’10” |
| Max. Digging Depth | 2830 mm/9’3″ |
| Max. Digging Height | 4427 mm/14’6″ |
| Max. Unloading Height | 3005 mm/9’10” |
| Max. Vertical Digging Depth | 2500 mm/8’2″ |
| Min. Swing Radius | 2160 mm/7’1″ |

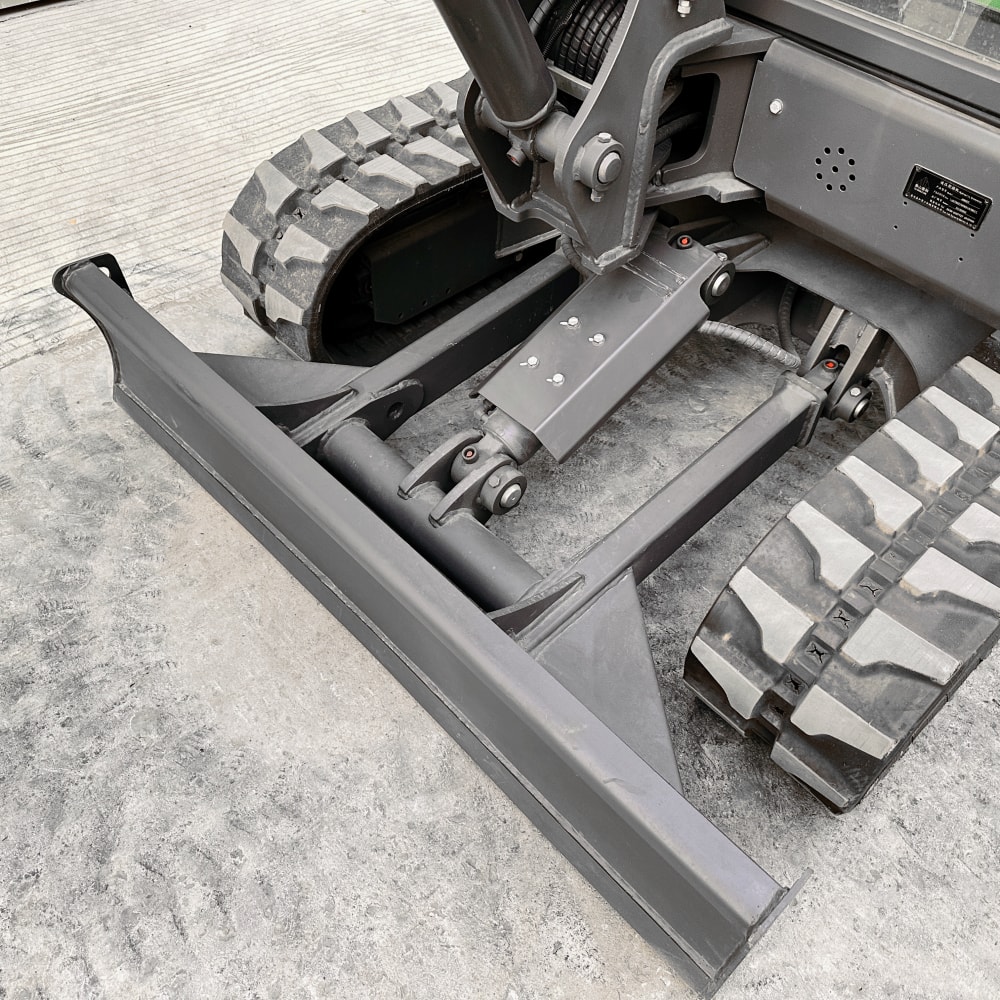

| Max. Lifting Height of Dozer Blade | 308 mm/1′ |
| Max. Digging Depth of Dozer Blade | 360 mm/1’2″ |

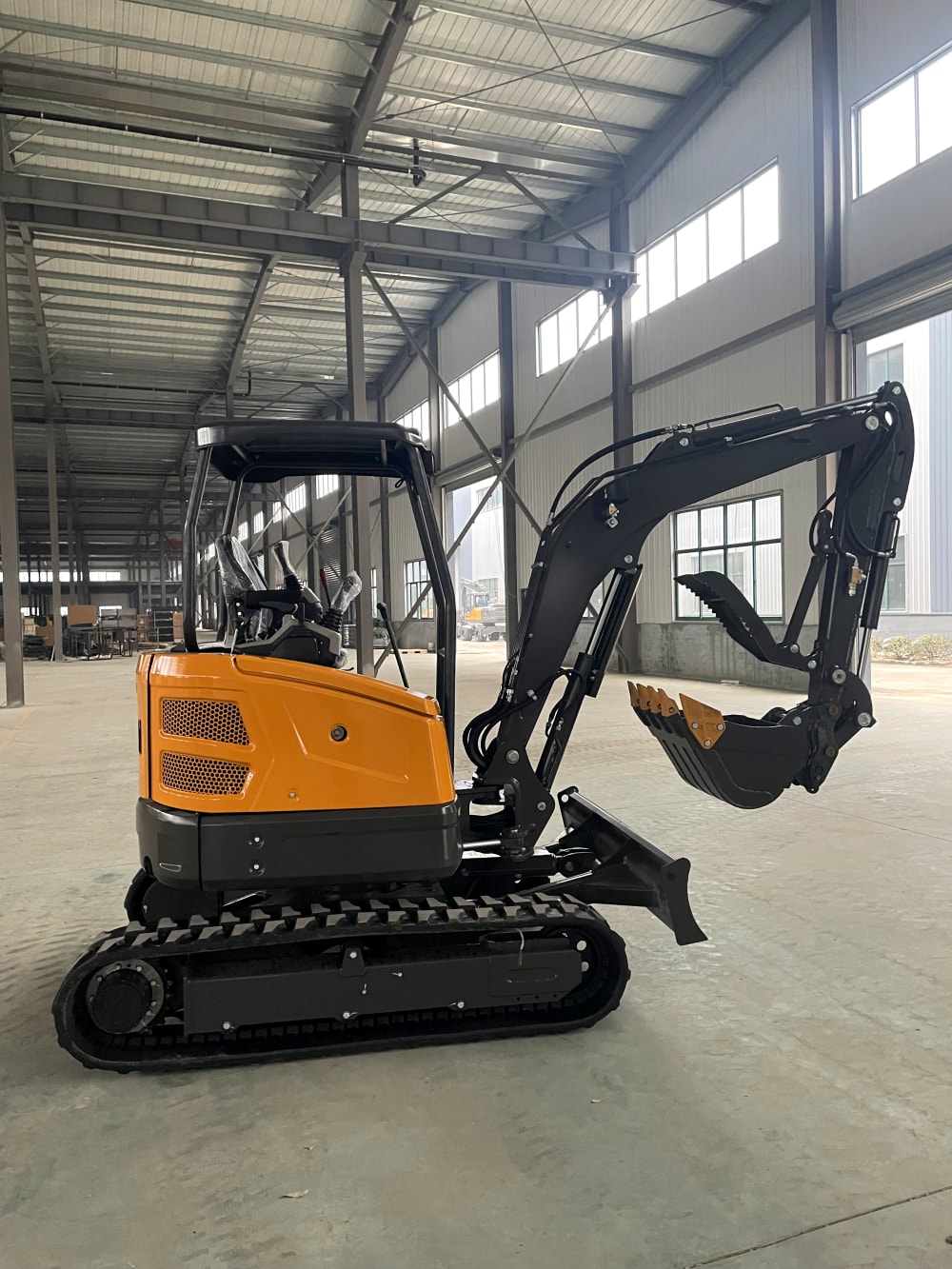

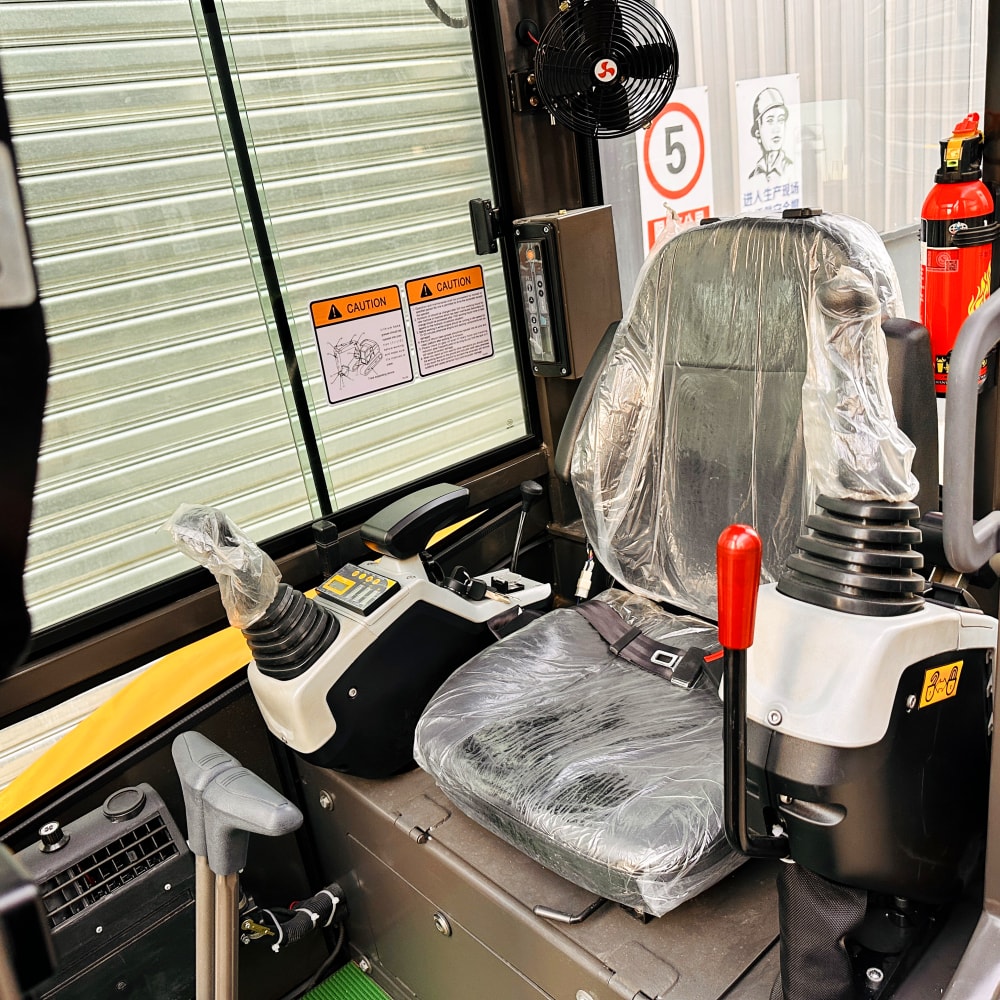

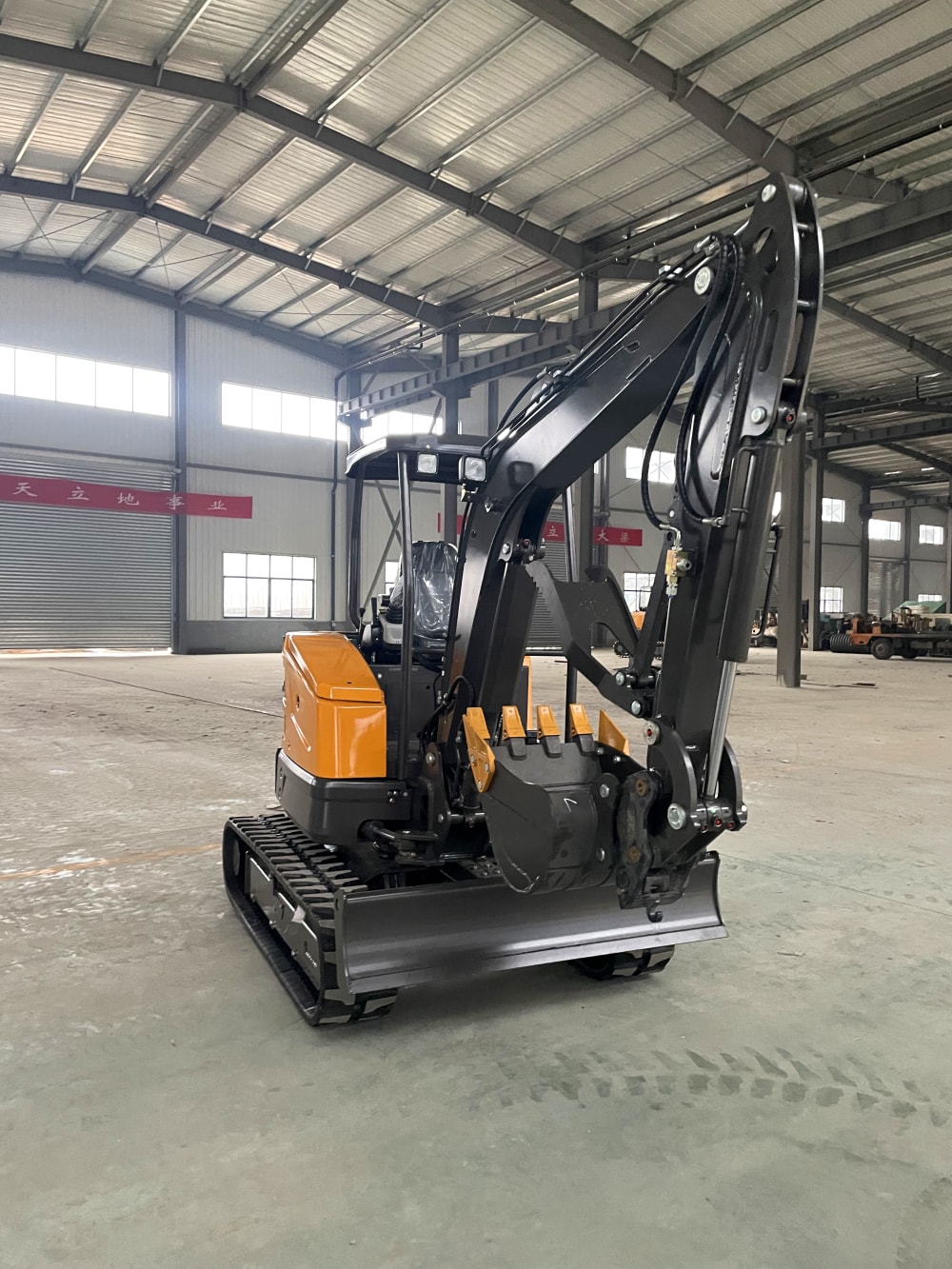

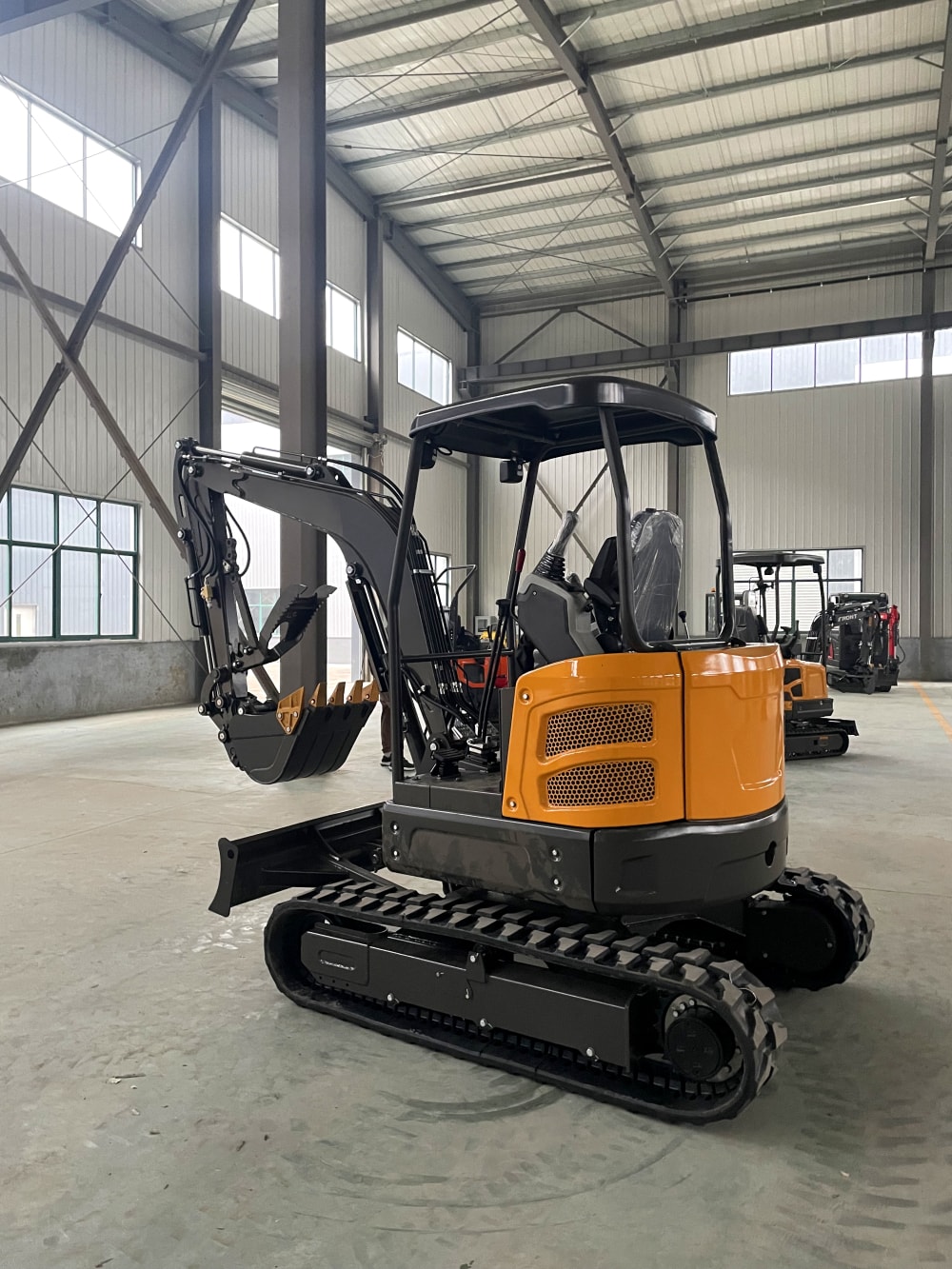

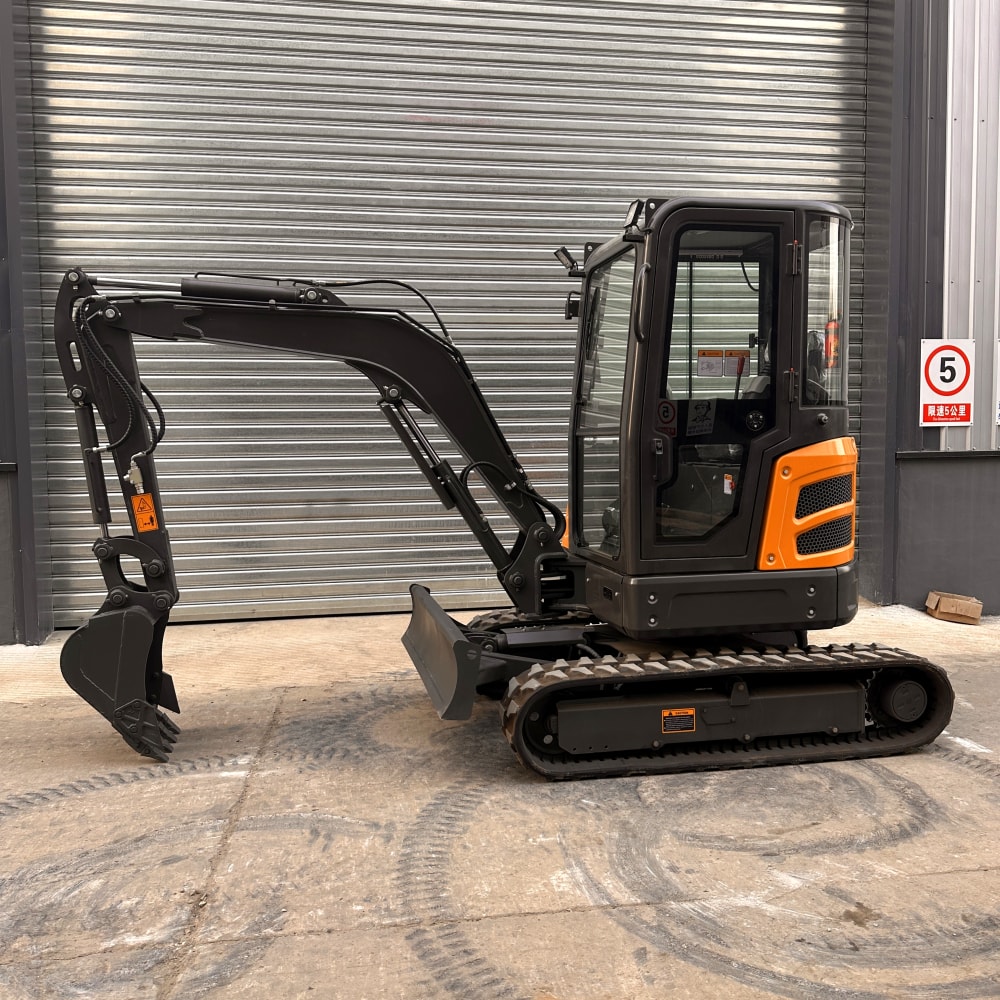

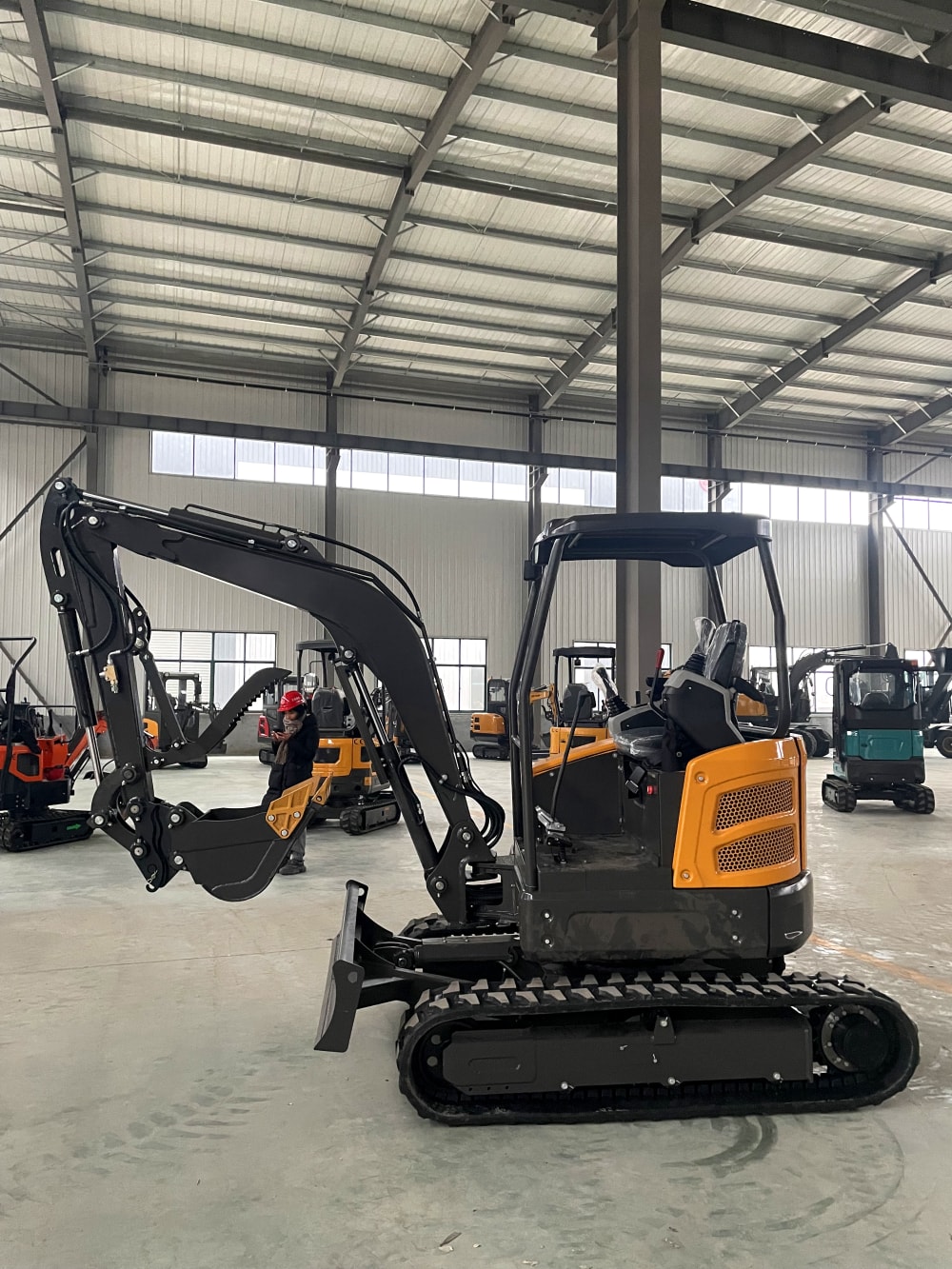

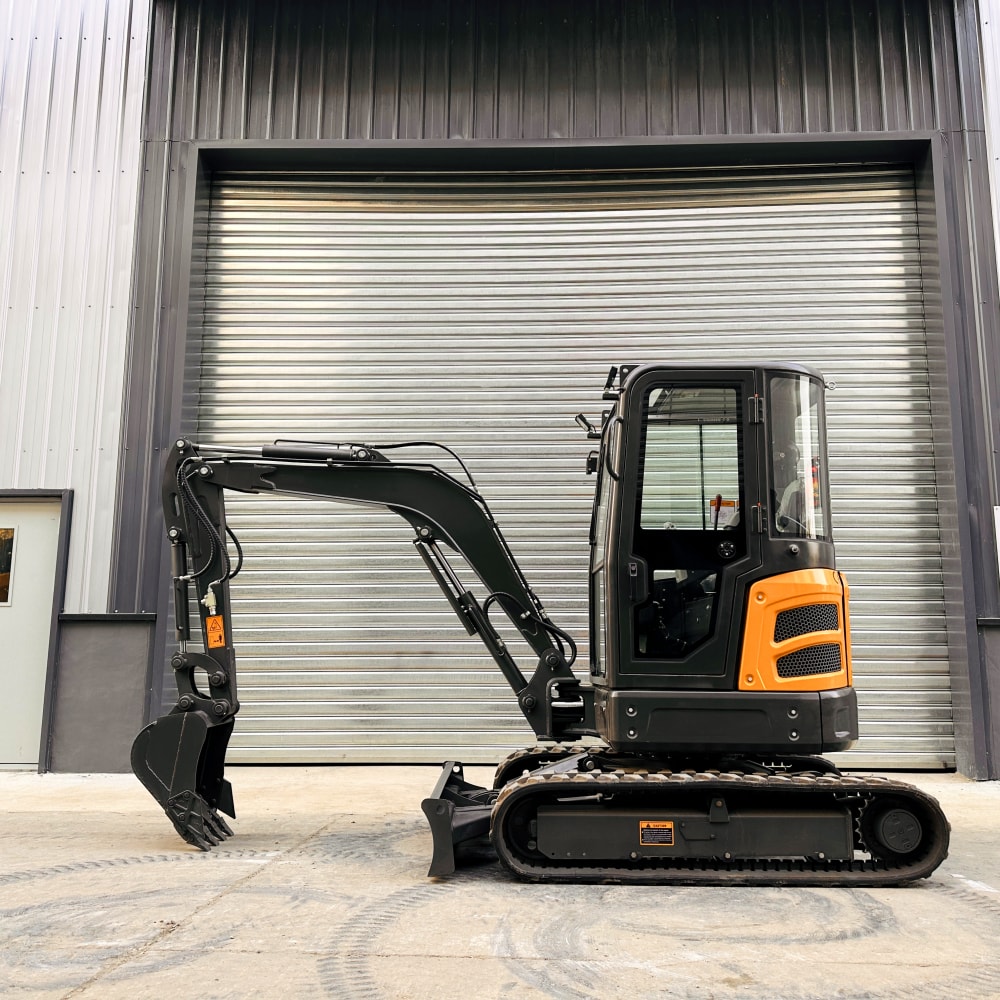

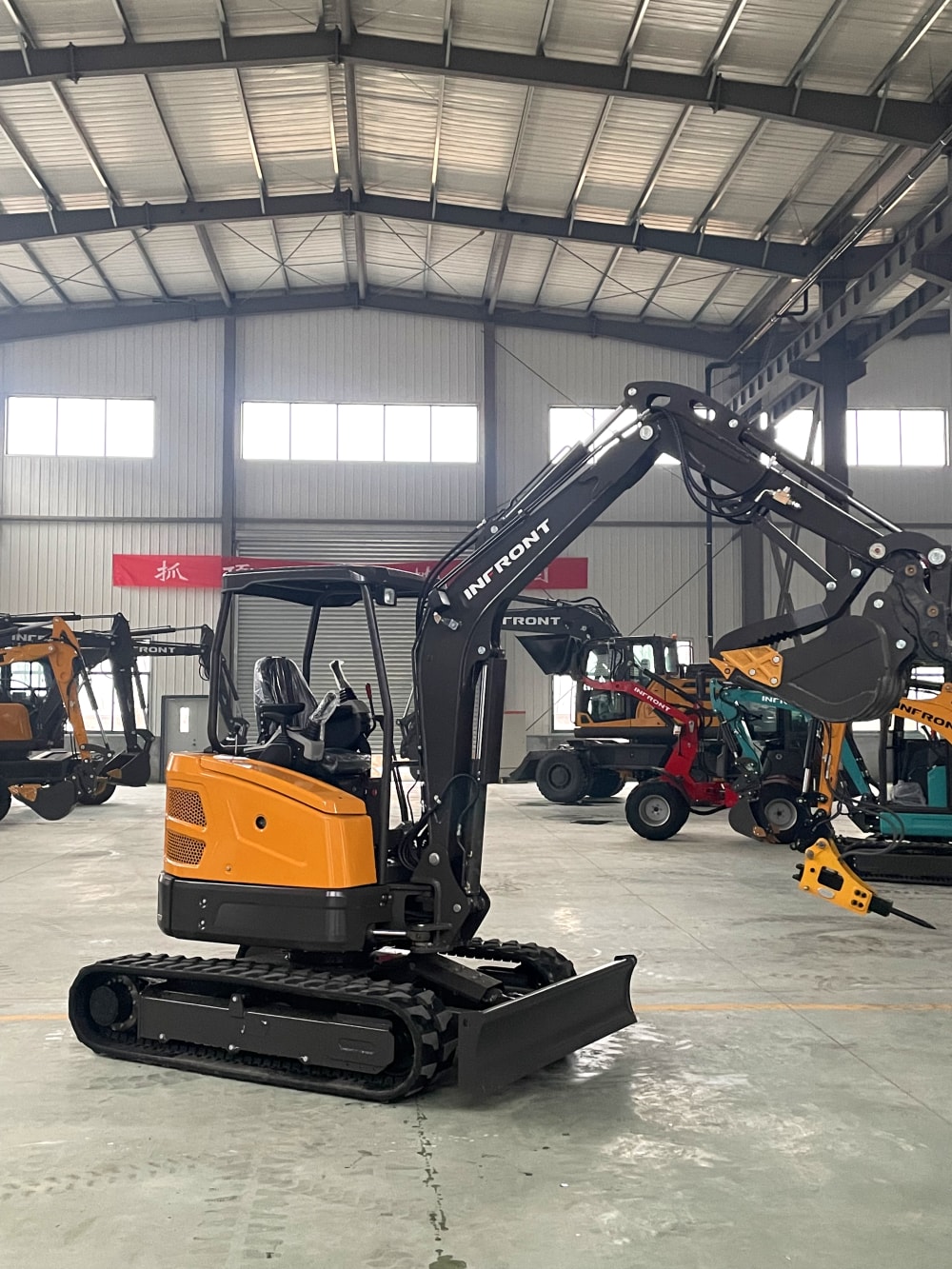

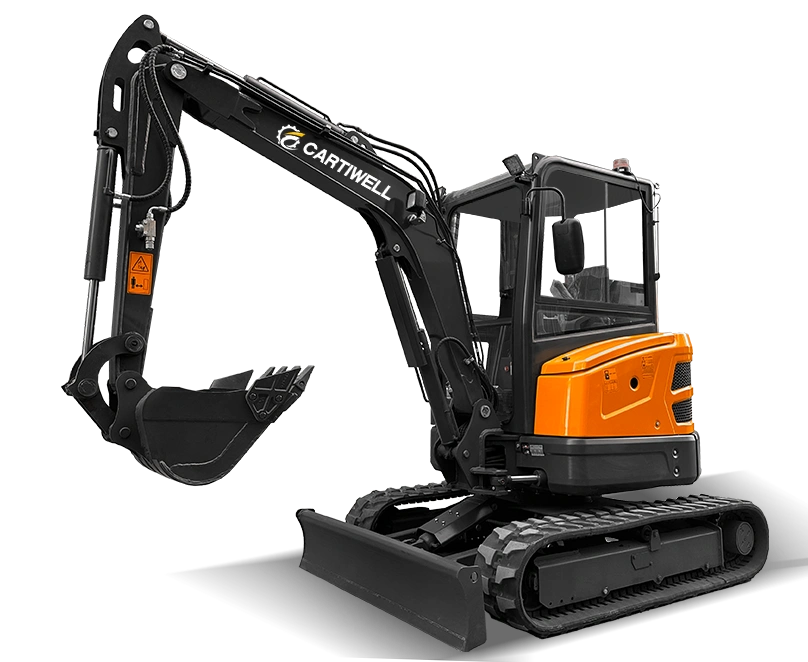

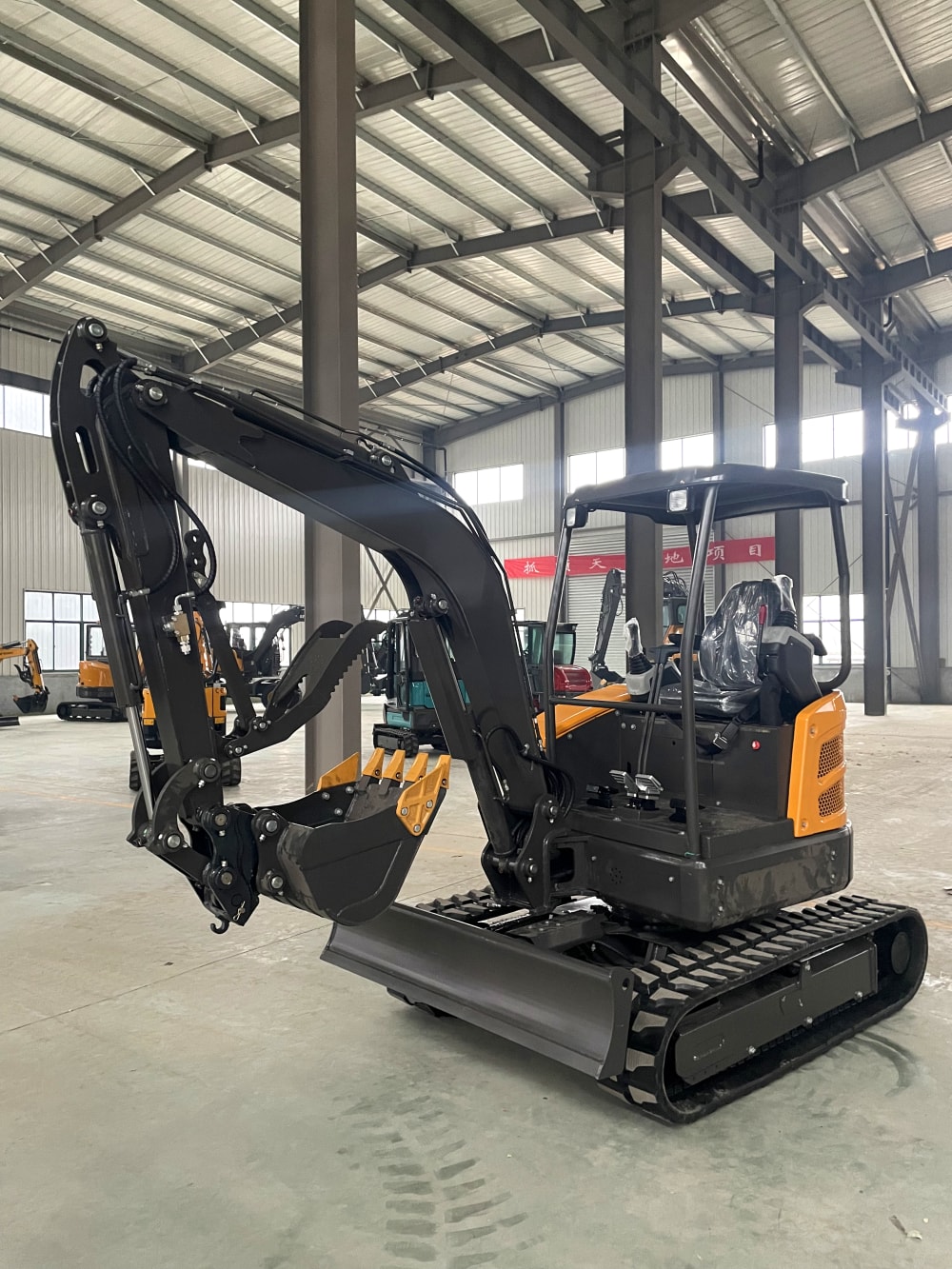

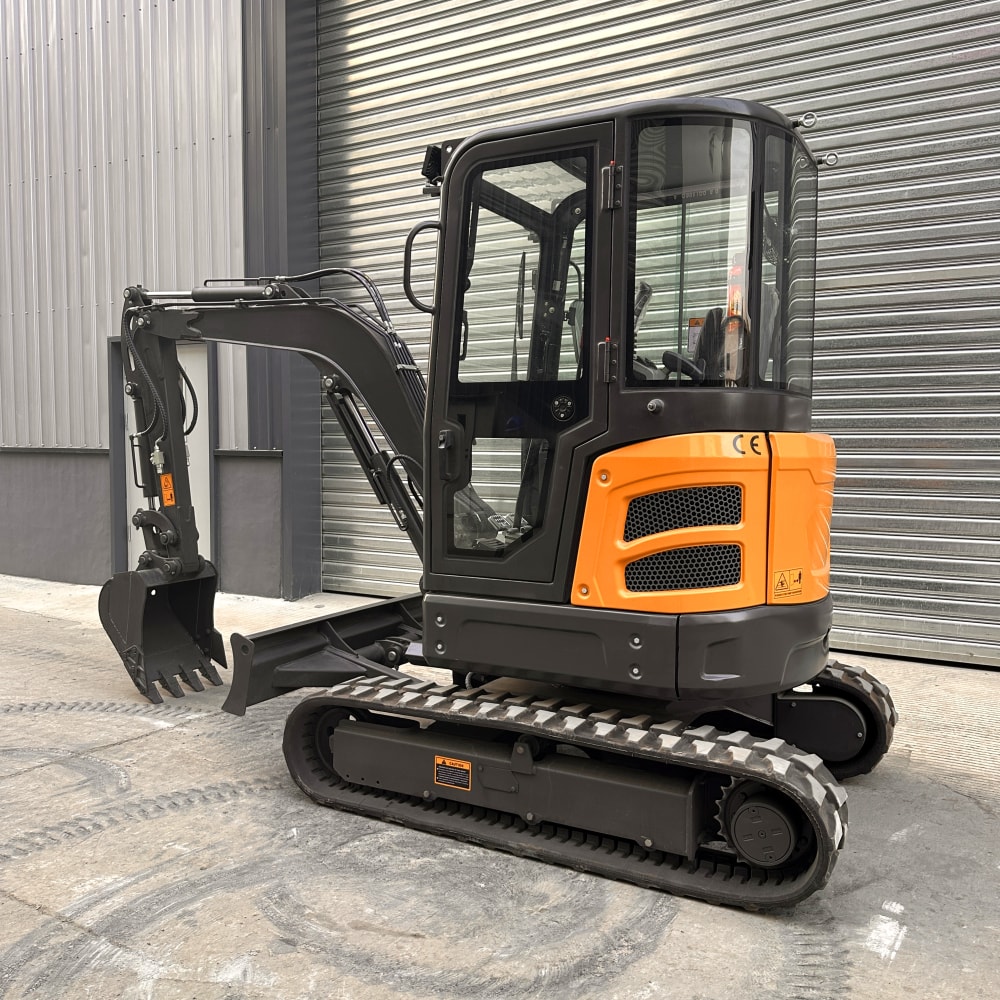

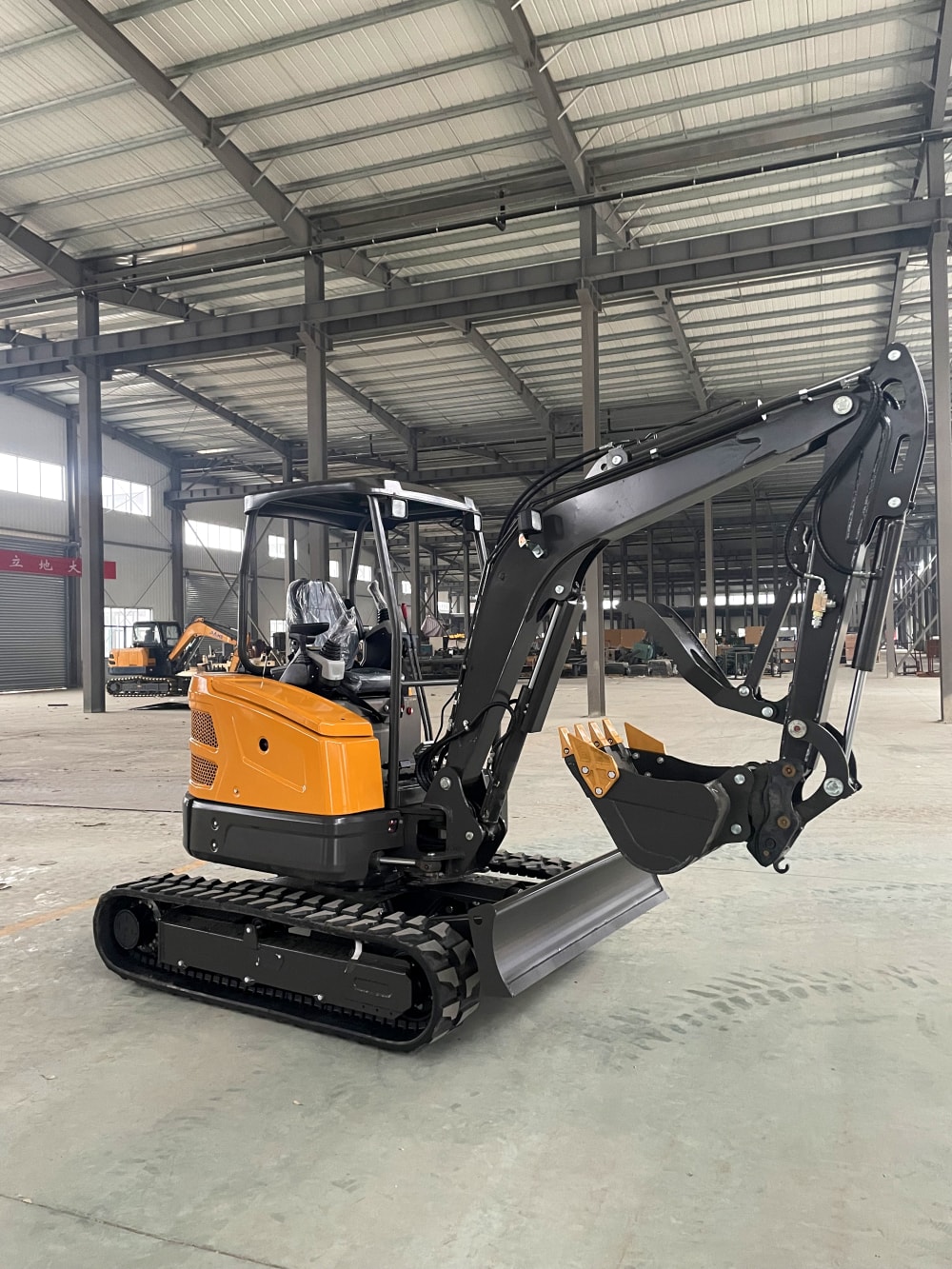

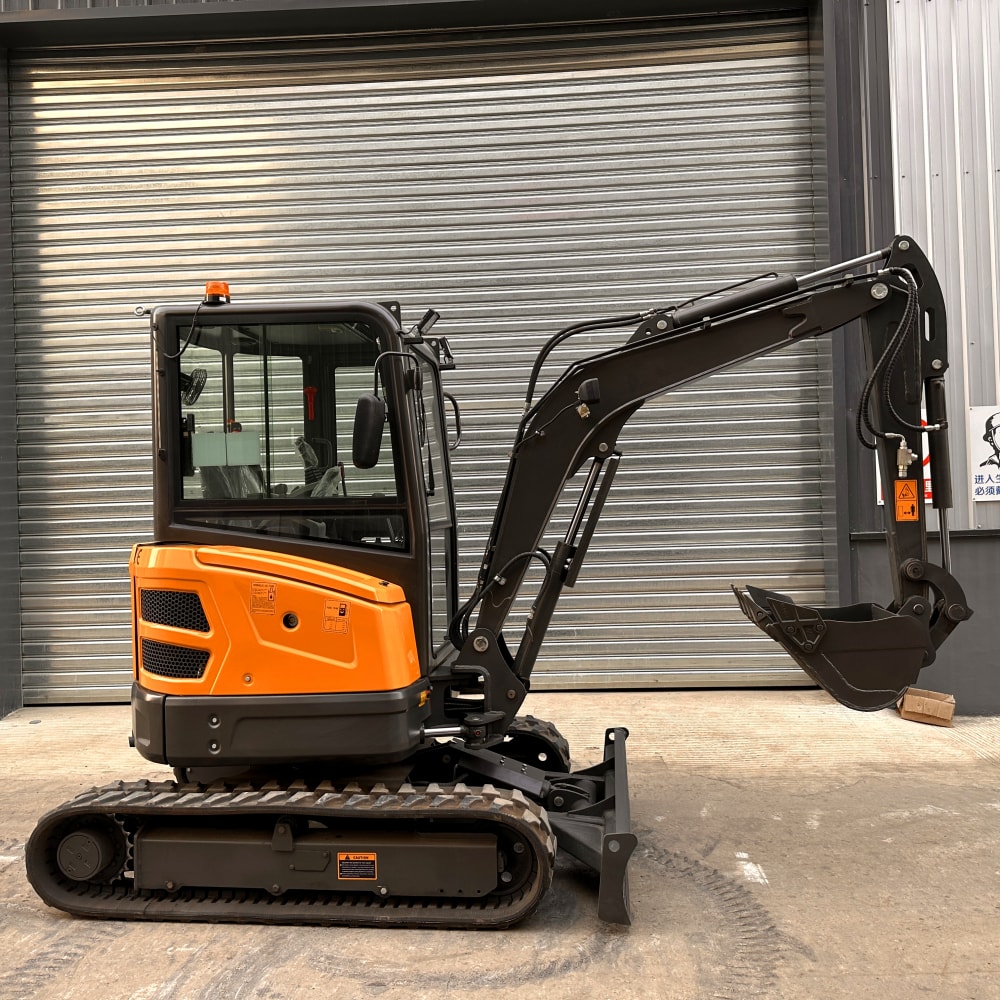

CW-27S adopts fully enclosed cab, which can effectively isolate noise and dust and create a comfortable and safe working environment for operators. Handle driving design, flexible and accurate operation, reducing the difficulty of operation. Powerful engine and advanced hydraulic system make digging and loading efficient and smooth, and easily cope with various working conditions. The structure has been reinforced to enhance durability and stability and prolong service life. The crawler design makes it stable in complex terrain and has good passability. Excellent cooling system ensures long-term stable operation of the machine. In addition, rich and diverse functions can meet various construction needs such as excavation, crushing and loading, and it is a high-quality choice for small-scale engineering construction.
