| Engine | |
| Model | CWD-1000 |
| Engine model | Briggs & Stratton XR2100 |
| Engine horsepower | 13.5 HP |
| Displacement | 500 cc |
| Rated power | 11 kW / 3600 rpm |
| Fuel type | 92# gasoline |
| Fuel consumption | ≤374 g/kW·h |
| Fuel tank capacity | 6.9 L |
| Engine oil capacity | 1.2 L |
| Weight and Dimensions | |
| Total weight | 690 kg |
| Upper limit of horizontal transportation load capacity | 1000 kg |
| Maximum loading weight | 800 kg |
| Machine size (without pedal, without bucket) | 1600 × 900 × 2000 mm |
| Bucket size with foot pedal | 2000 × 900 × 2000 mm |
| Container size | 1450 × 650 × 400 mm |
| Chassis width | 700 mm |
| Track Data | |
| Track width | 180 mm |
| Track contact length | 1200 mm |
| Chassis ground clearance | 110 mm |

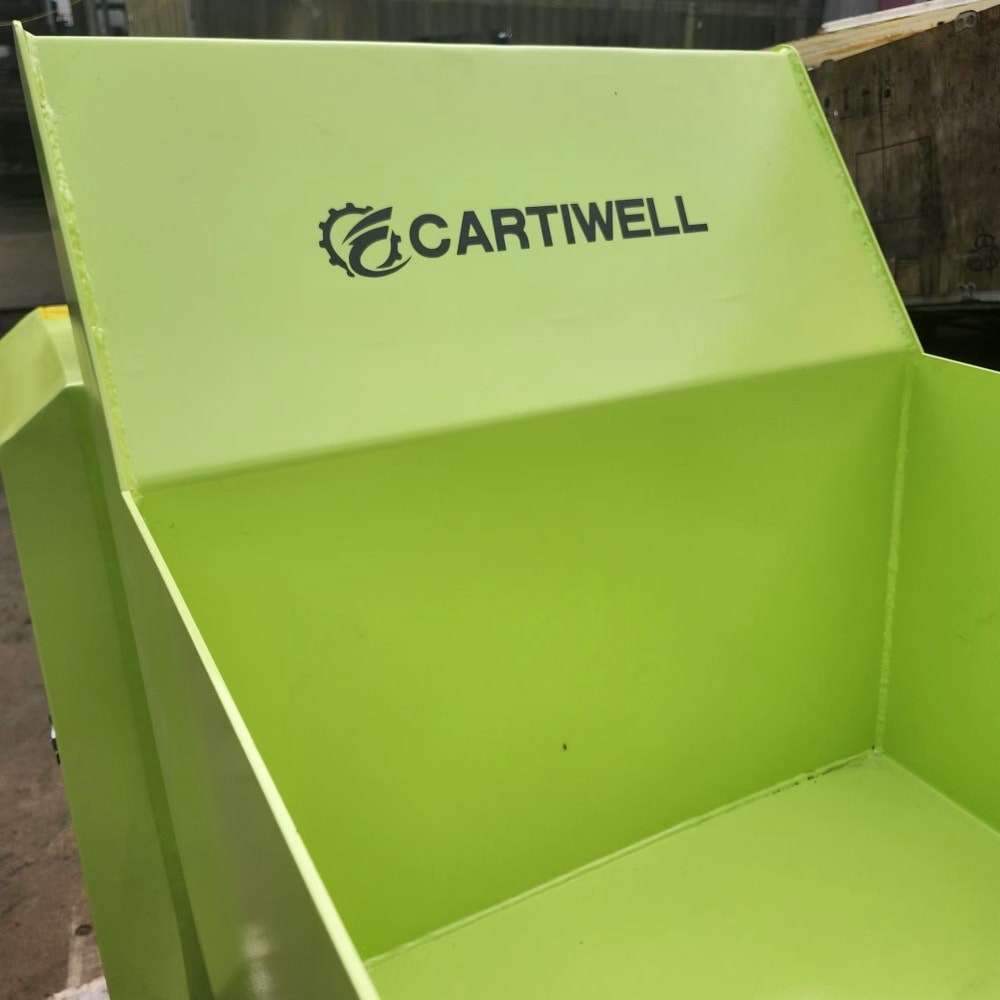

| Hopper | |
| Cargo box capacity (dimensions) | 700 × 800 × 220 mm |

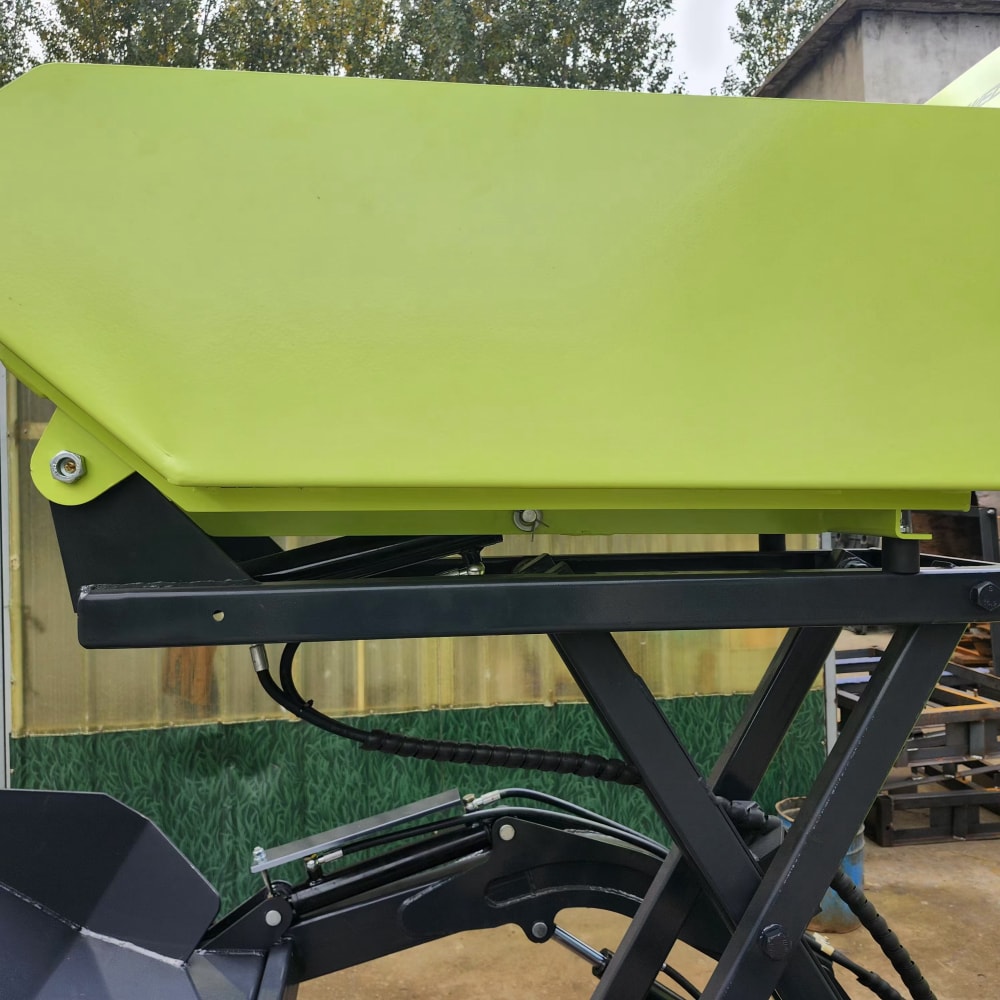

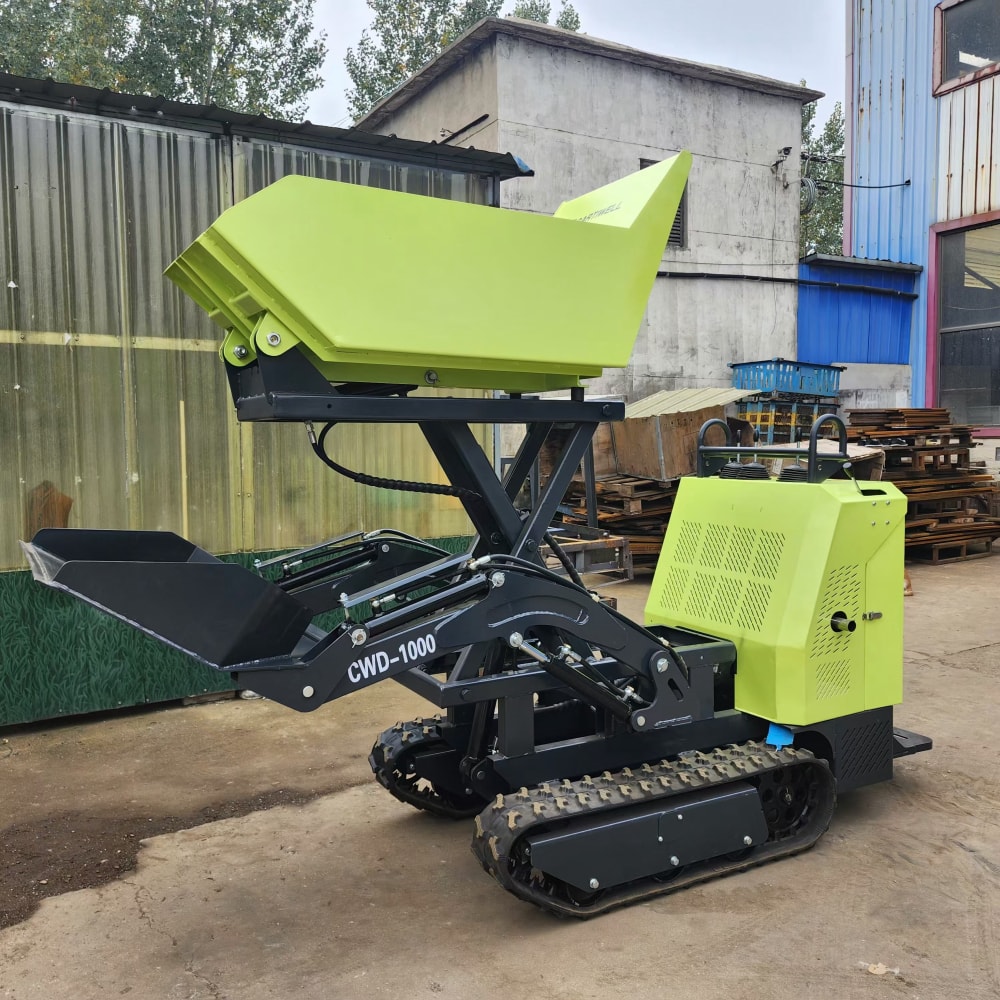

| Tipping system | Hydraulic |
| Tilting angle | 100° |
| Hydraulic Oil | |
| Hydraulic oil type | 46# anti-wear hydraulic oil |
| Hydraulic tank capacity | 20 L |

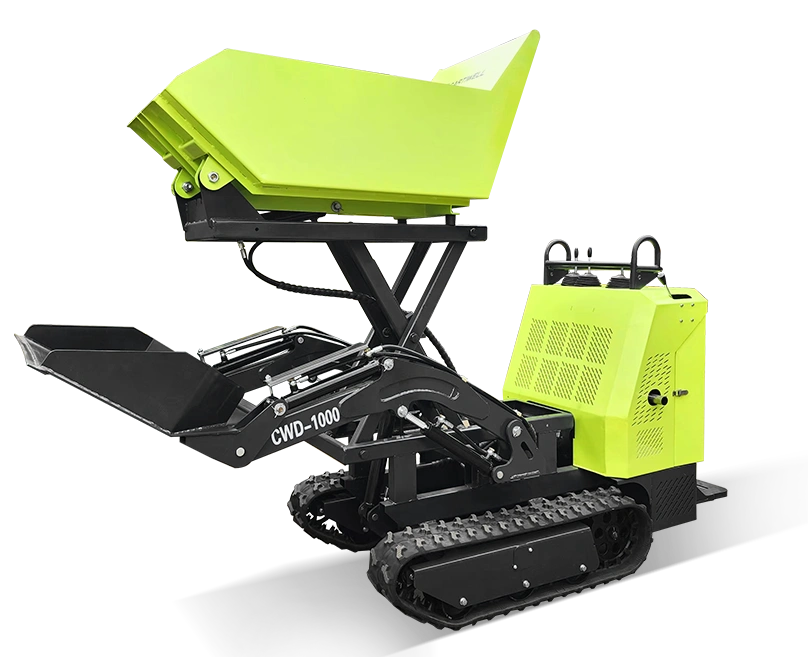

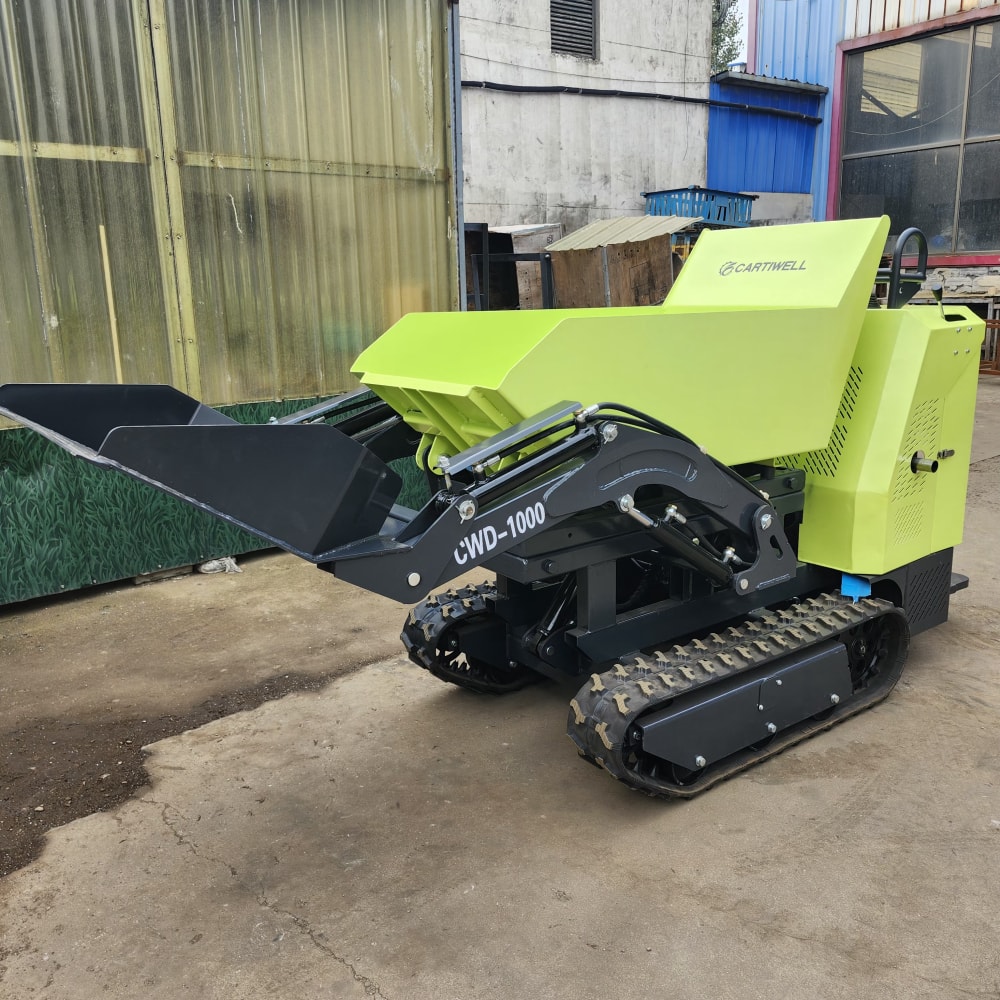

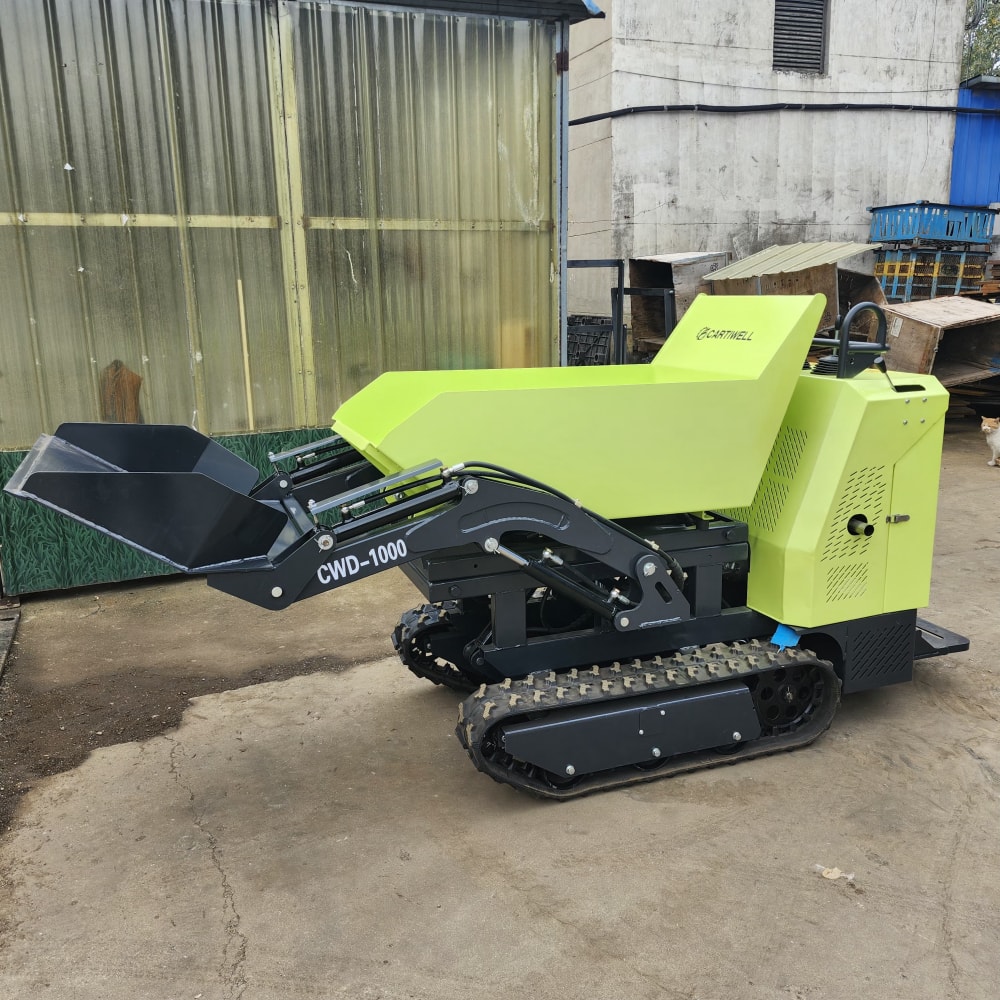

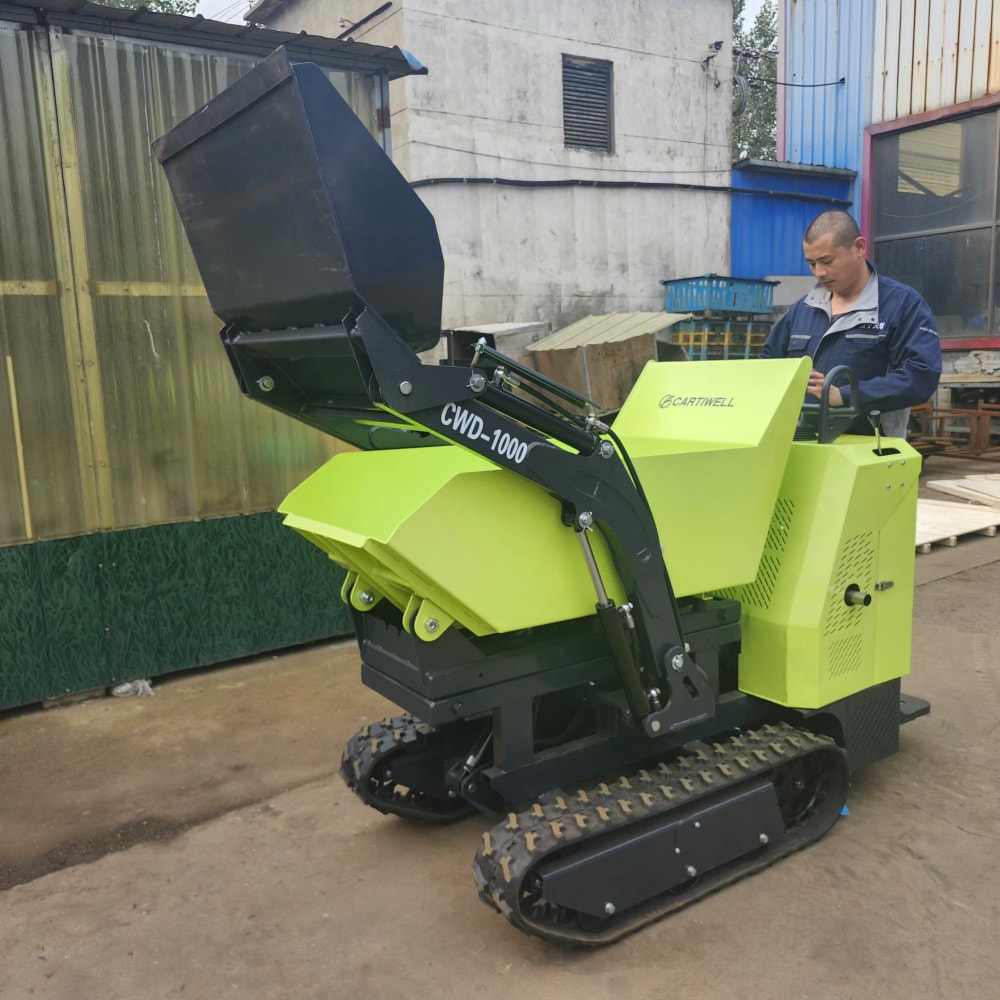

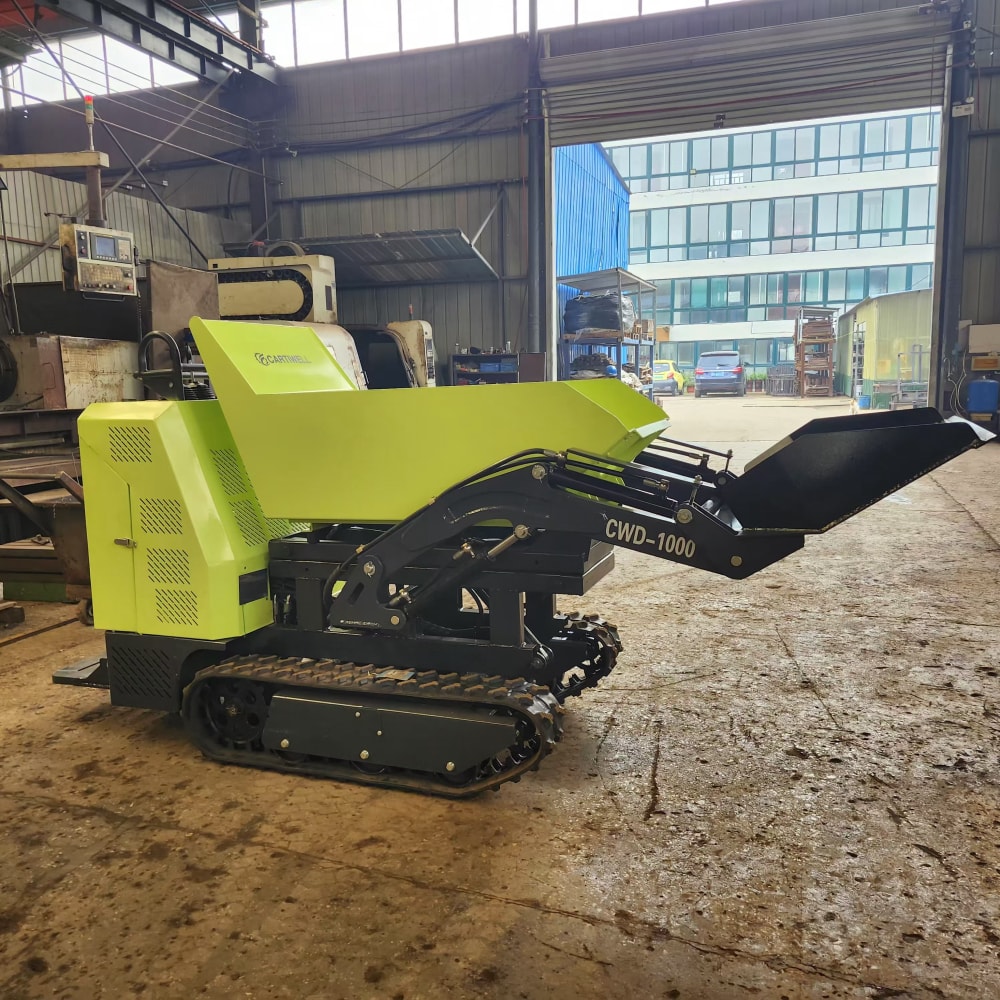

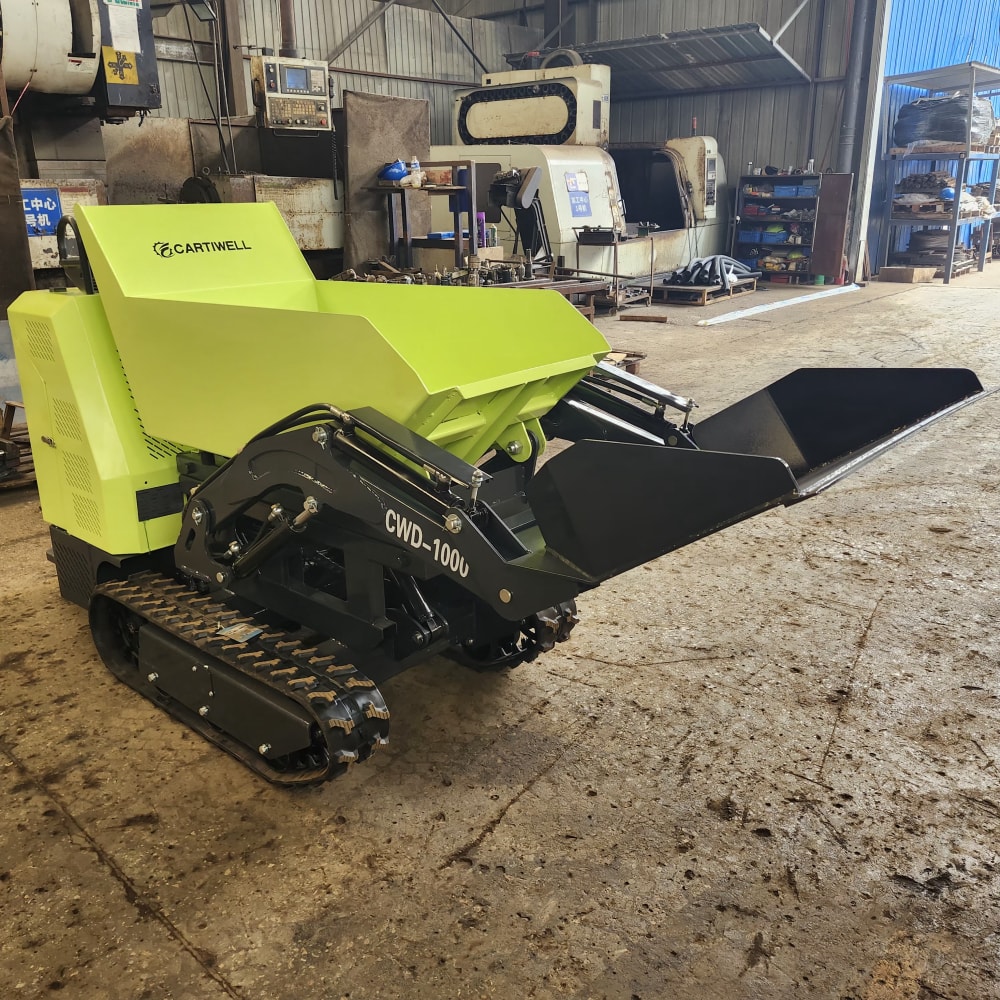

The CWD-1000 is a compact tracked mini dumper for moving materials through narrow access routes and around construction sites, farms and landscaping projects. Its rubber tracks provide traction on muddy and uneven terrain.

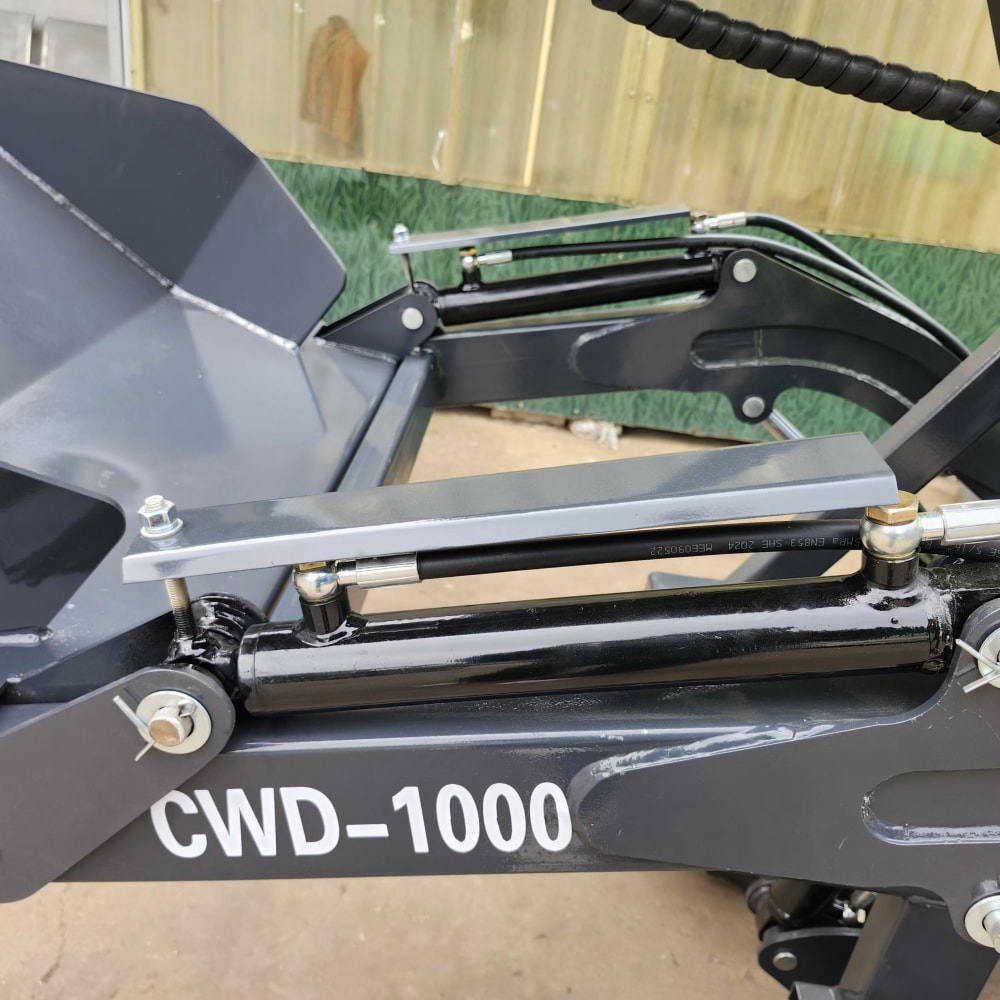

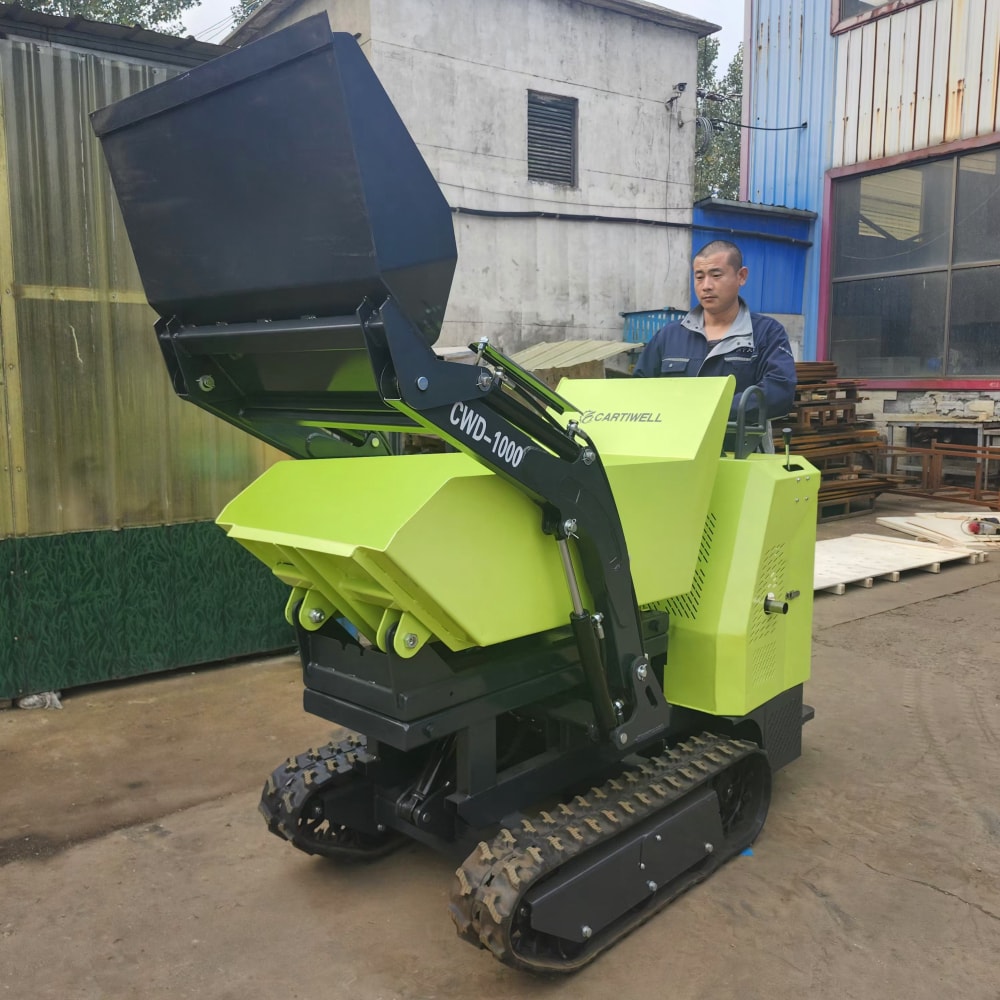

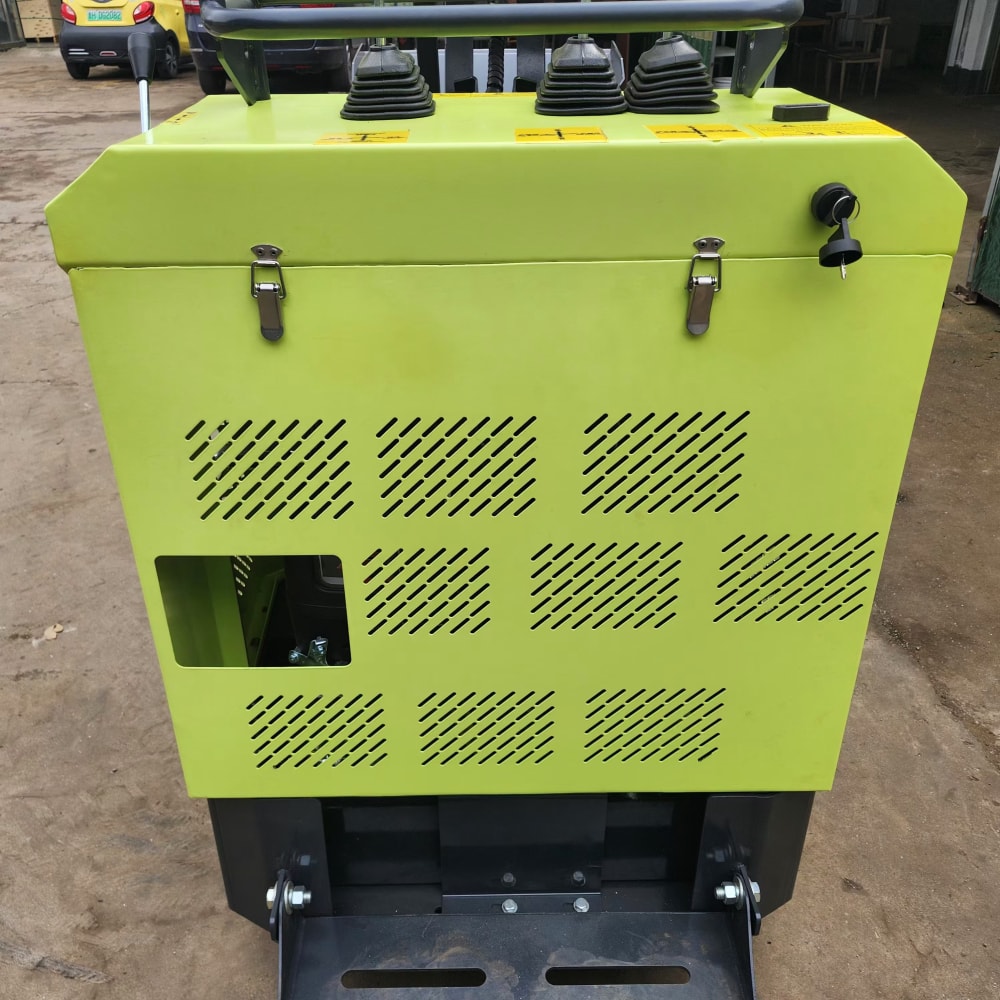

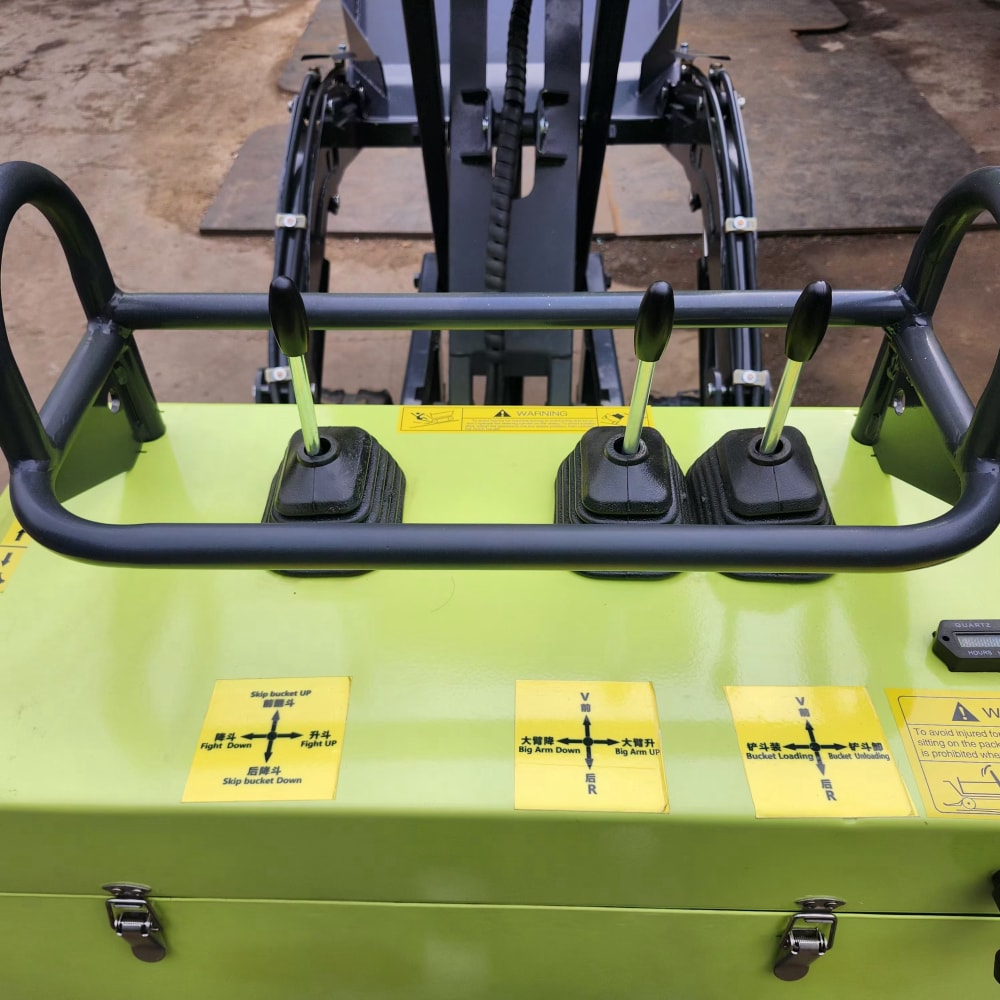

A hydraulic loading bucket and tipping system combine loading, transport and unloading in one machine. Rear controls, an operator standing area and an accessible engine compartment support day-to-day operation and maintenance.
